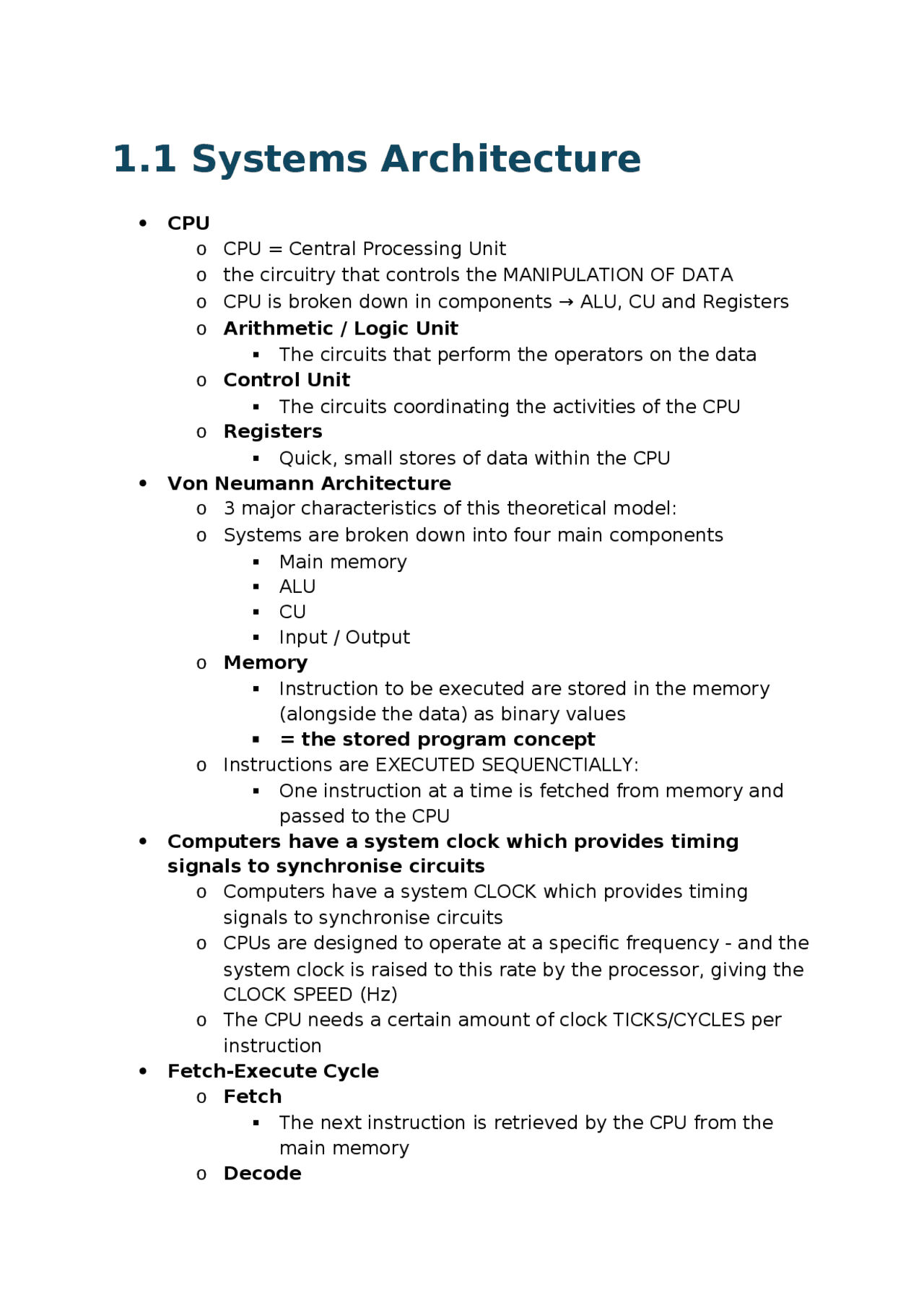

1.1 Systems Architecture

CPU

oCPU = Central Processing Unit

othe circuitry that controls the MANIPULATION OF DATA

oCPU is broken down in components → ALU, CU and Registers

oArithmetic / Logic Unit

The circuits that perform the operators on the data

oControl Unit

The circuits coordinating the activities of the CPU

oRegisters

Quick, small stores of data within the CPU

Von Neumann Architecture

o3 major characteristics of this theoretical model:

oSystems are broken down into four main components

Main memory

ALU

CU

Input / Output

oMemory

Instruction to be executed are stored in the memory

(alongside the data) as binary values

= the stored program concept

oInstructions are EXECUTED SEQUENCTIALLY:

One instruction at a time is fetched from memory and

passed to the CPU

Computers have a system clock which provides timing

signals to synchronise circuits

oComputers have a system CLOCK which provides timing

signals to synchronise circuits

oCPUs are designed to operate at a specific frequency - and the

system clock is raised to this rate by the processor, giving the

CLOCK SPEED (Hz)

oThe CPU needs a certain amount of clock TICKS/CYCLES per

instruction

Fetch-Execute Cycle

oFetch

The next instruction is retrieved by the CPU from the

main memory

oDecode

Partial preview of the text

Download Computer Systems Architecture: CPU, Von Neumann Architecture, and Fetch-Execute Cycle and more Study notes Computer science in PDF only on Docsity!

1.1 Systems Architecture

 CPU

o CPU = Central Processing Unit o the circuitry that controls the MANIPULATION OF DATA o CPU is broken down in components → ALU, CU and Registers o Arithmetic / Logic Unit  The circuits that perform the operators on the data o Control Unit  The circuits coordinating the activities of the CPU o Registers  Quick, small stores of data within the CPU  Von Neumann Architecture o 3 major characteristics of this theoretical model: o Systems are broken down into four main components  Main memory  ALU  CU  Input / Output o Memory  Instruction to be executed are stored in the memory (alongside the data) as binary values  = the stored program concept o Instructions are EXECUTED SEQUENCTIALLY:  One instruction at a time is fetched from memory and passed to the CPU  Computers have a system clock which provides timing signals to synchronise circuits o Computers have a system CLOCK which provides timing signals to synchronise circuits o CPUs are designed to operate at a specific frequency - and the system clock is raised to this rate by the processor, giving the CLOCK SPEED (Hz) o The CPU needs a certain amount of clock TICKS/CYCLES per instruction  Fetch-Execute Cycle o Fetch  The next instruction is retrieved by the CPU from the main memory o Decode

 operator + operand e.g. AND R1 R  The instruction is broken down to its individual components to determine what the instruction is, and what data is being used o Execute  The CU activates the necessary circuity / data transfers. The output of this stage is stored in a register, and data may be read/written from /to the main memory during this stage  Special-Purpose Registers o In contrast to GENERAL-PURPOSE registers which temporarily hold data or which can be used by a programmer o Program Counter (PC) = holds the MEMORY ADRESS (location and memorise) of the NEXT instruction to be executed. It increments (update by +1) after the fetch stage o Accumulator (ACC) = holds the RESULT of a calculation performed by the Arithmetic / Logic Unit o Memory Address Register (MAR) = holds the memory ADRESS of the data needing to be accessed by the CPU o Memory Data Register (MDR) = holds the DATA transferred to or from the memory location by the CPU o When READING, the data addressed by the MAR is held in the MDR o When WRITING, the data in the MDR is written to the address in the MAR o They act as buffer registers, there to compensate for the difference in speed between the CPU and main memory  Cache Memory o type of high-speed random access memory (RAM) which is built into the processor o Purpose of cache memory o Data can be transferred to and from cache memory more quickly than from RAM o As a result, cache memory is used to temporarily hold data and instructions that the processor is likely to reuse o This allows for faster processing as the processor does not have to wait for the data and instructions to be fetched from RAM o o The more cache memory a computer has, the faster it runs o However, because of its high-speed performance, cache memory is more expensive to build than RAM

o clock speed o cache size o number of cores  Clock speed o CPU contains a clock which is used to coordinate all of the computer’s components o Clock sends out regular electrical pulses which synchronises (keeps in time) all the components o Clock speed is measured in hertz o Higher frequency = more instructions can be performed in any given moment of time o Overclocking → user speeds up CPU clock o More pulses per second = more fetch-decode-execute cycles performed and more instructions processed in a given time o Overclocking can cause long term damage to CPU → it is working harder and producing more heat  Cache size o cache is a small amount of high-speed random access memory (RAM) built directly within the processor o used to temporarily HOLD DATA and INSTRUCTIONS that processor is likely to reuse o bigger cache = less time processor has to wait for instructions to be fetched  Number of cores o core = processing unit with a CPU o each core is capable of fetching, decoding and executing its own instructions o more cores a CPU has = greater number of instructions it can process in a given space of time o modern CPUs are dual or quad core processors  provides vastly superior processing power  Embedded Systems o A special purpose computer built into another device o An embedded system is a small computer that forms part of a larger system, device or machine o Its purpose is to control the device and to allow a user to interact with it o They tend to have one, or a limited number of tasks that they can perform o Examples  central heating systems  engine management systems in vehicles

 domestic appliances, such as dishwashers, TVs and digital phones  digital watches  electronic calculators  GPS systems  fitness trackers o embedded devices not usually programmable by user  Advantages of embedded systems over general purpose computers o Their limited number of functions means they are cheaper to design and build o They tend to require less power. Some devices run from batteries o They do not need much processing power. They can be built using cheaper, less powerful processors
