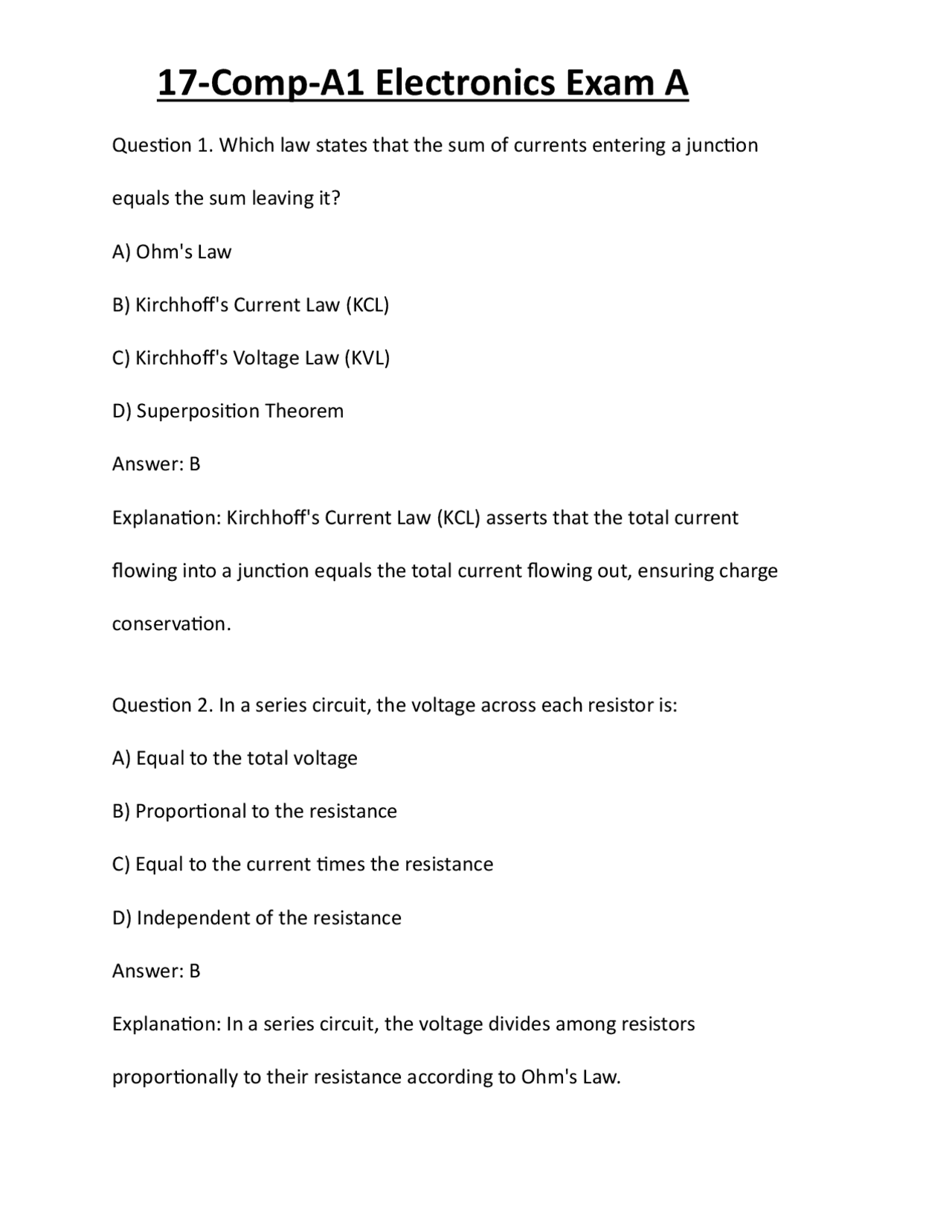

Question 1. Which law states that the sum of currents entering a junction equals the sum leaving it? A) Ohm's Law B) Kirchhoff's Current Law (KCL) C) Kirchhoff's Voltage Law (KVL) D) Superposition Theorem Answer: B Explanation: Kirchhoff's Current Law (KCL) asserts that the total current flowing into a junction equals the total current flowing out, ensuring charge conservation. Question 2. In a series circuit, the voltage across each resistor is: A) Equal to the total voltage B) Proportional to the resistance C) Equal to the current times the resistance D) Independent of the resistance Answer: B Explanation: In a series circuit, the voltage divides among resistors proportionally to their resistance according to Ohm's Law.
Question 3. Which theorem allows us to replace a complex network with a single voltage source and series resistance? A) Norton's Theorem B) Superposition Theorem C) Thevenin's Theorem D) Maximum Power Transfer Theorem Answer: C Explanation: Thevenin's Theorem simplifies a linear circuit to a single voltage source and series resistance, facilitating analysis. Question 4. The impedance of an inductor in an AC circuit is given by: A) ZL=RZ_L = R ZL = R B) ZL=jωLZ_L = j \omega L ZL = jωL C) ZL=1/(jωC)Z_L = 1 / (j \omega C) ZL =1/( jωC ) D) ZL=1/RZ_L = 1 / R ZL =1/ R Answer: B Explanation: The impedance of an inductor is ZL=jωLZ_L = j \omega L ZL = jωL , where ω\omega ω is angular frequency and LL L is inductance, representing a phase shift and frequency dependence.
Question 7. The superposition theorem is applicable in analyzing circuits with: A) Nonlinear elements only B) Multiple sources, linear elements C) Single voltage source only D) Only DC circuits Answer: B Explanation: Superposition theorem applies to linear circuits with multiple independent sources, allowing analysis by considering each source separately. Question 8. The maximum power transfer theorem states that maximum power is transferred when the load resistance equals: A) The circuit’s internal resistance B) The source resistance C) The reciprocal of the source resistance D) Zero Answer: B
Explanation: Maximum power transfer occurs when the load resistance matches the source (or Thevenin equivalent) resistance. Question 9. In an AC circuit, the phase angle between voltage and current in a purely inductive load is: A) 0° B) 90° C) - 90° D) 180° Answer: B Explanation: In a purely inductive load, current lags voltage by 90°, resulting in a phase angle of +90°. Question 10. The reactance of a capacitor at a frequency ff f is given by: A) XC=2πfLX_C = 2 \pi f L XC =2 πfL B) XC=1/(2πfC)X_C = 1 / (2 \pi f C) XC =1/(2 πfC ) C) XC=RX_C = R XC = R D) XC=2πfCX_C = 2 \pi f C XC =2 πfC Answer: B
Explanation: Voltage multipliers use diode-capacitor networks to produce higher or lower DC voltages from an AC source. Question 13. A diode ideally acts as: A) A resistor B) An open circuit in forward bias C) A short circuit in forward bias and open in reverse bias D) A perfect conductor in reverse bias Answer: C Explanation: An ideal diode conducts with zero voltage drop in forward bias and blocks in reverse bias, acting as a perfect switch. Question 14. Zener diodes are primarily used for: A) Rectification B) Voltage regulation C) Signal amplification D) Light emission Answer: B Explanation: Zener diodes operate in reverse breakdown, providing a stable reference voltage for regulation purposes.
Question 15. The I-V characteristic of a diode shows: A) A linear relationship in both forward and reverse bias B) Exponential increase in forward bias and minimal current in reverse bias C) Constant current regardless of voltage D) Alternating current response only Answer: B Explanation: Diodes exhibit exponential I-V behavior in forward bias and negligible current in reverse bias until breakdown. Question 16. In a half-wave rectifier, the output voltage is: A) Pulsating DC with a frequency equal to the input AC frequency B) Smooth DC C) Pulsating DC with double the input frequency D) Zero during positive half cycles Answer: A Explanation: Half-wave rectifiers conduct only during positive half cycles, resulting in pulsating DC at the same frequency as the input AC. Question 17. The primary purpose of a capacitor filter in a power supply is to:
B) A current-controlled current source C) A voltage-controlled resistor D) An open circuit Answer: B Explanation: In active mode, BJTs act as current-controlled current sources, amplifying input current to produce a larger output current. Question 20. In a common-emitter BJT amplifier, the input is applied between: A) Collector and emitter B) Base and emitter C) Collector and base D) Emitter and ground Answer: B Explanation: The common-emitter configuration uses the base as the input terminal, with the emitter common to both input and output circuits. Question 21. The cutoff region of a BJT occurs when: A) Base-emitter junction is forward biased B) Base-emitter junction is reverse biased
C) Collector-base junction is forward biased D) Collector current is maximum Answer: B Explanation: When the base-emitter junction is reverse biased, the BJT is in cutoff, and collector current is essentially zero. Question 22. The main advantage of a MOSFET over a JFET is: A) Higher voltage handling capability B) Better thermal stability and ease of fabrication C) Lower input impedance D) No need for biasing Answer: B Explanation: MOSFETs are generally easier to fabricate, have better thermal stability, and allow enhancement or depletion mode operation. Question 23. The operation of an enhancement-mode N-channel MOSFET depends on: A) Applying a voltage below threshold B) Applying a voltage above threshold at the gate to induce a channel C) Applying zero voltage at the gate
Answer: B Explanation: The voltage gain in a CE amplifier depends on the transistor’s transconductance and the load resistor, which determines amplification. Question 26. Negative feedback in an amplifier results in: A) Increased gain but decreased bandwidth B) Decreased gain and improved stability C) No change in performance D) Complete cancellation of the input signal Answer: B Explanation: Negative feedback reduces gain but improves linearity, stability, and bandwidth of the amplifier. Question 27. An operational amplifier ideally has: A) Infinite input impedance and zero output impedance B) Zero input impedance and infinite output impedance C) Zero gain and zero bandwidth D) Limited input and output impedance Answer: A Explanation: Ideal op-amps are modeled with infinite input impedance (no
input current) and zero output impedance (voltage can be delivered without loss). Question 28. In an inverting op-amp configuration, the input signal is applied to: A) Non-inverting terminal B) Inverting terminal through a resistor C) Both terminals simultaneously D) Output terminal Answer: B Explanation: The inverting amplifier configuration applies the input signal to the inverting terminal via a resistor, with the non-inverting terminal grounded. Question 29. A comparator is used to: A) Amplify AC signals B) Convert analog signals into digital signals by comparing voltages C) Filter high-frequency noise D) Generate sinusoidal oscillations Answer: B
Question 32. The Barkhausen criterion for oscillation states that: A) The total phase shift must be 180° with gain greater than 1 B) The loop gain magnitude must be unity with total phase shift 0° or 360° C) The circuit must be a perfect amplifier D) The feedback must be positive with phase shift of 90° Answer: B Explanation: Barkhausen's criterion requires the loop gain to have magnitude 1 and phase shift 0° or 360° for sustained oscillations. Question 33. A linear voltage regulator typically uses which component to maintain a steady output voltage? A) Transformer B) Zener diode or pass transistor C) Rectifier diode D) Oscillator Answer: B Explanation: Linear regulators employ a pass transistor controlled by a reference diode (like Zener) to maintain a constant output voltage.
Question 34. In digital electronics, the Boolean expression A⋅(B+C)A \cdot (B
- C) A ⋅( B + C ) simplifies to: A) A⋅B+A⋅CA \cdot B + A \cdot C A ⋅ B + A ⋅ C B) A+B+CA + B + C A + B + C C) A⋅B⋅CA \cdot B \cdot C A ⋅ B ⋅ C D) A+(B⋅C)A + (B \cdot C) A +( B ⋅ C ) Answer: A Explanation: The distributive law states A⋅(B+C)=A⋅B+A⋅CA \cdot (B + C) = A \cdot B + A \cdot C A ⋅( B + C )= A ⋅ B + A ⋅ C. Question 35. The Karnaugh map is used for: A) Designing digital logic gates B) Simplifying Boolean expressions C) Timing analysis D) Power calculation in digital circuits Answer: B Explanation: Karnaugh maps provide a visual method to minimize Boolean expressions efficiently.
Question 38. A D flip-flop changes its state on: A) The rising edge of the clock signal B) The falling edge of the clock signal C) Both edges equally D) When the data input is high only Answer: A Explanation: D flip-flops are edge-triggered devices that latch data on the rising (or falling, depending on design) clock edge. Question 39. An asynchronous counter: A) Counts based on a clock signal in sequence B) Counts independently of clock signals using ripple effect C) Uses flip-flops synchronized by a common clock D) Cannot be implemented in digital circuits Answer: B Explanation: Asynchronous counters ripple through flip-flops with each input pulse, not synchronized by a common clock. Question 40. The main advantage of CMOS logic families over TTL is: A) Faster switching speeds
B) Lower power dissipation C) Higher fan-in limits D) Better noise immunity in all conditions Answer: B Explanation: CMOS logic consumes less power due to its high input impedance and low static power dissipation. Question 41. In a 4-bit binary ripple counter, the counting sequence is typically: A) Synchronous with a common clock B) Asynchronous, with flip-flops toggling sequentially C) Random D) Always in Gray code Answer: B Explanation: Ripple counters are asynchronous, with flip-flops toggling sequentially on clock edges, causing ripple delays. Question 42. An R-2R ladder DAC uses: A) Resistors of only two values, R and 2R, to convert digital signals to analog voltage
