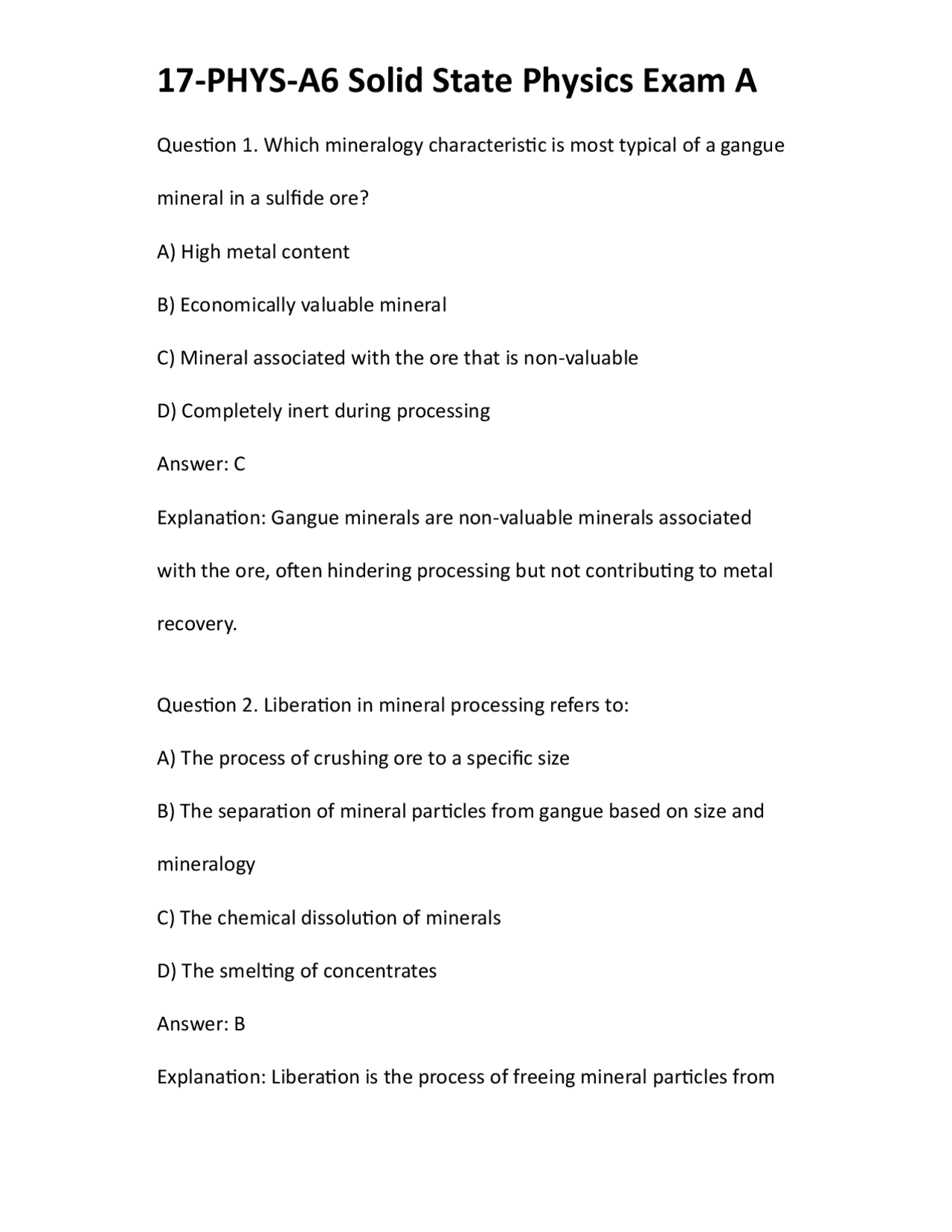

Question 1. Which mineralogy characteristic is most typical of a gangue mineral in a sulfide ore? A) High metal content B) Economically valuable mineral C) Mineral associated with the ore that is non-valuable D) Completely inert during processing Answer: C Explanation: Gangue minerals are non-valuable minerals associated with the ore, often hindering processing but not contributing to metal recovery. Question 2. Liberation in mineral processing refers to: A) The process of crushing ore to a specific size B) The separation of mineral particles from gangue based on size and mineralogy C) The chemical dissolution of minerals D) The smelting of concentrates Answer: B Explanation: Liberation is the process of freeing mineral particles from
gangue to enable effective separation, crucial for efficient mineral processing. Question 3. Which factor most significantly affects mineral liberation? A) Mineral color B) Grain size and texture C) Ambient temperature D) Processing plant location Answer: B Explanation: Grain size and mineral textures influence how well minerals can be liberated during crushing and grinding, affecting subsequent separation efficiency. Question 4. Which method is commonly used for microscopic assessment of mineral liberation? A) Sieve analysis B) Optical microscopy C) X-ray fluorescence D) Magnetic separation Answer: B
smaller than each specified size, useful for understanding the size distribution. Question 7. Which technique is particularly suitable for sub-sieve particle size measurement? A) Traditional sieving B) Laser diffraction C) Optical microscopy D) X-ray diffraction Answer: B Explanation: Laser diffraction provides accurate particle size measurements below the sieve limit, ideal for sub-sieve analysis. Question 8. The mean particle size in a sample is: A) The size at which 50% of particles are smaller and 50% are larger B) The average of the largest and smallest particles C) The median size of the particles D) The size corresponding to the peak of the size distribution curve Answer: A Explanation: The mean particle size often refers to the average size, but
the median (size at 50%) is also commonly used; here, the question defines the median. Question 9. Material balance in mineral processing circuits is based on: A) The law of conservation of mass B) The law of conservation of energy C) The principle of maximum recovery D) The principle of minimum energy consumption Answer: A Explanation: Material balances rely on mass conservation, ensuring input, output, and accumulation are properly accounted for in process calculations. Question 10. In a crushing circuit, the primary purpose is to: A) Achieve liberation of minerals B) Reduce ore size for downstream processing C) Separate minerals based on density D) Remove impurities chemically Answer: B
Explanation: CSS controls the maximum size of the crushed material leaving the crusher, directly influencing product size. Question 13. Which type of grinding mill uses ore itself as the grinding media? A) Ball mill B) Rod mill C) Autogenous mill D) Vertical roller mill Answer: C Explanation: Autogenous mills utilize the ore's own material as grinding media, reducing the need for steel balls and lowering costs. Question 14. The primary benefit of semi-autogenous grinding (SAG) mills is: A) Reduced energy consumption compared to ball mills B) Ability to grind very fine particles directly C) Use of no grinding media at all D) Smaller plant size Answer: A
Explanation: SAG mills are more energy-efficient than traditional ball mills because they use a combination of ore and steel balls, reducing energy use. Question 15. Which of the following is a characteristic of high-pressure grinding rolls (HPGR)? A) They operate at low pressures and produce coarse products B) They use high pressure to induce inter-particle breakage, increasing energy efficiency C) They are primarily used for fine grinding only D) They are obsolete technology Answer: B Explanation: HPGRs apply high pressure to induce inter-particle fracture, offering high energy efficiency and coarse to medium grind size capabilities. Question 16. Which is a key parameter in the design of hydrocyclones? A) Magnetic field strength B) Diameter of the vortex finder and spigot C) Chemical reagent concentration
C) Thickeners D) Magnetic separators Answer: C Explanation: Thickeners are used to increase the solid concentration of slurry by sedimentation, separating solids from liquids. Question 19. The main function of a flocculant in mineral processing is to: A) Increase particle size by aggregation B) Break apart particle clusters C) Chemically dissolve minerals D) Separate minerals based on magnetic properties Answer: A Explanation: Flocculants promote particle aggregation, enhancing sedimentation and filtration efficiency. Question 20. Which type of sampler provides a representative sample across a moving conveyor belt? A) Cross-belt sampler B) Vezin sampler
C) Grab sampler D) Grab and go sampler Answer: A Explanation: Cross-belt samplers collect samples directly from a moving conveyor, providing a representative cross-section. Question 21. The main purpose of process control instrumentation in mineral processing is to: A) Automate the entire plant B) Monitor and maintain optimal operating conditions C) Replace operators D) Increase plant complexity Answer: B Explanation: Instrumentation monitors key parameters, allowing control systems to maintain optimal process conditions for efficiency and stability. Question 22. In flowsheet development, the selection of unit operations depends primarily on: A) Mineralogy and ore characteristics
B) Calculations from ore mineralogy C) Visual inspection of mill wear D) Particle size analysis only Answer: A Explanation: The Bond Work Index is calculated from laboratory tests that measure the energy required to grind a sample from a known size. Question 25. When designing a grinding circuit, why is the control of pulp density important? A) It affects flotation selectivity B) It influences grinding efficiency and power consumption C) It determines the size of the mill D) It controls the mineral grade Answer: B Explanation: Pulp density affects the load on the mill, influencing energy use, grinding efficiency, and throughput. Question 26. Which of the following is NOT a typical component of a crushing circuit? A) Jaw crusher
B) Ball mill C) Vibrating feeder D) Conveyor belt Answer: B Explanation: Ball mills are usually part of grinding circuits, not crushing circuits, which primarily involve crushers and feeders. Question 27. Which type of grinding mill is most suitable for fine grinding of mineral ores in a closed circuit? A) Rod mill B) Ball mill with classifier C) Impact crusher D) Gyratory crusher Answer: B Explanation: Ball mills combined with classifiers are effective for fine grinding in closed circuits, ensuring product size control. Question 28. The primary advantage of using semi-autogenous mills (SAG) over conventional ball mills is: A) Lower capital costs
C) Ambient temperature D) Mineral grade Answer: B Explanation: Particle size distribution and feed rate affect screening capacity and efficiency. Question 31. The main principle behind hydrocyclone separation is: A) Magnetic attraction B) Centrifugal force creating a density-based separation C) Chemical flotation D) Mechanical sieving Answer: B Explanation: Hydrocyclones use centrifugal force to separate particles based on density, with heavier particles reporting to the underflow. Question 32. Which of the following influences hydrocyclone performance? A) Feed pressure and pulp density B) Magnetic susceptibility C) Chemical reagents used
D) Particle shape only Answer: A Explanation: Feed pressure and pulp density significantly impact the separation efficiency and cut size of hydrocyclones. Question 33. Mechanical classifiers operate mainly on which principle? A) Magnetic susceptibility B) Sedimentation and rake or spiral mechanisms C) Chemical dissolution D) Magnetic separation Answer: B Explanation: Mechanical classifiers use gravity-driven mechanisms such as rakes or spirals to separate particles by size through sedimentation. Question 34. Which characteristic is most important when selecting a slurry pump? A) Pump's color B) Density and viscosity of slurry C) Ambient air temperature D) Particle mineralogy
Answer: B Explanation: Thickening concentrates the solids in slurry by sedimentation, preparing it for filtration or disposal. Question 37. Which type of thickener is characterized by high throughput and relatively low capacity? A) Conventional thickener B) High-rate thickener C) Paste thickener D) Clarifier Answer: B Explanation: High-rate thickeners are designed for rapid sedimentation and high throughput, often with compact footprints. Question 38. The primary function of a filter in mineral processing is to: A) Separate minerals by magnetic properties B) Remove residual liquids from solids, producing a dry product C) Crush coarse ore D) Classify particles by size Answer: B
Explanation: Filters dewater solids, producing a filter cake with low moisture content, essential for concentrates or tailings. Question 39. Which type of filter operates under pressure and uses a filter medium to separate solids from liquids? A) Vacuum filter B) Pressure filter C) Gravity filter D) Centrifugal separator Answer: B Explanation: Pressure filters utilize external pressure to force liquid through the filter medium, achieving dewatering. Question 40. In process control, a feedback loop is used to: A) Adjust process parameters based on output measurements to maintain desired conditions B) Predict future process states without actual measurement C) Increase process variability for testing D) Replace human operators entirely Answer: A
