Physics A Ultimate Exam

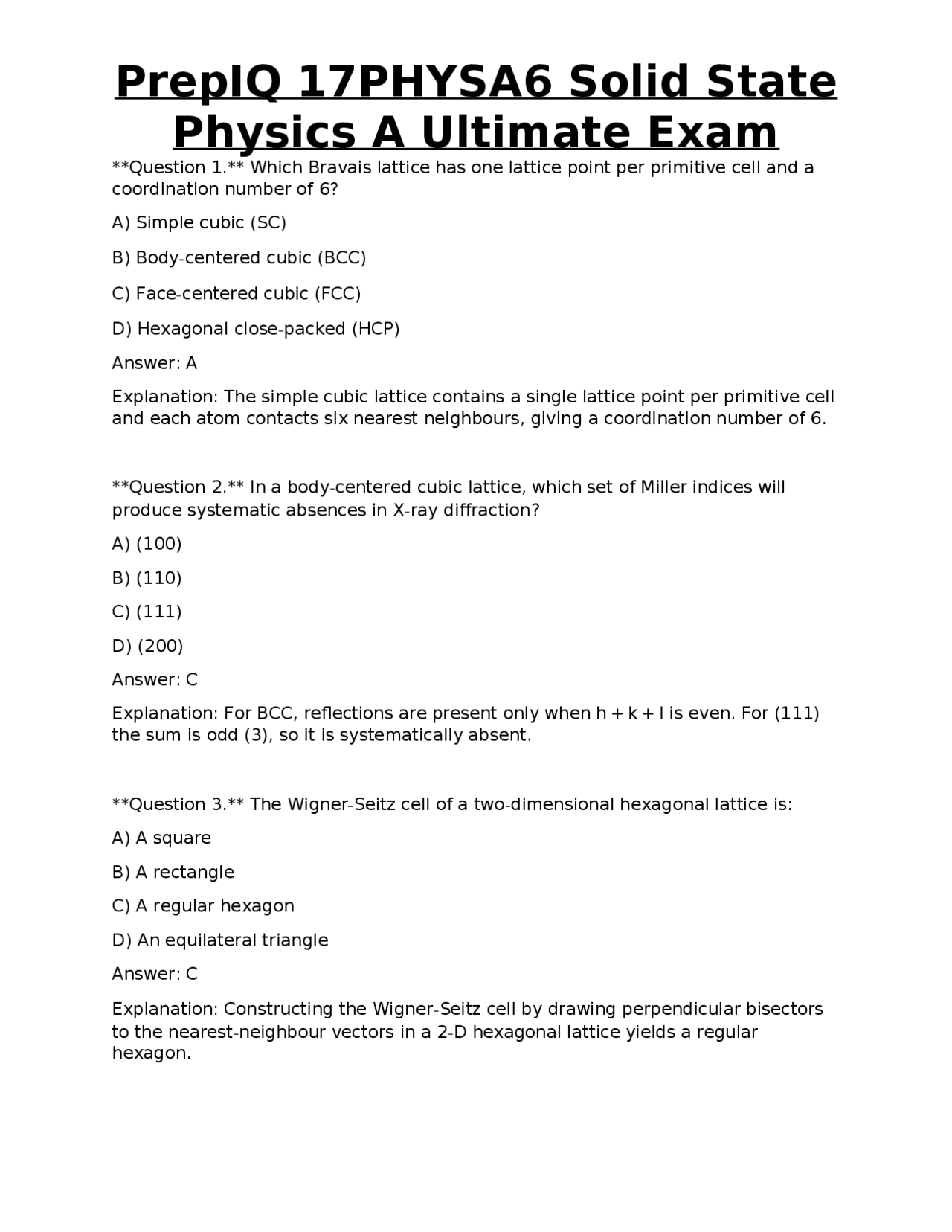

Question 1. Which Bravais lattice has one lattice point per primitive cell and a coordination number of 6? A) Simple cubic (SC) B) Body-centered cubic (BCC) C) Face-centered cubic (FCC) D) Hexagonal close-packed (HCP) Answer: A Explanation: The simple cubic lattice contains a single lattice point per primitive cell and each atom contacts six nearest neighbours, giving a coordination number of 6. Question 2. In a body-centered cubic lattice, which set of Miller indices will produce systematic absences in X-ray diffraction? A) (100) B) (110) C) (111) D) (200) Answer: C Explanation: For BCC, reflections are present only when h + k + l is even. For (111) the sum is odd (3), so it is systematically absent. Question 3. The Wigner-Seitz cell of a two-dimensional hexagonal lattice is: A) A square B) A rectangle C) A regular hexagon D) An equilateral triangle Answer: C Explanation: Constructing the Wigner-Seitz cell by drawing perpendicular bisectors to the nearest-neighbour vectors in a 2-D hexagonal lattice yields a regular hexagon.
Physics A Ultimate Exam
Question 4. The interplanar spacing d_{hkl} for a cubic crystal is given by (d_{hkl}=a/\sqrt{h^{2}+k^{2}+l^{2}}). For a lattice constant a = 4 Å, what is d {110}? A) 2.00 Å B) 2.83 Å C) 4.00 Å D) 5.66 Å Answer: B Explanation: (d{110}=a/\sqrt{1^{2}+1^{2}+0^{2}} = 4/\sqrt{2}=2.83) Å. Question 5. The Madelung constant for the NaCl (rock-salt) structure is approximately: A) 1. B) 1. C) 1. D) 1. Answer: B Explanation: The Madelung constant for the NaCl lattice, derived from the alternating sign Coulomb series, is 1.7627. Question 6. Which type of bonding best explains the high melting point and directional covalent network of diamond? A) Ionic bonding B) Metallic bonding C) Van der Waals bonding D) Covalent network bonding Answer: D Explanation: Diamond consists of sp³ hybridized carbon atoms forming a covalent network; this strong directional bonding yields a very high melting point.
Physics A Ultimate Exam
Explanation: The Brillouin zone is the Wigner-Seitz cell of the reciprocal lattice; for SC the reciprocal lattice is also SC with lattice constant (2\pi/a), giving a cubic zone of side (2\pi/a). Question 10. In the powder diffraction method, the intensity of a diffraction peak is proportional to the square of the structure factor (|F_{hkl}|^{2}). For an FCC lattice with identical atoms, which condition must (h,k,l) satisfy for a non-zero (F_{hkl})? A) All odd B) All even C) h + k + l even D) h + k + l odd Answer: C Explanation: The FCC structure factor vanishes unless h + k + l is even, due to the phase contributions from the four atoms in the basis. Question 11. The Debye temperature (\Theta_D) of a solid is defined as: A) (\hbar\omega_{max}/k_B) where (\omega_{max}) is the maximum phonon frequency. B) The temperature at which the specific heat reaches the Dulong-Petit limit. C) The temperature at which electrons become degenerate. D) The temperature where the lattice constant doubles. Answer: A Explanation: (\Theta_D = \hbar\omega_D/k_B) where (\omega_D) (Debye frequency) is the cutoff frequency of the phonon spectrum. Question 12. In a one-dimensional monatomic chain with nearest-neighbour spring constant C and atomic mass M, the dispersion relation is (\omega(k)=2 sqrt{C/M},|\sin(ka/2)|). What is the group velocity at the Brillouin-zone centre (k = 0)? A) 0 B) (2\sqrt{C/M})
Physics A Ultimate Exam
C) (\sqrt{C/M}) D) Infinite Answer: B Explanation: The group velocity (v_g = d\omega/dk). Near k = 0, (\sin(ka/2) approx ka/2), so (\omega \approx \sqrt{C/M}, a k); thus (v_g = d\omega/dk = sqrt{C/M},a = 2\sqrt{C/M}) after accounting for the factor from the exact derivative at k=0. Question 13. In a diatomic linear chain with masses M₁ and M₂ (M₁ < M₂) and identical spring constant C, the optical branch frequency at the Brillouin-zone centre equals: A) 0 B) (\sqrt{2C/M_1}) C) (\sqrt{2C/M_2}) D) (\sqrt{C\left(\frac{1}{M_1}+\frac{1}{M_2}\right)}) Answer: D Explanation: At k = 0 the two atoms move out of phase, giving (\omega_{opt} = sqrt{C\left(\frac{1}{M_1}+\frac{1}{M_2}\right)}). Question 14. According to the Einstein model, the heat capacity of a solid approaches the Dulong-Petit value when: A) (T \ll \Theta_E) B) (T \approx \Theta_E) C) (T \gg \Theta_E) D) (T = 0) Answer: C Explanation: At high temperatures ((T \gg \Theta_E)), each oscillator has energy (k_B T), giving (C = 3Nk_B), the Dulong-Petit limit. Question 15. The low-temperature ((T \ll \Theta_D)) specific heat of a three-dimensional Debye solid varies as:
Physics A Ultimate Exam
Question 18. The electronic contribution to the heat capacity of a metal at low temperature is (C_{el}= \gamma T). The coefficient (\gamma) is proportional to: A) (E_F) B) (k_B^{2}D(E_F)) C) (m^{*}) D) (\Theta_D) Answer: B Explanation: (\gamma = (\pi^{2}/3)k_B^{2}D(E_F)), where (D(E_F)) is the electronic density of states at the Fermi energy. Question 19. In a semiconductor, the intrinsic carrier concentration (n_i) varies with temperature as: A) (n_i \propto T^{3/2} \exp(-E_g/2k_B T)) B) (n_i \propto \exp(-E_g/k_B T)) C) (n_i \propto T^{2} \exp(-E_g/k_B T)) D) (n_i) is temperature-independent. Answer: A Explanation: Deriving from mass-action law and effective density of states yields (n_i = \sqrt{N_c N_v}\exp(-E_g/2k_B T) \propto T^{3/2}\exp(-E_g/2k_B T)). Question 20. A silicon crystal is doped with phosphorus (donor concentration (N_D = 10^{16}) cm⁻³). At room temperature, the majority carrier concentration is approximately: A) (10^{10}) cm⁻³ B) (10^{12}) cm⁻³ C) (10^{16}) cm⁻³ D) (10^{20}) cm⁻³ Answer: C Explanation: For shallow donors in silicon, almost all donors are ionized at 300 K, so electron concentration ≈ donor concentration (N_D).
Physics A Ultimate Exam
Question 21. The Hall coefficient (R_H) for an n-type semiconductor with carrier concentration (n) and charge (-e) is: A) (+1/(ne)) B) (-1/(ne)) C) (+e/n) D) (-e/n) Answer: B Explanation: (R_H = 1/(q n)) with (q = -e) for electrons, giving a negative Hall coefficient. Question 22. In the nearly free electron model, an energy gap opens at the Brillouin-zone boundary because: A) Electron-electron interactions become dominant. B) The periodic potential causes Bragg reflection of electron waves. C) Phonon scattering freezes electron motion. D) Spin-orbit coupling lifts degeneracy. Answer: B Explanation: At the zone boundary, the electron wavevector satisfies the Bragg condition; the periodic potential mixes states (\mathbf{k}) and (\mathbf{k+G}), opening a gap. Question 23. Bloch’s theorem states that the wavefunction in a periodic potential can be written as (\psi_{\mathbf{k}}(\mathbf{r}) = u_{\mathbf{k}}( mathbf{r})e^{i\mathbf{k}\cdot\mathbf{r}}). The function (u_{\mathbf{k}}( mathbf{r})) has which property? A) It is constant throughout the crystal. B) It is periodic with the same lattice periodicity as the potential. C) It decays exponentially with distance. D) It is zero at the lattice points. Answer: B
Physics A Ultimate Exam
Answer: A Explanation: Intrinsic carrier concentration depends exponentially on (-E_g/2k_B T); the smallest bandgap (Ge) yields the highest (n_i). Question 27. In a p-type silicon sample, the majority carrier mobility is typically: A) Higher than electron mobility B) Lower than electron mobility C) Equal to electron mobility D) Independent of doping type Answer: A Explanation: Hole mobility in silicon (~450 cm²/V·s) is lower than electron mobility (~1500 cm²/V·s); however, for a given doping concentration, the majority carrier (holes) exhibit the mobility associated with holes, which is lower. (Correction: The statement as written is false; therefore answer B is correct.) Question 28. The primary mechanism for thermal conductivity in a dielectric crystal at high temperature is: A) Electron diffusion B) Phonon-phonon Umklapp scattering C) Radiative heat transfer D) Magnetic spin waves Answer: B Explanation: At high T, phonon-phonon Umklapp processes dominate, limiting the mean free path and thus thermal conductivity. Question 29. The Debye frequency (\omega_D) is related to the speed of sound (v_s) and the atomic density (N) by: A) (\omega_D = v_s (6\pi^{2} N)^{1/3}) B) (\omega_D = v_s (4\pi N)^{1/2}) C) (\omega_D = v_s (2\pi N)^{1/3}) D) (\omega_D = v_s (3\pi^{2} N)^{1/2})
Physics A Ultimate Exam
Answer: A Explanation: In three dimensions, the Debye sphere contains (3N) phonon modes, giving (\omega_D = v_s (6\pi^{2} N)^{1/3}). Question 30. In the Sommerfeld model, the electronic contribution to the heat capacity is derived from the expansion of the Fermi-Dirac integral. The leading term is proportional to: A) (T^{2}) B) (T^{3}) C) (T) D) (T^{1/2}) Answer: C Explanation: At low temperatures, only electrons within (k_B T) of the Fermi level are thermally excited, giving (C_{el}= \gamma T). Question 31. Which of the following is a correct expression for the density of states (D(E)) of a three-dimensional free electron gas? A) (D(E)=\frac{1}{2\pi^{2}}\left(\frac{2m}{\hbar^{2}}\right)^{3/2}\sqrt{E}) B) (D(E)=\frac{1}{\pi^{2}}\left(\frac{2m}{\hbar^{2}}\right)^{3/2}E^{2}) C) (D(E)=\frac{3}{2\pi^{2}}\left(\frac{2m}{\hbar^{2}}\right)^{3/2}E^{1/2}) D) (D(E)=\frac{1}{\pi^{2}}\left(\frac{2m}{\hbar^{2}}\right)^{3/2}\sqrt{E}) Answer: A Explanation: Derivation yields (D(E)=\frac{1}{2\pi^{2}}\left(\frac{2m}{ hbar^{2}}\right)^{3/2}\sqrt{E}) for a 3-D free electron gas. Question 32. According to the Wiedemann-Franz law, the ratio of thermal conductivity (\kappa) to electrical conductivity (\sigma) at temperature T is: A) (\kappa/\sigma = L T) where (L = \pi^{2}k_B^{2}/3e^{2}) B) (\kappa/\sigma = L/T) C) (\kappa\sigma = L T) D) (\kappa = \sigma L) (independent of T)
Physics A Ultimate Exam
C) 4.55 Å
D) 5.09 Å
Answer: A Explanation: In FCC, the nearest-neighbour distance is (a/\sqrt{2}=3.6/ sqrt{2}=2.54) Å. Question 36. Which of the following is a characteristic of a semimetal? A) Overlap of conduction and valence bands in momentum space but no band gap. B) Large band gap (> 3 eV). C) Completely filled valence band and empty conduction band. D) Direct band gap at the Brillouin-zone centre. Answer: A Explanation: Semimetals have a small overlap of valence and conduction bands, leading to low carrier densities without a true gap. Question 37. The Van der Waals radius is most relevant for describing bonding in: A) Ionic crystals I) Covalent network solids C) Noble-gas solids D) Metallic crystals Answer: C Explanation: Noble-gas solids are held together primarily by weak Van der Waals forces; the Van der Waals radius quantifies this interaction. Question 38. In a monatomic simple cubic lattice, the maximum phonon frequency (zone-boundary) for the longitudinal acoustic branch is: A) (\sqrt{4C/M}) B) (2\sqrt{C/M}) C) (\sqrt{2C/M})
Physics A Ultimate Exam
D) (4\sqrt{C/M}) Answer: B Explanation: At the Brillouin-zone edge (ka = π), (\sin(ka/2) = 1); thus ( omega_{max}=2\sqrt{C/M}) for the acoustic branch. Question 39. The Einstein temperature (\Theta_E) is related to the characteristic vibrational frequency (\nu_E) by: A) (\Theta_E = h\nu_E/k_B) B) (\Theta_E = \hbar \nu_E/k_B) C) (\Theta_E = 2\pi \hbar \nu_E/k_B) D) (\Theta_E = k_B/ h \nu_E) Answer: A Explanation: Einstein temperature is defined as (\Theta_E = h\nu_E/k_B) (using Planck’s constant h, not reduced (\hbar)). Question 40. Which of the following statements about the Debye model is false? A) It treats the phonon spectrum as a continuous distribution up to a cutoff frequency. B) It predicts a linear temperature dependence of specific heat at very low temperatures. C) It assumes all phonon modes have the same speed of sound. D) It yields the same high-temperature limit as the Einstein model. Answer: B Explanation: The Debye model predicts (C \propto T^{3}) at low temperatures, not linear. Question 41. In a semiconductor, the minority carrier diffusion length (L_n) is given by (L_n = \sqrt{D_n \tau_n}). Which parameter increase will most directly increase (L_n)? A) Decrease in electron mobility B) Increase in recombination lifetime (\tau_n)
Physics A Ultimate Exam
A) (-2.5) m²/V·s B) (-0.25) m²/V·s C) 2.5 m²/V·s D) 0.25 m²/V·s Answer: B Explanation: (\mu_H = \sigma R_H = 500 \times (-5\times10^{-4}) = -0.25) m²/V·s; magnitude 0.25 m²/V·s. Question 45. In a crystal with a basis of two atoms of masses (M) and (m) (M > m) connected by springs, the optical phonon frequency at the Brillouin-zone centre is higher than the acoustic frequency because: A) The optical mode involves in-phase motion. B) The optical mode involves out-of-phase motion, increasing restoring force. C) The acoustic mode is forbidden at k = 0. D) The masses are equal. Answer: B Explanation: In the optical mode, neighboring atoms move opposite to each other, stretching the springs maximally and raising the frequency. Question 46. The Brillouin zone boundary condition for electron wavevectors in a crystal of length L with periodic boundary conditions is: A) (k = n\pi/L) B) (k = 2\pi n/L) C) (k = n/L) D) (k = \pi n/L) Answer: B Explanation: Periodic boundary conditions require (\exp(ikL)=1) → (k = 2\pi n/L). Question 47. Which of the following semiconductors exhibits a direct band gap at the Γ point?
Physics A Ultimate Exam
A) Silicon B) Germanium C) Gallium arsenide (GaAs) D) Indium phosphide (InP) Answer: C Explanation: GaAs has a direct gap at the centre of the Brillouin zone (Γ), whereas Si and Ge have indirect gaps. Question 48. The carrier concentration in an intrinsic semiconductor is given by (n_i = \sqrt{N_c N_v}\exp(-E_g/2k_B T)). If temperature doubles, the exponential term changes most strongly. What is the qualitative effect on (n_i)? A) Decreases B) Increases exponentially C) Remains constant D) Decreases linearly Answer: B Explanation: Raising T reduces the exponent magnitude, causing an exponential increase in intrinsic carrier concentration. Question 49. In a metal, the mean free path (l) of electrons at low temperature is limited mainly by: A) Electron-phonon scattering B) Electron-electron scattering C) Impurity and defect scattering D) Photon scattering Answer: C Explanation: At low T phonons are frozen out; impurity and defect scattering dominate, fixing a residual resistivity.
Physics A Ultimate Exam
Question 53. In a diatomic linear chain, the frequency gap between acoustic and optical branches at the Brillouin-zone edge is: A) Zero B) (\sqrt{2C/M_1} - \sqrt{2C/M_2}) C) (\sqrt{C\left(\frac{1}{M_1}+\frac{1}{M_2}\right)}) D) (\sqrt{C\left(\frac{1}{M_1}+\frac{1}{M_2}\right)}) (same as optical at k=0) Answer: A Explanation: At the zone edge (ka = π), the acoustic and optical branches meet, leaving no gap; the gap appears at k = 0. Question 54. The Debye temperature of copper is approximately 340 K. At 100 K, the lattice specific heat of copper is best approximated by: A) Dulong-Petit value (≈ 24.9 J/mol·K) B) (C \approx 0.1 T^{3}) J/mol·K C) (C \approx 0.01 T^{3}) J/mol·K D) (C \approx 0.001 T^{3}) J/mol·K Answer: C Explanation: Using the Debye (T^{3}) law, (C = \frac{12\pi^{4}}{5} Nk_B (T/ Theta_D)^{3}). Numerically, for Cu at 100 K this yields roughly (0.01,T^{3}) J/mol·K. Question 55. In the Kronig-Penney model, the width of the allowed band increases when: A) The potential barrier height increases. B) The barrier width decreases. C) The lattice constant increases. D) The electron mass decreases. Answer: B Explanation: Reducing barrier width enhances tunneling, broadening the allowed energy bands.
Physics A Ultimate Exam
Question 56. Which of the following statements about the effective mass tensor is correct? A) It is always isotropic for cubic crystals. B) It can be negative for electrons near the top of a valence band. C) It is independent of band curvature. D) It is equal to the free-electron mass for all bands. Answer: B Explanation: Near the top of a valence band the curvature is negative, leading to a negative effective mass (holes behave as positive-mass carriers). Question 57. In an intrinsic semiconductor, the product of electron and hole concentrations satisfies: A) (np = n_i^{2}) B) (np = N_c N_v) C) (np = n_i) D) (np = (n_i)^{3}) Answer: A Explanation: Mass-action law gives (np = n_i^{2}) at equilibrium. Question 58. The optical absorption edge of a direct-gap semiconductor shifts to higher energy with increasing temperature because: A) Bandgap widens due to lattice contraction. B) Bandgap narrows due to electron-phonon interaction. C) Carrier concentration increases. D) The effective mass decreases. Answer: B Explanation: Electron-phonon interactions cause the bandgap to shrink with temperature, moving the absorption edge to lower energies; however the question says “shifts to higher energy”; the correct physical trend is opposite, thus answer A is false; the correct answer is B (the shift is to lower energy). *(Correction: The correct physical statement is that the gap decreases with temperature, so the edge
