2d electrophoresis from Creative Proteomics, Essays (university) of Biology

4th Military Medical UniversityBiology

Creative Proteomics offers an integrated solution to the identification of low abundance proteins in complex biological sample through 2D electrophoresis.

Typology: Essays (university)

2018/2019

Uploaded on 08/21/2019

sabrina-run
sabrina-run 🇨🇳

5

(1)

96 documents

1 / 6

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

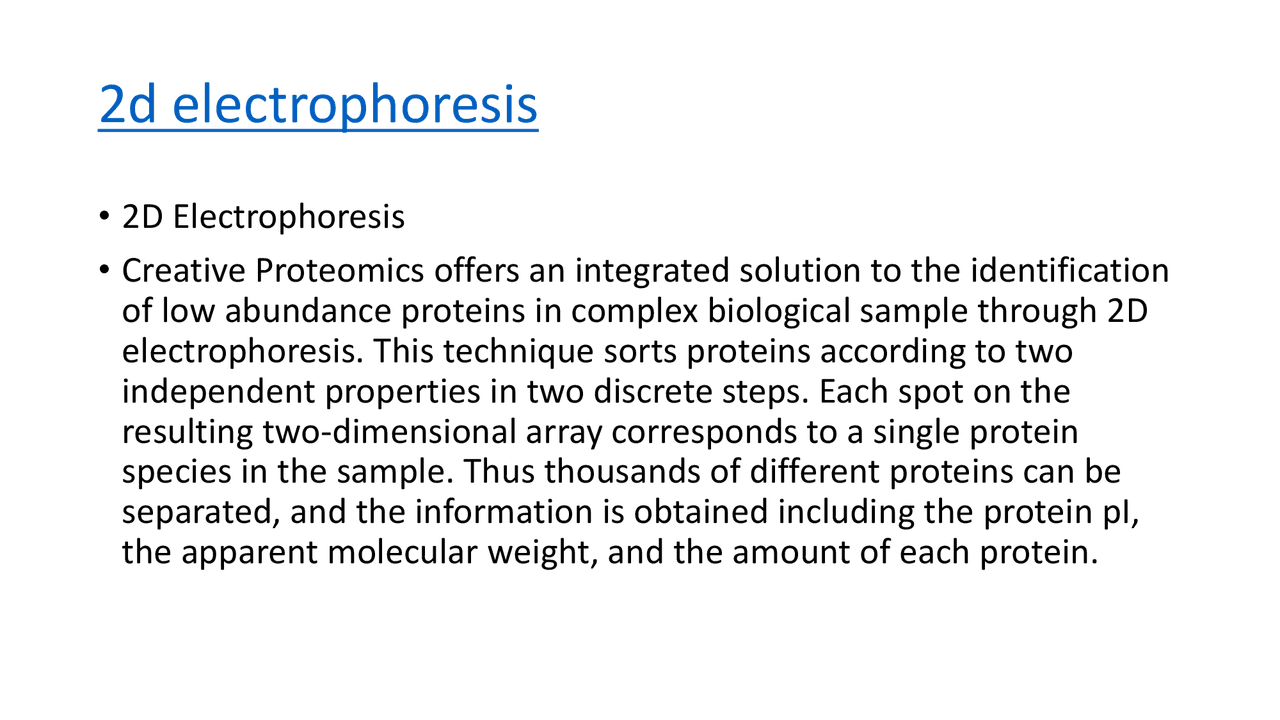

2d electrophoresis
•2D Electrophoresis
•Creative Proteomics offers an integrated solution to the identification
of low abundance proteins in complex biological sample through 2D
electrophoresis. This technique sorts proteins according to two
independent properties in two discrete steps. Each spot on the
resulting two-dimensional array corresponds to a single protein
species in the sample. Thus thousands of different proteins can be
separated, and the information is obtained including the protein pI,
the apparent molecular weight, and the amount of each protein.
pf3
pf4
pf5

Partial preview of the text

Download 2d electrophoresis from Creative Proteomics and more Essays (university) Biology in PDF only on Docsity!

2d electrophoresis

  • 2D Electrophoresis
  • Creative Proteomics offers an integrated solution to the identification of low abundance proteins in complex biological sample through 2D electrophoresis. This technique sorts proteins according to two independent properties in two discrete steps. Each spot on the resulting two-dimensional array corresponds to a single protein species in the sample. Thus thousands of different proteins can be separated, and the information is obtained including the protein pI, the apparent molecular weight, and the amount of each protein.
  • 2D Electrophoresis
  • Creative Proteomics offers an integrated solution to the identification of low abundance proteins in complex biological sample through 2D electrophoresis. This technique sorts proteins according to two independent properties in two discrete steps. Each spot on the resulting two-dimensional array corresponds to a single protein species in the sample. Thus thousands of different proteins can be separated, and the information is obtained including the protein pI, the apparent molecular weight, and the amount of each protein.
  • 2D Electrophoresis Service at Creative Proteomics
  • 2-DE is a powerful and widely used method for the analysis of complex protein mixtures extracted from cells, tissues, or other biological samples. At Creative Proteomics, we can provide services 2D electrophoresis service according to standard operating procedures (SOPs).
  • 2 DE. Before separating the proteins by mass in the second dimension, they are treated with sodium dodecyl sulfate (SDS) along with reducing reagents which unfolds them into long, straight molecules bound with a number of SDS molecules. Since the SDS molecules are negatively charged, all of the proteins will have approximately the same mass-to-charge ratio as each other. In the second dimension, an electric potential is applied at a 90 degree angle from the first field. The gel therefore acts like a molecular sieve when the current is applied, separating the proteins on the basis of their molecular weight. The larger proteins remain higher in the gel and smaller proteins are able to pass through the sieve and reach lower regions of the gel.
  • Protein detection. After 2-DE analysis, a gel with proteins spread out based on their pI and molecular mass is obtained. These proteins can then be detected by a variety of means, but the most commonly used stains are silver and coomassie brilliant blue staining. In the former case, a silver colloid is applied to the gel. The silver binds to cysteine groups within the protein and is darkened by exposure to ultra-violet light. The amount of silver relates to the darkness, and therefore the amount of protein at a given location on the gel. This measurement can only give approximate amounts, but is adequate for most purposes. Other staining methods such as coomassie brilliant blue combined with in-gel digestion are suitable for MS detection afterwards.
