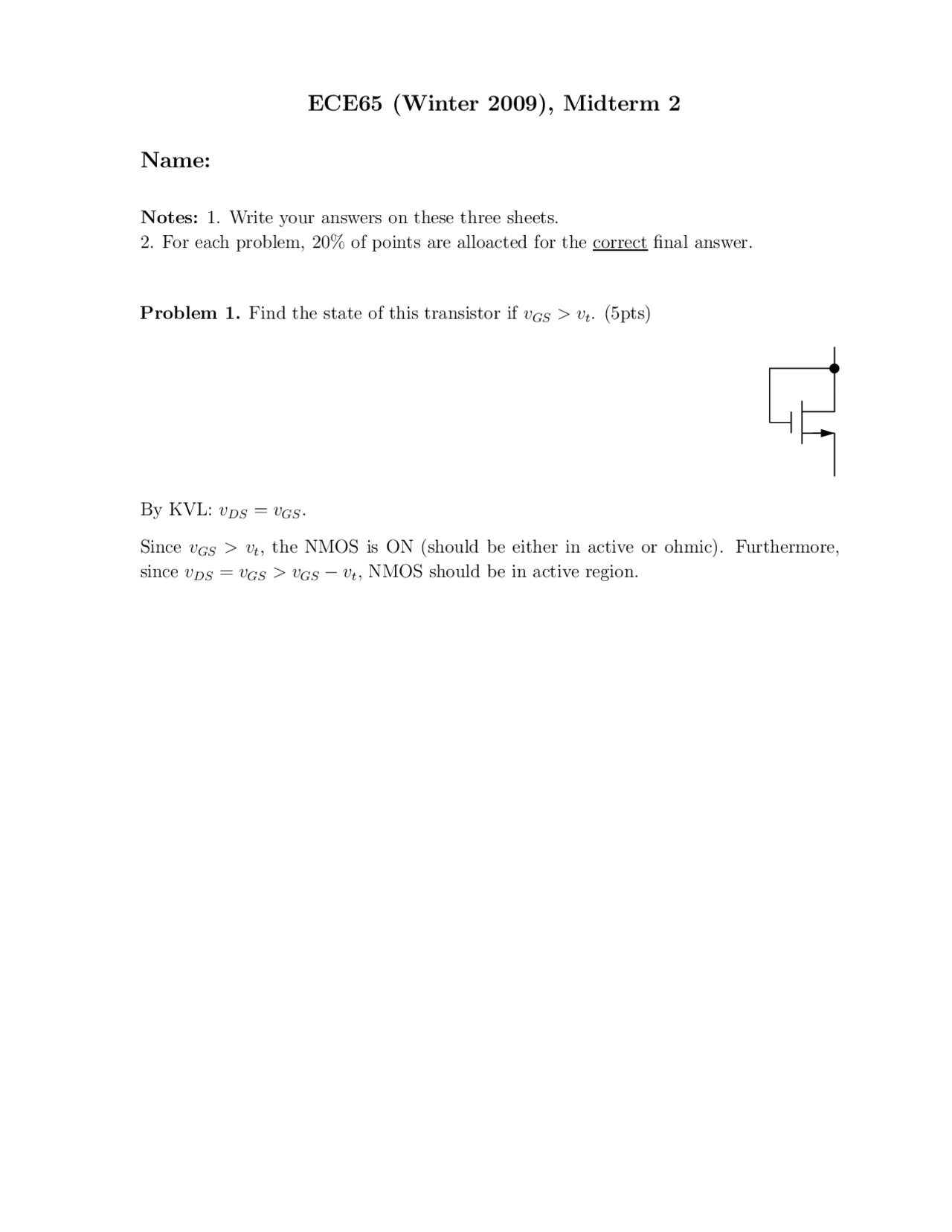

ECE65 (Winter 2009), Midterm 2
Name:
Notes: 1. Write your answers on these three sheets.
2. For each problem, 20% of points are alloacted for the correct final answer.
Problem 1. Find the state of this transistor if vGS > vt. (5pts)
By KVL: vDS =vGS .
Since vGS > vt, the NMOS is ON (should be either in active or ohmic). Furthermore,
since vDS =vGS > vGS โˆ’vt, NMOS should be in active region.
pf3

Partial preview of the text

Download Midterm 2 Exam for ECE65 (Winter 2009) - Transistor and Diode Circuits - Prof. Farrokh Naj and more Exams Electrical and Electronics Engineering in PDF only on Docsity!

ECE65 (Winter 2009), Midterm 2

Name:

Notes:2. For each problem, 20% of points are alloacted for the correct 1. Write your answers on these three sheets. final answer.

Problem 1. Find the state of this transistor if vGS > vt. (5pts)

By KVL: vDS = vGS. Sincesince vvGS > vt, the NMOS is ON (should be either in active or ohmic). Furthermore, DS =^ vGS > vGS โˆ’^ vt, NMOS should be in active region.

Problem 2. In the circuit below with Si diodes, find i for โˆ’ 20 โ‰ค vs โ‰ค 20 V (13pts)

V S โˆ’+

i^ i

S

iD

5k

D1D2 5k

KCL: iD 1 = iD 2 = iD KCL: is = iD + i KVL: vs = 5 ร— 103 is + vD 1 + vD 2 KVL: vD 1 + vD 2 = 5 ร— 103 i

Because the two didoes are in series,(i iD 1 = iD 2 = iD, the two diodes are either ON D >= 0) or OFF (iD = 0). For BOTH diodes being ON:equations we get: vD 1 = vD 2 = vฮณ = 0.7 V, iD > 0. Substituting in the circuit

vs = 5 ร— 103 is + vD 1 + vD 2 โ†’ vs = 5 ร— 103 is + 1. 4 โ†’ is = 2 ร— 10 โˆ’^4 (vs โˆ’ 1 .4) vD 1 + vD 2 = 5 ร— 103 i โ†’ 1 .4 = 5 ร— 103 i โ†’ i = 0.28 mA is = iD + i โ†’ iD = is โˆ’ 0. 28 ร— 10 โˆ’^3 = 2 ร— 10 โˆ’^4 (vs โˆ’ 1 .4) โˆ’ 2. 8 ร— 10 โˆ’^4 iD > 0 โ†’ 2 ร— 10 โˆ’^4 (vs โˆ’ 1 .4) โˆ’ 2. 8 ร— 10 โˆ’^4 > 0 โ†’ vs > 2 .8 V For BOTH diodes being OFF: v iD = 0 and vD 1 < vฮณ = 0.7 V and vD 2 < vฮณ = 0.7 V (and D 1 +^ vD 2 <^1 .4 V). Substituting in the circuit equations we get: is = iD + i โ†’ is = i vs = 5 ร— 103 is + vD 1 + vD 2 = 5 ร— 103 is + 5 ร— 103 i = 10^4 i โ†’ i = 10โˆ’^4 vs vD 1 + vD 2 = 5 ร— 103 i = 0. 5 vs vD 1 + vD 2 < 1. 4 โ†’ 0. 5 vs < 1. 4 โ†’ vs < 2 .8 V Therefore, forFor 2. 8 < v โˆ’ 20 โ‰ค vs < 2 .8 V, both diodes are OFF i = 10โˆ’^4 vs. s โ‰ค^ 20 V, both diodes are ON and^ i^ = 0.28 mA.
