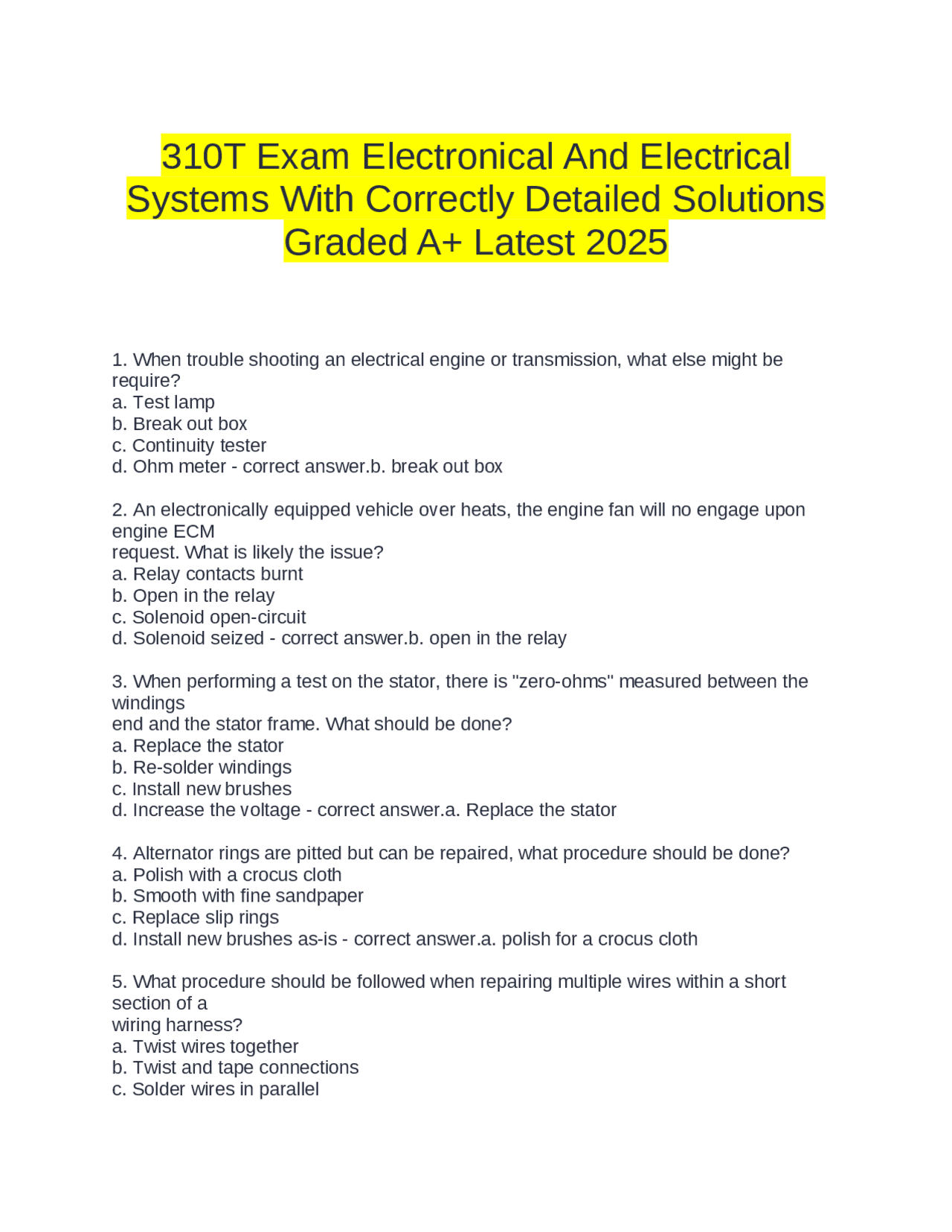

310T Exam Electronical And Electrical
Systems With Correctly Detailed Solutions
Graded A+ Latest 2025
1. When trouble shooting an electrical engine or transmission, what else might be
require?
a. Test lamp
b. Break out box
c. Continuity tester
d. Ohm meter - correct answer.b. break out box
2. An electronically equipped vehicle over heats, the engine fan will no engage upon
engine ECM
request. What is likely the issue?
a. Relay contacts burnt
b. Open in the relay
c. Solenoid open-circuit
d. Solenoid seized - correct answer.b. open in the relay
3. When performing a test on the stator, there is "zero-ohms" measured between the
windings
end and the stator frame. What should be done?
a. Replace the stator
b. Re-solder windings
c. Install new brushes
d. Increase the voltage - correct answer.a. Replace the stator
4. Alternator rings are pitted but can be repaired, what procedure should be done?
a. Polish with a crocus cloth
b. Smooth with fine sandpaper
c. Replace slip rings
d. Install new brushes as-is - correct answer.a. polish for a crocus cloth
5. What procedure should be followed when repairing multiple wires within a short
section of a
wiring harness?
a. Twist wires together
b. Twist and tape connections
c. Solder wires in parallel
