Programmer Certification Exam
Preparation

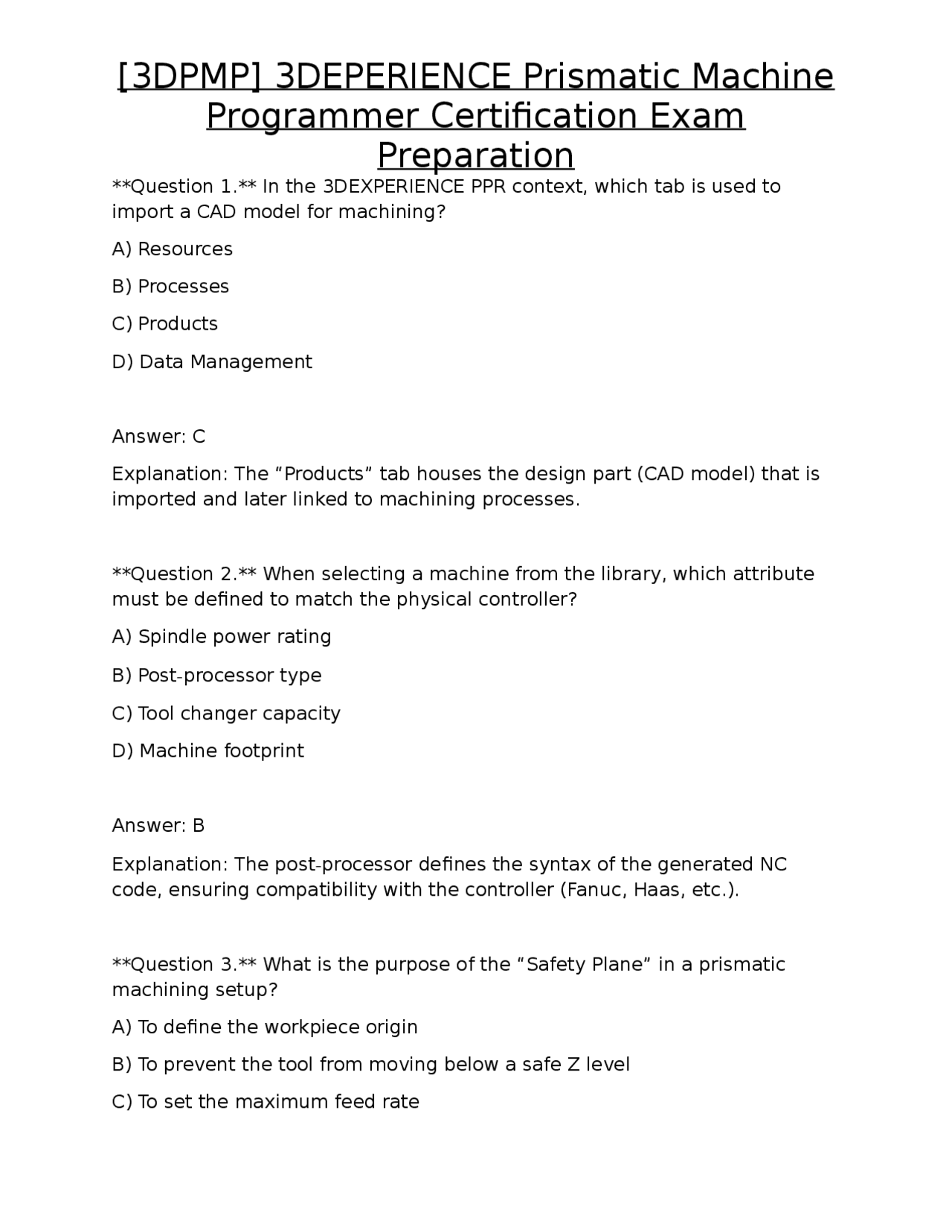

Question 1. In the 3DEXPERIENCE PPR context, which tab is used to import a CAD model for machining? A) Resources B) Processes C) Products D) Data Management Answer: C Explanation: The “Products” tab houses the design part (CAD model) that is imported and later linked to machining processes. Question 2. When selecting a machine from the library, which attribute must be defined to match the physical controller? A) Spindle power rating B) Post-processor type C) Tool changer capacity D) Machine footprint Answer: B Explanation: The post-processor defines the syntax of the generated NC code, ensuring compatibility with the controller (Fanuc, Haas, etc.). Question 3. What is the purpose of the “Safety Plane” in a prismatic machining setup? A) To define the workpiece origin B) To prevent the tool from moving below a safe Z level C) To set the maximum feed rate
Programmer Certification Exam
Preparation
D) To lock the machine axis during simulation Answer: B Explanation: The safety plane is a virtual horizontal plane that stops tool motion at a safe Z height, protecting fixtures and the machine. Question 4. Which of the following correctly describes a “Work Offset” in the Machine Reference Architecture? A) The distance between the tool tip and the spindle nose B) The coordinate system that defines the zero point for the part C) The offset used for tool length compensation only D) The absolute position of the machine base Answer: B Explanation: A work offset establishes the zero point (origin) for the part relative to the machine coordinate system. Question 5. In resource mounting, what is the primary function of a “Vises” component? A) To hold the cutting tool B) To align the workpiece with the machine axes C) To provide coolant flow D) To generate toolpaths automatically Answer: B Explanation: A vise secures the workpiece and establishes its position and orientation on the machine table.
Programmer Certification Exam
Preparation
C) Feed per tooth calculation D) Spindle speed selection Answer: B Explanation: Tool length compensation offsets the programmed Z position by the measured length of the tool. Question 9. Which parameter directly influences the calculated spindle speed (RPM) for a given material? A) Feed per tooth B) Cutting speed (Vc) C) Tool diameter D) Number of flutes Answer: B Explanation: Cutting speed (surface speed) is used with tool diameter to compute spindle RPM: RPM = (Vc * 1000) / (π * D). Question 10. What does “Cutter Comp” stand for in the Prismatic Machining context? A) Cutter compensation for tool wear B) Cutter radius compensation (CRC) C) Cutter speed compensation D) Cutter material compensation Answer: B
Programmer Certification Exam
Preparation
Explanation: “Cutter Comp” refers to cutter radius compensation, which offsets the toolpath to achieve the desired part geometry. Question 11. Which of the following is NOT a standard tool holder type in the DELMIA library? A) BT B) CAT C) ER D) ISO Answer: D Explanation: ISO100 is a tool shank size, not a holder designation; BT30, CAT40, and ER32 are common holder types. Question 12. In a 2.5-axis milling operation, which axis remains stationary? A) X B) Y C) Z D) None – all three axes are active Answer: C Explanation: 2.5-axis machining uses X and Y movement while the spindle (Z axis) rotates; the Z translation is typically limited to plunging. Question 13. Which milling strategy is most efficient for removing bulk material from a cavity?
Programmer Certification Exam
Preparation
Answer: B Explanation: A lead-in provides a smooth entry path, reducing impact forces and improving surface finish at the pocket entrance. Question 16. Which operation is used to create a precise, small-diameter hole before a larger drill? A) Spot drilling B) Peck drilling C) Boring D) Reaming Answer: A Explanation: Spot drilling creates a pilot point, ensuring the larger drill stays centered. Question 17. In Peck drilling, why is the drill retracted periodically? A) To change the tool B) To clear chips and reduce heat buildup C) To switch coolant mode D) To measure hole depth Answer: B Explanation: Retracting the drill removes chips and allows coolant to reach the cutting edge, preventing overheating. Question 18. Which cycle is specifically designed for thread cutting on a CNC mill?
Programmer Certification Exam
Preparation
A) Drilling cycle B) Boring cycle C) Tapping cycle D) Reaming cycle Answer: C Explanation: The tapping cycle synchronizes spindle rotation with Z motion to cut threads. Question 19. In a pattern-drilling operation, what does the “Array” option define? A) The tool diameter B) The spacing and count of holes in X and Y directions C) The feed per tooth D) The coolant pressure Answer: B Explanation: An array specifies the number of holes and their pitch, enabling rapid creation of repetitive drilling patterns. Question 20. Probing for part alignment typically uses which type of sensor? A) Laser scanner B) Touch-probe C) Vision camera D) Acoustic sensor
Programmer Certification Exam
Preparation
Question 23. A “Prismatic Machining Area (PMA)” is created to: A) Store tool data B) Define a machining envelope that can be quickly modified C) Set coolant flow rates D) Generate G-code directly Answer: B Explanation: PMA groups selected geometry into a defined area, allowing rapid updates to toolpaths when design changes occur. Question 24. Which file type is used to store a reusable sequence of operations in DELMIA? A) .prt B) .machproc C) .catproduct D) .stl Answer: B Explanation: “Machining Process” files (.machproc) hold templates of operation sequences for reuse. Question 25. When retrieving a machining template from the catalog, what key piece of information must be matched? A) Tool brand B) Machine model C) Part material
Programmer Certification Exam
Preparation
D) Operator name Answer: B Explanation: The template must be compatible with the selected machine’s kinematics and controller. Question 26. During toolpath replay, which visual cue indicates a potential gouge? A) Green line B) Yellow line C) Red line D) Blue line Answer: C Explanation: In DELMIA, a red-colored toolpath segment signals that the tool is cutting into material that should have already been removed (over-cut). Question 27. In material removal simulation, the “Remaining Material” is shown in which color by default? A) Blue B) Magenta C) Cyan D) Gray Answer: D Explanation: The default visualization uses gray to represent stock that has not yet been removed.
Programmer Certification Exam
Preparation
C) G
D) T
Answer: A Explanation: M06 is the standard command for tool change in ISO/G-Code. Question 31. A Setup Sheet generated for the shop floor must include: A) Only the NC code B) Tool list, origin locations, and operation sequence C) Machine warranty information D) Operator’s personal schedule Answer: B Explanation: Setup sheets provide essential data for the operator: which tools, where the part zero is, and the order of operations. Question 32. Which “Traffic Light” color indicates that a mandatory field is missing in an operation dialog? A) Green B) Orange C) Red D) Blue Answer: C Explanation: Red signals required data is absent, preventing the operation from being validated.
Programmer Certification Exam
Preparation
Question 33. Associativity in DELMIA means that: A) The NC code is stored in a separate file B) Changes in the CAD model automatically update linked machining operations C) The tool library cannot be edited after creation D) The machine controller must be restarted after each edit Answer: B Explanation: Associativity links the CAD geometry to machining features, so updates propagate automatically. Question 34. When creating a new end mill tool, which parameter defines the cutting edge geometry? A) Flute length B) Diameter C) Helix angle D) Shank diameter Answer: C Explanation: The helix angle determines the spiral of the flutes, influencing chip evacuation and cutting characteristics. Question 35. Which of the following is a typical feed calculation for a 4 - flute end mill? A) Feed = RPM × Diameter B) Feed = RPM × Number of Flutes × Feed per Tooth
Programmer Certification Exam
Preparation
Explanation: Contour milling with a climb (or conventional) strategy can produce accurate thin walls and clean edges. Question 38. When defining a “Tool Assembly,” why is it important to set the correct “Tool Length Offset”? A) To adjust spindle speed automatically B) To ensure the tool tip reaches the programmed Z coordinate correctly C) To change the coolant flow rate D) To modify the tool’s material Answer: B Explanation: The tool length offset compensates for the measured distance from the holder reference point to the tip, aligning the CNC’s Z axis with the part geometry. Question 39. Which of the following is NOT a standard cutting parameter for a drilling operation? A) Peck depth B) Dwell time at bottom C) Spindle torque limit D) Retract height Answer: C Explanation: While torque limits can be set on some controllers, they are not a typical drilling cycle parameter in DELMIA; the others are standard.
Programmer Certification Exam
Preparation
Question 40. In the context of “High-Speed Pocket Clearing,” what does the term “stepover” refer to? A) The distance the tool moves between successive passes B) The spindle acceleration rate C) The coolant pressure increase D) The tool change time Answer: A Explanation: Stepover is the lateral distance between adjacent tool passes, influencing material removal rate and surface finish. Question 41. Which feature recognition mode would you use to automatically detect a blind hole that is not visible from the exterior? A) Global Feature Recognition B) Local Feature Recognition with “Blind Hole” filter C) Manual selection only D) None – blind holes cannot be recognized automatically Answer: B Explanation: Local recognition can be configured with filters to detect internal blind features that are not exposed. Question 42. When generating NC code, the “Header” section typically contains: A) Tool path coordinates only B) Machine setup comments, program name, and safety commands C) The final part dimensions
Programmer Certification Exam
Preparation
Explanation: CRC offsets the programmed path to the left or right of the tool center line, and must be activated in the operation. Question 45. In DELMIA, the “Replay Speed” control allows the user to: A) Change the spindle RPM in the simulation B) Adjust the speed of the visual toolpath playback without affecting actual feed rates C) Modify the feed per tooth value D) Increase coolant flow Answer: B Explanation: Replay speed only affects how fast the simulation animates; it does not alter programmed machining parameters. Question 46. Which post-processor output format includes “%” as the program start character? A) Fanuc B) Haas C) Heidenhain D) Siemens Answer: C Explanation: Heidenhain controllers use “%” to denote the start of a program. Question 47. When defining a “Pocket” operation, the “Corner Strategy” option controls:
Programmer Certification Exam
Preparation
A) The order in which holes are drilled B) The way the tool moves around internal corners (e.g., zig-zag, contour) C) The coolant type used D) The tool change sequence Answer: B Explanation: Corner strategy determines how the tool navigates tight corners to avoid gouging and achieve desired surface finish. Question 48. Which of the following is an advantage of using a “Template” for repetitive machining tasks? A) It reduces the need for a post-processor B) It ensures consistent parameters across multiple parts, saving programming time C) It automatically purchases new tools D) It eliminates the need for a safety plane Answer: B Explanation: Templates store predefined operation sequences and parameters, promoting consistency and efficiency. Question 49. In the simulation environment, a “Clash” highlighted in yellow typically indicates: A) A minor deviation that can be ignored B) A potential collision that requires user review C) An error in the NC code syntax D) A coolant leak
