Machine Programmer Ultimate
Exam

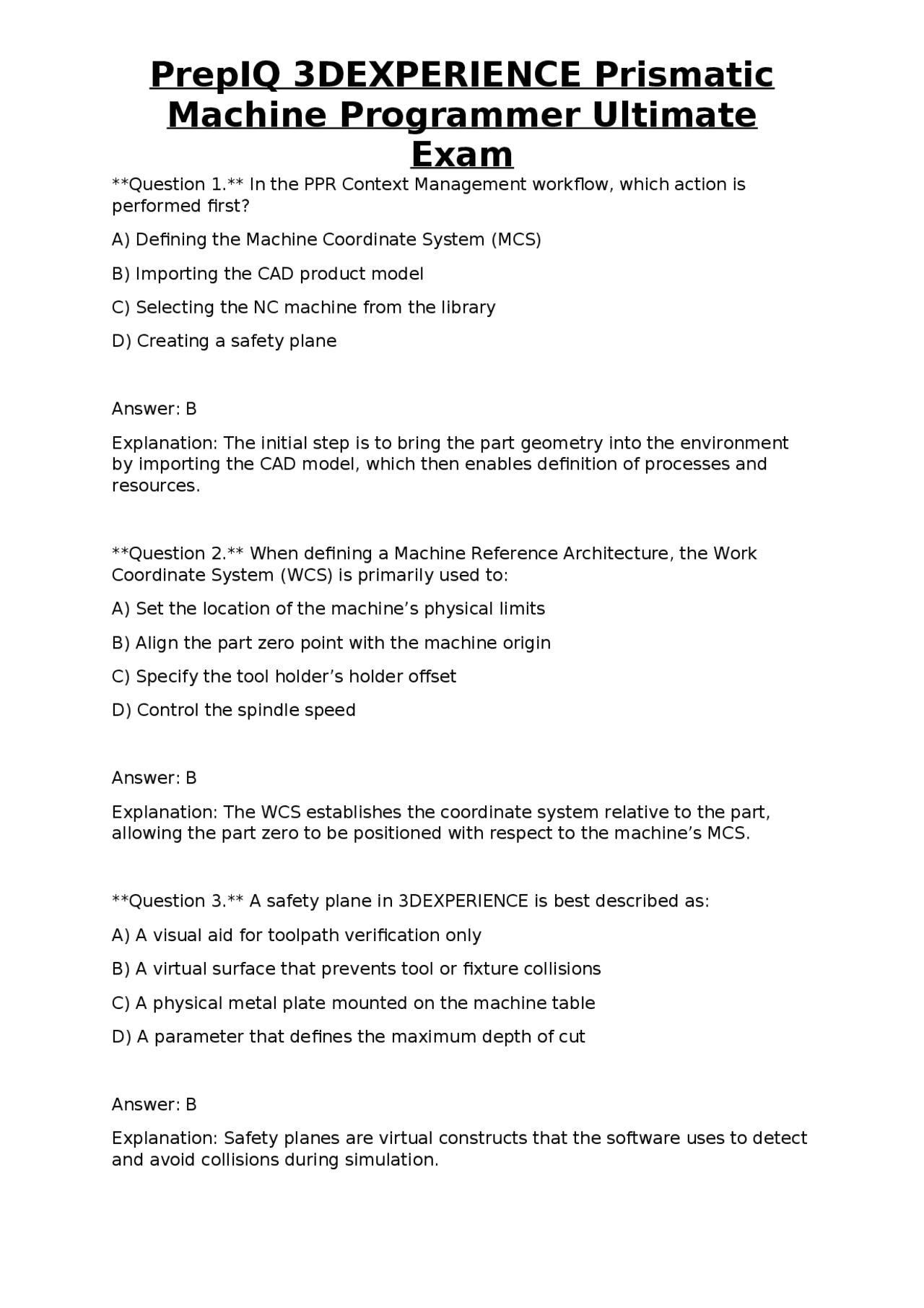

Question 1. In the PPR Context Management workflow, which action is performed first? A) Defining the Machine Coordinate System (MCS) B) Importing the CAD product model C) Selecting the NC machine from the library D) Creating a safety plane Answer: B Explanation: The initial step is to bring the part geometry into the environment by importing the CAD model, which then enables definition of processes and resources. Question 2. When defining a Machine Reference Architecture, the Work Coordinate System (WCS) is primarily used to: A) Set the location of the machine’s physical limits B) Align the part zero point with the machine origin C) Specify the tool holder’s holder offset D) Control the spindle speed Answer: B Explanation: The WCS establishes the coordinate system relative to the part, allowing the part zero to be positioned with respect to the machine’s MCS. Question 3. A safety plane in 3DEXPERIENCE is best described as: A) A visual aid for toolpath verification only B) A virtual surface that prevents tool or fixture collisions C) A physical metal plate mounted on the machine table D) A parameter that defines the maximum depth of cut Answer: B Explanation: Safety planes are virtual constructs that the software uses to detect and avoid collisions during simulation.
Machine Programmer Ultimate
Exam
Question 4. Which of the following is NOT a typical attribute defined in a Tool Assembly? A) Cutter geometry B) Holder type C) Spindle motor torque D) Tool length offset Answer: C Explanation: Spindle motor torque is a machine characteristic, not part of a tool assembly definition. Question 5. When importing a standardized tool library, the most important step to ensure correct usage is: A) Renaming every tool manually B) Mapping the library’s parameter names to the platform’s schema C) Deleting all existing tools from the catalog D) Changing the default material Answer: B Explanation: Proper mapping guarantees that the imported tool data aligns with the system’s expected fields (diameter, feed, speed, etc.). Question 6. In a 2.5-axis drilling operation, the “peck cycle” is primarily used to: A) Increase spindle speed during deep holes B) Reduce chip buildup and heat by retracting the tool periodically C) Create a tapered hole profile D) Automatically generate a tap thread Answer: B
Machine Programmer Ultimate
Exam
Explanation: G41 applies cutter radius compensation on the left side of the tool path, allowing the programmed geometry to be followed accurately. Question 10. When configuring axial parameters, the “Depth of Cut” (DOC) should be chosen based on: A) The maximum spindle speed of the machine B) The rigidity of the setup and tool material C) The number of axes on the CNC D) The color of the workpiece Answer: B Explanation: DOC is limited by tool strength, workpiece rigidity, and machine capability to avoid deflection or breakage. Question 11. The Compute command in 3DEXPERIENCE fails because the tool length offset is missing. The correct remedy is to: A) Delete the operation and recreate it B) Assign a valid tool length offset to the selected tool C) Increase the feed rate D) Change the post-processor Answer: B Explanation: Tool length offsets are required for accurate Z-axis positioning; providing a valid offset resolves the error. Question 12. During toolpath replay, “air cutting” is identified as: A) A rapid move where the tool is not engaged with material B) A cutting move that exceeds the spindle power limit C) A collision between tool and fixture D) A pause in the program for tool change Answer: A
Machine Programmer Ultimate
Exam
Explanation: Air cutting refers to non-cutting rapid moves; while generally safe, excessive air cutting can increase cycle time. Question 13. An NC macro that defines a custom “lead-in” motion is useful because: A) It reduces the need for a safety plane B) It allows the user to control entry angle and distance for smoother cutting C) It automatically selects the optimal feed rate D) It converts ISO code to APT Answer: B Explanation: Custom lead-in macros let programmers tailor entry moves, minimizing marks and improving surface finish. Question 14. In material removal simulation, the “Residue” view shows: A) The quantity of coolant used B) Areas where the part geometry does not match the CAD model after machining C) The tool wear status D) The total machining time Answer: B Explanation: Residue highlights unmachined material, indicating where the simulated cuts failed to meet design dimensions. Question 15. Collision detection flags a clash between the tool holder and the fixture. The quickest way to resolve it is to: A) Increase the spindle speed B) Adjust the safety plane or modify the holder offset C) Change the post-processor D) Disable the collision detection feature
Machine Programmer Ultimate
Exam
Answer: B Explanation: Post-processors map generic machining commands to the specific dialect (e.g., Fanuc, Siemens) used by the physical CNC. Question 19. A setup sheet generated for the shop floor typically includes: A) The complete CAD model in STEP format B) Tool list, work offsets, and operation sequence C) The source code of the post-processor D) The 3DEXPERIENCE license key Answer: B Explanation: Setup sheets provide operators with the essential information to mount tools, set offsets, and run the program. Question 20. Machining Processes (MP) saved as a reusable sequence are advantageous because: A) They automatically adjust for any part size B) They eliminate the need for safety planes C) They allow rapid creation of similar feature operations across multiple parts D) They replace the need for a post-processor Answer: C Explanation: MP templates store a predefined set of operations that can be applied to new parts with similar features, improving efficiency. Question 21. In the Resource Definition step, mounting the part on the machine turret is performed to: A) Define the part’s WCS relative to the machine fixture B) Set the spindle speed automatically C) Generate the NC code instantly D) Create a new tool catalog
Machine Programmer Ultimate
Exam
Answer: A Explanation: Mounting establishes the physical relationship between the part and the machine, which defines the WCS. Question 22. The “Work Offsets” dialog allows you to: A) Change the machine’s maximum travel limits B) Define the part zero point in relation to the machine origin C) Modify the tool’s material type D) Select the post-processor template Answer: B Explanation: Work offsets specify where the part’s coordinate origin (zero) is located relative to the machine’s MCS. Question 23. Which of the following is a common reason for a “Compute” error related to “Toolpath Intersections”? A) The post-processor is not licensed B) Two toolpaths occupy the same space at the same time, causing a logical conflict C) The CNC controller does not support G D) The safety plane is disabled Answer: B Explanation: Intersecting toolpaths can cause undefined machining behavior, prompting the software to halt computation. Question 24. In a tapping operation, the “Tap Pitch” parameter is critical because: A) It determines the coolant flow rate B) It defines the distance the spindle rotates per thread revolution, affecting synchronization between spindle and feed C) It sets the maximum allowable depth of cut D) It changes the tool holder’s diameter
Machine Programmer Ultimate
Exam
C) Operator name D) Machine warranty period Answer: B Explanation: Catalog entries store geometric and technological data needed for programming. Question 28. The purpose of “Lead-in” and “Lead-out” moves is to: A) Reduce the number of tool changes B) Provide smooth entry and exit to/from the cut, minimizing marks at the start and end of the path C) Automatically generate a safety plane D) Increase spindle torque Answer: B Explanation: Properly designed lead-in/out moves prevent abrupt cuts that could mar the part surface. Question 29. In the validation stage, “Stock and Residue” analysis helps the programmer to: A) Determine the optimal coolant temperature B) Verify that the machined part conforms to the nominal geometry and that no excess material remains C) Choose the correct post-processor D) Set the machine’s emergency stop delay Answer: B Explanation: This analysis compares the simulated material removal against the design model to ensure compliance. Question 30. A “Virtual Fixture” in 3DEXPERIENCE is: A) A real clamp placed on the machine table
Machine Programmer Ultimate
Exam
B) A digital representation of a physical fixture used for collision checking and alignment C) A type of tool holder D) A post-processor option Answer: B Explanation: Virtual fixtures model real fixturing within the simulation environment. Question 31. When defining a new NC machine resource, which parameter is essential for accurate simulation? A) The machine’s color scheme B) Axis travel limits and rapid speeds C) The operator’s name D) The software license key Answer: B Explanation: Axis limits and rapid speeds define the machine’s kinematic envelope, crucial for realistic simulation. Question 32. The “Cutter Compensation Direction” (G41 vs G42) is chosen based on: A) The type of coolant used B) Whether the tool path is clockwise or counter-clockwise relative to the part geometry C) The spindle motor brand D) The post-processor version Answer: B Explanation: G41 (left) and G42 (right) are selected according to the direction of the programmed path to maintain correct part dimensions.
Machine Programmer Ultimate
Exam
Question 36. The “Rework” operation differs from a standard pocket operation because: A) It always uses a drill bit B) It is intended to remove leftover material after a primary operation, often with a smaller cutter and tighter tolerances C) It does not require a safety plane D) It automatically generates a post-processor Answer: B Explanation: Rework focuses on cleaning up material that the primary operation could not reach. Question 37. When configuring a “Tool Length Offset” (TLO), the value is measured from: A) The tool tip to the machine’s home position B) The spindle nose to the tool tip along the Z-axis C) The holder’s outer diameter to the workpiece surface D) The coolant nozzle to the tool holder Answer: B Explanation: TLO represents the axial distance from a reference point on the spindle (often the spindle nose) to the actual cutting tip. Question 38. The purpose of a “Macro Variable” in an NC program is to: A) Store repetitive numeric values that can be changed in one place, simplifying program edits B) Define the machine’s warranty period C) Replace the need for a post-processor D) Automatically generate safety planes Answer: A
Machine Programmer Ultimate
Exam
Explanation: Macro variables act as placeholders for values like speeds, feeds, or offsets, enabling easier updates. Question 39. During toolpath replay, a “Rapid” move that passes through the part geometry is flagged as: A) An acceptable air cut B) A collision error that must be corrected C) A normal spindle acceleration D) A coolant activation command Answer: B Explanation: Rapid moves should not intersect the solid model; if they do, it indicates a potential crash. Question 40. Which post-processor option would you select for a Haas CNC machine? A) Fanuc 18i/21i B) Siemens Sinumerik 840D C) Haas Mill/Lathe (ISO) D) Heidenhain TNC Answer: C Explanation: The Haas post-processor generates ISO code compatible with Haas controllers. Question 41. In the context of “Tool Crib” management, a “Standardized Tool Library” helps to: A) Reduce the number of safety planes needed B) Ensure consistent tool data across multiple projects and users C) Automatically generate NC code without any user input D) Increase the machine’s maximum feed rate
Machine Programmer Ultimate
Exam
Answer: A Explanation: Dwell holds the spindle at a specified position for a set time, often used to improve hole quality. Question 45. A “Lead-out” move that retracts the tool directly upward from the cut is preferred because: A) It minimizes the total cycle time B) It reduces the risk of re-engaging the part unintentionally C) It automatically creates a safety plane D) It increases spindle torque Answer: B Explanation: A straight upward retraction avoids the tool re-contacting the workpiece, preventing accidental cuts. Question 46. To ensure that the generated NC code respects the machine’s maximum feed rate, you should: A) Set the “Maximum Feed” parameter in the machine resource definition B) Disable the safety plane C) Increase the spindle speed beyond its rating D) Use a larger tool diameter Answer: A Explanation: Defining the machine’s feed limit lets the post-processor enforce it during code generation. Question 47. The “Tool Orientation” parameter in a tool assembly is used to: A) Define the tool’s rotational direction only B) Specify the angular relationship between the cutter axis and the spindle (e.g., 0°, 45°, 90°) for angled cuts C) Set the coolant flow direction D) Choose the post-processor type
Machine Programmer Ultimate
Exam
Answer: B Explanation: Tool orientation determines how the cutter is angled relative to the spindle, essential for angled milling or drilling. Question 48. When a “Collision Detection” report lists a clash between the “Tool Holder” and the “Part”, the quickest corrective action is to: A) Increase the spindle speed B) Adjust the holder offset or modify the toolpath to provide more clearance C) Change the post-processor to a different brand D) Delete the operation entirely Answer: B Explanation: Modifying the holder offset or toolpath clearance resolves the interference without discarding the operation. Question 49. In a “Pocketing” operation, the “Wall Clearance” parameter is used to: A) Define the distance between the tool and the pocket wall at the final pass to achieve the required dimension B) Set the coolant pressure C) Adjust the spindle acceleration D) Determine the number of tool changes Answer: A Explanation: Wall clearance ensures the final dimension of the pocket meets tolerance by leaving a small gap for finishing. Question 50. The “Automatic Tool Change” (ATC) command in generated ISO code is typically represented by which code? A) M B) G C) M
Machine Programmer Ultimate
Exam
B) Unlimited spindle speed C) Zero tool length offset D) Automatic coolant activation Answer: A Explanation: HSS tools have lower recommended cutting speeds compared to carbide, reflecting material limitations. Question 54. The “Compute” function will not run if the “Machine Coordinate System” is undefined because: A) The post-processor cannot be selected B) The software lacks a reference frame to calculate tool motions relative to the machine C) The safety plane becomes invisible D) The tool catalog is disabled Answer: B Explanation: MCS provides the base coordinate system; without it, toolpath calculations cannot be performed. Question 55. During a “Spot Drilling” operation, the primary purpose is to: A) Produce a full-depth hole in one pass B) Create a small dimple to guide subsequent drilling, improving positional accuracy C) Finish a surface to a mirror finish D) Generate coolant flow Answer: B Explanation: Spot drilling makes a shallow indentation that serves as a pilot for deeper drilling, preventing wandering. Question 56. The “Axial Tolerance” setting in a machining operation influences:
Machine Programmer Ultimate
Exam
A) The maximum allowable deviation in Z-direction between the programmed and actual cut depth B) The spindle acceleration profile C) The coolant temperature D) The number of tool changes Answer: A Explanation: Axial tolerance defines how much variation is acceptable in the vertical dimension of the cut. Question 57. When a “Rework” operation uses a “Helical Interpolation” move, the advantage is: A) Faster rapid moves B) Ability to enter deep cavities while maintaining constant chip load C) Automatic generation of a safety plane D) Reduced need for coolant Answer: B Explanation: Helical interpolation allows smooth entry into deep or narrow features with controlled engagement. Question 58. The “Lead-in Length” for a contouring operation should generally be: A) As short as possible to reduce cycle time B) Long enough to allow the cutter to reach full cutting speed before engaging the part C) Equal to the tool diameter D) Determined by the post-processor version Answer: B Explanation: Sufficient lead-in length ensures the tool accelerates to the programmed feed before contact, improving surface finish.
