Engineer Exam Guide

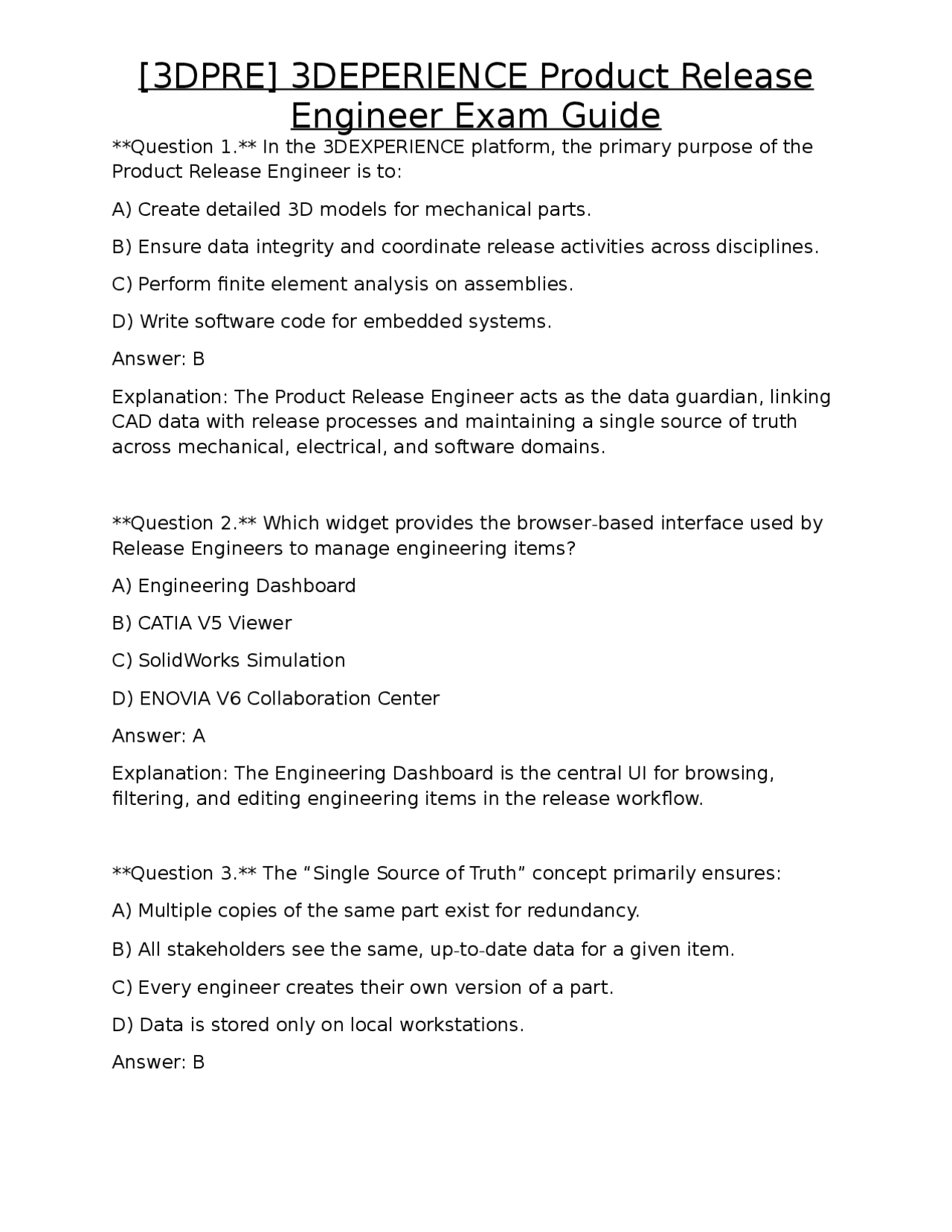

Question 1. In the 3DEXPERIENCE platform, the primary purpose of the Product Release Engineer is to: A) Create detailed 3D models for mechanical parts. B) Ensure data integrity and coordinate release activities across disciplines. C) Perform finite element analysis on assemblies. D) Write software code for embedded systems. Answer: B Explanation: The Product Release Engineer acts as the data guardian, linking CAD data with release processes and maintaining a single source of truth across mechanical, electrical, and software domains. Question 2. Which widget provides the browser-based interface used by Release Engineers to manage engineering items? A) Engineering Dashboard B) CATIA V5 Viewer C) SolidWorks Simulation D) ENOVIA V6 Collaboration Center Answer: A Explanation: The Engineering Dashboard is the central UI for browsing, filtering, and editing engineering items in the release workflow. Question 3. The “Single Source of Truth” concept primarily ensures: A) Multiple copies of the same part exist for redundancy. B) All stakeholders see the same, up-to-date data for a given item. C) Every engineer creates their own version of a part. D) Data is stored only on local workstations. Answer: B
Engineer Exam Guide
Explanation: A single source of truth guarantees that a single, authoritative version of an item is used throughout the product lifecycle. Question 4. Which of the following best describes the relationship between Collaborative Industry Innovator (CII) tools and Release Engineering tasks? A) CII tools replace the need for Release Engineers. B) Release Engineers use CII tools to integrate non-CAD data into the product structure. C) CII tools are only for mechanical design. D) Release Engineers cannot access CII tools. Answer: B Explanation: CII tools enable the inclusion of various data types (e.g., documents, software) that Release Engineers must manage alongside CAD data. Question 5. To locate a specific engineering item by its attribute (e.g., material), a Release Engineer should use: A) The “Search” bar in the 3D Viewer. B) The “Filter” function in the Engineering Dashboard. C) The “Export to CSV” utility. D) The “Create New” wizard. Answer: B Explanation: Filters allow rapid narrowing of items based on attributes such as material, weight, or status. Question 6. When creating a new engineering definition from scratch, which initial step is required? A) Import a legacy assembly.
Engineer Exam Guide
A) Removing all technical specifications. B) Keeping the original specifications intact. C) Assigning a new part number automatically. D) Changing its maturity state to Private. Answer: B Explanation: “Duplicate with Specs” clones the item and retains its technical data, useful for re-use in a new context. Question 10. When deciding between re-using a legacy component and excluding it from a new project, the Release Engineer should consider: A) The component’s color. B) Whether the component meets current design standards and performance requirements. C) The number of CAD users in the organization. D) The version of Windows the workstation runs. Answer: B Explanation: Re-use decisions are based on compliance with standards, functionality, and cost/benefit analysis. Question 11. Product Architecture Optimization aims to: A) Increase the number of parts to improve granularity. B) Reduce unnecessary complexity and align with corporate standards. C) Randomly reorder items in the hierarchy. D) Disable all mass update capabilities. Answer: B Explanation: Optimization removes redundancy, simplifies the BOM, and ensures the structure follows best-practice guidelines.
Engineer Exam Guide
Question 12. In a BOM report, the “Flattened” view differs from the “Nested” view by: A) Showing only top-level items. B) Displaying every part individually without hierarchy. C) Hiding the quantities of each part. D) Removing all non-CAD components. Answer: B Explanation: Flattened view expands the hierarchy so each leaf part appears as a separate line item, facilitating procurement. Question 13. Which maturity state indicates that an item is still being actively edited and not yet shared with other teams? A) Private B) In-Work C) Frozen D) Released Answer: A Explanation: Private items are visible only to the owner and are intended for early development work. Question 14. Transitioning an item from “In-Work” to “Frozen” signifies: A) The item is now ready for release without further changes. B) The item has been deleted. C) The item is being archived for future reference. D) The item is now editable by all users. Answer: A Explanation: Frozen status locks the item’s attributes, indicating that design is complete and ready for review.
Engineer Exam Guide
Answer: A Explanation: Early locking guarantees that downstream processes reference a stable identifier. Question 18. A Change Action (CA) in the 3DEXPERIENCE environment is primarily used to: A) Create a new product from scratch. B) Document, approve, and track modifications to engineering items. C. Perform a mass export of data. D. Generate 3D visualizations. Answer: B Explanation: CAs provide governance, ensuring that any change is recorded, evaluated, and authorized. Question 19. Which of the following tools allows a Release Engineer to rotate, zoom, and section a model without having the original CAD file? A) 3D Viewer embedded in the Engineering Release widget. B) CATIA V5 Drafting. C) SolidWorks Simulation. D) ENOVIA V6 Document Management. Answer: A Explanation: The integrated 3D Viewer renders the model for visual inspection even for non-CAD users. Question 20. Adding a technical annotation to a 3D view is useful for: A) Changing the part number automatically. B) Providing design feedback or clarification directly on the geometry. C. Exporting the model to an Excel file.
Engineer Exam Guide
D. Deleting the component from the structure. Answer: B Explanation: Annotations are visual comments that can be attached to specific faces or features. Question 21. Which basic analysis tool can a Release Engineer use to verify that two components do not intersect? A) Interference Check. B) Stress Analysis. C. Fluid Flow Simulation. D. Thermal Conductivity Test. Answer: A Explanation: The interference check identifies overlapping volumes, helping ensure proper form-fit-function. Question 22. To generate a CSV report of the full parts list, the Release Engineer should select: A) “Export > CSV” from the Engineering Dashboard toolbar. B) “Create New > Part”. C. “Delete > All Items”. D. “Lock > Part Number”. Answer: A Explanation: The Export function creates a CSV (or Excel) file containing the BOM data. Question 23. Which UI action is required to perform a “Mass Update” on the material attribute of several items? A) Click the “Create New” button.
Engineer Exam Guide
Question 26. Which of the following actions changes an item’s maturity state from “Frozen” to “Released”? A. Deleting the item. B. Submitting the item for final approval through the Release workflow. C. Changing its part number. D. Adding a new attribute. Answer: B Explanation: The Release workflow moves a frozen, approved item into the Released state. Question 27. In the context of part numbering, “manual assignment” is typically used when: A. The company wants to enforce a strict sequential scheme. B. The part is a special or legacy component that does not fit the automated pattern. C. The user prefers to type random numbers. D. The system automatically generates the number. Answer: B Explanation: Manual numbering is reserved for exceptions where the standard sequence is not appropriate. Question 28. A “Replace by Revision” operation automatically updates which of the following relationships? A. Only the part’s visual color. B. All downstream items that reference the old revision, linking them to the new one. C. The user’s password. D. The operating system of the workstation. Answer: B
Engineer Exam Guide
Explanation: The workflow propagates the new revision through the product structure, keeping references consistent. Question 29. When using the Engineering Dashboard, the “Group By” function is helpful for: A. Changing the geometry of a part. B. Organizing items into logical clusters based on a selected attribute (e.g., discipline). C. Exporting data to a PDF. D. Locking the part numbers. Answer: B Explanation: Group By aggregates items, making it easier to view and manage similar objects together. Question 30. Which statement best describes the purpose of the “Obsolete” maturity state? A. The item is ready for production. B. The item is no longer valid and should not be used in new designs. C. The item is still being edited. D. The item is awaiting approval. Answer: B Explanation: Obsolete marks items that have been superseded or discontinued. Question 31. To add a grease component (non-CAD) to an assembly, the Release Engineer should: A. Create a new 3D model in CATIA. B. Use the “Add Non-CAD Item” option and fill in the required attributes.
Engineer Exam Guide
B. Modified only by its owner or users with explicit edit rights. C. Modified only after it becomes “Frozen”. D. Modified only by the system administrator. Answer: B Explanation: In-Work items are editable but access is controlled by permissions. Question 35. The “Change Action” workflow typically requires which of the following before a part can move to “Released”? A. A completed interference check. B. Approval from the Change Action reviewer. C. Automatic numbering of the part. D. Exporting the BOM to Excel. Answer: B Explanation: A CA must be reviewed and approved to ensure that all changes are justified and documented. Question 36. Which tool would a Release Engineer use to verify that a part’s weight attribute matches the sum of its child components? A. Mass Update. B. BOM Roll-up analysis. C. Interference Check. D. 3D Viewer. Answer: B Explanation: BOM roll-up aggregates child weights to compare against the parent’s recorded weight.
Engineer Exam Guide
Question 37. To ensure that a newly imported legacy assembly complies with corporate standards, the Release Engineer should: A. Immediately release it without review. B. Run the “Product Architecture Optimization” wizard and resolve any violations. C. Delete all its children. D. Change its maturity state to Private. Answer: B Explanation: Optimization highlights non-conformities and suggests corrections before release. Question 38. The “Duplicate with Specs” function differs from a plain “Duplicate” in that it: A. Copies the part number as well. B. Retains all technical specifications (material, tolerance, etc.). C. Changes the maturity state to Private. D. Removes all attributes. Answer: B Explanation: “Duplicate with Specs” is intended for re-use while keeping the original engineering data. Question 39. Which of the following best describes a “Non-CAD Component” in the product structure? A. A component that has a 3-D solid model. B. An item such as software, fasteners, or consumables that does not require a geometric model. C. A component that is only used for visual rendering. D. A component that is automatically generated by the system.
Engineer Exam Guide
C. Run a mass update on all items. D. Change the maturity state to Private. Answer: A Explanation: Filtering by discipline isolates the desired set of items. Question 43. Which of the following is a benefit of using the “Replace by Revision” workflow rather than deleting and recreating a part? A. It preserves the historical relationship and traceability. B. It automatically releases the part. C. It changes the part number to a random value. D. It removes all annotations. Answer: A Explanation: Revision replacement maintains a linked history, essential for audit and compliance. Question 44. In the context of the 3DEXPERIENCE Release process, “Governance” primarily refers to: A. The visual style of the 3D Viewer. B. The set of rules, approvals, and procedures that control changes to engineering data. C. The speed of the network connection. D. The amount of RAM on the workstation. Answer: B Explanation: Governance ensures that data changes follow defined policies and receive proper sign-off. Question 45. Which action should be taken before assigning a part number to a newly created component?
Engineer Exam Guide
A. Release the component immediately. B. Verify that the component’s attributes (material, weight, description) are final. C. Delete the component. D. Change its maturity state to Obsolete. Answer: B Explanation: Part numbers should be locked only after the item’s definition is stable. Question 46. The “Interference Check” tool reports: A. The total weight of the assembly. B. Overlapping volumes between selected components. C. The number of part numbers assigned. D. The maturity state of each item. Answer: B Explanation: Interference checking identifies geometric clashes. Question 47. A Release Engineer wants to copy an entire sub-assembly from a previous project, preserving its part numbers and specifications. Which option should they use? A. Duplicate (no specs). B. Duplicate with Specs. C. Create New > Part. D. Export to CSV and re-import. Answer: B Explanation: “Duplicate with Specs” copies the sub-assembly exactly, including part numbers and technical data.
Engineer Exam Guide
Question 51. Which of the following is NOT a typical step in the Release workflow? A. Assigning a part number. B. Performing a mass update of material. C. Running a CFD simulation. D. Changing the maturity state to Released. Answer: C Explanation: CFD simulation is a design analysis task, not part of the release workflow. Question 52. To view only items that have not yet been assigned a part number, the Release Engineer should: A. Filter by “Part Number = Empty”. B. Change the maturity state to Private. C. Export to CSV and sort manually. D. Use the 3D Viewer’s “Hide Unnumbered” option. Answer: A Explanation: Filtering for empty part numbers isolates un-numbered items. Question 53. Which of the following actions will change an item’s maturity state from “Released” back to “In-Work”? A. Directly editing the maturity field. B. Initiating a “Change Action” that includes a “Re-open” request. C. Deleting the item. D. Exporting the BOM. Answer: B
Engineer Exam Guide
