Exam Guide

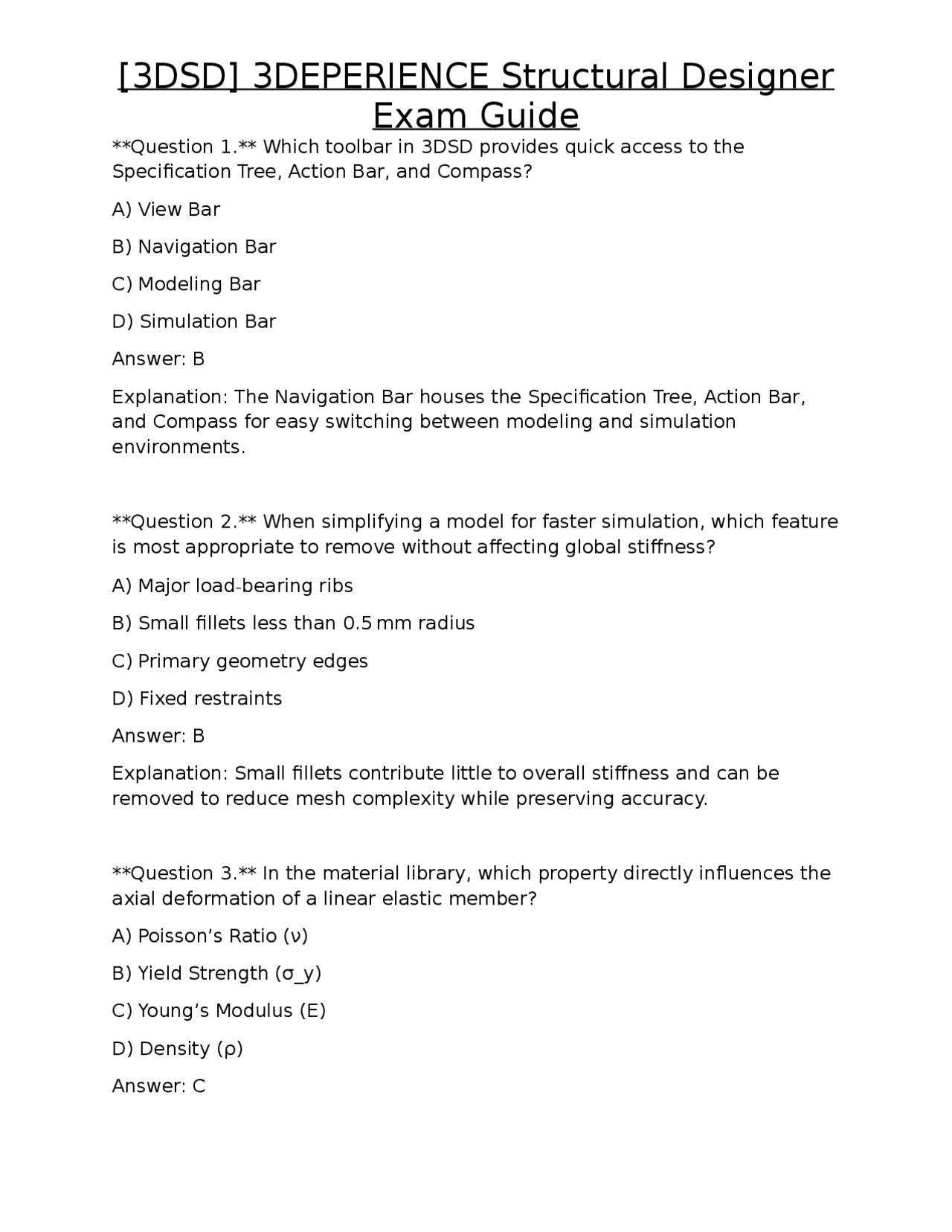

Question 1. Which toolbar in 3DSD provides quick access to the Specification Tree, Action Bar, and Compass? A) View Bar B) Navigation Bar C) Modeling Bar D) Simulation Bar Answer: B Explanation: The Navigation Bar houses the Specification Tree, Action Bar, and Compass for easy switching between modeling and simulation environments. Question 2. When simplifying a model for faster simulation, which feature is most appropriate to remove without affecting global stiffness? A) Major load-bearing ribs B) Small fillets less than 0.5 mm radius C) Primary geometry edges D) Fixed restraints Answer: B Explanation: Small fillets contribute little to overall stiffness and can be removed to reduce mesh complexity while preserving accuracy. Question 3. In the material library, which property directly influences the axial deformation of a linear elastic member? A) Poisson’s Ratio (ν) B) Yield Strength (σ_y) C) Young’s Modulus (E) D) Density (ρ) Answer: C
Exam Guide
Explanation: Young’s Modulus defines the linear relationship between stress and strain, governing axial deformation. Question 4. What is the key difference between a Simulation Domain material and an Analysis Domain material? A) Simulation Domain material controls mesh size, Analysis Domain material defines color. B) Simulation Domain material is used for visual rendering, Analysis Domain material provides mechanical properties. C) Simulation Domain material applies only to contacts, Analysis Domain material applies to all bodies. D) Simulation Domain material is only for thermal studies, Analysis Domain material is for structural studies. Answer: B Explanation: Simulation Domain material affects visual appearance, while Analysis Domain material supplies the mechanical data used in calculations. Question 5. Which element type is most suitable for modeling a thick solid bracket with complex geometry? A) 1-D beam element B) 2-D shell element C) 3-D tetrahedral element D) 3-D hexahedral element Answer: D Explanation: Hexahedral (brick) elements provide higher accuracy for thick solids with regular geometry, reducing numerical errors compared to tetrahedrals. Question 6. For a thin-walled cylindrical tube, which meshing approach yields the most efficient and accurate results?
Exam Guide
Question 9. Which type of restraint completely restricts all six degrees of freedom at a node? A) Pinned constraint B] Slider constraint C) Fixed displacement D) Hinge constraint Answer: C Explanation: Fixed displacement locks translational and rotational DOFs, providing a fully restrained condition. Question 10. A slider joint in 3DSD allows movement along which degrees of freedom? A) One translational DOF only B) Two rotational DOFs only C) All six DOFs D) No movement, only rotation Answer: A Explanation: A slider permits translation along a single axis while restricting other motions. Question 11. Which load type is best used to simulate the weight of a component in a gravity field? A) Force load applied at a point B) Pressure load on a surface C) Gravity (inertial) load D) Torque load about an axis Answer: C
Exam Guide
Explanation: Gravity loads automatically apply body forces proportional to mass and density throughout the volume. Question 12. In 3DSD, a “Remote Load” is primarily used for: A) Applying loads directly on a surface B) Defining loads at a distance from the model, such as wind pressure on a virtual surface C) Adding thermal expansion effects D) Specifying bolt preload values Answer: B Explanation: Remote loads act on a defined region that does not physically exist in the geometry, useful for environmental loads. Question 13. Which contact type in 3DSD enforces a “no-penetration” condition without allowing separation? A) Bonded (Tie) contact B) Frictionless contact C) No-Penetration contact D) Welded contact Answer: C Explanation: No-Penetration contact prevents interpenetration but allows separation, modeling clearances. Question 14. A virtual bolt connector is advantageous because: A) It models threads explicitly, increasing accuracy. B) It reduces model size by representing fastener behavior without detailed geometry. C) It automatically calculates bolt shear stress.
Exam Guide
B) Temperature distribution C) Von Mises stress contour D) Factor of Safety contour Answer: C Explanation: Von Mises stress predicts yielding in ductile materials, making it the standard failure criterion. Question 18. When creating a factor of safety (FOS) plot, the denominator is typically: A) Material density B) Applied load magnitude C) Maximum von Mises stress in the model D) Young’s Modulus Answer: C Explanation: FOS = Yield Strength / Maximum Stress; the stress used is the von Mises stress from the analysis. Question 19. The “Probe” tool in 3DSD is most useful for: A) Editing mesh topology B) Extracting numerical values at specific nodes or elements C) Changing material properties on the fly D) Generating animation files Answer: B Explanation: Probe allows users to query stress, displacement, or other results at precise locations. Question 20. Which reporting feature automatically includes the model’s unit system, material definitions, and load cases?
Exam Guide
A) Custom Text Report B) Automated Summary Report C) Export to CSV D) Screenshot Capture Answer: B Explanation: The Automated Summary Report compiles essential setup information for documentation. Question 21. According to the “Rule of Three,” which step is NOT part of the verification process? A) Identify the correct tool for the scenario B) Define all necessary inputs (units, material constants, DOF) C) Validate results against hand calculations D) Increase mesh density until results change by less than 0.01 % Answer: D Explanation: The Rule of Three emphasizes tool selection, input definition, and sanity-checking results, not exhaustive mesh convergence. Question 22. In the Specification Tree, which node typically stores the applied loads for a given step? A) Geometry B) Materials C) Loads D) Results Answer: C Explanation: The Loads node groups all force, pressure, and other load definitions for the analysis.
Exam Guide
Question 26. Which load type would you use to simulate a bolt preload without modeling the bolt geometry? A) Force load at a point B) Pressure load on a surface C) Virtual bolt connector D) Gravity load Answer: C Explanation: Virtual bolt connectors apply the equivalent clamping force of a bolt without explicit geometry. Question 27. In a non-linear static step, which solver option must be enabled to account for large deformations? A) Linear material model B) Small displacement formulation C) Large displacement (NLGEOM) option D) Fixed time stepping Answer: C Explanation: Enabling NLGEOM activates the large-displacement formulation necessary for geometric non-linearity. Question 28. Which warning typically indicates that a contact pair may be incorrectly defined? A) “Mesh quality poor – aspect ratio high” B) “Contact pair has no penetration tolerance” C) “Singular matrix – check restraints” D) “Material property missing” Answer: B
Exam Guide
Explanation: Lack of a penetration tolerance suggests the contact algorithm cannot detect gaps, leading to potential errors. Question 29. When visualizing results, what does the “Deformed Shape” display represent? A) Original geometry scaled by a factor of 1. B) The mesh after applying the computed displacements, often exaggerated for clarity. C) Only the stress distribution on the undeformed model. D) The temperature field on the model. Answer: B Explanation: Deformed Shape shows the geometry displaced according to the analysis results, usually with an amplification factor. Question 30. The von Mises stress is derived from which combination of stress components? A) Only axial stress B) Sum of principal stresses C) Square root of (0.5*((σ1-σ2)²+(σ 2 - σ3)²+(σ 3 - σ1)²)) D) Average of shear stresses Answer: C Explanation: The von Mises criterion uses the deviatoric stress invariant, calculated by the given formula. Question 31. Which of the following is a primary advantage of using hexahedral elements over tetrahedral elements? A) Faster mesh generation B) Better performance for thin shells
Exam Guide
B) 2-D shell C) 1-D beam D) 3-D hexahedral solid Answer: C Explanation: Beam elements efficiently capture axial behavior of slender members with fewer degrees of freedom. Question 35. When applying a pressure load to a curved surface, which setting ensures the pressure acts normal to the surface? A) Tangential pressure option B) Normal pressure option C) Global X-direction pressure D) Uniform load option Answer: B Explanation: Normal pressure automatically aligns the load vector perpendicular to the local surface normal. Question 36. A “Pinned” constraint in 3DSD allows: A) Translation in all directions but no rotation. B) Rotation about all axes but no translation. C) Rotation about one axis while fixing translations. D) No movement at all. Answer: B Explanation: Pinned constraints prevent translation while permitting rotation about all axes. Question 37. Which solver message indicates that the analysis converged within the specified tolerance?
Exam Guide
A) “Error: Singular matrix” B) “Warning: Mesh quality low” C) “Solution converged after X iterations” D) “Abort: Unstable solution” Answer: C Explanation: A convergence message confirms the solver met the convergence criteria after a certain number of iterations. Question 38. In post-processing, the “Maximum Principal Stress” plot is most relevant for which material behavior? A) Ductile yielding B) Brittle fracture C) Creep deformation D) Thermal expansion Answer: B Explanation: Maximum principal stress is used as a failure criterion for brittle materials that fail under tensile stress. Question 39. Which of the following is NOT a valid reason to use a shell element instead of a solid element? A) Reducing computational cost for thin structures B) Capturing out-of-plane shear accurately in thick sections C) Modeling membrane behavior efficiently D) Avoiding through-thickness meshing Answer: B Explanation: Shell elements approximate out-of-plane shear; for thick sections a solid mesh is preferred for accuracy.
Exam Guide
Explanation: Consistency in the chosen unit system (commonly SI) prevents scaling errors in loads, material properties, and results. Question 43. In a static analysis, which condition would most likely cause the solver to report “unstable mechanism”? A) All parts are fully restrained. B) The mesh contains distorted elements. C) A part is only restrained by a single hinge, allowing rigid body motion. D) Loads are applied as pressure instead of force. Answer: C Explanation: Insufficient restraints lead to a rigid-body mechanism, which the solver flags as unstable. Question 44. Which of the following is the most appropriate method to verify that a mesh is sufficiently refined? A) Compare results with a coarser mesh and ensure the change is within an acceptable tolerance. B) Use the maximum possible element count. C) Apply a finer mesh only to the entire model. D) Rely on default mesh settings. Answer: A Explanation: Mesh convergence studies involve refining the mesh and checking that key results change negligibly. Question 45. When defining a material with isotropic behavior, which property pair fully describes its elastic response? A) Young’s Modulus and Yield Strength B) Poisson’s Ratio and Density
Exam Guide
C) Young’s Modulus and Poisson’s Ratio D) Shear Modulus and Bulk Modulus Answer: C Explanation: For isotropic linear elastic materials, E and ν uniquely define the full stiffness matrix. Question 46. Which contact definition is best suited for simulating a sliding bearing surface with friction? A) Bonded (Tie) contact B) Frictionless contact C) Frictional contact with a coefficient of friction D) No-penetration contact only Answer: C Explanation: Frictional contact includes both normal and tangential resistance, representing bearing behavior. Question 47. In 3DSD, the “Compass” tool primarily assists with: A) Measuring distances and angles in the model B) Navigating the 3-D view (rotate, pan, zoom) C) Assigning material properties D) Generating mesh automatically Answer: B Explanation: The Compass provides interactive view manipulation for rotating, panning, and zooming the model. Question 48. Which statement best describes the purpose of a “Static Step” in a structural analysis? A. It solves transient dynamic problems.
Exam Guide
Question 51. In the post-processing window, the “Section Cut” tool is used to: A. Remove elements from the mesh. B. Create a planar slice through the model to view internal stress fields. C. Apply a new load on a selected area. D. Change the material of a region. Answer: B Explanation: Section cuts expose interior results by cutting through the geometry. Question 52. Which of the following is a correct method to define a distributed load on a beam’s length? A. Apply a point force at the beam’s midpoint. B. Use a pressure load on the beam’s surface. C. Define a line load with magnitude per unit length. D. Apply a torque about the beam’s axis. Answer: C Explanation: Line loads represent forces distributed along the beam’s length, expressed as N/m or similar. Question 53. The “Mesh Specification” dialog allows you to control: A. Material color only. B. Global element size, local refinement, and element order. C. Solver iteration limits. D. Post-processing plot styles. Answer: B Explanation: Mesh Specification sets element size, refinement zones, and whether to use linear or higher-order elements.
Exam Guide
Question 54. Which factor most directly influences the number of degrees of freedom in a solid model? A. Number of material definitions. B. Mesh element count and type. C. Number of applied loads. D. Size of the analysis step. Answer: B Explanation: Each mesh element contributes nodes and associated DOFs; more elements increase the total DOFs. Question 55. When using a “Virtual Bolt” to simulate a bolted joint, which parameter must you still define to capture the correct load path? A. Bolt thread geometry. B. Preload force magnitude. C. Bolt material density. D. Contact friction coefficient. Answer: B Explanation: The virtual bolt requires a preload value to represent the clamping force applied by the real bolt. Question 56. Which of the following is a typical sign that a mesh is too coarse around a stress concentration? A. Uniform stress distribution across the region. B. Sudden spikes or unrealistic stress values at element edges. C. High mesh quality metrics. D. Solver convergence in a single iteration. Answer: B
