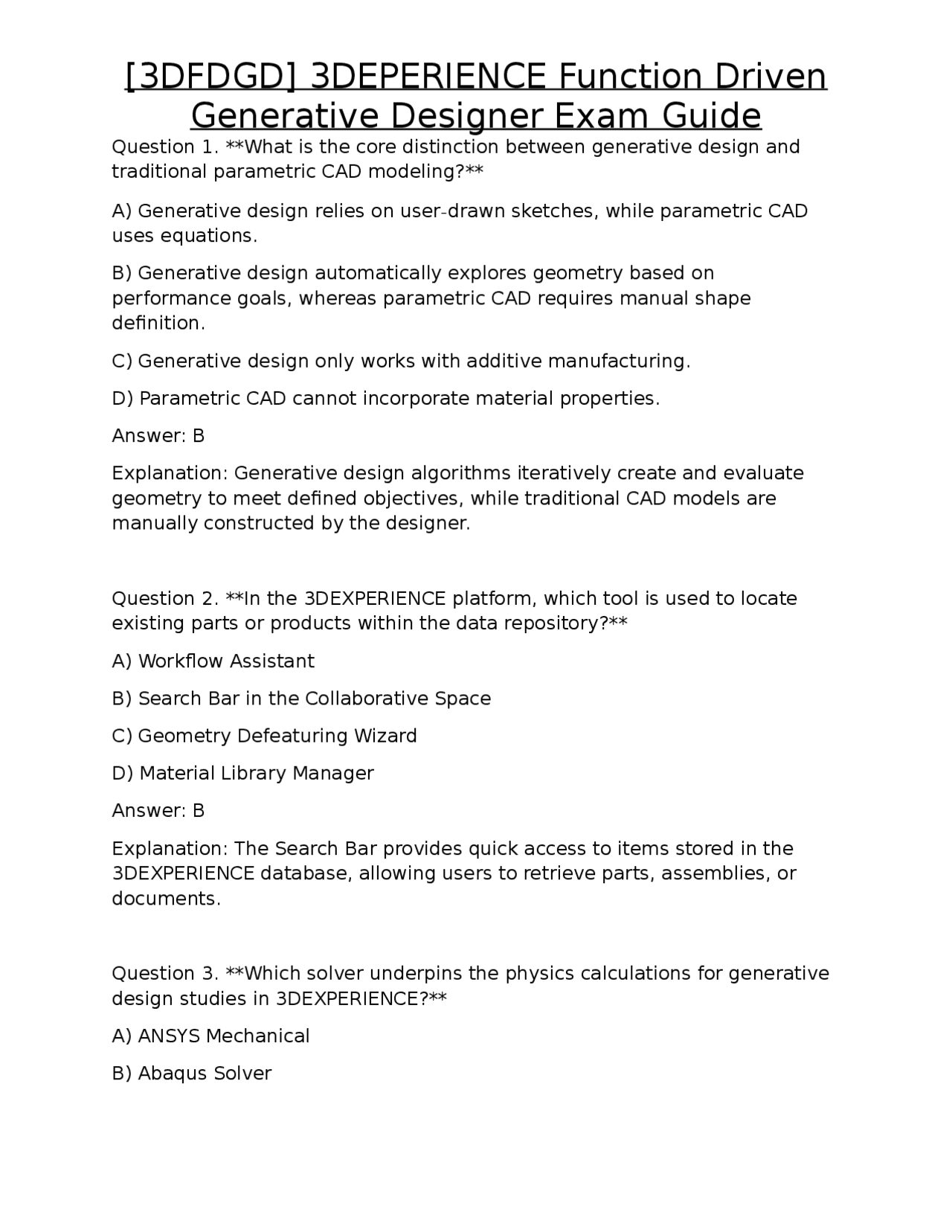

Generative Designer Exam Guide
Question 1. What is the core distinction between generative design and traditional parametric CAD modeling? A) Generative design relies on user-drawn sketches, while parametric CAD uses equations. B) Generative design automatically explores geometry based on performance goals, whereas parametric CAD requires manual shape definition. C) Generative design only works with additive manufacturing. D) Parametric CAD cannot incorporate material properties. Answer: B Explanation: Generative design algorithms iteratively create and evaluate geometry to meet defined objectives, while traditional CAD models are manually constructed by the designer. Question 2. In the 3DEXPERIENCE platform, which tool is used to locate existing parts or products within the data repository? A) Workflow Assistant B) Search Bar in the Collaborative Space C) Geometry Defeaturing Wizard D) Material Library Manager Answer: B Explanation: The Search Bar provides quick access to items stored in the 3DEXPERIENCE database, allowing users to retrieve parts, assemblies, or documents. Question 3. Which solver underpins the physics calculations for generative design studies in 3DEXPERIENCE? A) ANSYS Mechanical B) Abaqus Solver
Generative Designer Exam Guide
C) SolidWorks Simulation D) COMSOL Multiphysics Answer: B Explanation: Abaqus is the simulation engine integrated with the Generative Design module, performing finite-element analyses that drive material distribution. Question 4. When defining a design space, what does the “envelope” represent? A) The minimum volume the part must occupy. B) The maximum allowable region where material can be placed. C) The exact shape of the final part. D) The region where loads are applied. Answer: B Explanation: The envelope limits the spatial region in which the optimizer may distribute material, establishing the outer bounds of the design. Question 5. What is a “keep-out zone” in the context of design space partitioning? A) An area where material density must be maximized. B) A region that must remain void, such as bolt holes or clearance spaces. C) A zone where the solver applies higher mesh density. D) A zone automatically filled with the base material. Answer: B Explanation: Keep-out zones are explicitly excluded from material placement to preserve functional features or assembly clearances.
Generative Designer Exam Guide
Explanation: A revolute constraint allows rotation about a single axis, emulating a hinge behavior. Question 9. Which load type is appropriate for evaluating a component subjected to uniform pressure on a surface? A) Point force B) Distributed pressure load C) Torque D) Thermal load Answer: B Explanation: Distributed pressure applies a uniform normal load over a defined area, matching the described scenario. Question 10. Linear static scenarios in generative design are primarily used to assess which performance metric? A) Natural frequencies B) Static displacement and stress under steady loads C) Fatigue life under cyclic loads D) Thermal expansion Answer: B Explanation: Linear static analysis calculates deformation and stress under constant loads without considering dynamic effects. Question 11. When optimizing for vibration, which simulation mode is most relevant? A) Linear static B) Frequency (modal) analysis C) Thermal transient
Generative Designer Exam Guide
D) Buckling analysis Answer: B Explanation: Frequency (modal) analysis determines natural frequencies and mode shapes, essential for vibration-related objectives. Question 12. In an assembly-level optimization, what does a “connection definition” specify? A) The material of each component. B) The type of interaction (e.g., contact, weld) between parts. C) The color scheme for visualisation. D) The manufacturing process to be used. Answer: B Explanation: Connection definitions describe how parts interact mechanically, influencing load transfer and constraint conditions. Question 13. Which optimization target aims to reduce the part’s weight while maintaining stiffness? A) Mass Minimization with Stress Constraint B) Volume Maximization C) Surface Roughness Minimization D) Thermal Conductivity Maximization Answer: A Explanation: Mass minimization combined with a stress constraint ensures the part stays light without exceeding allowable stresses. Question 14. What manufacturing constraint must be considered when generating a design for metal additive manufacturing? A) Minimum draft angle of 0°
Generative Designer Exam Guide
Question 17. The “Density Map” produced by the solver visualises which of the following? A) Temperature distribution across the part. B. Material allocation density throughout the design space. C. Color-coded stress intensity. D. Manufacturing cost estimates. Answer: B Explanation: The density map shows where the optimizer has placed material (high density) versus void (low density) within the envelope. Question 18. In a trade-off study, what does a KPI (Key Performance Indicator) represent? A) The file size of the generated mesh. B) A quantitative metric such as weight, stiffness, or cost used to compare design variants. C) The number of design iterations performed. D) The version number of the solver. Answer: B Explanation: KPIs provide measurable criteria that enable objective comparison of multiple design outcomes. Question 19. If a generated concept shows a 40 % weight reduction but exceeds the allowable stress, what is the appropriate next step? A) Accept the design because weight is more important. B) Re-run the optimization with a tighter stress constraint. C) Increase the mesh size to reduce computation time. D) Switch to a different material without changing constraints. Answer: B
Generative Designer Exam Guide
Explanation: Tightening the stress constraint forces the optimizer to produce a feasible solution that respects both weight and strength requirements. Question 20. During shape reconstruction, which tool converts the density map into a smooth, manufacturable surface? A) Geometry Defeaturing Wizard B) Sub-division Surface (IMA) Tool C) Mesh Simplification Filter D) Material Assignment Panel Answer: B Explanation: The Sub-division Surface (IMA) tool creates a refined CAD surface that approximates the organic density distribution. Question 21. What is the purpose of “scaling and alignment” after shape reconstruction? A) To adjust the visual colour of the model. B) To ensure the reconstructed geometry matches the original design space and functional interfaces. C) To reduce the file size for faster loading. D) To apply texture maps for rendering. Answer: B Explanation: Scaling and alignment guarantee that the new shape fits within the defined envelope and correctly interfaces with adjoining components. Question 22. Which of the following best describes a “role-based workflow” in the 3DEXPERIENCE GDE interface? A) All users have identical access to every function. B) Permissions and available tools are tailored to the user’s role (e.g., designer, analyst, manager).
Generative Designer Exam Guide
Question 25. When creating a non-design space for a bolt hole, which geometric entity is most appropriate to define the keep-out? A) A solid cylinder matching the bolt diameter. B) A surface mesh covering the entire part. C) A point load at the centre of the hole. D) A symmetry plane through the hole axis. Answer: A Explanation: A solid cylinder representing the bolt clearance ensures the optimizer leaves that volume empty. Question 26. In the context of generative design, what does “material distribution density” refer to? A) The colour gradient applied to the model for visual appeal. B) The proportion of material allocated to each element of the finite-element mesh. C) The number of manufacturing steps required. D) The computational memory usage of the solver. Answer: B Explanation: Density values (0–1) indicate how much material each element receives during optimisation. Question 27. Which of the following is a common reason to use a “symmetry constraint” in an optimisation study? A) To reduce the number of required loads. B) To enforce identical geometry on mirrored halves, decreasing design space and computational effort. C) To increase the total mass of the part. D) To allow the solver to ignore boundary conditions.
Generative Designer Exam Guide
Answer: B Explanation: Symmetry constraints halve the design space, ensuring mirrored geometry and speeding up the solution. Question 28. What is the effect of increasing the “mesh refinement” level before running a generative design study? A) Decreases solver accuracy. B) Increases computational cost but yields more detailed density maps. C) Automatically reduces the part’s weight. D) Eliminates the need for boundary conditions. Answer: B Explanation: Finer meshes provide higher resolution for material placement at the expense of longer solution times. Question 29. When optimizing for “stiffness maximization”, which objective function is typically employed? A) Minimize compliance (inverse of stiffness). B) Maximize volume. C) Minimize thermal conductivity. D) Maximize number of elements. Answer: A Explanation: Minimizing compliance directly corresponds to maximizing structural stiffness under the applied loads. Question 30. Which statement accurately reflects the role of “overhang angle” in additive manufacturing constraints? A) It defines the minimum feature size that can be printed. B) It determines the maximum angle relative to the build platform that can be printed without support.
Generative Designer Exam Guide
Question 33. During result interpretation, a high-density region coinciding with a low-stress area suggests what? A) The optimizer is inefficient and may be over-constraining the problem. B) The material is incorrectly assigned. C) The load case is unrealistic. D) The mesh is too coarse. Answer: A Explanation: Excess material in low-stress zones indicates the optimizer may be unable to remove material due to constraints, hinting at overly restrictive settings. Question 34. What advantage does the “Trade-off Study” tool provide to designers? A) Automatic generation of manufacturing drawings. B) Simultaneous comparison of multiple design variants based on selected KPIs. C) Real-time rendering of photorealistic images. D) Direct export of the density map to a CNC machine. Answer: B Explanation: The Trade-off Study aggregates results from different optimisation runs, allowing designers to evaluate weight, stiffness, cost, etc., side by side. Question 35. Which parameter would you adjust to limit the maximum von Mises stress in a generative design study? A) Mesh size B) Stress constraint value (e.g., 250 MPa) C) Number of design iterations D) Color scheme of the density map
Generative Designer Exam Guide
Answer: B Explanation: Setting a stress constraint tells the solver not to exceed the specified von Mises stress anywhere in the design. Question 36. In the 3DEXPERIENCE platform, where can you manage the maturity level of a product data item? A) Material Library Manager B) Data Maturity Dashboard in the Collaborative Space C) Geometry Defeaturing Wizard D) Sub-division Surface Tool Answer: B Explanation: The Data Maturity Dashboard displays and allows modification of an item’s lifecycle state (e.g., concept, validated, released). Question 37. What is the primary purpose of “partitioning” a design space before optimisation? A) To create separate files for each team member. B) To assign different material or constraint regions within the same envelope. C) To increase the visual complexity of the model. D) To automatically generate a BOM. Answer: B Explanation: Partitioning enables the definition of distinct zones (e.g., high-strength material, keep-outs) within a single design space. Question 38. When defining a “slider” boundary condition, what type of motion is permitted? A) Rotation about a fixed axis.
Generative Designer Exam Guide
Question 41. Which feature in the 3DEXPERIENCE GDE interface helps users visualize the evolution of material distribution over iterations? A) Timeline Playback Slider B) Density Map Animation C) Material Library Grid D) Assembly Explode View Answer: B Explanation: The Density Map Animation shows how material is added or removed across successive optimisation steps. Question 42. In additive manufacturing, why is a “support structure” often required for overhangs exceeding a certain angle? A) To increase the part’s weight. B) To provide a temporary scaffold that prevents molten material from collapsing during printing. C) To improve surface finish. D) To reduce printing time. Answer: B Explanation: Supports hold up material that would otherwise lack underlying layers, ensuring geometric fidelity. Question 43. When using the Sub-division Surface (IMA) tool, what does “IMA” stand for? A) Integrated Mesh Algorithm B) Interactive Modeling Assistant C) Imagine & Shape (Intelligent Modeling Architecture) D) Inverse Modeling Analysis Answer: C
Generative Designer Exam Guide
Explanation: IMA refers to the “Imagine & Shape” capability that creates smooth surfaces from the optimized density data. Question 44. What is the effect of enabling “symmetry” on the number of design variables in an optimisation problem? A) Doubles them. B) Leaves them unchanged. C) Halves them, because mirrored regions share variables. D) Increases them exponentially. Answer: C Explanation: Symmetry forces mirrored regions to have identical material distribution, reducing the total independent variables. Question 45. Which of the following is a typical step after obtaining a satisfactory density map? A) Directly export the density map as a 3-D printable file. B) Perform shape reconstruction to generate a manufacturable CAD model. C) Delete all constraints and re-run the optimisation. D) Change the material to steel without re-analysis. Answer: B Explanation: The density map is a numerical result; converting it into a usable CAD geometry requires shape reconstruction. Question 46. In a frequency scenario, what does the term “modal damping” refer to? A) The reduction of temperature during vibration. B) The energy dissipation associated with each vibration mode, influencing amplitude.
Generative Designer Exam Guide
Question 49. What does the “Material Library” in the 3DEXPERIENCE platform allow users to do? A) Create custom textures for rendering. B) Store, retrieve, and assign mechanical properties to design spaces. C) Generate CNC toolpaths automatically. D) Perform CFD simulations. Answer: B Explanation: The Material Library centralises material definitions (elastic modulus, density, etc.) for reuse across studies. Question 50. If a generated concept violates the “maximum displacement” constraint, which design change is most likely to bring it back within limits? A) Increase the part’s mass by raising the density constraint. B) Reduce the mesh size. C) Change the colour of the density map. D) Decrease the number of design variables. Answer: A Explanation: Adding material (higher density) stiffens the structure, reducing displacement under load. Question 51. Which of the following best describes “defeaturing” in the context of preparing a model for optimisation? A) Adding decorative details to improve aesthetics. B) Removing small geometric details that do not affect structural performance. C) Converting all surfaces to NURBS. D) Applying a texture map. Answer: B
Generative Designer Exam Guide
Explanation: Defeaturing streamlines the geometry, reducing mesh complexity and computational effort without compromising analysis accuracy. Question 52. In the 3DEXPERIENCE GDE workflow, what is the purpose of the “Project Workspace”? A) To host all files, studies, and results related to a specific generative design project. B) To render photorealistic images of the final part. C) To manage user passwords. D) To perform thermal analysis only. Answer: A Explanation: The Project Workspace centralises assets for a given optimisation effort, facilitating collaboration and version control. Question 53. Which type of analysis would you select to assess the buckling strength of a slender column within a generative design study? A) Linear static B) Frequency (modal) C) Buckling analysis D) Thermal transient Answer: C Explanation: Buckling analysis evaluates the critical load at which a compressive member loses stability. Question 54. When configuring an additive manufacturing constraint, what does the “minimum feature size” parameter control? A) The smallest printable wall thickness or gap allowed by the chosen printer technology.
