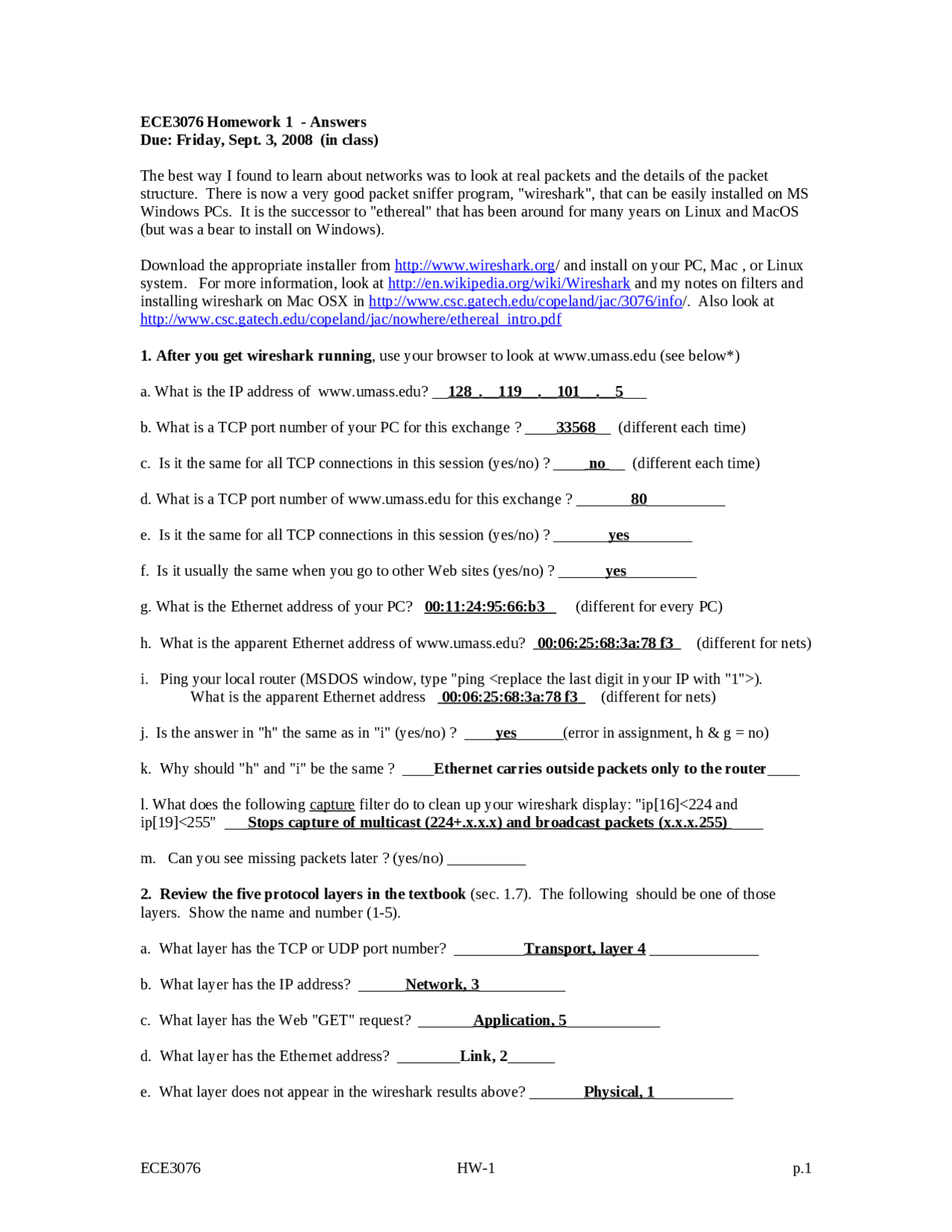

ECE3076 Homework 1 - Answers
Due: Friday, Sept. 3, 2008 (in class)
The best way I found to learn about networks was to look at real packets and the details of the packet
structure. There is now a very good packet sniffer program, "wireshark", that can be easily installed on MS
Windows PCs. It is the successor to "ethereal" that has been around for many years on Linux and MacOS
(but was a bear to install on Windows).
Download the appropriate installer from http://www.wireshark.org/ and install on your PC, Mac , or Linux
system. For more information, look at http://en.wikipedia.org/wiki/Wireshark and my notes on filters and
installing wireshark on Mac OSX in http://www.csc.gatech.edu/copeland/jac/3076/info/. Also look at
http://www.csc.gatech.edu/copeland/jac/nowhere/ethereal_intro.pdf
1. After you get wireshark running, use your browser to look at www.umass.edu (see below*)
a. What is the IP address of www.umass.edu? __128_.__119__.__101__.__5___
b. What is a TCP port number of your PC for this exchange ? ____33568__ (different each time)
c. Is it the same for all TCP connections in this session (yes/no) ? ____ no __ (different each time)
d. What is a TCP port number of www.umass.edu for this exchange ? _______80__________
e. Is it the same for all TCP connections in this session (yes/no) ? _______yes________
f. Is it usually the same when you go to other Web sites (yes/no) ? ______yes_________
g. What is the Ethernet address of your PC? 00:11:24:95:66:b3 (different for every PC)
h. What is the apparent Ethernet address of www.umass.edu? 00:06:25:68:3a:78 f3 (different for nets)
i. Ping your local router (MSDOS window, type "ping <replace the last digit in your IP with "1">).
What is the apparent Ethernet address 00:06:25:68:3a:78 f3 (different for nets)
j. Is the answer in "h" the same as in "i" (yes/no) ? ____yes______(error in assignment, h & g = no)
k. Why should "h" and "i" be the same ? ____Ethernet carries outside packets only to the router____
l. What does the following capture filter do to clean up your wireshark display: "ip[16]<224 and
ip[19]<255" ___Stops capture of multicast (224+.x.x.x) and broadcast packets (x.x.x.255) ____
m. Can you see missing packets later ? (yes/no) __________
2. Review the five protocol layers in the textbook (sec. 1.7). The following should be one of those
layers. Show the name and number (1-5).
a. What layer has the TCP or UDP port number? _________Transport, layer 4 ______________
b. What layer has the IP address? ______Network, 3___________
c. What layer has the Web "GET" request? _______Application, 5____________
d. What layer has the Ethernet address? ________Link, 2______
e. What layer does not appear in the wireshark results above? _______Physical, 1__________
ECE3076 HW-1 p.1
