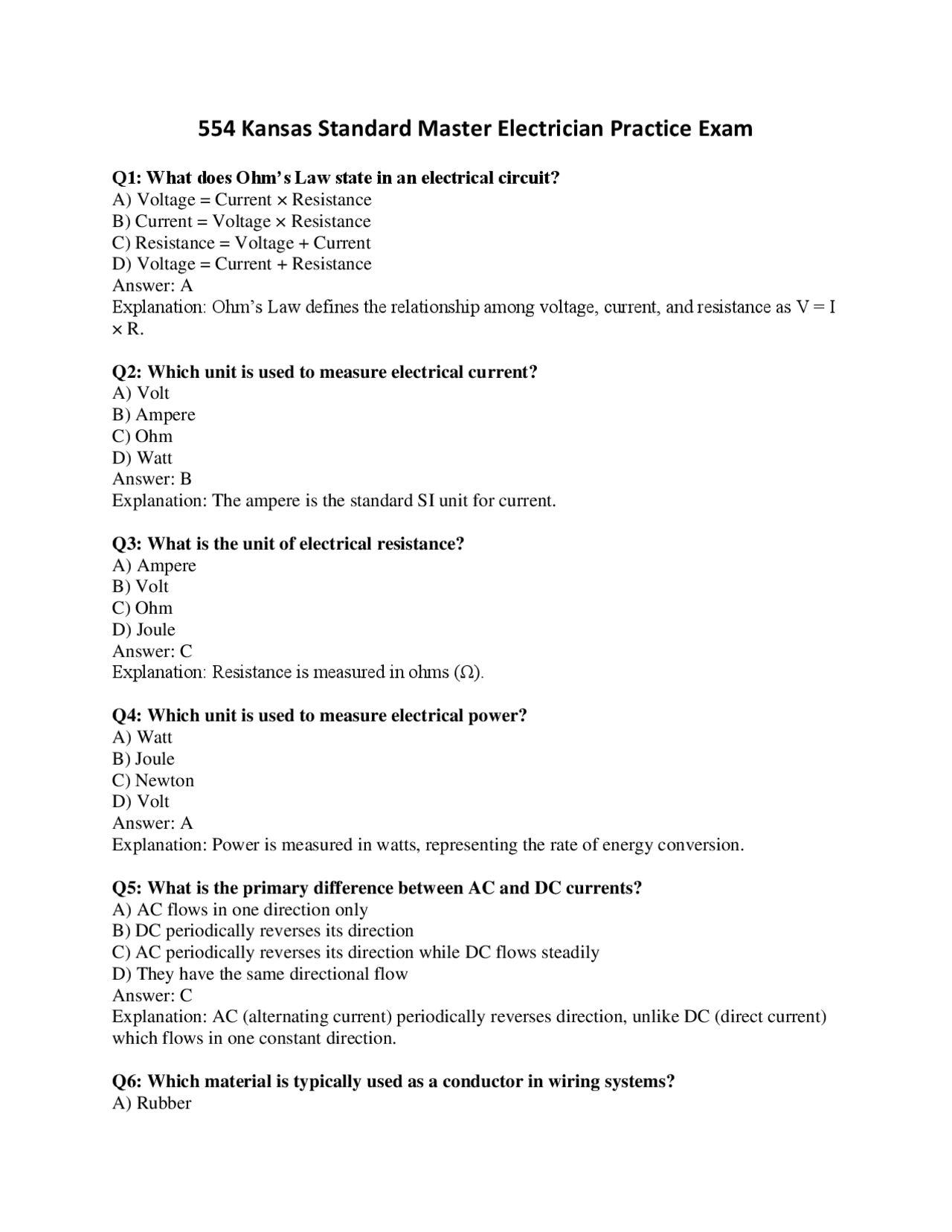

554 Kansas Standard Master Electrician Practice Exam
Q1: What does Ohm’s Law state in an electrical circuit? A) Voltage = Current × Resistance B) Current = Voltage × Resistance C) Resistance = Voltage + Current D) Voltage = Current + Resistance Answer: A Explanation: Ohm’s Law defines the relationship among voltage, current, and resistance as V = I × R. Q2: Which unit is used to measure electrical current? A) Volt B) Ampere C) Ohm D) Watt Answer: B Explanation: The ampere is the standard SI unit for current. Q3: What is the unit of electrical resistance? A) Ampere B) Volt C) Ohm D) Joule Answer: C Explanation: Resistance is measured in ohms (Ω). Q4: Which unit is used to measure electrical power? A) Watt B) Joule C) Newton D) Volt Answer: A Explanation: Power is measured in watts, representing the rate of energy conversion. Q5: What is the primary difference between AC and DC currents? A) AC flows in one direction only B) DC periodically reverses its direction C) AC periodically reverses its direction while DC flows steadily D) They have the same directional flow Answer: C Explanation: AC (alternating current) periodically reverses direction, unlike DC (direct current) which flows in one constant direction. Q6: Which material is typically used as a conductor in wiring systems? A) Rubber
B) Copper C) Glass D) Wood Answer: B Explanation: Copper is commonly used due to its high conductivity and durability. Q7: Which of the following best defines an insulator? A) A material that easily conducts electricity B) A material that resists electrical flow C) A device for converting energy D) A system for storing electrical energy Answer: B Explanation: Insulators prevent or slow the flow of electrical current. Q8: Which symbol is used to represent a resistor in a schematic diagram? A) Zigzag line B) Parallel lines C) Circle with a cross D) Triangle Answer: A Explanation: A zigzag line is the standard symbol for a resistor in electrical schematics. Q9: In circuit analysis, what does the term “load” refer to? A) The supply voltage B) A component or device that consumes electrical power C) The insulation material D) The wiring method Answer: B Explanation: A load is any electrical component that consumes power. Q10: Which term describes the ratio of real power to apparent power in an AC circuit? A) Power factor B) Voltage factor C) Current factor D) Resistance factor Answer: A Explanation: The power factor is the ratio of real power to apparent power. Q11: How is electrical voltage defined? A) The force that moves electrons B) The rate of energy consumption C) The opposition to current flow D) The measure of electron charge Answer: A Explanation: Voltage is the electrical potential difference that drives current through a circuit.
Answer: B Explanation: AC circuits have a current that reverses direction periodically. Q18: What is the significance of using proper conductor size in wiring? A) To reduce the voltage drop B) To enhance circuit speed C) To improve signal quality D) To ensure the wire fits in a conduit Answer: A Explanation: Correct conductor sizing helps reduce voltage drop and prevent overheating. Q19: What does the term “circuit” typically refer to? A) A path through which current flows B) A type of wiring insulation C) A device used to measure voltage D) A control panel Answer: A Explanation: A circuit is a closed loop that allows current to flow. Q20: Which quantity describes the rate at which electrical energy is converted to another form? A) Energy B) Resistance C) Voltage D) Power Answer: D Explanation: Power is the rate of energy conversion measured in watts. Q21: What is meant by the “phase” in an AC system? A) The conductor material B) The timing difference between voltage and current C) The insulation quality D) The frequency of current reversal Answer: B Explanation: In AC systems, “phase” describes the relative timing between voltage and current waveforms. Q22: What is the purpose of a schematic diagram? A) To show physical layout only B) To depict electrical circuits and their relationships symbolically C) To measure circuit performance D) To install wiring Answer: B Explanation: Schematics use standardized symbols to represent circuit components and connections.
Q23: How does resistance affect current flow in a circuit? A) It increases current flow B) It has no effect on current C) It opposes and reduces current flow D) It changes current direction Answer: C Explanation: Resistance opposes the flow of current, reducing its magnitude. Q24: Which concept is essential for understanding how energy is distributed in an electrical circuit? A) Capacitance B) Impedance C) Inductance D) Voltage drop Answer: D Explanation: Voltage drop is key in determining how energy is distributed along conductors. Q25: What role do conductors play in an electrical circuit? A) They store electrical energy B) They resist current flow C) They provide a path for electrical current D) They transform voltage Answer: C Explanation: Conductors are materials that allow the free flow of electrical current. Q26: Which term describes the opposition a material offers to the flow of alternating current including both resistance and reactance? A) Impedance B) Capacitance C) Conductance D) Admittance Answer: A Explanation: Impedance is the total opposition to AC current, combining resistance and reactance. Q27: What is “reactance” in an AC circuit? A) The opposition offered by capacitance and inductance B) The heat produced in a conductor C) The total resistance of the circuit D) The voltage measured across a resistor Answer: A Explanation: Reactance is the opposition to current change caused by capacitors and inductors in AC circuits. Q28: Which instrument is used to measure current in a circuit? A) Voltmeter
Explanation: Electrical energy is measured in joules, although kilowatt-hours are commonly used in billing. Q34: What does “DC” stand for? A) Direct Current B) Dynamic Conductor C) Dual Circuit D) Distributed Current Answer: A Explanation: DC means Direct Current, where current flows in one direction. Q35: Which basic electrical concept is crucial for understanding load distribution in circuits? A) Frequency B) Resistance C) Power factor D) Inductance Answer: C Explanation: Power factor helps determine how effectively electrical power is used in a circuit. Q36: What is the primary purpose of the National Electrical Code (NEC)? A) To provide installation guidelines for telecommunications B) To ensure safe electrical design, installation, and inspection C) To regulate the manufacturing of electrical appliances D) To set pricing for electrical services Answer: B Explanation: The NEC establishes safe practices and standards for electrical installations. Q37: When was the NEC first published? A) 1897 B) 1920 C) 1950 D) 1978 Answer: A Explanation: The NEC was first published in 1897 to improve electrical safety. Q38: Which NEC edition is referenced in Kansas-specific amendments for Master Electricians? A) 2014 B) 2017 C) 2020 D) 2023 Answer: C
Explanation: The 2020 edition of the NEC is commonly used as the base with Kansas amendments. **Q39: What do Kansas-specific amendments to the NEC primarily address? A) International wiring standards B) Local installation practices and licensing requirements C) The manufacturing process of electrical components D) Pricing for materials Answer: B Explanation: Kansas-specific amendments modify general NEC guidelines to address local codes and licensing. Q40: Which type of conduit is most commonly used in commercial applications according to the NEC? A) EMT (Electrical Metallic Tubing) B) PVC conduit C) Rigid metal conduit D) Flexible metal conduit Answer: A Explanation: EMT is frequently used in commercial installations due to its ease of installation and cost-effectiveness. Q41: What does “NM cable” stand for in electrical installations? A) Nonmetallic sheathed cable B) Nonmagnetic cable C) Normal metal cable D) Neutralized medium cable Answer: A Explanation: NM cable is a nonmetallic sheathed cable used primarily in residential wiring. Q42: In NEC terminology, what is “MC cable”? A) Metal-clad cable B) Medium current cable C) Multi-conductor cable D) Modular cable Answer: A Explanation: MC cable stands for metal-clad cable, offering additional protection for conductors. Q43: According to the NEC, what is the primary purpose of grounding in an electrical system? A) To stabilize voltage levels B) To provide a return path for current C) To ensure safety by directing fault current to the earth D) To store energy Answer: C
Explanation: Twinax cable is not a standard wiring method for fixed electrical installations as defined by the NEC. Q49: What is the primary safety purpose of overcurrent protection devices? A) To regulate voltage B) To limit the current and prevent overheating C) To increase current flow D) To store electrical energy Answer: B Explanation: Overcurrent devices protect circuits from excessive current that could cause fire or damage. Q50: Which NEC section would you consult for proper wiring installation practices? A) Article 100 B) Article 300 C) Article 400 D) Article 500 Answer: B Explanation: Article 300 of the NEC details wiring methods and installation requirements. Q51: What does “AC cable” typically refer to in the context of the NEC? A) Armored Cable B) Alternating Current Cable C) Aluminum Cable D) Auxiliary Cable Answer: A Explanation: AC cable stands for “Armored Cable,” a type of cable with a protective metal sheath. Q52: According to the NEC, what must be done with cables entering an electrical box? A) They must be painted B) They must be secured and protected by proper connectors C) They can be left loose D) They require no special treatment Answer: B Explanation: Cables must be properly secured to avoid damage and strain on connections. Q53: In the NEC, what is the recommended minimum bending radius for most conduits? A) Twice the conduit diameter B) Equal to the conduit diameter C) Half the conduit diameter D) Five times the conduit diameter Answer: A Explanation: A minimum bending radius of about twice the conduit diameter helps avoid damage.
Q54: What is the significance of conductor insulation in NEC installations? A) It enhances conductivity B) It protects against physical and electrical hazards C) It increases circuit resistance D) It reduces installation cost Answer: B Explanation: Insulation protects conductors from environmental damage and electrical shock. Q55: Which of the following best describes a “junction box” as per the NEC? A) A box that houses switches only B) A container for making electrical connections and protecting them C) A device that measures current D) A conduit for cable storage Answer: B Explanation: Junction boxes provide a safe enclosure for electrical connections. Q56: What does “ampacity” refer to when selecting conductors according to the NEC? A) The maximum voltage rating B) The physical size of the conductor C) The maximum current carrying capacity D) The type of insulation used Answer: C Explanation: Ampacity is the maximum current a conductor can safely carry without overheating. Q57: What is the primary purpose of a disconnecting means in an electrical installation? A) To permanently seal a circuit B) To allow a circuit to be de-energized for safety C) To increase current flow D) To connect multiple circuits Answer: B Explanation: Disconnecting means allow safe maintenance by de-energizing circuits. Q58: According to NEC, where should ground-fault circuit interrupters (GFCIs) be installed? A) Only in industrial settings B) In areas with a high risk of shock, such as bathrooms and kitchens C) Exclusively outdoors D) In all lighting circuits Answer: B Explanation: GFCIs protect against shock in wet or damp locations like kitchens and bathrooms. Q59: Which component is used to protect circuits from overloads and short circuits as per NEC guidelines? A) Dimmer switch B) Circuit breaker
Answer: B Explanation: Proper labeling helps with maintenance and safety during troubleshooting. Q65: Which of the following NEC requirements ensures that wiring installations remain accessible for future inspections? A) Concealing wires behind walls without access panels B) Installing junction boxes in inaccessible locations C) Providing proper access to electrical enclosures D) Using permanently sealed connectors Answer: C Explanation: The NEC requires that wiring installations be accessible to allow inspection, testing, and maintenance. Q66: What is the purpose of load calculations in electrical installations? A) To determine the color of wiring B) To size circuits and equipment correctly C) To measure the length of wiring D) To set the installation schedule Answer: B Explanation: Load calculations ensure that circuits and services are sized appropriately for expected usage. Q67: How do you calculate the total load for a residential service? A) Sum the wattages of all appliances and add a margin B) Multiply the number of outlets by the voltage C) Use only the lighting load D) Divide the number of circuits by the area Answer: A Explanation: Total load is calculated by summing the wattages of all devices and incorporating safety margins. Q68: Which parameter is essential when calculating voltage drop in a circuit? A) Conductor material B) Ambient temperature C) Conductor length D) Color of the conductor Answer: C Explanation: Voltage drop is directly influenced by the length of the conductor along with its size and load. Q69: What is a common method to reduce voltage drop in a long circuit run? A) Use a smaller gauge conductor B) Increase the voltage supply C) Use a larger gauge conductor
D) Decrease the insulation thickness Answer: C Explanation: A larger gauge conductor has lower resistance and thus reduces voltage drop. Q70: When sizing conductors, what table is typically referenced? A) Temperature conversion table B) NEC ampacity table C) Circuit breaker sizing chart D) Voltage drop chart Answer: B Explanation: The NEC ampacity table is used to select the proper conductor size based on current capacity. Q71: What does “feeder” refer to in electrical systems? A) A device that stores energy B) The wiring between the main panel and subpanels C) The grounding electrode D) The conduit type used in a circuit Answer: B Explanation: Feeders are conductors that supply power from the main service panel to subpanels or large equipment. Q72: How is overcurrent protection related to conductor sizing? A) It is independent of conductor size B) Overcurrent devices must match the conductor’s ampacity C) Larger conductors require higher-rated breakers D) Overcurrent protection only applies to transformers Answer: B Explanation: The rating of overcurrent protection devices must correspond to the conductor’s ampacity to ensure safety. Q73: What role does the power factor play in electrical load calculations? A) It increases the total load dramatically B) It determines the efficiency of power use in AC circuits C) It is only relevant for DC circuits D) It measures the resistance of a conductor Answer: B Explanation: Power factor reflects how effectively electrical power is converted into useful work, affecting load calculations. Q74: In calculating circuit load, why is it important to consider continuous loads? A) They require no special calculation B) They impact conductor and device sizing due to sustained current C) They only affect residential circuits D) They are always negligible Answer: B
Explanation: Circuit size is determined by the expected load and safety factors to ensure proper operation and safety. Q80: In load calculations, why is it important to consider both lighting and appliance loads? A) Only lighting loads matter B) They represent different types of demand on the electrical system C) Appliances never use as much power D) They determine the color coding of circuits Answer: B Explanation: Lighting and appliances have different characteristics and consumption patterns, affecting overall load. Q81: Which factor does NOT typically affect conductor ampacity calculations? A) Ambient temperature B) Installation environment C) Conductor color D) Bundling of conductors Answer: C Explanation: The color of the conductor does not influence its ampacity. Q82: How does the NEC suggest handling voltage drop in feeder circuits? A) Ignore it B) Use oversizing of conductors C) Increase circuit length D) Remove all loads Answer: B Explanation: Oversizing conductors is a common solution to mitigate voltage drop in feeder circuits. Q83: When calculating the proper size for a branch circuit, what must be considered first? A) The length of the circuit B) The maximum load that circuit will carry C) The number of outlets D) The color of the panel Answer: B Explanation: The maximum load determines the necessary branch circuit size to prevent overload. Q84: What is the relationship between conductor resistance and temperature? A) Resistance decreases as temperature increases B) Resistance is independent of temperature C) Resistance increases as temperature increases D) Temperature only affects AC circuits Answer: C Explanation: As temperature rises, conductor resistance typically increases.
Q85: Why is it important to perform accurate electrical calculations before installation? A) To determine the aesthetic layout B) To ensure safety and proper performance of the system C) To select the right color of wiring D) To avoid using any protective devices Answer: B Explanation: Accurate calculations are essential for safety, efficiency, and code compliance. Q86: In determining conductor size for a given load, what must be verified? A) The cost of the conductor B) The compatibility with the installation environment C) The brand of the conductor D) The age of the building Answer: B Explanation: The installation environment (such as ambient temperature and conduit fill) affects conductor sizing. Q87: What is “apparent power” in an AC circuit? A) The actual power consumed by the load B) The sum of real power and reactive power C) The power lost as heat D) The voltage multiplied by the resistance Answer: B Explanation: Apparent power, measured in volt-amperes, combines both real and reactive power components. Q88: Which formula is used to calculate voltage drop in a circuit? A) V = I × R B) V = R / I C) V = I + R D) V = I – R Answer: A Explanation: Voltage drop is calculated using Ohm’s Law, V = I × R, where I is the current and R is the resistance of the conductor. Q89: What is a “continuous load” as defined in electrical calculations? A) A load that operates for less than one hour B) A load that runs continuously for three hours or more C) A load that changes frequently D) A load used only in industrial settings Answer: B Explanation: A continuous load operates for three hours or more, affecting circuit sizing and conductor selection. Q90: Which factor does NOT influence the calculation of voltage drop in a conductor? A) Conductor material
A) Load calculation B) Voltage drop calculation C) Temperature conversion D) Conductor color matching Answer: A Explanation: Load calculations inform the selection of overcurrent protection devices by establishing the expected current levels. Q96: When planning a circuit, why is it important to consider the conductor’s installation conditions? A) They affect the conductor’s physical strength only B) They influence the conductor’s ampacity and heat dissipation C) They determine the color of the wiring D) They are irrelevant for circuit design Answer: B Explanation: Environmental conditions such as ambient temperature and conduit fill impact conductor performance and ampacity. Q97: What is the typical consequence of using an undersized conductor in a circuit? A) Improved energy efficiency B) Excessive voltage drop and potential overheating C) Reduced material cost without any drawbacks D) Increased system reliability Answer: B Explanation: An undersized conductor can cause excessive voltage drop and overheating, leading to safety hazards. Q98: Which electrical calculation is crucial for renewable energy system integration? A) Load calculation for inverter sizing B) Calculation of cable colors C) Determination of circuit breaker physical size D) Calculation of ambient light levels Answer: A Explanation: In renewable energy systems, proper load calculations ensure the inverter and battery storage are correctly sized. Q99: When determining a branch circuit’s load, what must be taken into account for safety? A) The aesthetics of the installation B) The continuous and non-continuous load ratings C) The number of wires in a cable D) The type of conduit used Answer: B Explanation: Separating continuous from non-continuous loads ensures proper circuit sizing and safety margins.
Q100: In electrical calculations, what is the significance of the “service factor”? A) It determines the color of wiring B) It provides a multiplier to account for motor overload conditions C) It measures the physical dimensions of conductors D) It defines the installation location Answer: B Explanation: The service factor is used to adjust the rating of a motor for short-term overloads without damaging the system. Q101: In residential wiring, what is the “service entrance”? A) The first outlet inside a home B) The point where electrical power enters a building C) A type of light fixture D) A specialized circuit breaker Answer: B Explanation: The service entrance is the location where electrical power is introduced into a residence. Q102: What is typically found at the service entrance of a residential building? A) Interior light switches B) Meters, disconnects, and main panelboards C) Only ground rods D) Telephone lines Answer: B Explanation: Service entrances include meters, disconnect switches, and panelboards for safety and control. Q103: Which wiring method is most common in residential installations? A) AC cable B) NM (Nonmetallic-sheathed) cable C) MC cable D) Rigid metal conduit Answer: B Explanation: NM cable (often called Romex) is widely used in residential wiring due to its ease of installation. Q104: What is the primary function of a junction box in residential wiring? A) To distribute water B) To provide a safe enclosure for splices and connections C) To house circuit breakers D) To mount light fixtures Answer: B Explanation: Junction boxes protect and organize electrical connections.
