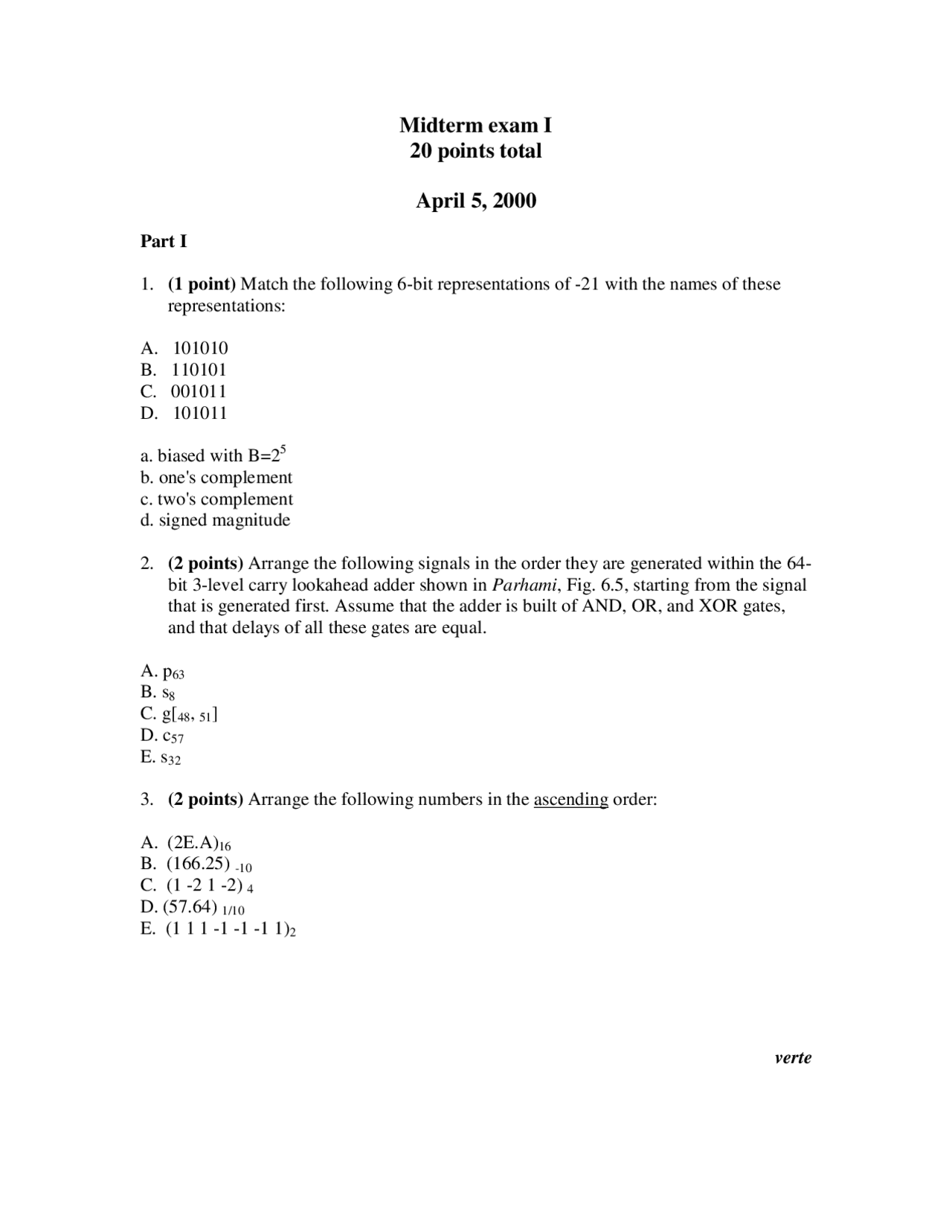

Midterm exam I
20 points total
April 5, 2000
Part I
1. (1 point) Match the following 6-bit representations of -21 with the names of these
representations:
A. 101010
B. 110101
C. 001011
D. 101011
a. biased with B=25
b. one's complement
c. two's complement
d. signed magnitude
2. (2 points) Arrange the following signals in the order they are generated within the 64-
bit 3-level carry lookahead adder shown in Parhami, Fig. 6.5, starting from the signal
that is generated first. Assume that the adder is built of AND, OR, and XOR gates,
and that delays of all these gates are equal.
A. p63
B. s8
C. g[48, 51]
D. c57
E. s32
3. (2 points) Arrange the following numbers in the ascending order:
A. (2E.A)16
B. (166.25) -10
C. (1 -2 1 -2) 4
D. (57.64) 1/10
E. (1 1 1 -1 -1 -1 1)2
