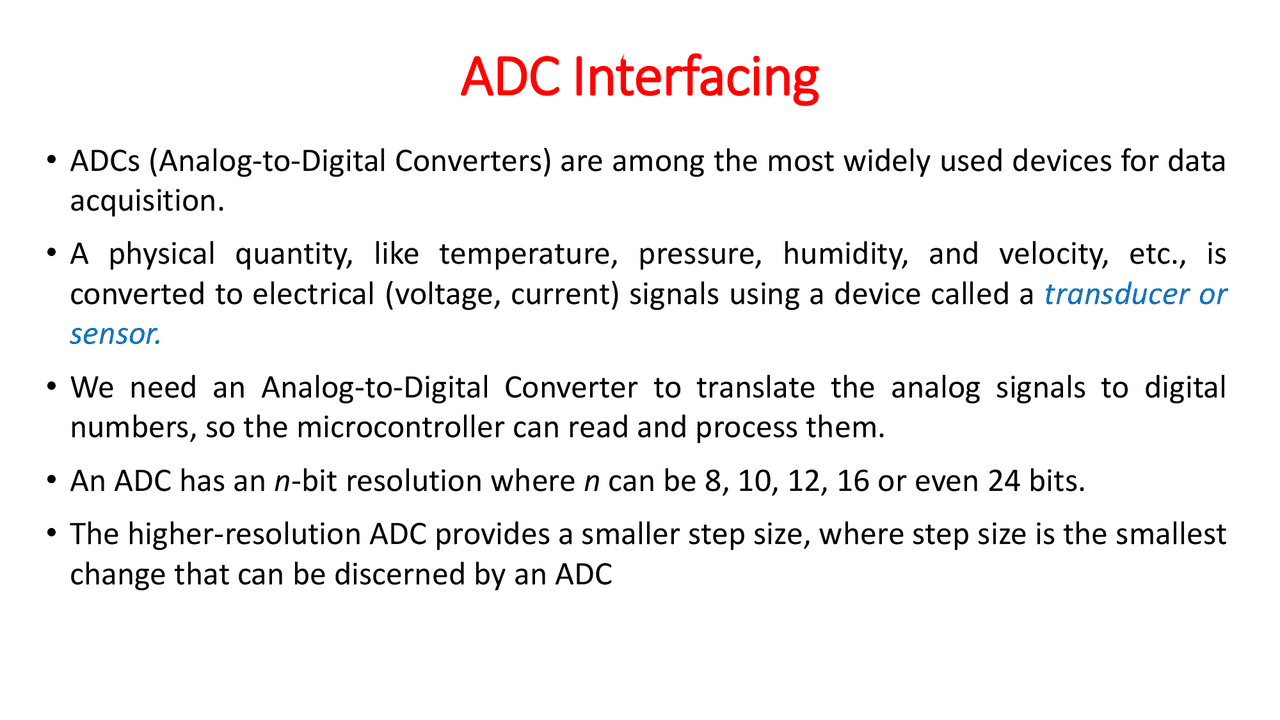

ADC Interfacing
•ADCs (Analog-to-Digital Converters) are among the most widely used devices for data
acquisition.
•A physical quantity, like temperature, pressure, humidity, and velocity, etc., is
converted to electrical (voltage, current) signals using a device called a transducer or
sensor.
•We need an Analog-to-Digital Converter to translate the analog signals to digital
numbers, so the microcontroller can read and process them.
•An ADC has an n-bit resolution where ncan be 8, 10,12,16 or even 24 bits.
•The higher-resolution ADC provides a smaller step size, where step size is the smallest
change that can be discerned by an ADC
