LHS Exam Study Guide: M1120A2 & A4 Questions and Answers, Exams of Engineering

Nevada State CollegeEngineering

A study guide for the lhs (load handling system) exam, specifically focusing on the m1120a2 and m1120a4 models. It includes questions and answers related to engine oil types, transmission specifications, hydraulic reservoir details, antifreeze requirements, fuel types, tachometer operating ranges, battery voltages, and other critical operational parameters. The guide also covers information on air pressure, coolant temperature, horsepower, cruising range, and transport capabilities, offering a comprehensive overview for exam preparation. This study guide is designed to help individuals prepare for the 88m redbook study guide for lhs exam, providing essential knowledge and quick reference points for key vehicle specifications and operational parameters. It serves as a valuable resource for those seeking to master the technical details of the lhs vehicles.

Typology: Exams

2024/2025

Available from 07/22/2025

Chloelunar
Chloelunar 🇺🇸

3.7

(30)

11K documents

1 / 4

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

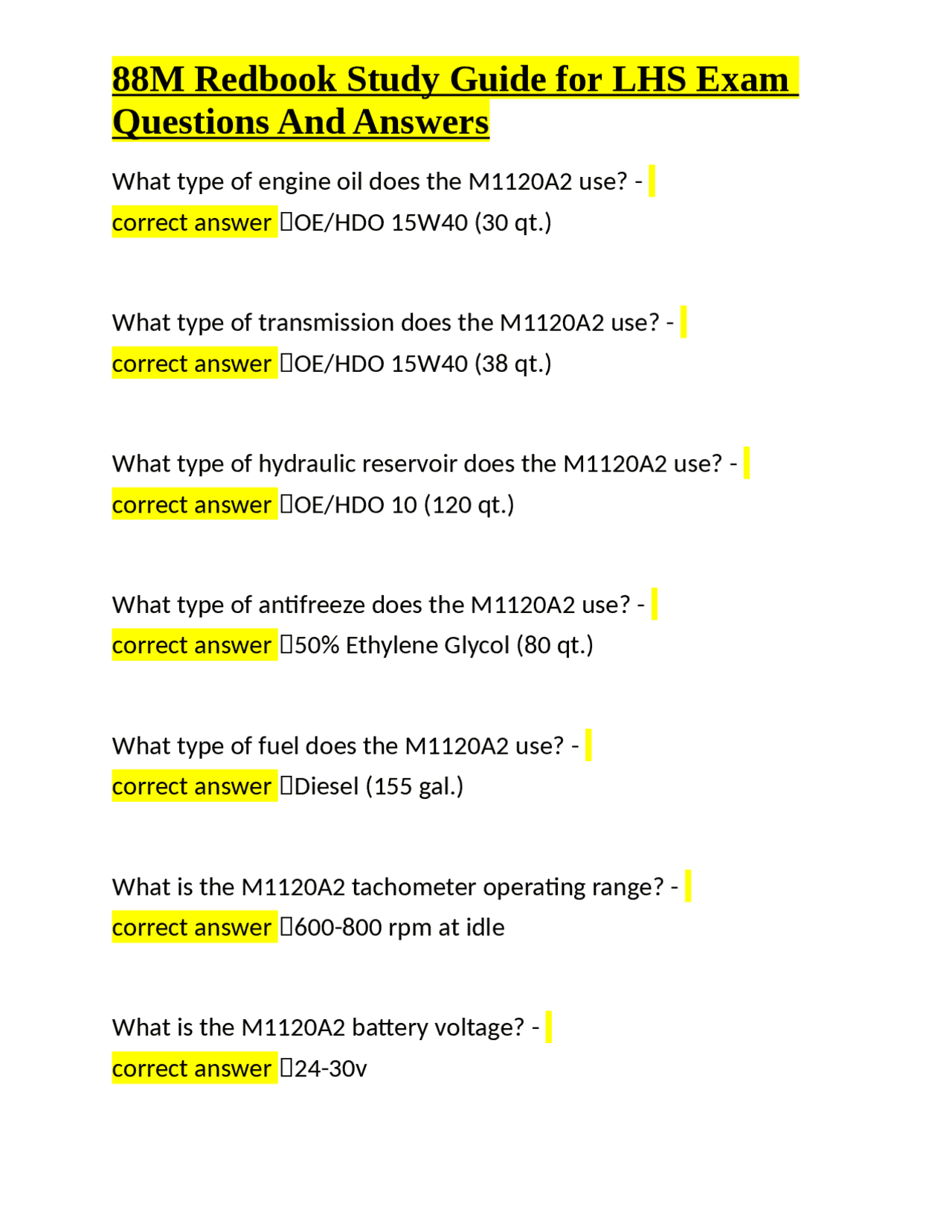

88M Redbook Study Guide for LHS Exam
Questions And Answers
What type of engine oil does the M1120A2 use? -
correct answer ✅OE/HDO 15W40 (30 qt.)
What type of transmission does the M1120A2 use? -
correct answer ✅OE/HDO 15W40 (38 qt.)
What type of hydraulic reservoir does the M1120A2 use? -
correct answer ✅OE/HDO 10 (120 qt.)
What type of antifreeze does the M1120A2 use? -
correct answer ✅50% Ethylene Glycol (80 qt.)
What type of fuel does the M1120A2 use? -
correct answer ✅Diesel (155 gal.)
What is the M1120A2 tachometer operating range? -
correct answer ✅600-800 rpm at idle
What is the M1120A2 battery voltage? -
correct answer ✅24-30v
pf3
pf4

Partial preview of the text

Download LHS Exam Study Guide: M1120A2 & A4 Questions and Answers and more Exams Engineering in PDF only on Docsity!

Questions And Answers

What type of engine oil does the M1120A2 use? - correct answer ✅OE/HDO 15W40 (30 qt.) What type of transmission does the M1120A2 use? - correct answer ✅OE/HDO 15W40 (38 qt.) What type of hydraulic reservoir does the M1120A2 use? - correct answer ✅OE/HDO 10 (120 qt.) What type of antifreeze does the M1120A2 use? - correct answer ✅50% Ethylene Glycol (80 qt.) What type of fuel does the M1120A2 use? - correct answer ✅Diesel (155 gal.) What is the M1120A2 tachometer operating range? - correct answer ✅600-800 rpm at idle What is the M1120A2 battery voltage? - correct answer ✅24-30v

Questions And Answers

What is the LHS (A2 & A4) front/rear air pressure? - correct answer ✅60-120 psi What is the M1120A2 engine coolant temperature? - correct answer ✅180-200 degrees fahrenheit What is the M1120A2 transmission oil temperature? - correct answer ✅160-220 degrees fahrenheit What is the M1120A2 horse power? - correct answer ✅ 445 What is the LHS (A2 & A4) cruising range? - correct answer ✅300 miles How much can the LHS (A2& A4) transport? - correct answer ✅26,000 lbs

Questions And Answers

What is the M1120A4 tachometer operating range? - correct answer ✅625-725 rpm at idle What is the M1120A4 battery voltage? - correct answer ✅24-28v What is the M1120A4 engine coolant temp? - correct answer ✅180-200 degrees fahrenheit What is the M1120A4 transmission oil temp? - correct answer ✅160-200 degrees fahrenheit
