M1120A2/A4 Vehicle Specifications Study Guide: Engine and Fluid Details, Exams of Advanced Education

Liberty University (LU)Advanced Education

This study guide provides essential information about the m1120a2 and m1120a4 vehicles, focusing on their engine oil, transmission, hydraulic reservoir, antifreeze, and fuel specifications. It includes details on operating ranges, battery voltage, air pressure, coolant and oil temperatures, horsepower, cruising range, and transport capacity. The guide also covers the vehicles' capabilities, such as their ability to tread water, making it a valuable resource for understanding the operational parameters and maintenance requirements of these vehicles. Useful for students and professionals in mechanical engineering and vehicle maintenance, offering a concise overview of key specifications and performance metrics. It serves as a quick reference for understanding the technical aspects of the m1120a2 and m1120a4 vehicles, aiding in their proper operation and maintenance.

Typology: Exams

2024/2025

Available from 07/11/2025

solution-master
solution-master 🇺🇸

3.2

(27)

11K documents

1 / 2

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

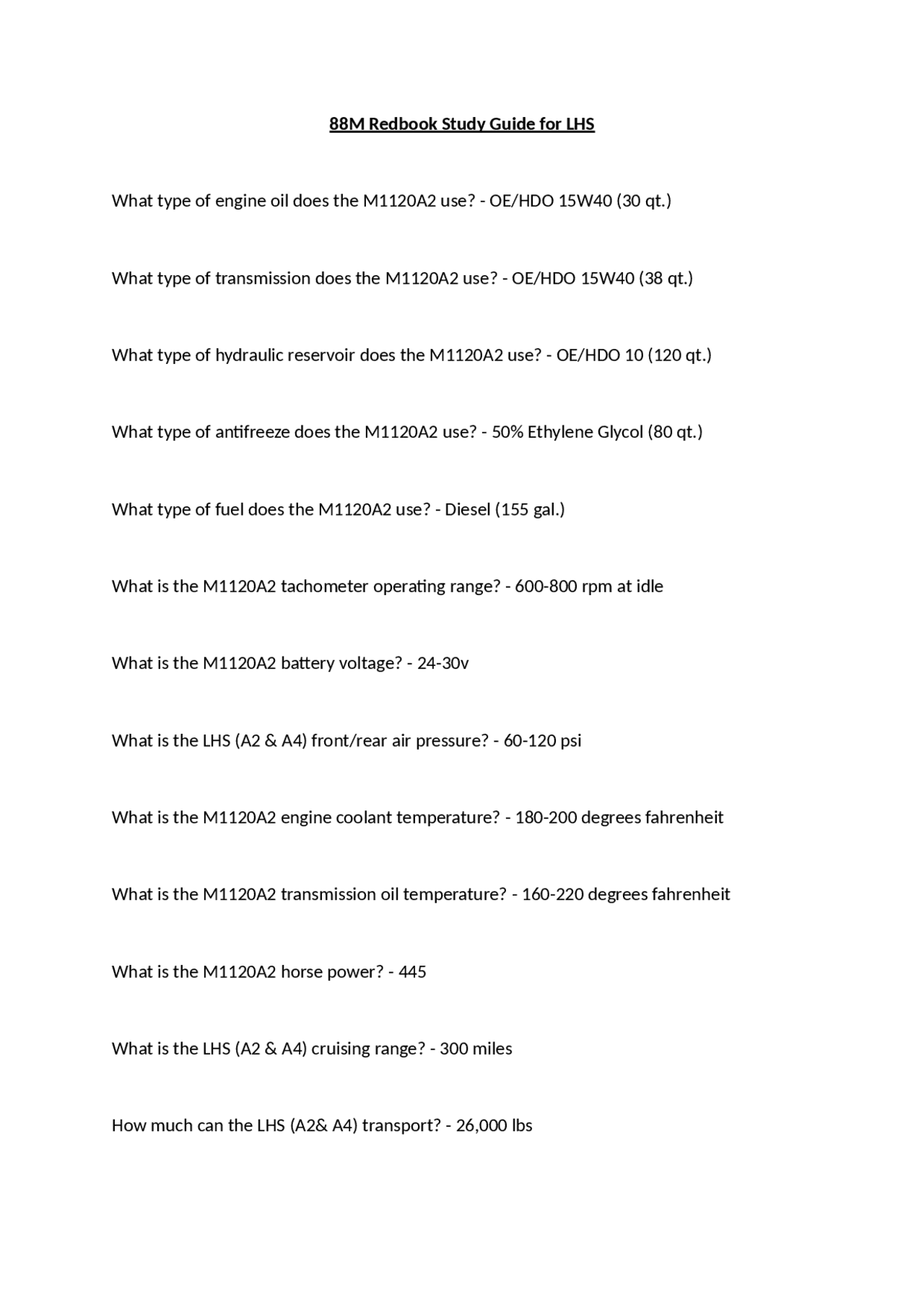

88M Redbook Study Guide for LHS
What type of engine oil does the M1120A2 use? - OE/HDO 15W40 (30 qt.)
What type of transmission does the M1120A2 use? - OE/HDO 15W40 (38 qt.)
What type of hydraulic reservoir does the M1120A2 use? - OE/HDO 10 (120 qt.)
What type of antifreeze does the M1120A2 use? - 50% Ethylene Glycol (80 qt.)
What type of fuel does the M1120A2 use? - Diesel (155 gal.)
What is the M1120A2 tachometer operating range? - 600-800 rpm at idle
What is the M1120A2 battery voltage? - 24-30v
What is the LHS (A2 & A4) front/rear air pressure? - 60-120 psi
What is the M1120A2 engine coolant temperature? - 180-200 degrees fahrenheit
What is the M1120A2 transmission oil temperature? - 160-220 degrees fahrenheit
What is the M1120A2 horse power? - 445
What is the LHS (A2 & A4) cruising range? - 300 miles
How much can the LHS (A2& A4) transport? - 26,000 lbs
pf2

Partial preview of the text

Download M1120A2/A4 Vehicle Specifications Study Guide: Engine and Fluid Details and more Exams Advanced Education in PDF only on Docsity!

88M Redbook Study Guide for LHS What type of engine oil does the M1120A2 use? - OE/HDO 15W40 (30 qt.) What type of transmission does the M1120A2 use? - OE/HDO 15W40 (38 qt.) What type of hydraulic reservoir does the M1120A2 use? - OE/HDO 10 (120 qt.) What type of antifreeze does the M1120A2 use? - 50% Ethylene Glycol (80 qt.) What type of fuel does the M1120A2 use? - Diesel (155 gal.) What is the M1120A2 tachometer operating range? - 600-800 rpm at idle What is the M1120A2 battery voltage? - 24-30v What is the LHS (A2 & A4) front/rear air pressure? - 60-120 psi What is the M1120A2 engine coolant temperature? - 180-200 degrees fahrenheit What is the M1120A2 transmission oil temperature? - 160-220 degrees fahrenheit What is the M1120A2 horse power? - 445 What is the LHS (A2 & A4) cruising range? - 300 miles How much can the LHS (A2& A4) transport? - 26,000 lbs

How long can the LHS (A2 & A4) tread water for and how deep? - 48 in for 5 mins What is the M1120A4 horse power? - 500 What type of engine oil does the M1120A4 use? - OE/HDO 15W40 (42 qt.) What type of transmission does the M1120A4 use? - OE/HDO 15W40 (40 qt.) What type of hydraulic reservoir does the M1120A4 use? - OE/HDO 10 (205 qt.) What type of antifreeze does the M1120A4 use? - 50% Ethylene Glycol (58.5 qt.) What type of fuel does the M1120A4 use? - Diesel (155 gal.) What is the M1120A4 tachometer operating range? - 625-725 rpm at idle What is the M1120A4 battery voltage? - 24-28v What is the M1120A4 engine coolant temp? - 180-200 degrees fahrenheit What is the M1120A4 transmission oil temp? - 160-200 degrees fahrenheit
