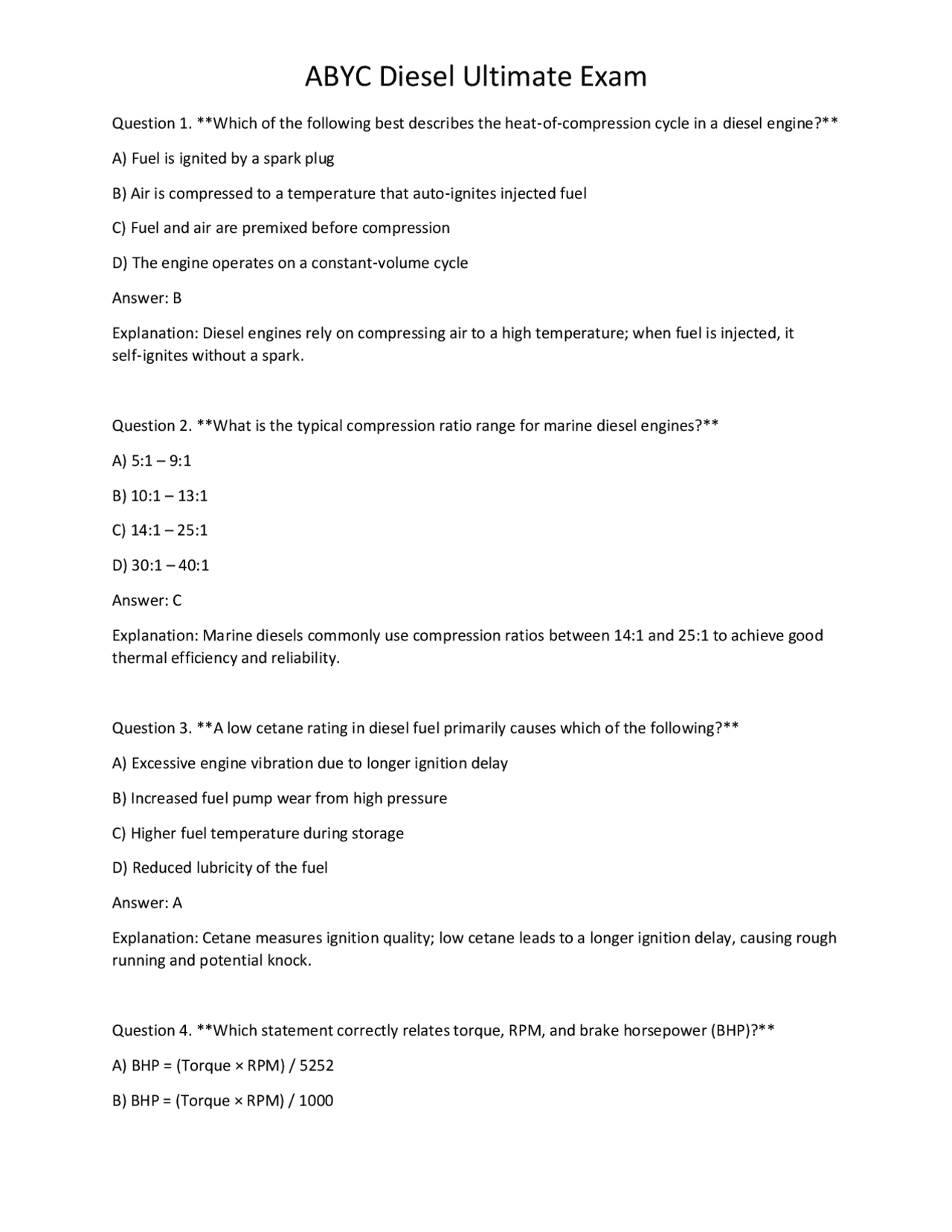

Question 1. Which of the following best describes the heat‑of‑compression cycle in a diesel engine? A) Fuel is ignited by a spark plug B) Air is compressed to a temperature that auto‑ignites injected fuel C) Fuel and air are premixed before compression D) The engine operates on a constant‑volume cycle Answer: B Explanation: Diesel engines rely on compressing air to a high temperature; when fuel is injected, it self‑ignites without a spark. Question 2. What is the typical compression ratio range for marine diesel engines? A) 5:1 – 9: B) 10:1 – 13: C) 14:1 – 25: D) 30:1 – 40: Answer: C Explanation: Marine diesels commonly use compression ratios between 14:1 and 25:1 to achieve good thermal efficiency and reliability. Question 3. A low cetane rating in diesel fuel primarily causes which of the following? A) Excessive engine vibration due to longer ignition delay B) Increased fuel pump wear from high pressure C) Higher fuel temperature during storage D) Reduced lubricity of the fuel Answer: A Explanation: Cetane measures ignition quality; low cetane leads to a longer ignition delay, causing rough running and potential knock. Question 4. Which statement correctly relates torque, RPM, and brake horsepower (BHP)? A) BHP = (Torque × RPM) / 5252 B) BHP = (Torque × RPM) / 1000
C) BHP = Torque × RPM D) BHP = (Torque × RPM) / 12, Answer: A Explanation: The standard formula for converting torque (lb‑ft) and engine speed (RPM) to horsepower is BHP = (Torque × RPM) / 5252. Question 5. The “propeller law” warns against over‑propping because: A) It reduces hull speed due to excess drag B) It causes the engine to run at too low a load, lowering fuel efficiency C) It increases the required propeller pitch beyond safe limits D) It leads to excessive vibration in the shaft line Answer: B Explanation: Over‑propping lets the engine operate at a low load, which reduces specific fuel consumption and can cause overheating. Question 6. According to ABYC H‑33, which material is NOT permitted for a fuel tank on a recreational vessel? A) Aluminum with proper coating B) Fiberglass‑reinforced plastic (FRP) C) Untreated carbon steel without a corrosion‑inhibiting coating D) Stainless steel (grade 304) Answer: C Explanation: Untreated carbon steel is prohibited because it corrodes quickly; tanks must be coated or made of corrosion‑resistant material. Question 7. What is the primary purpose of a 30‑micron water separator in a diesel fuel system? A) Remove all water from the fuel B) Capture large water droplets before they reach the pump C) Filter out particulate matter larger than 30 microns D) Act as a fuel polishing device for microbial growth
Explanation: Opening the rail vent releases trapped air from the high‑pressure side, allowing the pump to prime correctly. Question 11. To calculate the required ventilation airflow for a 500 hp diesel engine, ABYC recommends using which formula? A) CFM = (HP × 10) / ΔT B) CFM = (HP × 5) / ΔT C) CFM = (HP × 7) / ΔT D) CFM = (HP × 12) / ΔT Answer: C Explanation: ABYC P‑1 specifies CFM = (HP × 7) ÷ allowable temperature rise (ΔT) to ensure sufficient combustion air and engine‑room cooling. Question 12. The maximum allowable temperature rise (ΔT) for a diesel engine space in a recreational vessel is: A) 20 °F (11 °C) B) 30 °F (17 °C) C) 40 °F (22 °C) D) 50 °F (28 °C) Answer: B Explanation: ABYC limits the temperature rise to 30 °F above ambient to prevent overheating of equipment and crew discomfort. Question 13. Which of the following exhaust configurations is classified as “wet” exhaust? A) Exhaust routed through a dry muffler with a heat exchanger B) Exhaust mixed with seawater in a mixing elbow before entering a muffler C) Exhaust vented directly overboard without any mixing D) Exhaust passed through a catalytic converter only Answer: B Explanation: Wet exhaust systems intentionally mix seawater with exhaust gases to cool them before discharge.
Question 14. Back‑pressure in a diesel exhaust system should be kept below: A) 0.5 psi B) 1.0 psi C) 2.0 psi D) 5.0 psi Answer: B Explanation: Most manufacturers specify a maximum back‑pressure of 1 psi to avoid excessive stress on exhaust valves and turbochargers. Question 15. What is the primary safety purpose of a fire damper in a diesel engine ventilation system? A) Prevent water ingress during heavy seas B) Stop flame propagation from the engine space to other compartments C) Reduce noise transmission through the ventilation duct D) Filter out oil mist from the incoming air Answer: B Explanation: Fire dampers automatically close when exposed to heat, preventing fire spread through ventilation ducts. Question 16. In a raw‑water cooling circuit, the heat exchanger is most often made of: A) Copper‑nickel alloy B) Aluminum with a zinc coating C) Cast iron with a polymer liner D) Stainless steel (grade 316) Answer: A Explanation: Copper‑nickel alloys provide excellent corrosion resistance in seawater and good thermal conductivity.
B) Localized hot spots on the cylinder head C) Increased fuel consumption with no load change D) A high-pitched whine from the water pump Answer: B Explanation: Air pockets block coolant flow, causing overheating of specific engine areas, often visible as hot spots. Question 21. When selecting a starter battery for a 600 hp marine diesel, which rating is most critical? A) Cranking amps at 0 °F B) Reserve capacity at 80 % discharge C) Marine Cranking Amps (MCA) at 32 °F D) Amp‑hour rating at 20 h rate Answer: C Explanation: MCA is the marine‑specific measure of a battery’s ability to deliver high current at low temperatures, essential for large diesel starters. Question 22. A starter motor that draws 350 A at 12 V will require a circuit breaker sized at least: A) 300 A B) 350 A C) 400 A D) 450 A Answer: C Explanation: Circuit protection must be sized 125 % of the continuous current; 350 A × 1.25 = 437.5 A, rounded up to the next standard rating (450 A). Question 23. Which sensor provides the ECU with information about the engine’s load condition? A) Crankshaft position sensor B) Manifold absolute pressure (MAP) sensor C) Throttle position sensor (TPS)
D) Coolant temperature sensor Answer: B Explanation: The MAP sensor measures intake manifold pressure, which correlates directly with engine load. Question 24. In a mechanical governor, the speed‑controlling element is: A) A hydraulic valve spool B) An electronic microcontroller C) A set of flyweights linked to a spring D) A magnetic clutch Answer: C Explanation: Mechanical governors use rotating flyweights whose position changes with engine speed, adjusting fuel delivery via a spring‑loaded mechanism. Question 25. CAN bus communication on a NMEA 2000 network operates at: A) 125 kbps B) 250 kbps C) 500 kbps D) 1 Mbps Answer: B Explanation: NMEA 2000 uses a 250 kbps CAN bus to exchange marine vessel data among devices. Question 26. A reduction gear in a marine transmission primarily serves to: A) Increase propeller RPM relative to engine RPM B) Decrease engine torque for better maneuverability C) Convert high engine speed to lower propeller speed with higher torque D) Provide a direct‑drive connection without gear mesh Answer: C Explanation: Reduction gears lower the propeller speed while multiplying torque, matching the engine’s high RPM to the propeller’s optimal lower RPM.
A) Excessive fuel injection (over‑fueling) or restricted air B) Coolant entering the combustion chamber C) Oil burning due to worn piston rings D) Low fuel temperature during start‑up Answer: A Explanation: Black smoke is a sign of incomplete combustion, typically caused by too much fuel or insufficient air. Question 31. Blue smoke observed during steady‑state operation is most commonly caused by: A) Fuel injector timing that is too advanced B) Over‑rich fuel mixture in the cylinders C) Oil entering the combustion chamber through worn rings or valve guides D) Water in the fuel system Answer: C Explanation: Oil combustion produces a bluish plume; worn rings or valve guides allow oil to be drawn into the cylinder. Question 32. When analyzing oil for fuel dilution, the presence of which component is most indicative? A) Increased sulfur content B) Elevated gasoline hydrocarbons (C3–C6) C) High levels of copper particles D) Decreased viscosity Answer: B Explanation: Fuel dilution raises the concentration of light hydrocarbons (C3–C6) in the oil sample. Question 33. During winterization, the recommended method for protecting a diesel fuel system from microbial growth is: A) Adding a biocide and storing the vessel with tanks full B) Draining all fuel and flushing with fresh water
C) Installing a water‑separator and leaving the system empty D) Using a fuel‑stabilizer with a high antioxidant rating only Answer: A Explanation: Biocides kill microbes, and keeping tanks full reduces condensation, both essential for winter storage. Question 34. Fogging a diesel engine for long‑term lay‑up involves: A) Spraying a light oil mist into the cylinders and rotating the engine slowly B) Filling the cylinders with diesel fuel and sealing the intake C) Running the engine at idle for 30 minutes daily D) Injecting a high‑viscosity oil through the fuel pump Answer: A Explanation: Fogging coats internal surfaces with a thin oil film, preventing corrosion while the engine is not running. Question 35. ABYC A‑4 requires that portable fire extinguishers aboard a diesel‑powered vessel be of which class? A) Class A only B) Class B only C) Class B and C D) Class D only Answer: C Explanation: Diesel fuel fires are Class B, and electrical equipment fires are Class C; extinguishers must be rated for both. Question 36. The required safety label for a high‑pressure fuel line must include which of the following? A) Maximum allowable pressure in psi B) Manufacturer’s serial number only C) A warning symbol for “explosive atmosphere”
Answer: B Explanation: A weak fuel pump cannot maintain adequate fuel pressure, leading to hard starts and power loss during demand. Question 40. The “air‑in‑fuel” condition in a common‑rail system is most effectively removed by: A) Using a larger fuel filter B) Bleeding the high‑pressure rail via the vent valve while cranking the engine C) Adding a fuel additive that breaks down air bubbles D) Increasing the fuel pump speed Answer: B Explanation: Bleeding the rail releases trapped air; this is the standard method for removing air‑in‑fuel. Question 41. In a diesel engine, the term “knock” refers to: A) The audible ping caused by premature fuel ignition due to low cetane or high cylinder temperature B) The vibration from an unbalanced crankshaft C) The noise generated by a malfunctioning turbocharger D) The impact of a loose valve train component Answer: A Explanation: Diesel knock is caused by delayed ignition or hot spots causing fuel to ignite before the intended point, producing a knocking sound. Question 42. Which of the following best describes the function of a fuel return line? A) To supply fuel to the injectors at high pressure B) To return excess fuel from the injectors to the tank for cooling and pressure regulation C) To vent air from the fuel system D) To circulate fuel through a water separator Answer: B Explanation: Return lines carry un‑metered fuel back to the tank, helping regulate system pressure and dissipate heat.
Question 43. When sizing a fresh‑water heat exchanger for a 400 hp engine, the rule‑of‑thumb for heat transfer area (in ft²) is approximately: A) 0.5 × HP B) 0.8 × HP C) 1.0 × HP D) 1.5 × HP Answer: C Explanation: A common design guideline is roughly 1 ft² of heat‑exchange surface per horsepower for marine diesels. Question 44. A marine diesel equipped with a turbocharger experiences “turbo lag.” This phenomenon is primarily caused by: A) Slow spool‑up of the turbine due to low exhaust energy at low engine speeds B) Excessive boost pressure causing premature fuel injection C) Clogged air filter reducing airflow to the compressor D) Over‑rich fuel mixture during acceleration Answer: A Explanation: At low RPM, exhaust gas flow is insufficient to spin the turbine quickly, delaying boost pressure buildup. Question 45. Which type of fuel filter is typically located immediately downstream of the fuel pump in a diesel system? A) Primary water separator (30 μm) B) Secondary fine filter (2‑ 10 μm) C) Diesel particulate filter (DPF) D) Fuel polishing filter (0.5 μm) Answer: B Explanation: After the pump, a fine filter removes remaining particulates before fuel reaches the high‑pressure pump or injectors. Question 46. ABYC H‑33 requires that all fuel system valves be labeled with:
D) 30 % of rated RPM Answer: C Explanation: Most marine diesels idle at about 20 % of rated RPM to maintain oil pressure and adequate cooling. Question 50. Which of the following statements about diesel fuel microbial growth is true? A) Microbes only grow in fresh water, not in diesel B) Water accumulation above 0.5 % by volume can support bacterial and algae growth C) Adding more diesel fuel eliminates microbial risk D) High sulfur content prevents microbial activity Answer: B Explanation: Even small amounts of water provide a medium for microbes; 0.5 % water is enough to support growth. Question 51. The “engine‑room ventilation fan” must be capable of delivering at least how many air changes per hour (ACH) for a typical 300 hp diesel? A) 1 ACH B) 2 ACH C) 3 ACH D) 4 ACH Answer: C Explanation: ABYC recommends a minimum of three air changes per hour to maintain safe temperatures and combustion air supply. Question 52. A “dry” exhaust system differs from a “wet” system mainly because: A) It does not incorporate a mixing elbow with seawater B) It uses a larger muffler to reduce noise C) It operates at a higher pressure D) It requires a catalytic converter for emissions control Answer: A
Explanation: Dry exhaust discharges gases directly without seawater cooling, whereas wet exhaust mixes water for temperature reduction. Question 53. When installing a raw‑water strainer, ABYC requires that the strainer be located: A) Within 12 in of the seacock B) No more than 6 ft downstream of the seacock C) At least 1 ft upstream of the raw‑water pump inlet D) Directly on the pump impeller shaft Answer: C Explanation: Placing the strainer upstream of the pump protects the impeller from debris while allowing easy access for cleaning. Question 54. The “thermostat opening temperature” for most marine diesel cooling systems is typically set at: A) 140 °F (60 °C) B) 165 °F (74 °C) C) 190 °F (88 °C) D) 210 °F (99 °C) Answer: B Explanation: A thermostat opening around 165 °F balances efficient engine temperature with component longevity. Question 55. Which of the following is a primary cause of raw‑water pump impeller wear? A) High fuel temperature B) Presence of sand or debris in the intake water C) Low coolant flow rate D) Excessive alternator load Answer: B Explanation: Abrasive particles like sand accelerate impeller erosion, leading to reduced pump performance.
A) Engine coolant temperature B) Fuel injector timing C) Engine load and required fuel quantity D) Turbocharger boost pressure Answer: C Explanation: MAP (Manifold Absolute Pressure) provides data on intake manifold pressure, which the ECU uses to determine load and adjust fuel delivery. Question 60. A “dripless” stuffing box typically uses which of the following to prevent oil leakage? A) A spring‑loaded gland that maintains constant pressure on packing B) A magnetic seal that repels oil droplets C) A self‑sealing polymer that expands when wet D) An internal oil reservoir that returns oil to the crankcase Answer: D Explanation: Dripless boxes contain a small oil chamber that captures and returns oil, eliminating external drips. Question 61. Which of the following is the most common method for detecting carbon monoxide (CO) in an engine room? A) Visual inspection of exhaust color B) Hand‑held CO detector with alarm set at 50 ppm C) Measuring oxygen levels with a probe D) Listening for a high‑pitched whine from the exhaust Answer: B Explanation: Portable CO detectors provide real‑time monitoring and alarm at safe exposure limits; visual cues are unreliable. Question 62. The primary advantage of a “dual‑stage” fuel filtration system is: A) It reduces fuel pressure loss compared to a single filter B) It provides both water separation and fine particulate removal in one unit
C) It offers redundancy in case one filter fails D) It allows separate maintenance intervals for coarse and fine filtration Answer: D Explanation: Dual‑stage systems have a coarse (water) filter and a fine (particulate) filter, each with its own service schedule, improving overall protection. Question 63. When a diesel engine’s “exhaust back‑pressure” exceeds the recommended limit, which component is most likely to fail first? A) Fuel pump seals B) Exhaust valve seats C) Starter motor brushes D) Alternator diodes Answer: B Explanation: Excess back‑pressure places additional stress on exhaust valves, accelerating wear of valve seats and guides. Question 64. In a marine diesel, the “fuel‑to‑air ratio” for optimal combustion is typically closest to: A) 1: B) 1: C) 1: D) 1: Answer: B Explanation: Diesel engines operate with a lean mixture; a ratio around 1:14 (fuel:air by mass) provides efficient combustion while limiting smoke. Question 65. Which of the following is NOT a recommended practice for preventing fuel line corrosion? A) Using fuel lines made of compatible materials (e.g., stainless steel) B) Adding a corrosion inhibitor to the fuel tank C) Periodically flushing the system with fresh water
