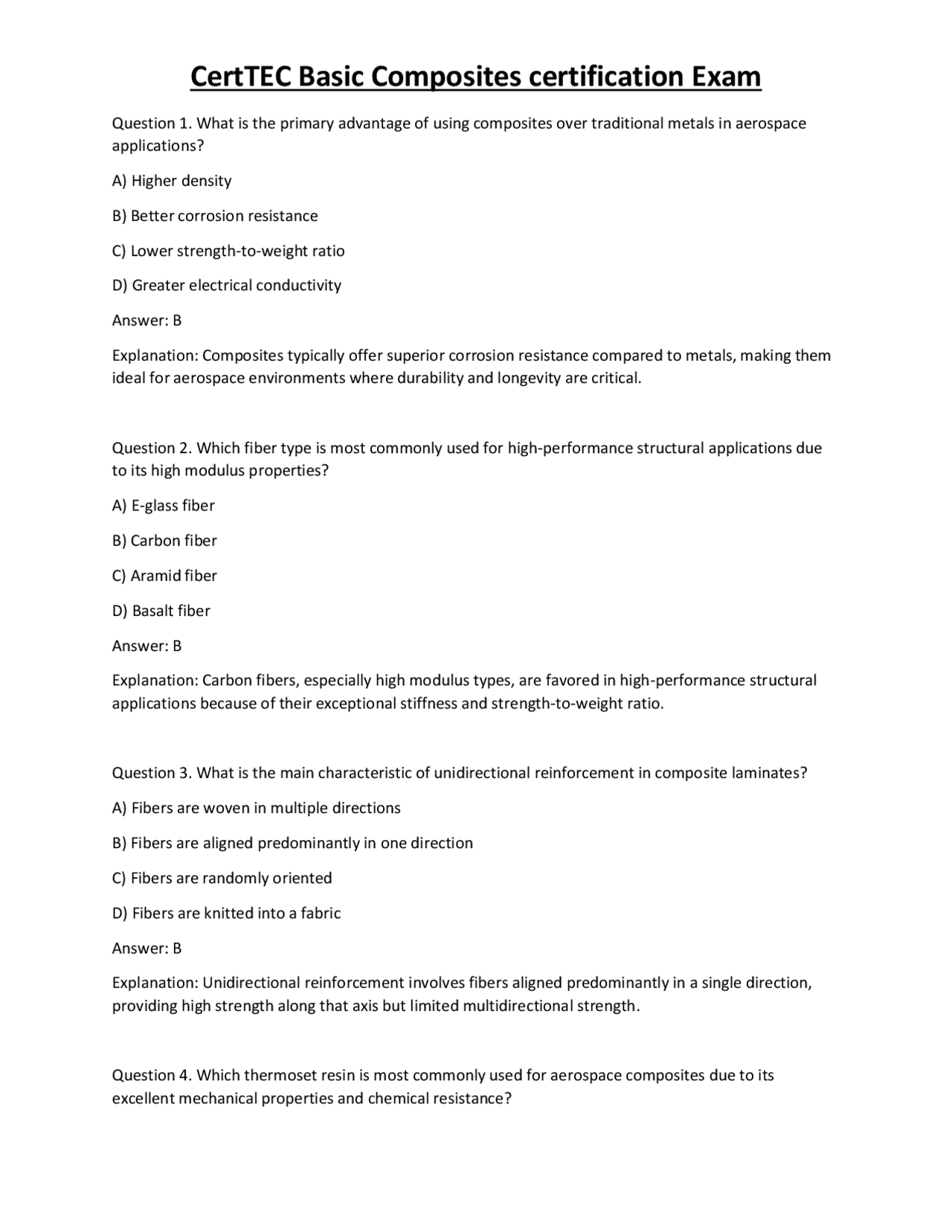

Question 1. What is the primary advantage of using composites over traditional metals in aerospace applications? A) Higher density B) Better corrosion resistance C) Lower strength-to-weight ratio D) Greater electrical conductivity Answer: B Explanation: Composites typically offer superior corrosion resistance compared to metals, making them ideal for aerospace environments where durability and longevity are critical. Question 2. Which fiber type is most commonly used for high-performance structural applications due to its high modulus properties? A) E-glass fiber B) Carbon fiber C) Aramid fiber D) Basalt fiber Answer: B Explanation: Carbon fibers, especially high modulus types, are favored in high-performance structural applications because of their exceptional stiffness and strength-to-weight ratio. Question 3. What is the main characteristic of unidirectional reinforcement in composite laminates? A) Fibers are woven in multiple directions B) Fibers are aligned predominantly in one direction C) Fibers are randomly oriented D) Fibers are knitted into a fabric Answer: B Explanation: Unidirectional reinforcement involves fibers aligned predominantly in a single direction, providing high strength along that axis but limited multidirectional strength. Question 4. Which thermoset resin is most commonly used for aerospace composites due to its excellent mechanical properties and chemical resistance?
A) Polyester B) Vinyl Ester C) Epoxy D) Polypropylene Answer: C Explanation: Epoxy resins are widely used in aerospace composites because of their superior mechanical strength, chemical resistance, and good adhesion properties. Question 5. Which thermoplastic resin is known for its high temperature performance and chemical resistance in advanced composite applications? A) Polypropylene (PP) B) Polyethylene (PE) C) Polyetheretherketone (PEEK) D) Polyamide (Nylon) Answer: C Explanation: PEEK is a high-performance thermoplastic notable for its excellent high-temperature stability, chemical resistance, and mechanical properties, making it suitable for demanding environments. Question 6. What is the purpose of adding UV inhibitors to composite materials? A) Enhance mechanical strength B) Improve fire resistance C) Protect from ultraviolet light degradation D) Increase thermal conductivity Answer: C Explanation: UV inhibitors are added to protect composite materials from degradation caused by ultraviolet light exposure, extending their lifespan outdoors. Question 7. Which core material is primarily used in sandwich structures to provide lightweight stiffness? A) Aluminum honeycomb
D) Pultrusion Answer: C Explanation: Vacuum bagging involves applying a vacuum to draw resin into dry fiber reinforcements within a closed mold, ensuring uniform impregnation and compactness. Question 11. What is one major advantage of closed molding processes like vacuum infusion over open molding? A) Higher VOC emissions B) Better fiber-to-resin ratio C) Increased cure time D) Less control over resin distribution Answer: B Explanation: Closed molding processes like vacuum infusion typically result in a better fiber-to-resin ratio, leading to improved mechanical properties and reduced VOC emissions. Question 12. Which type of prepreg storage condition is most appropriate to extend shelf life? A) Room temperature, high humidity B) Freezer or cold storage C) Direct sunlight D) Warm, ventilated area Answer: B Explanation: Prepregs are stored in cold storage (freezer) to slow down resin curing and extend shelf life, maintaining their tack and handling properties. Question 13. What is the primary purpose of autoclave curing in prepreg processing? A) To dry the prepreg B) To apply pressure and heat for complete curing C) To cut the prepreg sheets D) To store the prepreg Answer: B
Explanation: Autoclave curing applies controlled heat and pressure to ensure complete cure of prepregs, resulting in high-quality, void-free composites. Question 14. Which application is most typical for filament winding? A) Large pressure vessels and pipes B) Aircraft fuselage skins C) Automotive body panels D) Consumer plastic products Answer: A Explanation: Filament winding is primarily used for manufacturing large, cylindrical structures like pipes and pressure vessels due to its ability to produce strong, seamless, and high-quality parts. Question 15. What is a common mold material for low-volume prototype composites? A) Steel B) Aluminum C) Wood D) Fiberglass Answer: C Explanation: Wood molds are often used for low-volume or prototype production due to their low cost and ease of fabrication, though they may require surface treatment. Question 16. Why are draft angles incorporated into mold design? A) To facilitate part removal B) To strengthen the mold C) To improve surface finish D) To reduce material costs Answer: A Explanation: Draft angles help parts to be easily removed from molds without damaging the surface or distorting the part.
A) To improve surface finish B) To facilitate part removal and prevent sticking C) To cure the resin faster D) To increase mold temperature Answer: B Explanation: Release agents are applied to molds to prevent sticking of the composite part during demolding, ensuring a clean surface and preserving mold integrity. Question 21. Which fiber type is known for its excellent impact resistance and toughness, especially in ballistic applications? A) E-glass fiber B) Carbon fiber C) Aramid fiber D) Basalt fiber Answer: C Explanation: Aramid fibers, such as Kevlar, are renowned for their high impact resistance and toughness, making them ideal for ballistic and protective applications. Question 22. What is the typical form of reinforcement used in chopped strand mat? A) Continuous filament B) Randomly oriented short fibers C) Woven fabric D) Knitted fabric Answer: B Explanation: Chopped strand mat consists of randomly oriented short fibers, providing multidirectional reinforcement suitable for general molding and lamination. Question 23. Which resin type cures via an exothermic chemical reaction and often requires a catalyst or hardener? A) Thermoplastic
B) Thermoset C) Elastomer D) Plasticizer Answer: B Explanation: Thermoset resins undergo an exothermic curing reaction, typically initiated by catalysts or hardeners, resulting in a cross-linked, durable network. Question 24. Which core material is most sensitive to moisture absorption, requiring careful storage? A) Aluminum honeycomb B) Balsa wood C) PVC foam D) Aramid honeycomb Answer: B Explanation: Balsa wood is hygroscopic and sensitive to moisture, necessitating proper storage and handling to prevent deterioration. Question 25. Which process involves impregnating continuous fibers with resin and winding them onto a rotating mandrel? A) Hand lay-up B) Pultrusion C) Filament winding D) Resin transfer molding Answer: C Explanation: Filament winding involves wrapping continuous fibers impregnated with resin around a rotating mandrel to form hollow or cylindrical components. Question 26. Which mold surface finish is preferred for high-quality aesthetic parts? A) Rough textured B) Smooth, polished surface C) Coarse surface
Explanation: Filament winding is ideal for manufacturing pressure vessels, tanks, and pipes due to its ability to produce strong, seamless cylindrical structures. Question 30. Which mold material provides excellent thermal conductivity and durability for high- volume production? A) Wood B) Steel C) Plaster D) Fiberglass Answer: B Explanation: Steel molds offer high durability and thermal conductivity, making them suitable for high- volume production with consistent quality. Question 31. What is a key feature of open molding processes like hand lay-up? A) Use of vacuum to impregnate fibers B) Application of resin manually onto fibers in an open environment C) Automated fiber placement D) Continuous filament winding Answer: B Explanation: Hand lay-up involves manually applying resin onto fibers laid in an open mold, making it a simple and flexible process suitable for low to medium volumes. Question 32. Which component is essential in a closed mold vacuum infusion setup to ensure proper resin flow? A) Resin spray gun B) Flow media or resin distribution lines C) Hand roller D) Heat gun Answer: B Explanation: Flow media or resin distribution lines help guide resin uniformly through the reinforcement, ensuring complete impregnation during vacuum infusion.
Question 33. Which property of thermoplastic resins makes them suitable for recycling? A) Cross-linking during curing B) Melting and reprocessing without degradation C) High curing temperature D) Chemical cross-linking Answer: B Explanation: Thermoplastics melt and can be reprocessed multiple times without significant degradation, enabling recycling and re-use. Question 34. Which of the following is a typical use case for autoclave-cured prepregs? A) Rapid prototyping B) Aerospace structural components requiring high quality C) Low-cost consumer products D) Short-run automotive parts Answer: B Explanation: Autoclave curing produces high-quality, void-free aerospace components with excellent mechanical properties, suitable for critical structural applications. Question 35. Which factor most influences the choice of reinforcement fiber type for a specific application? A) Cost B) Mechanical property requirements C) Color D) Ease of handling Answer: B Explanation: The mechanical property requirements, such as strength, stiffness, and impact resistance, primarily determine the selection of fiber type for a given application.
A) To reduce curing time B) To ensure desired surface quality and aesthetic appearance C) To increase the mold’s weight D) To prevent resin cure Answer: B Explanation: Surface finish impacts the aesthetic quality and may influence post-processing or secondary bonding; proper tooling finish ensures the desired surface appearance. Question 40. Which nondestructive testing method is most suitable for mapping internal defects like delaminations? A) Visual inspection B) Ultrasonic inspection C) Tap testing D) Thermography Answer: B Explanation: Ultrasonic inspection provides detailed internal imaging, capable of detecting delaminations and other flaws within composite parts. Question 41. What is the main purpose of using a release agent during mold preparation? A) To improve the mold's thermal properties B) To prevent the composite from sticking to the mold surface C) To accelerate the curing process D) To enhance surface roughness Answer: B Explanation: Release agents create a barrier that prevents the composite material from adhering to the mold, facilitating easy demolding. Question 42. Which fiber type is preferred for ballistic and protective armor applications due to its high impact resistance? A) E-glass
B) Carbon fiber C) Aramid (Kevlar) D) Basalt fiber Answer: C Explanation: Aramid fibers like Kevlar are highly impact-resistant and tough, making them suitable for ballistic and protective armor applications. Question 43. What is the main difference between prepreg and wet lay-up methods? A) Prepreg has a controlled resin content and pre-impregnated fibers B) Wet lay-up uses dry fibers only C) Prepreg cannot be cured in an autoclave D) Wet lay-up is more expensive Answer: A Explanation: Prepregs are pre-impregnated with a controlled amount of resin, ensuring consistent quality, whereas wet lay-up involves manually applying resin to dry fibers. Question 44. Which process is most suitable for manufacturing large, continuous, cylindrical structures like pressure tanks? A) Hand lay-up B) Pultrusion C) Filament winding D) Resin transfer molding Answer: C Explanation: Filament winding is ideal for producing large, seamless, cylindrical pressure vessels by winding resin-impregnated fibers onto a rotating mandrel. Question 45. In mold design, what is the purpose of incorporating draft angles? A) To facilitate part removal B) To increase mold strength C) To improve the surface finish
Explanation: Cross-linking in thermosets creates a three-dimensional network that prevents re-melting, making them permanently hardened after curing. Question 49. Which core material is most suitable for applications requiring high compressive strength and low moisture absorption? A) Balsa wood B) Aluminum honeycomb C) PVC foam D) Aramid honeycomb Answer: B Explanation: Aluminum honeycomb cores provide high compressive strength, durability, and low moisture absorption, suitable for demanding structural applications. Question 50. What is a key benefit of autoclave curing for aerospace prepregs? A) Faster processing times B) Produces high-quality, void-free, and high-strength parts C) Lower cost D) Reduced equipment requirements Answer: B Explanation: Autoclave curing applies high pressure and temperature uniformly, resulting in high- quality, void-free, and high-performance aerospace components. Question 51. Which process is most suitable for producing complex shapes with high fiber volume fractions and minimal voids? A) Hand lay-up B) Resin transfer molding (RTM) C) Open molding D) Pultrusion Answer: B Explanation: RTM involves injecting resin into a sealed mold with pre-placed fibers, allowing for complex shapes, high fiber content, and low void content.
Question 52. Which fiber type is especially advantageous in applications requiring chemical resistance and high-temperature performance? A) E-glass B) Carbon C) Aramid D) Basalt Answer: B Explanation: Carbon fibers exhibit excellent chemical resistance and high-temperature stability, making them suitable for demanding environments. Question 53. Which composite manufacturing process is best suited for rapid, small-scale production of flat parts? A) Hand lay-up B) Pultrusion C) Filament winding D) Resin transfer molding Answer: A Explanation: Hand lay-up is flexible, cost-effective, and suitable for small-scale or prototype production of flat or simple shapes. Question 54. What is the main function of a breather/bleeder in vacuum bagging? A) To distribute vacuum evenly and absorb excess resin B) To feed resin into the laminate C) To reinforce the composite structure D) To act as a release layer Answer: A Explanation: The breather/bleeder absorbs excess resin and helps distribute vacuum evenly across the laminate, ensuring proper impregnation.
A) As a low-cost, quick-curing resin for consumer products B) For high-performance aerospace and structural components C) As a thermoplastic matrix D) In thermoplastic welding processes Answer: B Explanation: Epoxy resins are preferred in high-performance applications like aerospace due to their excellent mechanical properties and strong adhesion. Question 59. What is a main characteristic of a closed mold process like resin transfer molding (RTM)? A) Manual application of resin B) Resin injection into a sealed mold under pressure C) Use of open molds D) Winding fibers onto a mandrel Answer: B Explanation: RTM involves injecting resin into a sealed mold under pressure, enabling high-quality, complex parts with good dimensional control. Question 60. Which material is most suitable for a mold that requires repeated use and high surface quality? A) Wood B) Aluminum C) Plaster D) Cardboard Answer: B Explanation: Aluminum molds provide durability, excellent surface finish, and thermal stability for repeated, high-quality production. Question 61. Which defect is characterized by the separation of layers within a composite laminate? A) Porosity B) Delamination
C) Resin starvation D) Wrinkles Answer: B Explanation: Delamination refers to the separation of layers within a composite, often caused by improper handling, curing, or impact. Question 62. Which testing method uses thermal imaging to identify subsurface defects in composites? A) Ultrasonic inspection B) Thermography C) Tap testing D) X-ray inspection Answer: B Explanation: Thermography detects temperature variations caused by internal flaws like voids or delaminations, providing a non-contact, rapid inspection method. Question 63. What is the primary reason for incorporating fillers such as calcium carbonate into composite resins? A) To improve electrical conductivity B) To modify viscosity, reduce cost, or improve surface finish C) To enhance chemical resistance D) To increase cure time Answer: B Explanation: Fillers like calcium carbonate are added to modify resin properties, reduce costs, or improve surface characteristics. Question 64. Which fiber reinforcement form provides the highest strength in a specific direction? A) Woven fabric B) Chopped strand mat C) Unidirectional fiber D) Knitted fabric
