{HT}

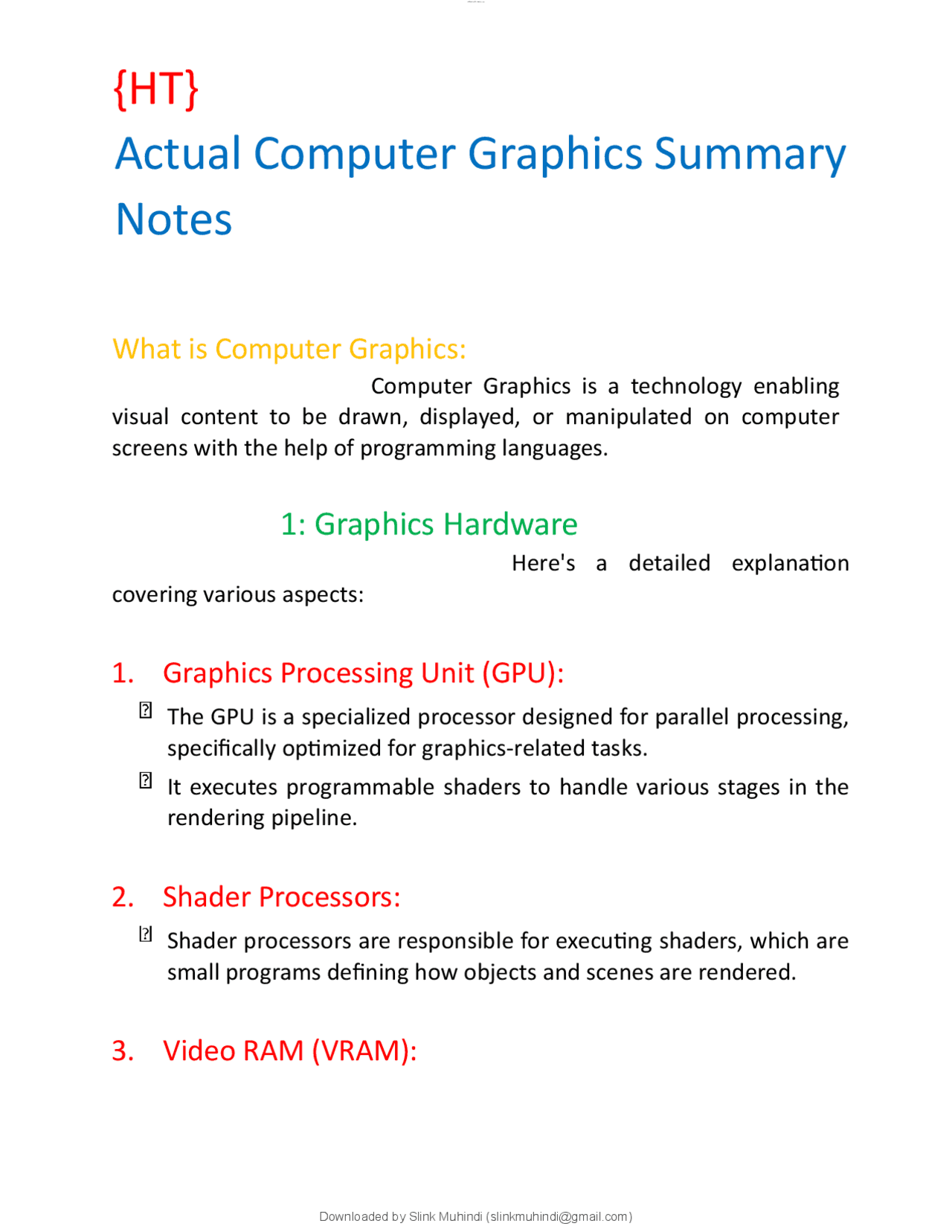

Actual Computer Graphics Summary
Notes
What is Computer Graphics:
Computer Graphics is a technology enabling
visual content to be drawn, displayed, or manipulated on computer
screens with the help of programming languages.
1: Graphics Hardware
Here's a detailed explanation
covering various aspects:
1. Graphics Processing Unit (GPU):
The GPU is a specialized processor designed for parallel processing,
specifically optimized for graphics-related tasks.
It executes programmable shaders to handle various stages in the
rendering pipeline.
2. Shader Processors:
Shader processors are responsible for executing shaders, which are
small programs defining how objects and scenes are rendered.
3. Video RAM (VRAM):
{HT}
VRAM is dedicated memory for storing graphical data, such as
textures, frame buffers, and other graphics-related information.
4. Rasterization Engine:
Rasterization is the process of converting 3D graphics into 2D
images.
The rasterization engine determines which pixels are visible and
their colors, creating the final image.
5. Frame Buffer:
The frame buffer, located in VRAM, holds the final image for
display.
It stores information about each pixel, including color, depth, and
other attributes.
6. Display Output:
Graphics hardware includes components for sending the final image
to the display device.
Connectors like HDMI, DisplayPort, or DVI, along with circuitry, drive
monitors and projectors.
7. Graphics APIs (Application Programming Interfaces):
Graphics APIs, such as OpenGL and DirectX, are software interfaces
enabling applications to interact with the graphics hardware.
They provide a standardized way for software to communicate with
and utilize the capabilities of the GPU.
{HT}
Details: It involves determining the coordinates of pixels that fall
inside the shape and activating those pixels to accurately
represent the shape on the screen.
2. Line Drawing Algorithms:
DDA Algorithm (Digital Differential Analyzer):
- Definition: DDA is an incremental algorithm used for line
drawing, calculating pixel positions between two
endpoints.
- Details: It involves determining the incremental change
in both x and y directions and adjusting the pixel
coordinates accordingly.
Brenham’s Line Algorithm:
- Definition: Brenham’s algorithm is an efficient method
for drawing lines on raster displays.
- Details: It uses integer arithmetic to minimize
computational complexity, making it suitable for
realtime applications.
3. Circle Drawing Algorithms:
Midpoint Circle Algorithm:
- Definition: The midpoint circle algorithm efficiently
draws circles on a raster display.
- Details: It determines the pixels to be plotted based on
the decision at a midpoint between two consecutive
pixels.
4. Clipping Algorithms:
{HT}
Cohen-Sutherland Algorithm:
- Definition: Cohen-Sutherland is a line clipping algorithm
against a rectangular clipping window.
Sutherland-Hodgeman Algorithm:
- Definition: Sutherland-Hodgeman is a
polygon clipping algorithm against an arbitrary
clipping window.
5. Transformation Algorithms:
Translation, Rotation, Scaling:
- Definition: These are basic geometric transformations
applied to objects in 2D and 3D space.
- Details: Translation shifts objects, rotation changes their
orientation, and scaling modifies their size.
Homogeneous Coordinates:
- Definition: Homogeneous coordinates are used to
represent transformations in a matrix form.
- Details: They enable efficient processing of
transformations by representing translation, rotation,
and scaling as matrix operations.
6. 3D Viewing Algorithms:
Perspective Projection:
- Definition: Perspective projection converts 3D
coordinates into 2D coordinates, simulating the effect of
perspective.
{HT}
3. Scientific Visualization: In science and engineering, computer
graphics are used to visualize complex data sets and mathematical
models.
4. Architecture and Engineering: Computer graphics are used in
CAD (Computer-Aided Design) software to design and visualize
buildings, machinery, and other structures before they are built.
5. Advertising and Marketing: Businesses use computer graphics
to create advertisements, product demos, and promotional
materials. They can also be used to design logos and branding
materials.
6. Web and UI Design: Computer graphics are essential for
designing user interfaces and web pages. They help improve user
experience and make websites more engaging.
7. Medical Imaging: In the medical field, computer graphics are
used to create detailed 3D models from scan data (like MRI or CT
scans), aiding in diagnosis and treatment planning.
4: Interactive Graphics Programming
Interactive graphics
programming in computer graphics involves creating and manipulating
visual content in real-time for applications like games and simulations.
Key aspects for examination preparation include:
{HT}
1. Graphics APIs and Libraries:
Learn about OpenGL, DirectX, or WebGL for GPU interaction
and rendering.
2. Rendering Pipeline:
Understand stages like vertex processing, rasterization, and
fragment shading.
3. Transformation and Projection:
Study translation, rotation, scaling, and projection techniques
for positioning objects.
4. User Interaction:
Implement input handling for devices like keyboards and mice
to update graphics based on user actions.
5. Collision Detection:
Understand methods for detecting collisions between objects
in interactive environments.
6. Textures and Mapping:
Utilize textures to add detail and mapping techniques (e.g., UV
mapping) for texture application.
7. Debugging and Profiling:
5: Graph Plotting
Graph plotting in computer
graphics involves the representation of data or functions on a
twodimensional (2D) or three-dimensional (3D) plane.
1. Coordinate Systems:
2D: X and Y axes intersect at the origin. Points are
represented as (x, y).
3D: Adds a Z-axis for three-dimensional representation,
points are (x, y, z).
2. Types of Graphs:
Line Graphs: Connects points with straight lines, often
used for representing functions.
{HT}
It is called Two-way It only onway communication. The user and
communication by user and co mputer can communicate each
computer other through input devi ces. For Example, The
familiar
For example, Almost all example of a non-interactive computers have
interaction with computer graphic is TV the user. broadcasting.
{HT}
Scatter Plots: Displays individual data points without
connecting lines.
Bar Graphs: Uses bars to represent data.
Pie Charts: Represents data as slices of a circle.
3. Plotting Techniques:
Pixel-based Rendering: Directly plots points on the
screen by setting pixels.
Vector Graphics: Uses mathematical equations for
shapes, providing scalability and smoothness.
4. Algorithms for Plotting:
Bresenham's Line Algorithm: Efficient for drawing lines.
Midpoint Circle Algorithm: Used for drawing circles.
DDA (Digital Differential Analyzer): Another algorithm
for drawing lines.
5. Graphical Libraries:
OpenGL: Widely used for 2D and 3D graphics.
matplotlib (Python): Popular for creating various plots.
D3.js (JavaScript): Used for dynamic and interactive data
visualizations.
6. 3D Graphs:
Projection: Techniques like perspective or orthographic
projection.
{HT}
- Essential for focusing on relevant content when the entire
scene is too large for the screen.
Clipping in Computer Graphics:
- Definition:
- Clipping is the process of determining and displaying only the
relevant portions of graphical objects that fall within the
specified window.
- Types of Clipping:
Point Clipping: Decides if a point lies inside the window.
Line Clipping: Determines which part of a line is inside the
window.
Polygon Clipping: Clips entire polygons to fit within the
window.
- Importance:
- Optimizes rendering by discarding elements outside the
visible window.
- Ensures the display of only relevant and visible content.
Segmentation in Computer Graphics:
- Definition:
- Segmentation involves dividing a complex scene into simpler,
manageable parts or segments.
- Purpose:
- Simplifies the rendering process by breaking down a scene
into more manageable components.
{HT}
- Facilitates efficient handling and manipulation of graphical
elements.
- Types of Segmentation:
Spatial Segmentation: Divides the scene based on spatial
criteria, such as regions or areas.
Color Segmentation: Groups elements based on their color
attributes.
Depth Segmentation: Separates objects in a scene based on
their depth or distance from the viewer.
Differences between Windowing and Clipping in Computer Graphics:
Windowing Clipping
Defines a visible portion of the
scene
Removes invisible or non-visible
elements
Focuses on controlling the display
area (^) Optimizes rendering performance
{HT}
Non-Interlaced Scanning:
For non-interlaced display
refresh rate of 30 frames per second used. But it gives flickers. For
interlaced display refresh rate of 60 frames per second is used.
Advantages:
- Realistic image
- Million Different colors to be generated
- Shadow Scenes are possible.
Disadvantages:
- Low Resolution
- Expensive
Differentiate between Random and Raster Scan Display:
Random Scan Raster Scan
- It has high Resolution 1. Its resolution is low.
- It is more expensive 2. It is less expensive
- Any modification if needed is
easy
3.Modification is tough
- Solid pattern is tough to fill 4.Solid pattern is easy to fill
{HT}
- Refresh rate depends
or resolution
- Refresh rate does not depend on the
picture.
8: Differential Line Algorithm
The Differential Line
Algorithm (DDA), also known as the Digital Differential Analyzer, is a
simple and efficient algorithm used in computer graphics to draw lines
between two specified points on a digital display.
1. Input:
The starting point (x1, y1) and ending point (x2, y2) of the line
segment.
2. Calculations:
Calculate the difference in x and y coordinates: dx = x2 - x1 and dy
= y2 - y1.
Calculate the slope of the line: m = dy / dx.
3. Iteration:
Loop for the number of steps calculated in step 2.
o In each iteration:
Calculate the change in x and y for the current step:
dx_step = 1 and dy_step = m.
Update the current coordinates: x_current = x_current +
dx_step and y_current = y_current + dy_step. Plot
the point at (x_current, y_current).
{HT}
Panning and zooming are
fundamental functionalities in computer graphics that allow users to
manipulate the view of a scene. Understanding their concepts and
implementations is crucial for various applications, from image editing
and mapping software to 3D modeling and game development.
Panning:
Definition: Panning refers to the horizontal and vertical movement
of the view within a scene, without changing the magnification.
Implementation: Panning is typically achieved by:
o Dragging the mouse across the viewing area. o Using arrow
keys on the keyboard. o Employing dedicated pan buttons or
controls within the software interface.
Zooming:
Definition: Zooming refers to scaling the view of a scene, either
inward to magnify specific details or outward to encompass a
broader view.
Implementation: Zooming is commonly achieved by: o Using the
mouse wheel (scrolling up or down).
o Clicking dedicated zoom buttons (in/out).
o Using keyboard shortcuts like Ctrl + Scroll or Ctrl + +/-.
Applications: Zooming enables users to: o Inspect fine details of
objects or textures.
o Adjust the level of detail displayed based on specific needs.
{HT}
10: Raster Algorithms and Software
Raster graphics form the
foundation of many visual representations in computer graphics. They
represent images as a grid of individual pixels, each holding color
information.
Key Raster Algorithms:
Line drawing algorithms: These algorithms determine the pixels to
be illuminated when drawing lines between two points. Popular
examples include:
o Differential Line Algorithm (DDA): Simple and efficient, but
prone to rounding errors and aliasing. o Bresenham's line
algorithm: Offers improved accuracy and reduced aliasing
compared to DDA.
Polygon filling algorithms: These algorithms determine which pixels
to fill within the boundaries of a closed polygon. Common
approaches include:
o Scanline filling: Processes each scanline of the polygon,
efficiently determining pixels to be filled.
o Flood fill algorithm: Recursively fills connected regions with a
specific color, useful for complex shapes.
Software Utilizing Raster Algorithms:
Image editing software: Applications like Photoshop and GIMP
employ various raster algorithms for tasks like drawing lines,
shapes, and applying filters, all manipulating individual pixels within
the image.
