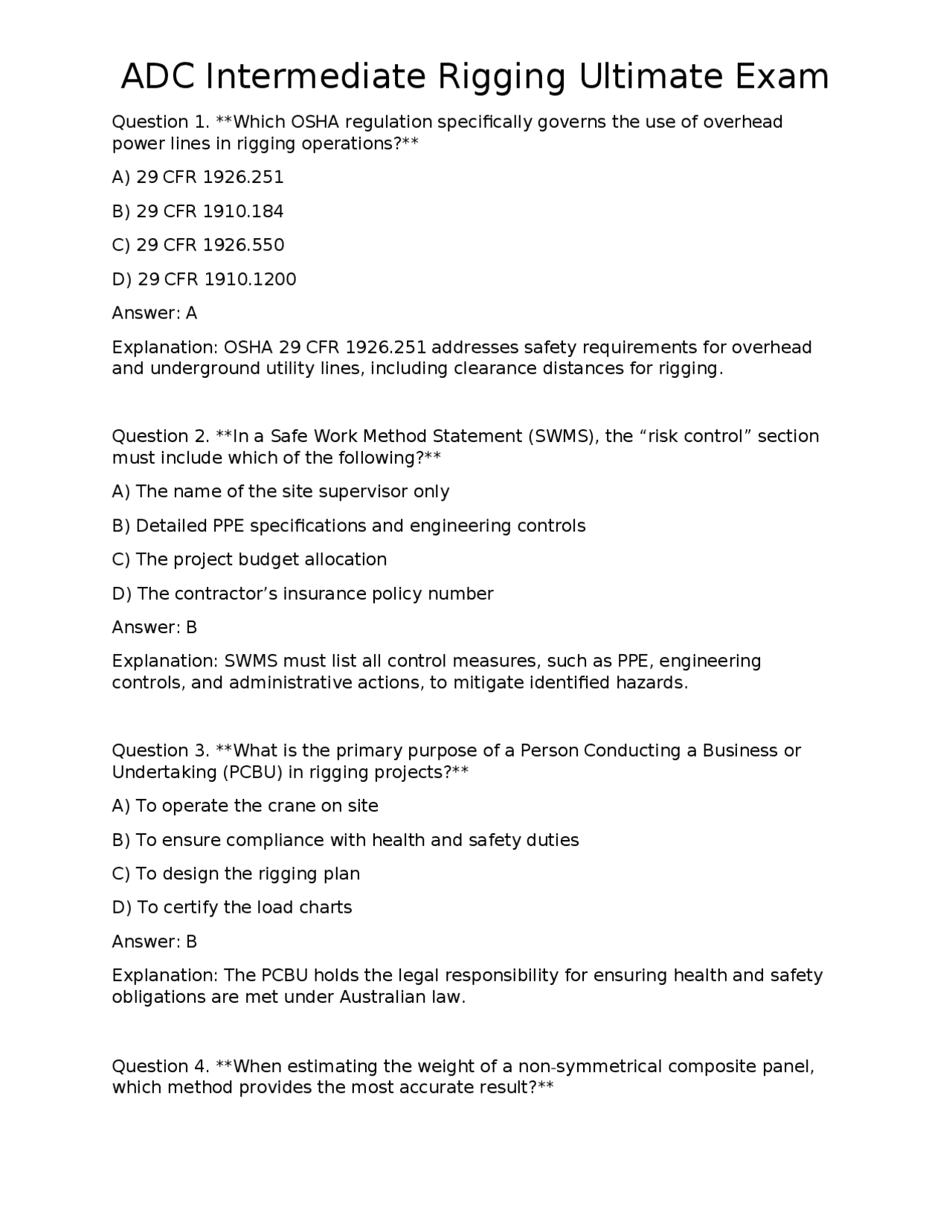

Question 1. Which OSHA regulation specifically governs the use of overhead power lines in rigging operations? A) 29 CFR 1926. B) 29 CFR 1910. C) 29 CFR 1926. D) 29 CFR 1910. Answer: A Explanation: OSHA 29 CFR 1926.251 addresses safety requirements for overhead and underground utility lines, including clearance distances for rigging. Question 2. In a Safe Work Method Statement (SWMS), the “risk control” section must include which of the following? A) The name of the site supervisor only B) Detailed PPE specifications and engineering controls C) The project budget allocation D) The contractor’s insurance policy number Answer: B Explanation: SWMS must list all control measures, such as PPE, engineering controls, and administrative actions, to mitigate identified hazards. Question 3. What is the primary purpose of a Person Conducting a Business or Undertaking (PCBU) in rigging projects? A) To operate the crane on site B) To ensure compliance with health and safety duties C) To design the rigging plan D) To certify the load charts Answer: B Explanation: The PCBU holds the legal responsibility for ensuring health and safety obligations are met under Australian law. Question 4. When estimating the weight of a non-symmetrical composite panel, which method provides the most accurate result?
A) Using the panel’s volume and average material density B) Assuming a uniform density based on the heaviest component C) Adding the weight of each material layer separately and summing them D) Using a standard steel weight per square meter conversion Answer: C Explanation: Composite panels often consist of different materials; calculating each layer’s weight and summing yields the most accurate estimate. Question 5. The center of gravity (CoG) of an asymmetrical load is located: A) Directly under the geometric centre of the load B) At the point where the load’s weight is evenly distributed across all slings C) At the intersection of the load’s principal axes D) Determined by the weighted average of each component’s mass and position Answer: D Explanation: CoG for asymmetrical loads is found by summing the moments of each component about a reference point and dividing by total mass. Question 6. Which factor most significantly increases tension in a sling when the sling angle is reduced to 30°? A) The length of the sling B) The sine of the sling angle C) The weight of the load only D) The material of the sling Answer: B Explanation: Tension = Load / (2 × sin θ). As the angle θ decreases, sin θ decreases, causing tension to increase dramatically. Question 7. Dynamic loads differ from static loads primarily because: A) They are always heavier than static loads B) They involve acceleration, shock, or impact forces C) They are measured in kilonewtons instead of newtons
Explanation: Standard practice requires proof-testing lifting clutches at least every six months to confirm safe working load capacity. Question 11. Which wire rope lay pattern provides the highest resistance to crushing? A) Right regular lay (RRL) B) Left regular lay (LRL) C) Lang lay D) Parallel lay Answer: C Explanation: Lang lay ropes have a larger lay angle, giving better resistance to crushing and higher flexibility under load. Question 12. A bow-type shackle is preferred over a D-type shackle when: A) The load is expected to rotate within the shackle B) Space constraints limit shackle size C) The load direction is always vertical D) The load is light and requires minimal hardware Answer: A Explanation: Bow shackles have a larger opening, allowing the load to rotate without binding, making them suitable for angled loads. Question 13. Which synthetic sling material shows the greatest resistance to oil contamination? A) Nylon (polyamide) B) Polyester (PET) C) Kevlar (aramid) D) Polypropylene Answer: B Explanation: Polyester has low oil absorption and retains strength after oil exposure, unlike nylon which can degrade.
Question 14. During a pre-use inspection of a synthetic round sling, the acceptable maximum broken stitch length is: A) 1 mm B) 3 mm C) 5 mm D) 10 mm Answer: C Explanation: Industry guidelines typically allow broken stitches up to 5 mm; beyond this, the sling must be removed from service. Question 15. A self-climbing hoist is most commonly used for: A) Lifting heavy steel beams horizontally B) Raising a crane’s boom during erection C) Lifting loads in confined vertical shafts D) Transporting loads over long distances on a rail system Answer: C Explanation: Self-climbing hoists climb their own track, making them ideal for vertical shaft lifting where space is limited. Question 16. When rigging a tilt-up concrete slab, the minimum safety factor recommended for the lifting equipment is: A) 1. B) 2. C) 2. D) 3. Answer: C Explanation: A safety factor of 2.5 is commonly required for tilt-up operations to account for dynamic effects and uncertainties. Question 17. “Suction loading” on a precast slab occurs because: A) The slab is wet and creates a vacuum against the casting bed
D) Meet legal requirements for demolition permits Answer: C Explanation: Maintaining a distance of 1.5 times the height keeps personnel out of the potential impact zone of falling fragments. Question 21. During crane assembly, the correct sequence for removing lattice boom pins is: A) Remove all pins simultaneously to speed up the process B) Remove the outermost pins first, then work inward C) Remove the pins from the top down, checking for alignment after each removal D) Remove pins only after the boom is fully raised to its final height Answer: C Explanation: Removing pins from top to bottom ensures the boom remains stable and aligned, reducing the risk of sudden movement. Question 22. Which hand signal indicates “Stop all hoisting operations”? A) Open palm raised vertically B) Closed fist with thumb up C) Both arms extended outward, palms facing down D) One arm raised with an open palm, other arm pointing downwards Answer: A Explanation: An open palm raised vertically is the internationally recognized signal to halt all crane movements. Question 23. When using two-way radios on a construction site, the best practice for channel selection is to: A) Use the same channel as nearby traffic control radios B) Select a dedicated channel with minimal external interference C) Switch channels every 30 minutes to avoid fatigue D) Use the highest frequency channel available Answer: B
Explanation: A dedicated, interference-free channel ensures clear communication among rigging personnel. Question 24. The “line of sight” protocol in blind lifts requires: A) A laser pointer to be aimed at the load at all times B) A designated relay person positioned where the operator can see them C) The crane operator to wear night-vision goggles D) The use of a reflective safety vest on the load Answer: B Explanation: A relay person maintains visual contact with the operator, relaying information when the operator cannot see the load directly. Question 25. A pre-use walk-around inspection of a crane’s hook should include checking for: A) Paint color matching the crane’s body B) Presence of a latch, deformation, cracks, and proper pin alignment C) The hook’s weight rating printed on the side D) The manufacturer’s logo orientation Answer: B Explanation: Critical safety checks involve the latch condition, deformation, cracks, and correct pin alignment to ensure the hook’s integrity. Question 26. According to periodic inspection standards, a wire rope must undergo a thorough examination at least every: A) 3 months B) 6 months C) 12 months D) 24 months Answer: C Explanation: Comprehensive inspections of wire rope, including non-destructive testing, are required annually to detect internal damage.
B) Adjust tension precisely without re-threading the rigging C) Provide a decorative finish to the rigging assembly D) Reduce the length of the rope automatically Answer: B Explanation: Turnbuckles allow fine tension adjustments by rotating the threaded body, ensuring proper load balance. Question 31. Which of the following best describes an “equalising sheave” in a lifting arrangement? A) A device that reduces the load’s centre of gravity B) A pulley that distributes load forces evenly to multiple attachment points C) A mechanical brake for the crane’s drum D) A safety latch for the hook Answer: B Explanation: Equalising sheaves redirect and share forces across several points, helping to balance the load. Question 32. When selecting PPE for a rigging crew working near high-voltage lines, the most critical piece of equipment is: A) High-visibility vest B) Hard hat with a full-brim hat C) Arc-rated insulated gloves and footwear D) Earplugs for noise reduction Answer: C Explanation: Arc-rated insulated PPE protects against electrical hazards, which are paramount near live conductors. Question 33. The term “dead load” in rigging calculations refers to: A) The weight of the load being lifted B) The weight of the crane and associated rigging gear C) The wind pressure on the load
D) The weight of personnel on the site Answer: B Explanation: Dead load includes the static weight of the lifting equipment itself, separate from the live load (the cargo). Question 34. A “sine rule” calculation for a sling angle of 45° will result in a tension factor of: A) 1. B) 1. C) 1. D) 2. Answer: B Explanation: Tension factor = 1 / sin θ; sin 45° = 0.707, thus factor ≈ 1.414. Question 35. Which inspection frequency is mandated for expansion anchors used in lifting clutches? A) Every 3 months B) Every 6 months C) Annually D) Every 2 years Answer: B Explanation: Expansion anchors are subject to 6-month proof-testing cycles to verify load capacity. Question 36. The most appropriate method for securing a load that will be lifted vertically and may rotate is: A) Using a single eye-bolt at the load centre B) Using a four-point spreader bar with equalised slings C) Attaching the load to the crane hook with a single chain D) Using a single synthetic webbing sling at a 90° angle Answer: B
Question 40. When using a hoist with a self-locking brake, the brake must be inspected for: A) Paint chipping on the outer housing B) Proper engagement and release under load conditions C) The presence of a decorative label D) The weight of the brake housing Answer: B Explanation: The brake’s ability to lock and release reliably is essential for safe operation. Question 41. The most common cause of “bird-caging” in wire rope is: A) Over-tightening of the rope on a drum B) Exposure to UV radiation C) Improper storage on a rack D) Use of a low-grade steel alloy Answer: A Explanation: Over-tightening or improper spooling creates excessive bending, leading to bird-caging at the rope’s ends. Question 42. A D-type shackle is preferred over a bow shackle when: A) The load direction is predominantly vertical and space is limited B) The load will rotate 180° during the lift C) The load is exceptionally wide D) The load is very light Answer: A Explanation: D-type shackles have a compact shape suitable for vertical loads where space constraints exist. Question 43. In multi-crane lifts, communication between operators is typically coordinated by:
A) The site’s accountant B) The lead rigger using hand signals and radios C) The crane manufacturer’s technician D) The weather forecaster Answer: B Explanation: The lead rigger manages communication, ensuring all operators receive clear commands via hand signals and radio. Question 44. When performing a pre-use inspection of a synthetic round sling, a broken stitch length of 6 mm would be: A) Acceptable if the sling is under 5 tonnes B) Acceptable if the break is on the outer edge only C) Unacceptable and requires removal from service D) Acceptable if the sling is newly purchased Answer: C Explanation: The maximum allowable broken stitch length is 5 mm; 6 mm exceeds this limit, mandating removal. Question 45. A crane’s “boom pin” must be inspected for which of the following before each lift? A) Color matching with the boom B) Proper thread engagement and absence of cracks or deformation C) Presence of a manufacturer’s serial number D) Temperature of the pin surface Answer: B Explanation: Correct thread engagement and no structural damage are critical for safe boom operation. Question 46. Which of the following is the correct order for a rigging hierarchy when lifting a heavy load? A) Load → Spreaders → Slings → Hook → Crane B) Crane → Hook → Slings → Spreaders → Load
Answer: B Explanation: Safety factors introduce a buffer to accommodate uncertainties, dynamic effects, and potential misuse. Question 50. During a demolition lift, the recommended minimum distance between the pulling rope and any overhead power line is: A) 0.5 m B) 1 m C) 2 m D) 5 m Answer: C Explanation: A 2 m clearance reduces the risk of accidental contact with live conductors during high-energy pulls. Question 51. Which type of hoist is best suited for lifting loads over uneven terrain? A) Electric chain hoist on a fixed base B) Hydraulic portable hoist with outriggers C) Pneumatic jib hoist mounted on a wall D) Manual lever hoist on a level platform Answer: B Explanation: Hydraulic hoists with outriggers can be positioned on uneven ground and provide stable lifting. Question 52. When a load is lifted with a sling angle of 20°, the tension in each sling will be approximately: A) 1.05 × load B) 1.5 × load C) 2.0 × load D) 2.9 × load Answer: D
Explanation: Tension = Load / (2 × sin 20°). sin 20° ≈ 0.342, so factor ≈ 1 / (2 × 0.342) ≈ 1.46, multiplied by 2 (two slings) gives ≈ 2.9 × load. Question 53. A “load chart” for a crane is considered a legal document because: A) It contains the crane’s serial number B) It defines the crane’s safe operating limits, which are enforceable by law C) It lists the manufacturer’s warranty terms D) It includes the crane operator’s license number Answer: B Explanation: Load charts establish the permissible combinations of load, radius, and boom length; operating outside them violates safety regulations. Question 54. The most common cause of failure in synthetic round slings is: A) UV degradation B) Over-loading beyond the SWL C) Exposure to high-temperature flames D) All of the above Answer: D Explanation: Synthetic slings can fail due to UV, heat, and overload; each factor compromises fiber strength. Question 55. In a rigging plan, the term “exclusion zone” refers to: A) The area where the crane operator must stand B) The space around the load that must be kept clear of personnel and equipment C) The storage area for rigging hardware D) The region where the crane’s outriggers are placed Answer: B Explanation: An exclusion zone safeguards workers by keeping the area around the lift free of hazards.
B) Every 1000 hours of operation C) Every 2000 hours of operation D) Every 5000 hours of operation Answer: B Explanation: Most manufacturers require hydraulic fluid checks and changes at 1000 - hour intervals to maintain system integrity. Question 60. During a tilt-up operation, the “pivot point” is typically located at: A) The centre of the slab’s underside B) The crane hook C) The edge of the slab that contacts the ground D) The nearest crane’s outriggers Answer: C Explanation: The slab rotates about the edge still in contact with the ground, acting as the pivot during tilting. Question 61. Which type of sling is most suitable for lifting a hot-rolled steel beam that will be exposed to temperatures up to 150 °C? A) Nylon webbing sling B) Polyester flat-webbing sling C) Kevlar synthetic round sling D) Wire rope sling Answer: D Explanation: Wire rope maintains strength at elevated temperatures, whereas most synthetic materials degrade above 120 °C. Question 62. The term “load moment” in crane operation is defined as: A) Load × radius (horizontal distance from crane centre) B) Load ÷ radius C) Load × height of the boom D) Load × boom length
Answer: A Explanation: Load moment equals the vertical load multiplied by its horizontal distance from the crane’s centre of rotation. Question 63. When performing a demolition lift, the “pull-back distance” should be: A) Equal to the height of the structure B) At least 1.5 × the structure’s height C) No more than 0.5 × the structure’s height D) Determined solely by crane capacity Answer: B Explanation: A pull-back distance of 1.5 times the height provides sufficient clearance for controlled collapse. Question 64. A “safety factor” of 2.0 applied to a crane’s rated load means the crane is allowed to lift: A) Exactly the rated load B) Up to twice the rated load without penalty C) Only half the rated load to stay within the factor D) The rated load plus a 2 tonne margin Answer: C Explanation: A safety factor of 2.0 requires the actual load to be no more than half the crane’s rated capacity. Question 65. Which of the following is a common sign that a synthetic flat-webbing sling has been exposed to chemicals? A) A faint odor of oil B) Discoloration and stiffening of the fibres C) Increased stretch under load D) A metallic sheen on the surface Answer: B
