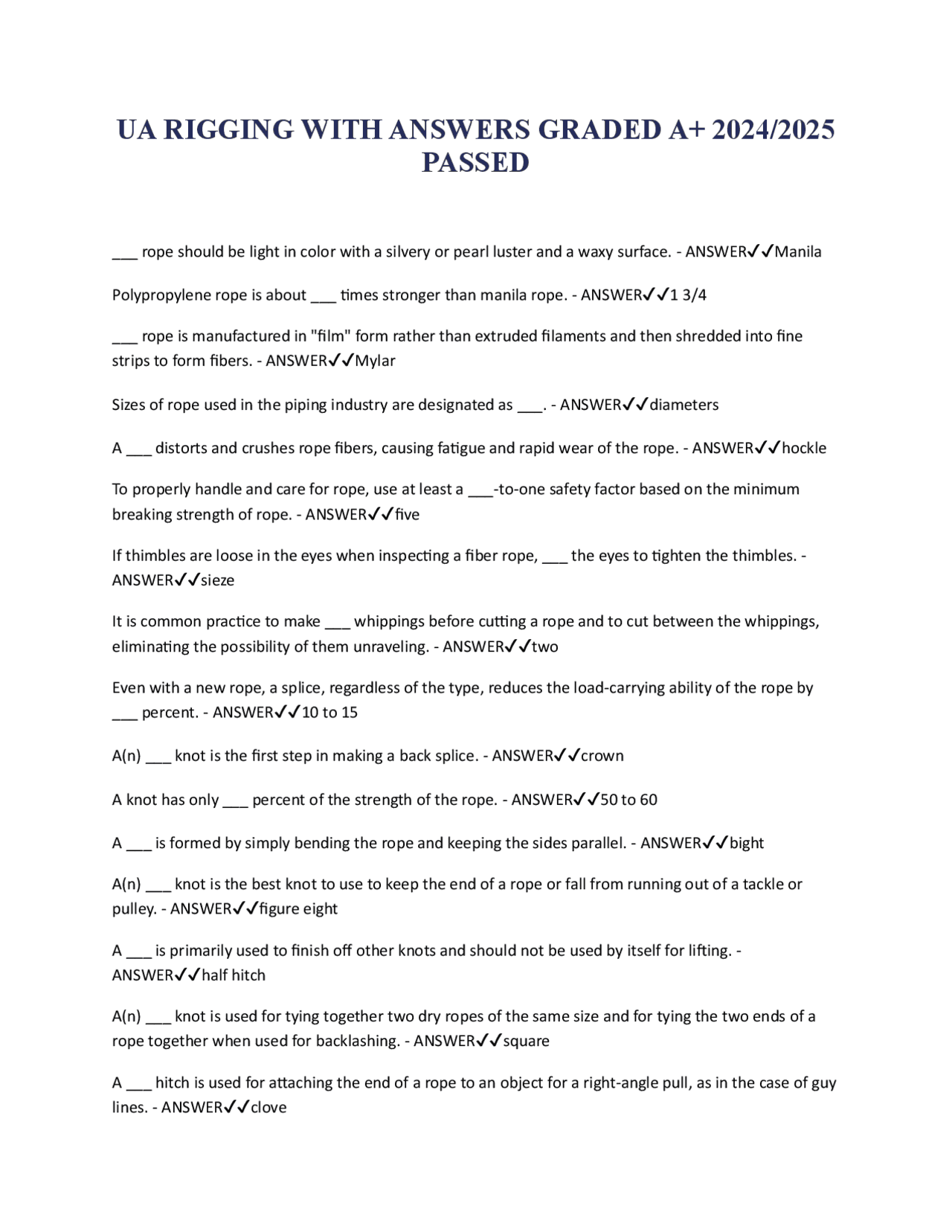

UA RIGGING WITH ANSWERS GRADED A+ 2024/2025
PASSED
___ rope should be light in color with a silvery or pearl luster and a waxy surface. - ANSWER✔✔Manila
Polypropylene rope is about ___ times stronger than manila rope. - ANSWER✔✔1 3/4
___ rope is manufactured in "film" form rather than extruded filaments and then shredded into fine
strips to form fibers. - ANSWER✔✔Mylar
Sizes of rope used in the piping industry are designated as ___. - ANSWER✔✔diameters
A ___ distorts and crushes rope fibers, causing fatigue and rapid wear of the rope. - ANSWER✔✔hockle
To properly handle and care for rope, use at least a ___-to-one safety factor based on the minimum
breaking strength of rope. - ANSWER✔✔five
If thimbles are loose in the eyes when inspecting a fiber rope, ___ the eyes to tighten the thimbles. -
ANSWER✔✔sieze
It is common practice to make ___ whippings before cutting a rope and to cut between the whippings,
eliminating the possibility of them unraveling. - ANSWER✔✔two
Even with a new rope, a splice, regardless of the type, reduces the load-carrying ability of the rope by
___ percent. - ANSWER✔✔10 to 15
A(n) ___ knot is the first step in making a back splice. - ANSWER✔✔crown
A knot has only ___ percent of the strength of the rope. - ANSWER✔✔50 to 60
A ___ is formed by simply bending the rope and keeping the sides parallel. - ANSWER✔✔bight
A(n) ___ knot is the best knot to use to keep the end of a rope or fall from running out of a tackle or
pulley. - ANSWER✔✔figure eight
A ___ is primarily used to finish off other knots and should not be used by itself for lifting. -
ANSWER✔✔half hitch
A(n) ___ knot is used for tying together two dry ropes of the same size and for tying the two ends of a
rope together when used for backlashing. - ANSWER✔✔square
A ___ hitch is used for attaching the end of a rope to an object for a right-angle pull, as in the case of guy
lines. - ANSWER✔✔clove
pf3
pf4
pf5

Partial preview of the text

Download UA Rigging with Answers Graded A — Comprehensive rigging study resource featuring practice and more Exams Construction in PDF only on Docsity!

UA RIGGING WITH ANSWERS GRADED A+ 2024/

PASSED

___ rope should be light in color with a silvery or pearl luster and a waxy surface. - ANSWER✔✔Manila Polypropylene rope is about ___ times stronger than manila rope. - ANSWER✔✔1 3/ ___ rope is manufactured in "film" form rather than extruded filaments and then shredded into fine strips to form fibers. - ANSWER✔✔Mylar Sizes of rope used in the piping industry are designated as ___. - ANSWER✔✔diameters A ___ distorts and crushes rope fibers, causing fatigue and rapid wear of the rope. - ANSWER✔✔hockle To properly handle and care for rope, use at least a ___-to-one safety factor based on the minimum breaking strength of rope. - ANSWER✔✔five If thimbles are loose in the eyes when inspecting a fiber rope, ___ the eyes to tighten the thimbles. - ANSWER✔✔sieze It is common practice to make ___ whippings before cutting a rope and to cut between the whippings, eliminating the possibility of them unraveling. - ANSWER✔✔two Even with a new rope, a splice, regardless of the type, reduces the load-carrying ability of the rope by ___ percent. - ANSWER✔✔10 to 15 A(n) ___ knot is the first step in making a back splice. - ANSWER✔✔crown A knot has only ___ percent of the strength of the rope. - ANSWER✔✔50 to 60 A ___ is formed by simply bending the rope and keeping the sides parallel. - ANSWER✔✔bight A(n) ___ knot is the best knot to use to keep the end of a rope or fall from running out of a tackle or pulley. - ANSWER✔✔figure eight A ___ is primarily used to finish off other knots and should not be used by itself for lifting. - ANSWER✔✔half hitch A(n) ___ knot is used for tying together two dry ropes of the same size and for tying the two ends of a rope together when used for backlashing. - ANSWER✔✔square A ___ hitch is used for attaching the end of a rope to an object for a right-angle pull, as in the case of guy lines. - ANSWER✔✔clove

A ___ will not slip or draw tight under heavy loads. - ANSWER✔✔double sheet bend A ___ is used to attach a hook such as a tackle block at any point on a rope between its ends. - ANSWER✔✔catspaw knot A ___ hitch is used to hold a load or to lower a heavy load slowly. - ANSWER✔✔snubbing The total length of rope needed for making a ___ hitch equals two barrel lengths, plus one circumference, plus four diameters. - ANSWER✔✔barrel Improved plow steel (IPS) has an average tensile strength of ___ pounds per square inch. - ANSWER✔✔240, When wire rope has a natural finish, it is referred to as ___ finish. - ANSWER✔✔bright Any number of strands may be laid around a core; by far the greatest number of wire ropes made have ___ strands wound around a core. - ANSWER✔✔six The ___ classification usually has seven wires per strand and is referred to as coarse laid rope. - ANSWER✔✔6 x 7 A rope is said to be ___ lay rope if the wires in the strands are wound in the same direction as the strands are wound around the core. - ANSWER✔✔lang The ___ construction strand has the same number of outer and inner wires. - ANSWER✔✔seale Wire rope is designated by the ___. - ANSWER✔✔diameter at its widest point ___ wraps of the seizing wire around a wire rope are recommended for seizing. - ANSWER✔✔ 8 Discard a fitting if the hook opening has increased by ___ percent from new. - ANSWER✔✔ 10 Wear on any individual wire must not exceed ___ of the original wire diameter. - ANSWER✔✔one-third Multiple-part slings are referred to as ___ slings or spreaders and are made up of two, three, or four single-part slings placed on a master link - ANSWER✔✔bridle ___ is ideal for light loads such as small-diameter copper and steel tubing, or loads that will not exceed 400 to 500 pounds. - ANSWER✔✔fiber rope Slings made from ___ materials are probably the most widely used and also the most desirable. - ANSWER✔✔wire rope A ___ hitch reduces the lifting capacity of a sling by limiting the ability of the wire rope's components to adjust while under strain. - ANSWER✔✔choker

Many localities require that, when operating a crane, the clearance around power lines may never be less than ___ feet. - ANSWER✔✔ 10 Only the ___ is authorized to de-energize, insulate, or handle power lines. - ANSWER✔✔utility company A(n) ___ is a piece of mechanical construction equipment used to move materials too heavy to be easily and safely moved by hand. - ANSWER✔✔crane If equipment contacts an overhead wire, the safest thing to do is to ___. - ANSWER✔✔stay put Most crane signals are made with the ___. - ANSWER✔✔right hand When a(n) ___ alarm is given or when leaving a crane overnight, ground chocks must be set on truck and crawler cranes. - ANSWER✔✔wind All persons involved in a hoisting operation should be warned to ___. - ANSWER✔✔keep clear of moving cables or ropes The ___ is generally responsible for the safety of a crane operation as soon as the load is lifted clear of the ground. - ANSWER✔✔crane operator ___ and OSHA require the use of approved crane and hoist signals. - ANSWER✔✔ANSI The ___ type of chain hoist is the one most frequently used in the piping trades. - ANSWER✔✔spur gear The ___ on a chain hoist is designed as the weakest part and will spread when overloaded. - ANSWER✔✔lower hook The ___ chain hoist is the most efficient of all chain hoists. - ANSWER✔✔spur gear When drifting loads using two or more chain hoists, the angle of lift should not exceed ___ degrees with the vertical. - ANSWER✔✔ 30 According to the number of ___, blocks are designated as single, double, or triple. - ANSWER✔✔sheaves The ___ has the simplest construction and employs the basic lever-and-fulcrum principle. - ANSWER✔✔ratchet jack ___ are the most versatile general purpose jacks and permit safe lifting, lowering, skidding, and leveling.

  • ANSWER✔✔ratchet jacks A ___ is sometimes called a come-along or a lugall. - ANSWER✔✔cable winch hoist Jacking metal against metal is not permitted; use ___. - ANSWER✔✔wood softeners

There are ___ types of chain hoists used for lifting purposes - ANSWER✔✔three The diameter of a wire rope loop is a minimum of ___ times the rope diameter. - ANSWER✔✔eight ___ are installed in the eyes of wire ropes and give the eyes a definite shape while providing a wearing surface. - ANSWER✔✔thimbles The strength of a socket is equal to ___ percent of the wire rope strength. - ANSWER✔✔ 100 ___ hooks are designed to prevent the cutting and chafing of wire rope slings. - ANSWER✔✔choker ___ are fittings that are used to connect other rigging hardware together, such as hooks to eyes or eyes to rings. - ANSWER✔✔shackles Shackles are sized by the ___. - ANSWER✔✔diameter of the steel in the bow section ___ must be used with all round pin shackles. - ANSWER✔✔cotter pins It is recommended that all ___ used for hoisting be made of alloyed steel and equipped with shoulders. - ANSWER✔✔eye bolts A ___ should be used when connecting a hook to an eye. - ANSWER✔✔shackle ___ links are the most popular because their shape puts the small part of the link on a hook - ANSWER✔✔pear shaped The basic weight of 1 square foot of steel that is 1 inch thick is about ___ pounds (lb). - ANSWER✔✔40. A steel ___ is a structural shape consisting of a bent plate with some additional metal at the center for strength. - ANSWER✔✔angle The ___ of a circle (or the distance around the edge of a circle) is found by multiplying the diameter by π (3.1416). - ANSWER✔✔circumference The formula for calculating the ___ of a steel plate is length x width x thickness/height x density (of steel). - ANSWER✔✔weight To calculate the weight of materials other than steel plate, the calculation is normally based on the weight per ___. - ANSWER✔✔cubic foot When plates are rolled into tanks, the ___ of such parts needs to be determined before calculating the weight. - ANSWER✔✔square foot area If a steel angle is ___, the result is a plate. - ANSWER✔✔flattened out
