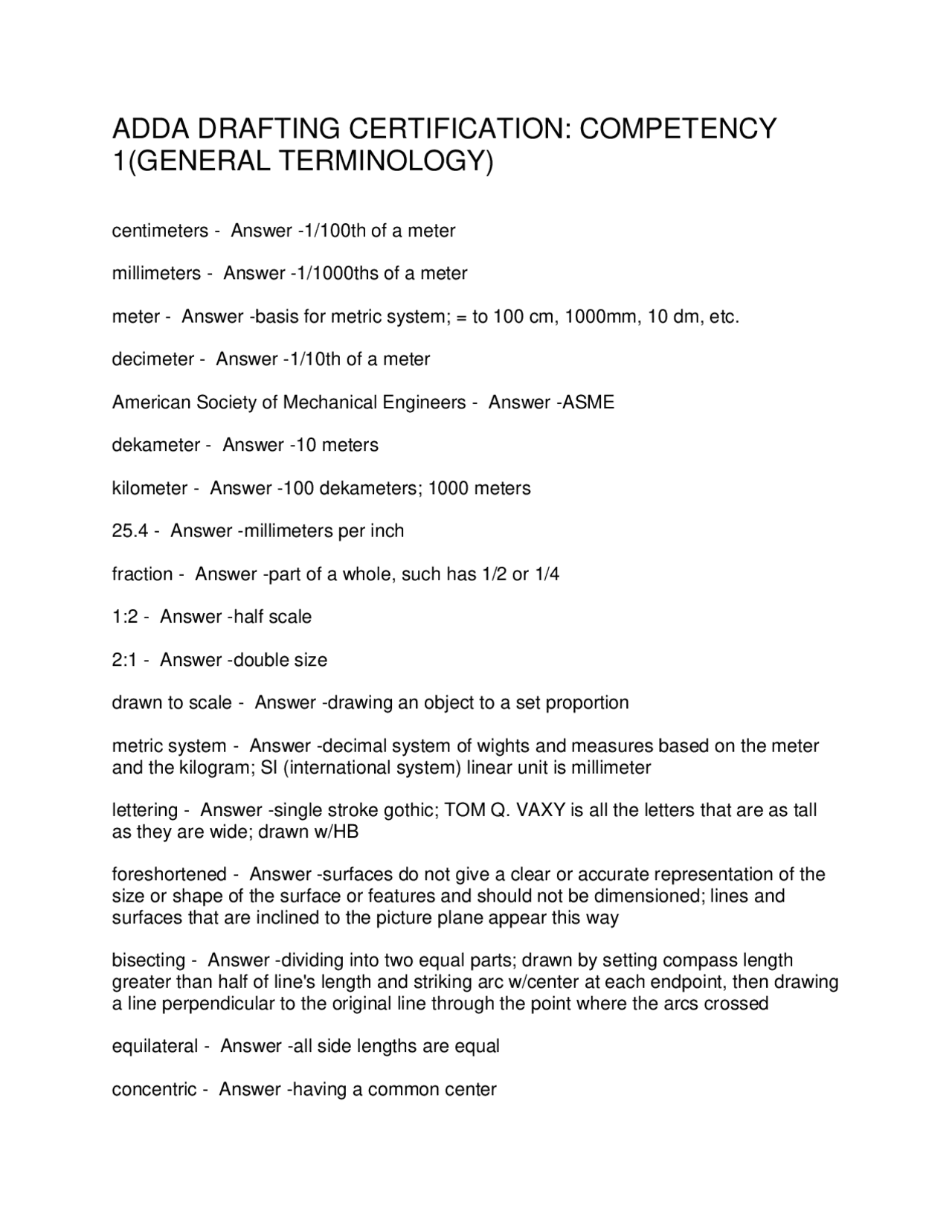

ADDA DRAFTING CERTIFICATION: COMPETENCY
1(GENERAL TERMINOLOGY)
centimeters - Answer -1/100th of a meter
millimeters - Answer -1/1000ths of a meter
meter - Answer -basis for metric system; = to 100 cm, 1000mm, 10 dm, etc.
decimeter - Answer -1/10th of a meter
American Society of Mechanical Engineers - Answer -ASME
dekameter - Answer -10 meters
kilometer - Answer -100 dekameters; 1000 meters
25.4 - Answer -millimeters per inch
fraction - Answer -part of a whole, such has 1/2 or 1/4
1:2 - Answer -half scale
2:1 - Answer -double size
drawn to scale - Answer -drawing an object to a set proportion
metric system - Answer -decimal system of wights and measures based on the meter
and the kilogram; SI (international system) linear unit is millimeter
lettering - Answer -single stroke gothic; TOM Q. VAXY is all the letters that are as tall
as they are wide; drawn w/HB
foreshortened - Answer -surfaces do not give a clear or accurate representation of the
size or shape of the surface or features and should not be dimensioned; lines and
surfaces that are inclined to the picture plane appear this way
bisecting - Answer -dividing into two equal parts; drawn by setting compass length
greater than half of line's length and striking arc w/center at each endpoint, then drawing
a line perpendicular to the original line through the point where the arcs crossed
equilateral - Answer -all side lengths are equal
concentric - Answer -having a common center
pf3
pf4
pf5

Partial preview of the text

Download Drafting Terminology: A Comprehensive Glossary for Technical Drawing and more Exams Social Sciences in PDF only on Docsity!

ADDA DRAFTING CERTIFICATION: COMPETENCY

1(GENERAL TERMINOLOGY)

centimeters - Answer - 1/100th of a meter millimeters - Answer - 1/1000ths of a meter meter - Answer - basis for metric system; = to 100 cm, 1000mm, 10 dm, etc. decimeter - Answer - 1/10th of a meter American Society of Mechanical Engineers - Answer - ASME dekameter - Answer - 10 meters kilometer - Answer - 100 dekameters; 1000 meters 25.4 - Answer - millimeters per inch fraction - Answer - part of a whole, such has 1/2 or 1/ 1:2 - Answer - half scale 2:1 - Answer - double size drawn to scale - Answer - drawing an object to a set proportion metric system - Answer - decimal system of wights and measures based on the meter and the kilogram; SI (international system) linear unit is millimeter lettering - Answer - single stroke gothic; TOM Q. VAXY is all the letters that are as tall as they are wide; drawn w/HB foreshortened - Answer - surfaces do not give a clear or accurate representation of the size or shape of the surface or features and should not be dimensioned; lines and surfaces that are inclined to the picture plane appear this way bisecting - Answer - dividing into two equal parts; drawn by setting compass length greater than half of line's length and striking arc w/center at each endpoint, then drawing a line perpendicular to the original line through the point where the arcs crossed equilateral - Answer - all side lengths are equal concentric - Answer - having a common center

180º - Answer - number of degrees in a triangle 360º - Answer - number of degrees in a circle [and quadrilateral] quadrant - Answer - one of four sections into which the coordinate plane is divided (and/or a circle) revision block - Answer - placed in upper righthand corner of page; brief listing of revisions made to a drawing since it was initially released to manufacture, includes revision zone, letter, date, and name of revisor and revising checker surface finish mark - Answer - can appear as checkmark, check with micron- smoothness number in it, a V, or an S with a line through it where it intersects the object line; indicates surfaces that are machine finished 8.5" x 11" - Answer - A-size layout 11" x 17" - Answer - B-size layout 17" x 22" - Answer - C-size layout 22" x 34" - Answer - D-size layout 34" x 44" - Answer - E-size layout 28" x 40" - Answer - F-size layout beam compass - Answer - compass where arm is extended by beam; allows large circles to be drawn two-bevel scale - Answer - scale where cross-section looks like trapezoid four-bevel scale - Answer - scale where cross-section looks like elongated hexagon opposite-bevel scale - Answer - scale where cross-section looks like parallelogram triangular scale - Answer - scale where cross-section looks like three-point star or throwing star; most common used v-type drafting machine - Answer - took place of t-squares along with elbow-type elbow-type drafting machine - Answer - took place of t-squares along with v-type 1 bite - Answer - smallest amount of memory in computer

ellipse - Answer - a foreshortened circle having a major and a minor axis 60 - Answer - number of minutes in a degree 60 - Answer - number of seconds in a minute of a degree counterdrill - Answer - to form a conical shoulder in a drilled hole by enlarging it with a larger drill countersink - Answer - to recess a hole with a cone-shaped tool to provide a seat for a flathead screw drill - Answer - a tool with a conical point used to machine holes in a part ream - Answer - to enlarge a hole to a more accurate size AND surface finish tap - Answer - tool used to cut internal threads die - Answer - tool used to cut external threads rhombus - Answer - parallelogram with four congruent sides rhomboid - Answer - a quadrilateral of which only the opposite sides and angles are equal square - Answer - quadrilateral with four congruent sides and congruent angles; internal angles 360º rectangle - Answer - quadrilateral with four congruent angles parallelogram - Answer - quadrilateral with two pairs of parallel sides hexagon - Answer - polygon with six sides; internal angles add up to 720º pentagon - Answer - polygon with five sides; internal angles add up to 540º heptagon - Answer - polygon with seven sides; internal angles add up to 900º octagon - Answer - polygon with eight sides; internal angles add up to 1080º nonagon - Answer - polygon with nine sides; internal angles add up to 1260º decagon - Answer - polygon with ten sides; internal angles add up to 1440º hard drive - Answer - saving component of CAD; computer hardware that holds and spins a magnetic or optical disk and reads and writes information on it

plotter - Answer - output device; sophisticated printers used to produce high quality drawings such as blueprints, maps, and circuit diagrams input devices - Answer - keyboard, mouse, etc. that are needed to externally control various features on the computer output devices - Answer - monitor, printer, plotter; receives signal from the computer in order to complete various tasks such as printing, playing sound or displaying graphics graphics card - Answer - video card; controls how/what you see on a computer and how it looks wire frame - Answer - 3D object with connecting lines with no surfaces shown CPU - Answer - central processing unit; interprets and carries out the basic instructions that operate a computer true size - Answer - A surface that is shown in its actual size if a plane is parallel to the plane of projection RAM - Answer - random access memory ROM - Answer - read-only memory leader line - Answer - lines that are unbroken, thin (.3mm) and used to connect a specific note to a feature (esp. with arrow and for circles; no precedence (note line)) centerline - Answer - thin lines (.3mm) consisting of alternate long and short dashes, forming a 3mm cross in the center of circles and should extend 8mm outside the feature; represent centers of circles or arcs, and axis of symmetry, or a path of motion; has precedence over hidden lines dimension line - Answer - thin lines (.3mm) terminated with uniformly sized arrowheads used to indicate extend and direction on dimension; MAY NEVER BE CROSSED visible object line - Answer - thick line (.6mm) that represents visible eyes or contours of the part; has precedence over everything but cutting-plane lines border line - Answer - thick line (.6mm) used to indicate edge of drawn space, review block, title block,etc extension line - Answer - thin lines (.3mm) spaced 1.5 mm away from the feature been dimensions and 3mm past arrowhead of dimension; used to indicate the point or line to which the dimension applies

diameter - Answer - A straight line passing from side to side through the center of a circle or sphere. circumference - Answer - Distance around the circle trapezium - Answer - quadrilateral where no two sides are parallel eccentric - Answer - not sharing a common center tangent [line or arc] - Answer - A line or arc in the plane of a circle that intersects the circle in exactly one point. scalene triangle - Answer - a triangle with no congruent sides (and thus no congruent angles) isosceles triangle - Answer - a triangle with two congruent sides (and thus two congruent angles) equilateral triangle - Answer - a triangle with all sides congruent (and thus all angles congruent) parallel lines - Answer - lines in the same plane that never intersect complimentary angles - Answer - Two angles that add up to 90 degrees supplementary angles - Answer - Two angles whose sum is 180 degrees radius - Answer - A straight line from the center to the circumference of a circle or sphere. sector - Answer - Area of section of a circle with a central angle at the center perpendicular lines - Answer - lines that intersect at ninety degrees straight line - Answer - shortest distance between two points dodecagon - Answer - polygon with twelve sides
