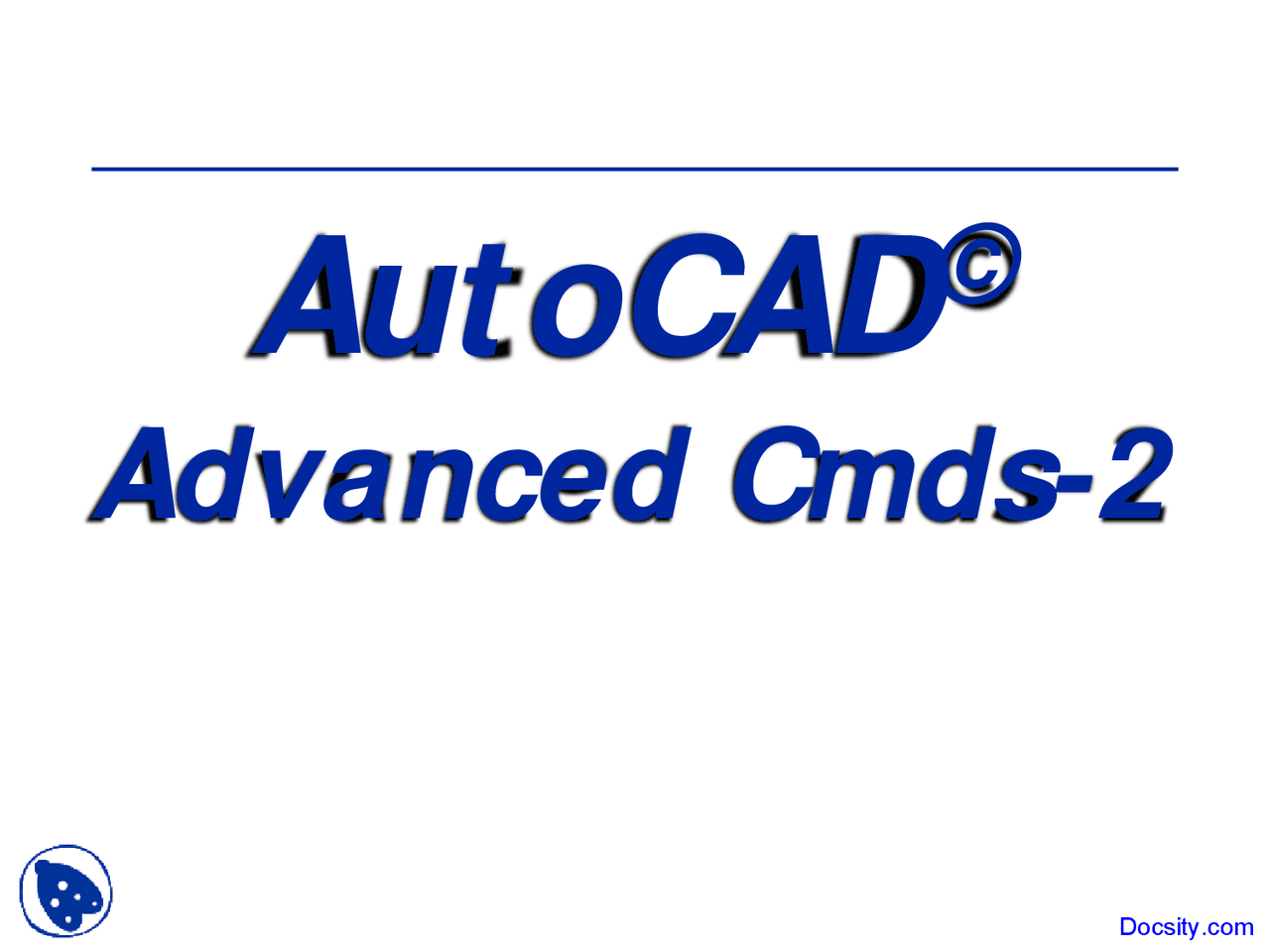

AutoCAD©
Advanced Cmds-2
Docsity.com
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d
pf2e
pf2f
pf30
pf31
pf32
pf33
pf34
pf35
pf36
pf37
pf38
pf39

Partial preview of the text

Download Advanced Cmds Two - Engineering Design Graphics - Lecture Slides and more Slides Computer-Aided Design for Engineers in PDF only on Docsity!

AutoCAD

Advanced Cmds-

Learning Goals

  • Use the ACAD “Osap” tools to facilitate point

selection

  • Use ACAD “Grips” to facilitate entity

modification

  • Create and Use ACAD “Blocks”
  • Create & Modify ACAD “Layers”
  • Use Geometric Construction to Bisect a Line or

an Angle

Layers Concept

  • Basically, layers are the computer equivalent

of TRACING OVERLAYS on a drawing board

  • A Drawing can Have MANY Layers
    • Could be up to one for EACH Part
  • You can control the Visibility , Color and

Linetype of layers independently

  • These Three Properties form a ShortHand for line meaning

Layer Utility

  • Layers are effectively a way of ordering a

CAD drawing

  • e.g.; You could create a layer called "Construction" and use this for your construction lines. When the drawing is complete, you could simply TURN OFF this layer off so that it can't be seen
  • Good & Consistent use of layers is the

MOST Important aspect of good CAD

drawing practice

Standard Lines

  • Line Patterns Communicate What The Line Represents In The Drawing
  • Line Patterns Tell You Information Such As Whether The Line Is Hidden, Visible, Or A Centerline
  • Line Precedence:
    • Visible → Hidden → Center

Visible line Hidden line Hatching Centerline Dimension Extension Leader Cutting Plane Viewing Plane

Short break Long break Phantom Stitch Chain

Layers By Line-Type

One FUNCTIONAL Layer

Layers by Part or Component

Make A Layer

  • Let’s Make a New Layer for HIDDEN LINES
  • Color → Red
  • LineType → Hidden (Evenly Spaced Dashes)
  • LineWidth → ACAD default
  1. Start at new acad.dwt Drawing 2. Activate Format Layer Dialog Box

Make A Layer cont

  1. Select Linetype (^) 8. Don’t See the “Hidden” type so click Load → DB
  • Activates the Loaded Linetypes Dialog Box (DB)
  • Find HIDDEN; click OK

Make A Layer cont

  1. With Hidden Loaded, Pick it from Select Linetype DB 10. Rt-Click on Status Column and Select Current
  • Click OK

Draw with Hidden Layer

Draw on Different Layer

  • Start with “OBJ” layer
    • Draw a Nice Circle
  • Activate Layer PullDown on the Layers ToolBar

 Click on the “DIM” Layer to make it the “ Current ” Layer

Entities on Different Layers

Move Entity to Different Layer

  • Lets Move the Circle to the “PHANTOM” Layer
  • Click to Circle to activate the Grips

 With the Handles Active PullDown the Layer-Status Menu  Click on “PHANTOM”
