Temperature, Mach Number, and Velocity Changes with Blade Height in Gas Turbines, Slides of Physics

Download Temperature, Mach Number, and Velocity Changes with Blade Height in Gas Turbines and more Slides Physics in PDF only on Docsity!

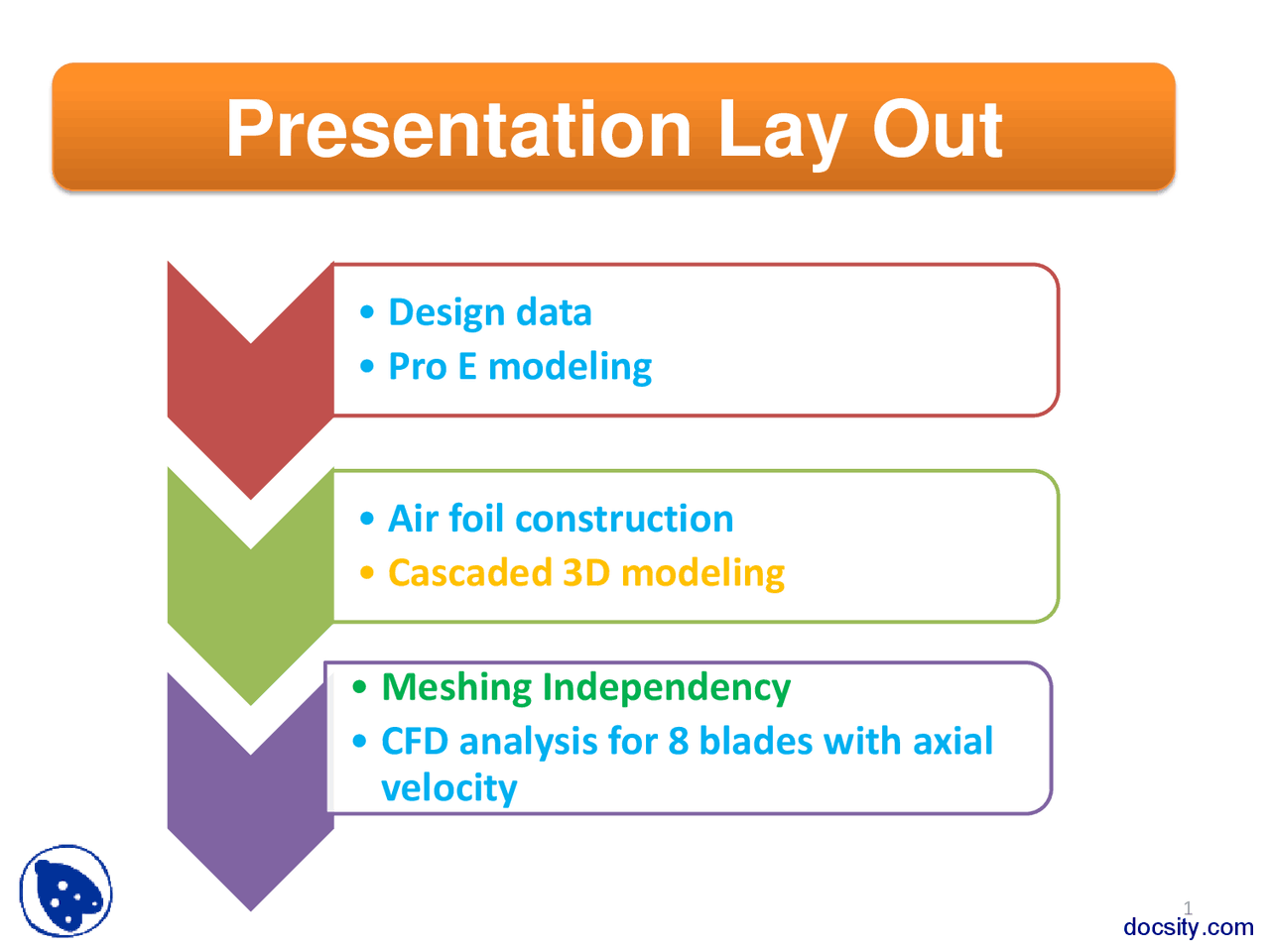

Presentation Lay Out

1

• Design data
• Pro E modeling
• Air foil construction
• Cascaded 3D modeling
• Meshing Independency
• CFD analysis for 8 blades with axial velocity

Presentation Lay Out

2

• CFD analysis of 6 blades with axial velocity
• Mesh Independency and Results
  • CFD analysis of 4 blades with axial velocity
  • Mesh Independency Results
• CFD analysis of 8 blades with relative velocity
• Results

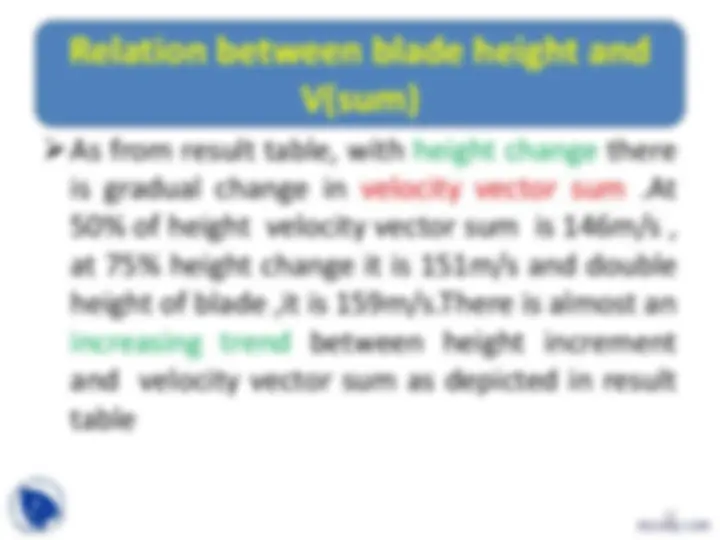

 To study the effect of blade height variation on Velocity sum of gas turbine

 To study the effect of blade height variation on Mach number of gas turbine

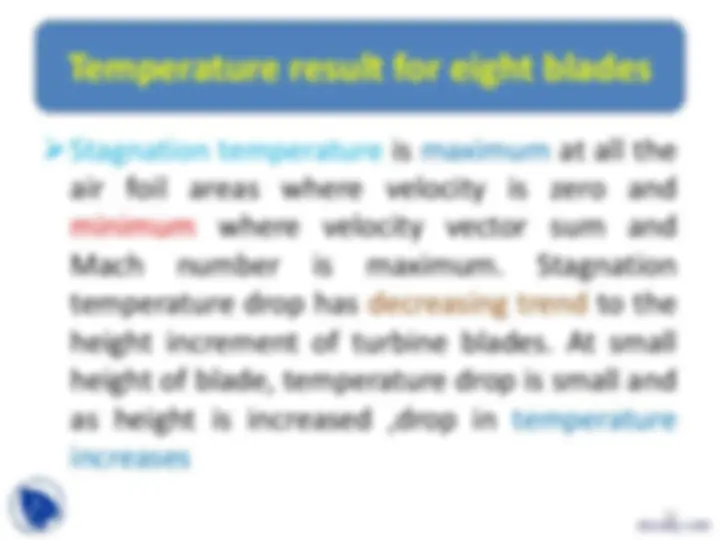

 To study the effect of blade height variation on Temperature of gas turbine

 To study the effect of blade height variation on Pressure of gas turbine

4

Objective

5

Data Velocity diagram

Design Calculation

Inlet Temperature(To 1 ) 900K Atam Temperature(To 3 ) 288K Inlet Pressure(Po 1 ) 2bar Mass flow rate(mdot) 1kg/s Nozzle loss coefficient(λN) 0. Rotational speed(N) 6000rpm Flow coefficient(φ) 0. Swirl angle(α 3 ) 150 Blade velocity(U) 60m/s Isentropic stage efficiency(η) 0. Temperature drop(ΔT) 5K

 Draw two parallel lines such that their distance between them is equal to axial chord

 Take 3 points on lower line such that the distance between the 2 extreme points is equal to pitch of blade

19

Pro E Modeling

 Take “s” from extreme left point at distance of 0.1cm

 Draw an arc taking “s” is center point and radius equal to e=13.76cm

 Draw another arc taking “p” is centre and radius equal to e+o.

20

Pro E Modeling Cont..

 Draw a line from “o” such that line makes an angle of 34^0 with y-axis

 Then draw circles such that these circles are tangent to arcs drawn from point “s” and “p”

22

Pro E Modeling Cont..

 Locate points on all these intersection points

 Pass a spline through these points

23

Pro E Modeling Cont..

 ANSYS is opened and the following options are checked

 IGES import option is not defeaturing

 Merge coincident key points option is checked as Yes

25

Import IGES to ANSYS

 Create solid if applicable option is checked as Yes

 Delete small area option is checked as Yes

26

Import IGES to ANSYS Cont..

 NL refers to number of required line

 RATIO refers to 0- 1,default is 0.

 NK1 refers to number assigned to keypoint

28

Generation of keypoints Cont..

 GUI Method

 Main Menu>preprocessor>

Modeling>create

keypoints>on line OR w/ratio

 Listing the keypoints

 Utility menu>list>keypoints>co ordinates only 29

Keypoints Generation Cont..

 Copy command is used to generate eight airfoil

 AGEN,8,1, , ,.

 AGEN creates area

 5 refers to number of area generated

 1 refers to area to be copied

 0.0344 is blade pitch

31

Area generation Cont..

 K,1000,-.03,-.

 k,1001,0.02,0.

 K,1002,-.03,0.

 K,1003,0.20,0.

 K,1006,0.24,0.

 K,1007,0.2,-.

32
