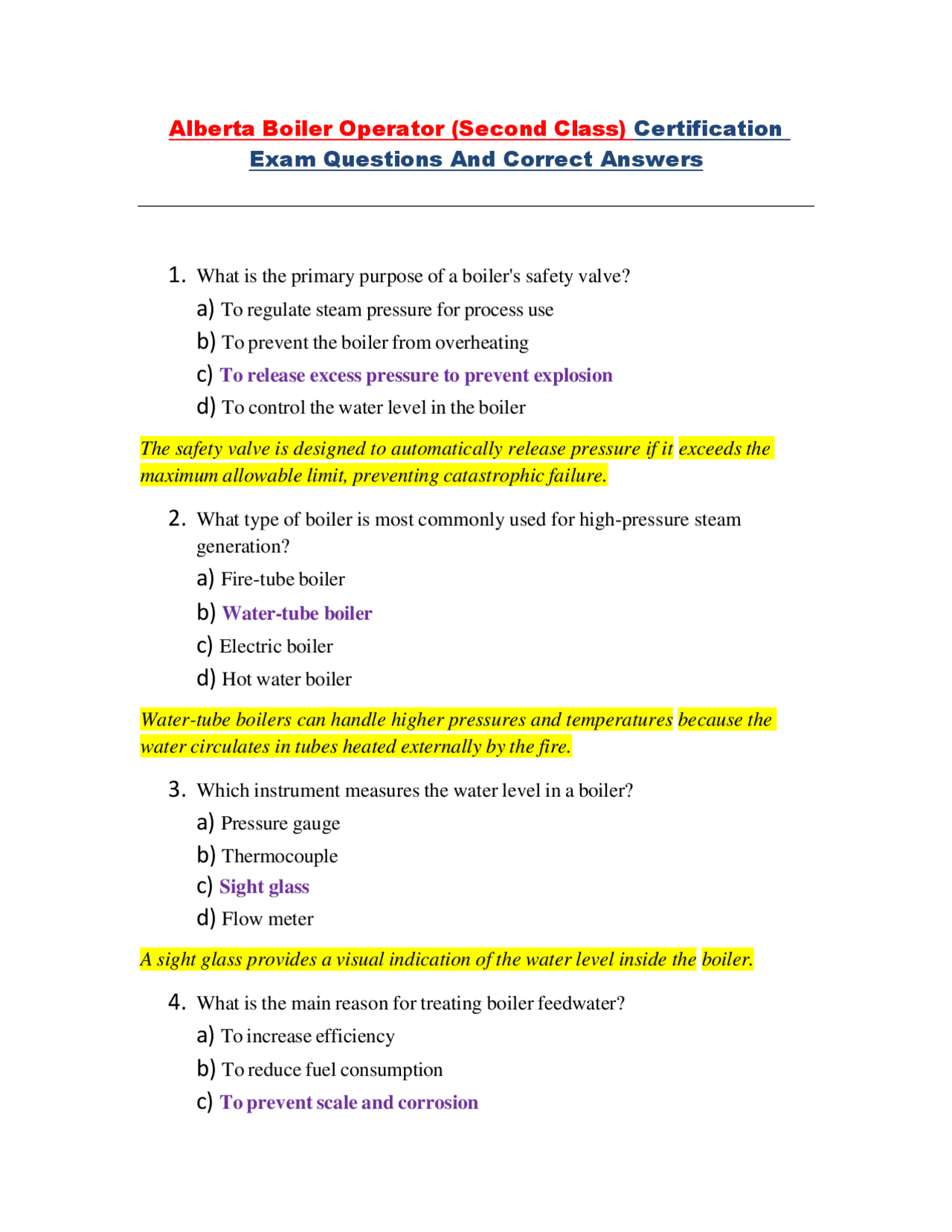

Alberta Boiler Operator (Second Class) Certification
Exam Questions And Correct Answers
1. What is the primary purpose of a boiler's safety valve?
a) To regulate steam pressure for process use
b) To prevent the boiler from overheating
c) To release excess pressure to prevent explosion
d) To control the water level in the boiler
The safety valve is designed to automatically release pressure if it exceeds the maximum allowable limit, preventing catastrophic failure.
2. What type of boiler is most commonly used for high-pressure steam
generation?
a) Fire-tube boiler
b) Water-tube boiler
c) Electric boiler
d) Hot water boiler
Water-tube boilers can handle higher pressures and temperatures because the water circulates in tubes heated externally by the fire.
3. Which instrument measures the water level in a boiler?
a) Pressure gauge
b) Thermocouple
c) Sight glass
d) Flow meter
A sight glass provides a visual indication of the water level inside the boiler.
4. What is the main reason for treating boiler feedwater?
a) To increase efficiency
b) To reduce fuel consumption
c) To prevent scale and corrosion
d) To raise steam pressure
Untreated water can cause scaling and corrosion, which reduces efficiency and can damage the boiler.
5. What is the primary function of a boiler economizer?
a) To increase steam pressure
b) To recover heat from flue gases
c) To feed water into the boiler
d) To remove impurities from water
An economizer captures residual heat from flue gases and uses it to preheat the feedwater, improving efficiency.
6. What is the typical range for boiler water pH to prevent corrosion?
a) 4.0–5.
b) 5.0–6.
c) 10.5–11.
d) 7.0–8.
Boiler water is kept alkaline to prevent corrosion of metal surfaces.
7. What is carryover in a boiler?
a) Water that enters the superheater
b) Water droplets entrained in steam
c) Steam leaking from the safety valve
d) Excess feedwater
Carryover occurs when water is carried into the steam, which can cause damage to turbines and other equipment.
8. Which of the following is a symptom of foaming in a boiler?
a) High fuel consumption
b) Sudden water level rise in the gauge glass
c) Low steam pressure
d) Slow start-up
13. What is the function of a deaerator in a boiler system?
a) To heat water for circulation
b) To filter impurities
c) To remove dissolved gases like oxygen and carbon dioxide
d) To control steam pressure
Dissolved gases can cause corrosion, and deaerators remove them before water enters the boiler.
14. Which of the following is a common cause of boiler tube
failure?
a) Overfeeding water
b) Using treated water
c) Overheating and corrosion
d) Low fuel supply
Boiler tubes are prone to failure from localized overheating and corrosive attack.
15. What is the purpose of a boiler drum?
a) To store fuel
b) To remove ash
c) To separate steam from water
d) To control combustion
The drum collects water and steam, allowing steam to be drawn off while retaining water.
16. Which of the following is a primary factor in combustion
efficiency?
a) Boiler size
b) Water level
c) Air-to-fuel ratio
d) Steam pressure
The correct ratio of air to fuel ensures complete combustion and reduces fuel waste.
17. What Is The Effect Of Excessive Soot On Boiler Tubes?
a) Increases Heat Transfer
b) Reduces Corrosion
c) Reduces Heat Transfer And Increases Fuel Consumption
d) Improves Steam Quality
Soot Acts As An Insulating Layer, Lowering Efficiency And Increasing Fuel Use.
18. What Is The Main Purpose Of A Boiler Economizer Bypass?
a) To Preheat Feedwater
b) To Allow Boiler Start-Up Without Heat Transfer To
The Economizer
c) To Increase Steam Pressure
d) To Remove Impurities
Bypassing The Economizer During Start-Up Prevents Thermal Shock And Allows Gradual Heating.
19. What Is The Maximum Allowable Working Pressure (MAWP) Of
A Boiler?
a) Pressure At Which The Safety Valve Opens
b) The Highest Pressure At Which The Boiler Is Designed To
Operate Safely
c) Average Operating Pressure
d) Steam Line Pressure
MAWP Is The Design Limit For Safe Operation And Is Used To Size Safety Devices.
20. What Is The Role Of A Flame Scanner In A Boiler?
a) Measures Fuel Consumption
b) Measures Water Level
c) Detects The Presence Of A Flame
d) Controls Air Flow
Flame Scanners Ensure That Fuel Is Only Supplied When Combustion Is Occurring, Preventing Unsafe Conditions.
Boiler Furnace?
a) To Circulate Water
b) To Protect Metal Surfaces From High Temperatures
c) To Preheat Air
d) To Increase Steam Pressure
Refractory Linings Protect Steel From Excessive Heat And Improve Combustion Efficiency.
26. What Type Of Blowdown Removes Sediment From The Bottom Of
A Boiler?
a) Surface Blowdown
b) Continuous Blowdown
c) Bottom Blowdown
d) Feedwater Blowdown
Bottom Blowdown Removes Sludge And Solids That Settle At The Boiler Bottom.
27. Which Water Treatment Chemical Is Commonly Used To
Prevent Scale Formation?
a) Chlorine
b) Sodium Hydroxide
c) Phosphate
d) Sulfuric Acid
Phosphate Reacts With Hardness Ions To Form A Sludge That Can Be Removed Via Blowdown, Preventing Scale.
28. Which Of The Following Indicates That A Boiler Is “Priming”?
a) Low Fuel Usage
b) Stable Water Level
c) Water Being Carried Over With Steam
d) Excessive Heat In The Furnace
Priming Is The Rapid Carryover Of Water Due To High Steam Velocity Or Foaming.
29. In A Fire-Tube Boiler, Where Does The Heat Transfer Occur?
a) From Water To The Tubes
b) From Hot Gases To The Water Surrounding The Tubes
c) Within The Superheater Only
d) From Steam To Water
In Fire-Tube Boilers, Combustion Gases Pass Through Tubes Surrounded By Water, Transferring Heat Efficiently.
30. Which Of The Following Devices Protects A Boiler From Low
Water Levels?
a) Safety Valve
b) Economizer
c) Low-Water Cutoff
d) Superheater
Low-Water Cutoffs Automatically Stop The Burner If Water Drops Below A Safe Level To Prevent Tube Damage.
31. Which Of The Following Is A Major Cause Of Boiler Scale?
a) Oxygen In Water
b) Hardness In Water
c) Fuel Impurities
d) Excess Steam
Hard Water Contains Calcium And Magnesium Ions That Precipitate As Scale On Boiler Surfaces.
32. What Is The Recommended Steam Velocity In A Main Steam
Line?
a) 50 – 75 M/S
b) 75 – 100 M/S
c) 20 – 30 M/S
d) 100 – 150 M/S
Steam Velocity Must Be Controlled To Prevent Erosion, Noise, And Pressure Drop In Piping.
Pressure?
a) Sight Glass
b) Thermocouple
c) Pressure Gauge
d) Flow Meter
Pressure Gauges Provide A Reading Of The Operating Steam Pressure To The Operator.
38. What Is The Correct Sequence For Boiler Start-Up?
a) Fill Water → Ignite Fuel → Check Pressure → Open Steam Line
b) Check Water Level → Fill Water → Light Burner → Bring
To Operating Pressure
c) Ignite Fuel → Fill Water → Check Safety Devices → Bring To
Pressure
d) Open Steam Line → Fill Water → Light Burner → Check Gauges
Start-Up Must Ensure Proper Water Level And Safety Device Readiness Before Firing The Boiler.
39. Which Of The Following Is Considered A High-Pressure Steam
System?
a) Steam < 100 Psi
b) Steam < 200 Psi
c) Steam > 300 Psi
d) Steam < 50 Psi
Second-Class Boilers In Alberta Typically Operate At Pressures Above 300 Psi, Qualifying As High-Pressure Systems.
40. What Is The Primary Cause Of Boiler Tube Overheating?
a) Excess Water
b) Low Fuel Supply
c) Insufficient Water Flow Or Scale Buildup
d) High Steam Pressure
Scale Or Low Water Flow Prevents Proper Heat Transfer, Causing Localized Tube Overheating.
41. Which Of The Following Can Cause Foaming In A Boiler?
a) High Water Purity
b) Low Fuel Usage
c) Excessive Alkalinity Or Contamination
d) Proper Blowdown
Impurities And High Alkalinity Can Produce Foam, Leading To Carryover.
42. What Is The Purpose Of A Mud Drum In A Water-Tube Boiler?
a) Store Steam
b) Collect Sediment And Impurities
c) Separate Steam From Water
d) Control Pressure
Mud Drums Provide A Collection Point For Sludge And Impurities To Maintain Clean Circulation.
43. Which Of The Following Is A Potential Effect Of Inadequate
Blowdown?
a) Low Water Level
b) Excessive Steam
c) Scale Formation And Reduced Efficiency
d) Overpressure
Without Blowdown, Impurities Concentrate, Causing Scaling, Corrosion, And Inefficiency.
44. What Is The Main Reason For Preheating Feedwater?
a) To Prevent Overpressure
b) To Increase Water Volume
c) To Improve Thermal Efficiency
d) To Reduce Steam Velocity
Preheating Reduces Fuel Consumption By Using Recovered Heat To Bring Water
49. What Is The Effect Of Low Steam Velocity In A Boiler System?
a) Increased Noise
b) Reduced Heat Transfer And Potential Condensation
c) Higher Pressure
d) Foaming
Too Low Velocity Can Cause Poor Circulation, Condensation, And Inefficient Heat Transfer.
50. Which Component Protects The Boiler From Overpressure In The
Main Steam Line?
a) Sight Glass
b) Feedwater Pump
c) Main Steam Safety Valve
d) Deaerator
The Main Steam Safety Valve Opens Automatically To Relieve Excess Pressure, Preventing Explosion.
51. What Is The Function Of A Superheater Header In A Boiler?
a) To Collect Feedwater
b) To Distribute Steam Evenly To Superheater Tubes
c) To Remove Sludge
d) To Control Fuel Flow
The Header Collects Steam From Multiple Tubes And Distributes It Uniformly To The Superheater Section For Even Heating.
52. Which Of The Following Is A Common Cause Of Water Hammer
In A Steam System?
a) Low Steam Pressure
b) Condensate Accumulation In Steam Lines
c) Excess Fuel
d) High Water Ph
Water Hammer Occurs When Condensate Is Struck By High-Velocity Steam, Creating Shock Waves That Can Damage Pipes.
53. What Is The Purpose Of A Surface Blowdown?
a) To Remove Sediment At The Bottom Of The Boiler
b) To Remove Dissolved Solids From The Water Surface
c) To Increase Steam Temperature
d) To Regulate Pressure
Surface Blowdown Removes Concentrated Dissolved Solids That Accumulate At The Water Surface, Preventing Foaming And Scaling.
54. What Type Of Flame Is Preferred In Boiler Combustion For
Efficiency?
a) Yellow Luminous Flame
b) Blue Non-Luminous Flame
c) Orange Flame
d) Flickering Flame
A Blue Flame Indicates Complete Combustion With Minimal Soot, Ensuring Efficient Fuel Use.
55. Which Of The Following Increases Boiler Efficiency?
a) High Blowdown Rate
b) Low Feedwater Temperature
c) Using An Economizer
d) Excess Steam Venting
Economizers Recover Heat From Flue Gases To Preheat Feedwater, Reducing Fuel Consumption And Increasing Efficiency.
56. What Is The Main Purpose Of A Steam Trap?
a) To Remove Impurities From Feedwater
b) To Regulate Water Level
c) To Remove Condensate From Steam Lines
d) To Control Combustion Air
Scale Acts As An Insulating Layer, Preventing Heat Transfer And Causing Localized Overheating And Potential Tube Rupture.
61. How Is The Proper Operation Of A Boiler Safety Valve Verified?
a) Checking Water Level
b) Observing Flue Gas Color
c) By Lifting The Valve And Checking For Release At Set Pressure
d) Measuring Steam Velocity
Regular Testing Of Safety Valves Ensures They Open At The Correct Pressure, Preventing Overpressure Incidents.
62. Which Of The Following Is Used To Control Steam Temperature In
A Superheated System?
a) Economizer
b) Feedwater Pump
c) Desuperheater
d) Safety Valve
Desuperheaters Spray Water Into Superheated Steam To Control And Reduce Its Temperature If Necessary.
63. What Is The Purpose Of A Refractory Arch In A Boiler Furnace?
a) To Increase Water Flow
b) To Direct Flame And Protect Furnace Walls
c) To Regulate Feedwater
d) To Remove Steam
Refractory Arches Protect Metal Surfaces From Direct Flame And Improve Heat Distribution For Complete Combustion.
64. Which Type Of Boiler Mount Prevents Operation If Water Level Is
Too Low?
a) Economizer
b) Superheater
c) Low-Water Cutoff
d) Steam Separator
Low-Water Cutoffs Automatically Stop The Burner When Water Falls Below Safe Levels, Preventing Tube Overheating.
65. What Is The Effect Of Incomplete Combustion?
a) Increased Efficiency
b) Excess Smoke And Soot Formation
c) Higher Steam Pressure
d) Proper Flame Color
Incomplete Combustion Wastes Fuel And Produces Smoke, Soot, And Potentially Hazardous Carbon Monoxide.
66. Which Parameter Is Critical For Boiler Drum Water Level
Control?
a) Steam Temperature
b) Fuel Type
c) Steam Flow And Load Demand
d) Air Pressure
Steam Flow And Load Demand Affect The Drum Water Level, And Proper Control Ensures Safe Operation.
67. Which Of The Following Is A Cause Of Soot Buildup In A Boiler?
a) Proper Combustion
b) Incomplete Fuel Combustion
c) Excessive Blowdown
d) High Water Alkalinity
Incomplete Combustion Of Fuel Leads To Soot Formation On Tubes, Reducing Heat Transfer Efficiency.
68. What Is The Function Of A Forced-Draft Fan In A Boiler System?
a) Remove Condensate
b) Supply Air For Combustion Under Pressure
c) Measure Fuel Flow
d) Increase Steam Pressure
73. What Is The Effect Of Excessive Blowdown?
a) Reduced Steam Pressure
b) Increased Fuel Consumption And Water Loss
c) Improved Water Quality
d) Reduced Sludge
Excessive Blowdown Wastes Heat And Water, Increasing Operating Costs.
74. Which Of The Following Is A Method To Prevent Scaling In
Boilers?
a) Using Low-Quality Fuel
b) Proper Water Treatment And Blowdown
c) Increasing Steam Pressure
d) Reducing Water Level
Water Treatment And Controlled Blowdown Reduce Dissolved Solids, Preventing Scale Formation.
75. What Is The Typical Operating Pressure Range For A Second-
Class High-Pressure Boiler?
a) 50 – 100 Psi
b) 100 – 200 Psi
c) 200 – 300 Psi
d) Above 300 Psi
Second-Class Boilers In Alberta Operate At High Pressures, Usually Exceeding 300 Psi.
76. Which Of The Following Indicates Foaming In A Boiler?
a) Stable Water Level
b) Rapid Fluctuation In Water Level
c) Normal Steam Pressure
d) Low Fuel Consumption
Foaming Causes Water Level In The Gauge Glass To Rise And Fall Rapidly, Which May Lead To Carryover.
77. What Is The Primary Reason For Deaerating Feedwater?
a) To Increase Steam Pressure
b) To Remove Dissolved Oxygen And Carbon Dioxide
c) To Raise Water Temperature
d) To Reduce Fuel Consumption
Dissolved Gases In Feedwater Cause Corrosion; Deaeration Removes Them Before Entering The Boiler.
78. Which Of The Following Can Cause Tube Erosion In A Boiler?
a) Scale Formation
b) High-Velocity Steam Or Water With Suspended Solids
c) Low Water Level
d) Proper Feedwater Treatment
High-Velocity Steam Or Water Carrying Solids Can Erode The Tube Surfaces Over Time.
79. What Is The Main Purpose Of A Drum Internals Bafle?
a) Measure Water Level
b) Separate Steam From Water
c) Circulate Feedwater
d) Control Fuel Flow
Baffes Prevent Water Droplets From Being Carried Over With Steam, Improving Steam Quality.
80. What Is The Function Of A Main Steam Stop Valve?
a) Control Water Flow
b) Remove Condensate
c) Control Steam Flow To The System Or Turbines
d) Regulate Fuel Supply
The Stop Valve Allows The Operator To Isolate The Boiler From The Steam System Safely.
81. What Is The Effect Of Using Untreated Feedwater In A Boiler?
