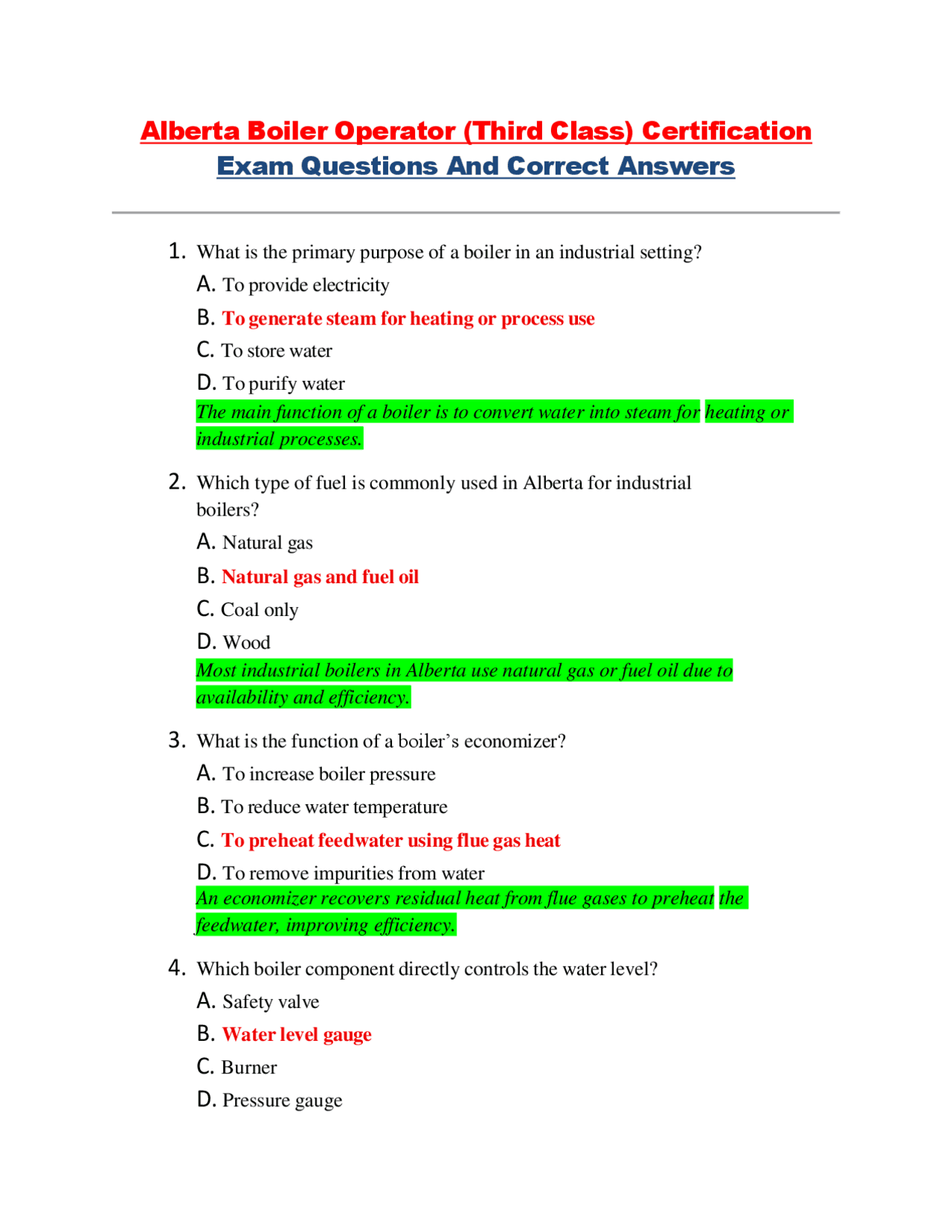

Alberta Boiler Operator (Third Class) Certification
Exam Questions And Correct Answers
1. What is the primary purpose of a boiler in an industrial setting?
A. To provide electricity
B. To generate steam for heating or process use
C. To store water
D. To purify water
The main function of a boiler is to convert water into steam for heating or industrial processes.
2. Which type of fuel is commonly used in Alberta for industrial
boilers?
A. Natural gas
B. Natural gas and fuel oil
C. Coal only
D. Wood
Most industrial boilers in Alberta use natural gas or fuel oil due to availability and efficiency.
3. What is the function of a boiler’s economizer?
A. To increase boiler pressure
B. To reduce water temperature
C. To preheat feedwater using flue gas heat
D. To remove impurities from water
An economizer recovers residual heat from flue gases to preheat the feedwater, improving efficiency.
4. Which boiler component directly controls the water level?
A. Safety valve
B. Water level gauge
C. Burner
D. Pressure gauge
The water level gauge indicates the water level in the boiler, allowing the operator to maintain safe levels.
5. What is the purpose of a safety valve on a boiler?
A. To measure pressure
B. To control fuel flow
C. To prevent overpressure by releasing steam
D. To monitor water quality
Safety valves protect the boiler from excessive pressure, which could lead to explosions.
6. What could cause a low water condition in a boiler?
A. Overpressure
B. Feedwater pump failure
C. High fuel consumption
D. Clean water supply
If the feedwater pump fails, water level drops, risking overheating of the boiler.
7. What is the ideal blowdown practice for a boiler?
A. Frequent continuous blowdown
B. No blowdown at all
C. Periodic controlled blowdown
D. Only when pressure is low
Periodic controlled blowdown removes sludge and maintains water quality without excessive heat loss.
8. What is the role of a deaerator in a boiler system?
A. To heat steam
B. To cool water
C. To remove dissolved gases from feedwater
D. To increase fuel efficiency
Dissolved oxygen and carbon dioxide can cause corrosion; deaerators remove these gases.
C. Pressure gauge
D. Water level indicator
A pressure gauge provides the operator with real-time pressure information to maintain safe operation.
14. What does a sight glass indicate on a boiler?
A. Fuel level
B. Steam quality
C. Water level
D. Pressure drop
The sight glass shows the water level inside the boiler, which is critical for safe operation.
15. Which chemical is commonly used to control corrosion in boiler
water?
A. Chlorine
B. Hydrazine
C. Sodium hydroxide
D. Ammonium nitrate
Hydrazine removes dissolved oxygen, preventing oxygen-related corrosion in the boiler system.
16. What is the function of a burner in a boiler?
A. To control water level
B. To provide controlled combustion of fuel
C. To release steam
D. To measure pressure
The burner ensures fuel is combusted efficiently to produce heat for steam generation.
17. What is a common cause of foaming in a boiler?
A. Low water temperature
B. Excessive dissolved solids
C. Proper blowdown
D. Clean feedwater
High dissolved solids can lead to foaming, which may cause water carryover with the steam.
18. Which Type Of Heat Exchanger Is Commonly Integrated Into
Boiler Systems?
A. Shell And Tube
B. Economizer And Superheater
C. Plate Type Only
D. Air Cooler
Economizers Preheat Water, And Superheaters Increase Steam Temperature To Improve Efficiency.
19. What Is The Purpose Of A Drum In A Water-Tube Boiler?
A. To Burn Fuel
B. To Measure Pressure
C. To Separate Steam From Water
D. To Remove Scale
The Drum Collects Steam From Water Tubes, Allowing Dry Steam To Exit To The System.
20. Which Factor Affects The Efficiency Of A Boiler?
A. Water Color
B. Fuel Quality And Combustion Efficiency
C. Location Of The Boiler Room
D. Steam Pressure Alone
Efficient Combustion And High-Quality Fuel Maximize Heat Transfer And Minimize Losses.
21. What Is The Primary Purpose Of Superheating Steam?
A. To Reduce Pressure
B. To Condense Steam
C. To Increase Steam Temperature Without Increasing Pressure
D. To Remove Oxygen
Superheated Steam Increases Thermal Efficiency And Reduces
26. What Type Of Pump Is Commonly Used To Feed Water Into A
Boiler?
A. Centrifugal Pump
B. Feedwater Pump (Typically Centrifugal Or Positive
Displacement)
C. Vacuum Pump
D. Air Pump
Feedwater Pumps Supply Water At Sufficient Pressure To Overcome Boiler Pressure.
27. Which Instrument Monitors Steam Flow From A Boiler?
A. Thermometer
B. Flow Meter
C. Pressure Gauge
D. Water Level Indicator
Flow Meters Help Operators Track Steam Output And Detect Abnormal Usage.
28. What Is A Common Cause Of Tube Failure In Water-Tube
Boilers?
A. Low Water Treatment Chemicals
B. Overheating Due To Low Water Or Scale
C. Excessive Steam Flow
D. Normal Operation
Scale Or Low Water Causes Hot Spots That Can Rupture Boiler Tubes.
29. Which Of The Following Is A Standard Method For Blowdown?
A. Continuous At Full Pressure
B. Intermittent Controlled Blowdown
C. Random Intervals
D. Never
Controlled Intermittent Blowdown Removes Solids While Minimizing Heat Loss.
30. What Type Of Fuel Burner Requires Primary And Secondary
Air?
A. Oil Burner
B. Gas Burner
C. Coal Stoker
D. Electric Boiler
Gas Burners Use Primary Air For Combustion And Secondary Air For Complete Burning.
31. What Is The Danger Of Carrying Water Into The Steam Lines
(Priming)?
A. Increased Efficiency
B. Water Hammer And Mechanical Damage
C. Easier Heat Transfer
D. Reduced Pressure
Water In Steam Lines Can Cause Pressure Surges Known As Water Hammer, Damaging Equipment.
32. Which Parameter Is Critical To Monitor In A High-Pressure
Boiler?
A. Water Color
B. Pressure And Temperature
C. Room Humidity
D. Fuel Type
Pressure And Temperature Directly Affect Safety And Operation In High-Pressure Systems.
33. What Is The Purpose Of A Steam Trap?
A. To Heat Water
B. To Measure Steam Pressure
C. To Remove Condensate From Steam Lines Without Losing Steam
D. To Control Fuel Flow
Steam Traps Allow Condensate To Drain While Keeping Steam In The System.
34. What Is The Most Common Cause Of Corrosion In A Boiler
B. Sodium Hydroxide
C. Sulfuric Acid
D. Hydrazine
Alkalinity Is Adjusted To Prevent Corrosion And Maintain Proper Water Chemistry.
39. What Is A Common Method To Prevent Scale In High-Pressure
Boilers?
A. Using Hard Water
B. Chemical Treatment And Softening
C. Ignoring Blowdown
D. Increasing Pressure
High-Pressure Boilers Are More Susceptible To Scale; Proper Treatment Prevents Tube Damage.
40. Which Of The Following Can Lead To Boiler Tube Overheating?
A. High-Quality Water
B. Low Water Level Or Scale Buildup
C. Adequate Blowdown
D. Proper Combustion
Insufficient Water Or Insulating Scale Prevents Proper Heat Transfer, Causing Tubes To Overheat.
41. What Is The Primary Function Of The Boiler Drum Internals?
A. To Burn Fuel
B. To Separate Steam And Water And Remove Impurities
C. To Measure Temperature
D. To Control Pressure
Drum Internals Ensure Dry Steam Output And Reduce Carryover Of Water And Solids.
42. Which Type Of Boiler Control Adjusts Fuel And Air To Maintain
Steam Pressure?
A. Manual Valve Only
B. Modulating Pressure Control
C. Safety Valve
D. Water Level Gauge
Modulating Controls Automatically Adjust Combustion To Maintain Desired Pressure.
43. What Is The Purpose Of A Refractory Lining In A Boiler?
A. To Store Water
B. To Protect The Metal Shell From High-Temperature Flames
C. To Measure Pressure
D. To Control Blowdown
Refractory Insulates The Boiler Shell, Preventing Heat Loss And Structural Damage.
44. Which Indicator Shows That The Boiler Is Producing Steam
Properly?
A. Water Level Low
B. Steam Pressure Gauge
C. Feedwater Temperature
D. Fuel Type
The Steam Pressure Gauge Reflects Whether The Boiler Is Generating Sufficient Steam For Operation.
45. What Is The Effect Of Overfiring A Boiler?
A. Reduced Temperature
B. Excessive Pressure And Possible Damage
C. Improved Efficiency
D. Safe Operation
Overfiring Produces More Heat Than Designed, Stressing Components And Risking Failure.
46. Which Device Removes Solids And Impurities From Boiler
Feedwater?
A. Steam Trap
B. Deaerator And Water Softener
C. Pressure Gauge
Protecting Personnel And Equipment.
51. Which Of The Following Is The Main Purpose Of A Boiler
Blowdown Valve?
A. To Reduce Fuel Consumption
B. To Remove Sediment And Maintain Water Quality
C. To Increase Pressure
D. To Regulate Steam Flow
Blowdown Valves Discharge Water With Dissolved And Suspended Solids To Prevent Scale And Corrosion.
52. Which Type Of Water Level Control Uses Probes To Detect
Water?
A. Float
B. Conductivity Probe
C. Thermocouple
D. Pressure Switch
Conductivity Probes Detect Water Presence By Measuring Electrical Conductivity.
53. What Is The Main Danger Of Boiler Overpressure?
A. Low Steam Production
B. Water Hammer
C. Explosion
D. Fuel Wastage
Overpressure Can Rupture Boiler Components, Potentially Causing Catastrophic Explosions.
54. The Device That Removes Air And Other Non-Condensable
Gases From Feedwater Is Called:
A. Steam Trap
B. Pressure Gauge
C. Deaerator
D. Economizer
Deaerators Heat Water And Vent Dissolved Gases, Preventing Corrosion In The Boiler.
55. Which Of The Following Can Indicate A Leak In A Steam
System?
A. High Water Level
B. Pressure Drop And Hissing Sounds
C. Low Fuel Usage
D. Hot Water Supply
A Sudden Pressure Drop Accompanied By Hissing Or Steam Release Indicates A Leak.
56. Excessive Dissolved Solids In Boiler Water Can Cause:
A. Proper Steam Production
B. Foaming And Carryover
C. Lower Fuel Consumption
D. Clean Tubes
High Dissolved Solids Reduce Water Surface Tension, Leading To Foaming And Water Carryover Into Steam Lines.
57. What Is The Typical Function Of A Superheater?
A. To Condense Steam
B. To Feed Water
C. To Raise Steam Temperature Above Saturation
D. To Measure Pressure
Superheaters Increase Steam Temperature For Process Efficiency Or Turbine Operation.
58. Which Condition Can Lead To Boiler Tube Corrosion?
A. High-Quality Feedwater
B. Presence Of Oxygen And Carbon Dioxide
C. Correct Blowdown
D. Clean Fuel
Dissolved Oxygen And Co2 Attack Metal Surfaces, Causing Pitting And Corrosion.
63. Which Type Of Fuel Oil Is Commonly Used In Industrial Boilers?
A. Diesel
B. Gasoline
C. No. 2 Fuel Oil
D. Kerosene
No. 2 Fuel Oil Is Commonly Used Due To Availability And Suitable Combustion Properties.
64. What Does Priming In A Boiler Indicate?
A. Low Fuel Supply
B. Water Carryover Into The Steam Lines
C. Proper Water Level
D. High Efficiency
Priming Occurs When Water Droplets Are Carried With Steam, Often Due To High Water Levels Or Impurities.
65. Which Device Prevents Backflow Of Water Into The Feedwater
System?
A. Steam Trap
B. Safety Valve
C. Check Valve
D. Pressure Gauge
Check Valves Allow Water Flow In One Direction, Preventing Reverse Flow Into Pumps Or Feed Lines.
66. A Steam Trap Removes:
A. Steam Only
B. Condensate Without Losing Steam
C. Fuel
D. Water Level
Steam Traps Remove Condensate Efficiently While Maintaining System Pressure.
67. Which Instrument Monitors Fuel Flow To The Burner?
A. Pressure Gauge
B. Thermometer
C. Fuel Flow Meter
D. Water Level Gauge
Monitoring Fuel Flow Ensures Proper Combustion And Prevents Over- Or Under-Firing.
68. What Is A Common Symptom Of Soot Buildup In A Boiler?
A. Increased Heat Transfer
B. Higher Flue Gas Temperature And Reduced Efficiency
C. Lower Fuel Consumption
D. Water Carryover
Soot Insulates Heat Transfer Surfaces, Reducing Efficiency And Raising Flue Gas Temperature.
69. Which Boiler Component Separates Steam From Water?
A. Burner
B. Safety Valve
C. Steam Drum
D. Economizer
The Steam Drum Collects Steam From Water Tubes, Providing Dry Steam For The System.
70. What Is The Main Function Of An Economizer?
A. To Burn Fuel Efficiently
B. To Preheat Feedwater Using Flue Gas Heat
C. To Remove Condensate
D. To Control Pressure
Economizers Recover Heat From Exhaust Gases To Improve Overall Boiler Efficiency.
71. A Water-Tube Boiler’s Mud Drum Is Used To:
A. Store Fuel
B. Collect Sediment And Impurities
C. Fuel
D. Air
Blowdown Removes Impurities To Maintain Water Chemistry And Prevent Scale Or Corrosion.
76. Which Type Of Burner Is Typically Used For Gas-Fired Boilers?
A. Oil Burner
B. Gas Burner With Primary And Secondary Air
C. Coal Stoker
D. Electric
Gas Burners Use Controlled Air For Proper Combustion To Maximize Efficiency And Reduce Emissions.
77. A Common Cause Of Boiler Tube Failure Is:
A. Proper Blowdown
B. Scale And Overheating
C. Adequate Water Treatment
D. Clean Combustion
Scale And Low Water Allow Hotspots, Leading To Tube Rupture.
78. The Primary Purpose Of A Safety Valve Is To:
A. Measure Pressure
B. Control Water Level
C. Release Excess Pressure To Prevent Explosions
D. Improve Efficiency
Safety Valves Prevent Overpressure, Protecting Personnel And Equipment.
79. Boiler Efficiency Can Be Improved By:
A. Increasing Blowdown
B. Using Economizers And Proper Combustion Control
C. Reducing Water Temperature Only
D. Decreasing Fuel Quality
Recovering Heat From Flue Gases And Optimizing Combustion Increases Efficiency.
80. Which Device Ensures The Boiler Shuts Down If Water Drops
Too Low?
A. Sight Glass
B. Steam Trap
C. Low-Water Cutoff
D. Pressure Gauge
Low-Water Cutoffs Prevent Overheating And Potential Boiler Damage Or Explosion.
81. Which Of The Following Is A Sign Of Foaming In A Boiler?
A. High Steam Pressure
B. Water Droplets In Steam Lines
C. Normal Water Level
D. Low Fuel Usage
Foaming Causes Water To Carry Over With Steam, Leading To Water Hammer Or Mechanical Damage.
82. Which Type Of Boiler Is Most Suitable For Low-Pressure Steam
Heating?
A. Water-Tube
B. Fire-Tube
C. Electric
D. Packaged High-Pressure
Fire-Tube Boilers Are Simpler And Suitable For Low-Pressure Heating Applications.
83. What Does A Sight Glass Indicate?
A. Steam Flow
B. Water Level
C. Pressure
D. Fuel Flow
The Sight Glass Provides A Visual Indication Of Water Level Inside The Boiler.
84. Which Boiler Component Is Prone To Overheating If Water
