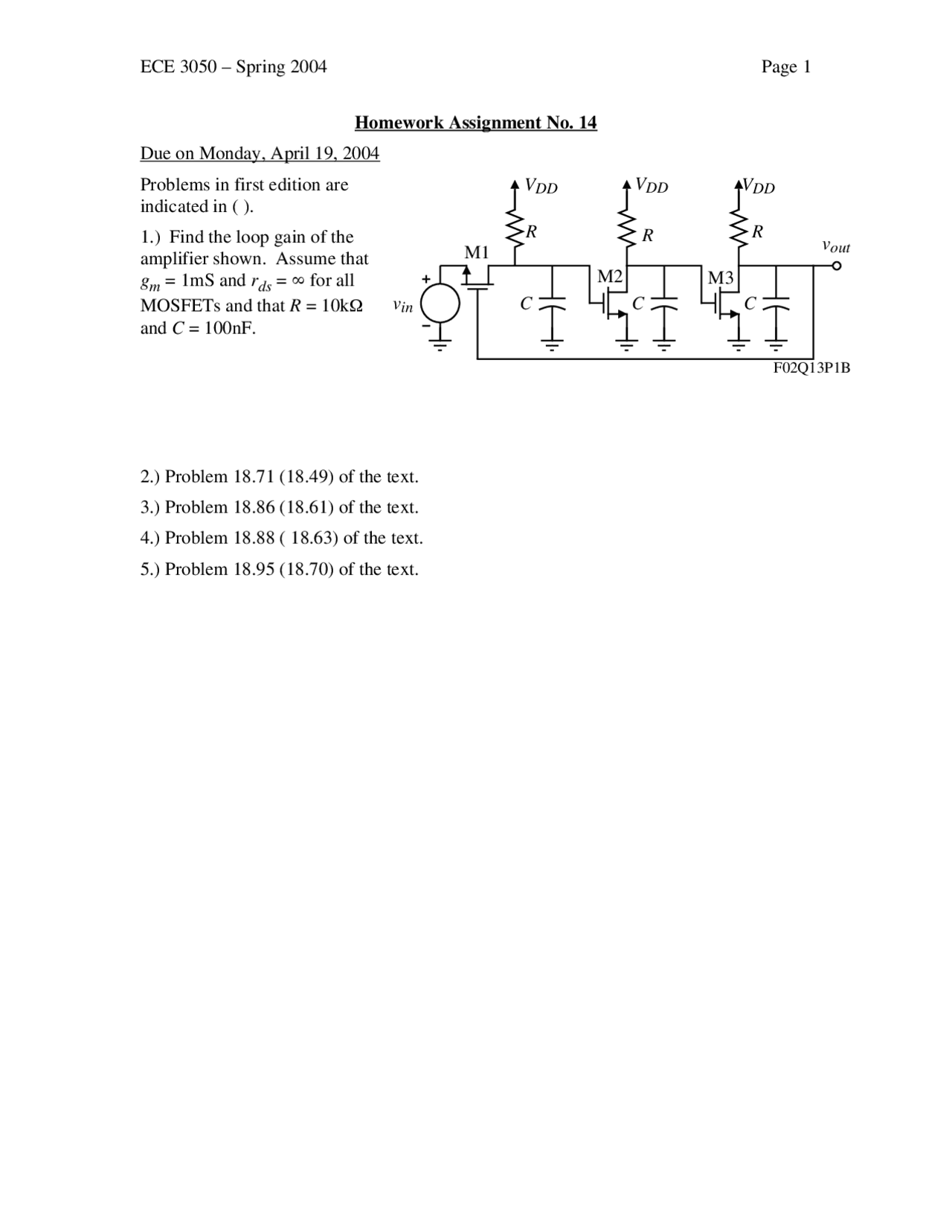

ECE 3050 – Spring 2004 Page 1
Homework Assignment No. 14
Due on Monday, April 19, 2004
Problems in first edition are
indicated in ( ).
1.) Find the loop gain of the
amplifier shown. Assume that
gm = 1mS and rds = ∞ for all
MOSFETs and that R = 10kΩ
and C = 100nF.
2.) Problem 18.71 (18.49) of the text.
3.) Problem 18.86 (18.61) of the text.
4.) Problem 18.88 ( 18.63) of the text.
5.) Problem 18.95 (18.70) of the text.
vin
vout
VDD VDD VDD
RRR
CCC
M1
M2 M3
F02Q13P1B
