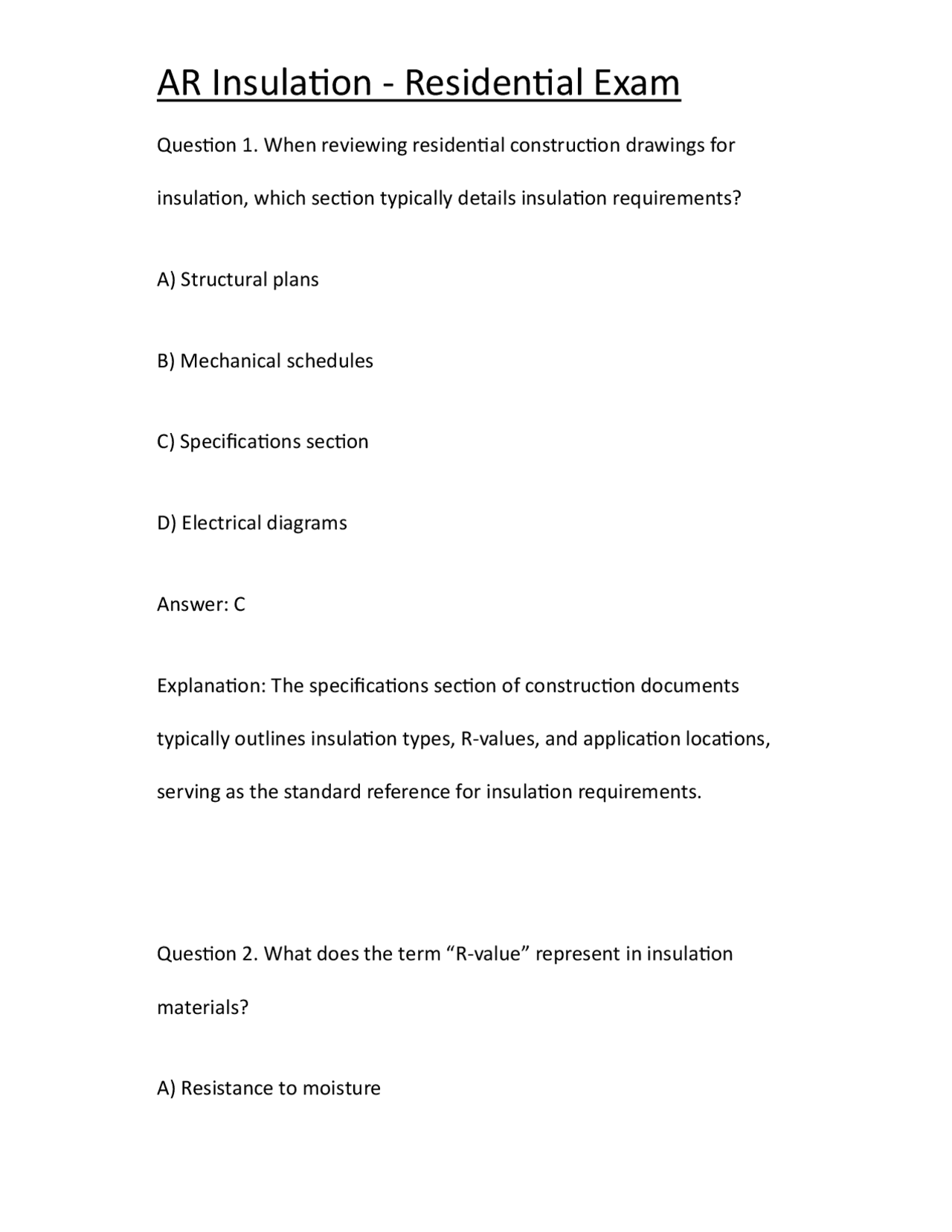

Question 1. When reviewing residential construction drawings for insulation, which section typically details insulation requirements? A) Structural plans B) Mechanical schedules C) Specifications section D) Electrical diagrams Answer: C Explanation: The specifications section of construction documents typically outlines insulation types, R-values, and application locations, serving as the standard reference for insulation requirements. Question 2. What does the term “R-value” represent in insulation materials? A) Resistance to moisture
B) Reflectivity C) Thermal resistance D) Fire rating Answer: C Explanation: R-value measures the thermal resistance of insulation; higher R-values indicate greater effectiveness at resisting heat flow. Question 3. Which insulation type is most likely to settle over time, potentially reducing its effectiveness? A) Closed-cell spray foam B) Blown-in cellulose C) Rigid foam board D) Fiberglass batts
Question 5. Which document is most helpful for identifying all areas in a house that require insulation? A) Elevation drawings B) Site plan C) Floor plans D) Surveyor’s report Answer: C Explanation: Floor plans indicate the layout and specific locations (walls, attics, floors) requiring insulation. Question 6. Which insulation material is most susceptible to moisture absorption and loss of R-value? A) Closed-cell spray foam
B) Fiberglass batt C) Polyisocyanurate board D) Open-cell spray foam Answer: B Explanation: Fiberglass batts can absorb moisture, which lowers their insulating ability and can promote mold growth. Question 7. What is the main purpose of a vapor retarder in residential construction? A) Increase soundproofing B) Prevent fire spread C) Limit moisture movement D) Improve air sealing
Question 9. What is the typical R-value per inch of closed-cell spray polyurethane foam? A) R- 2 B) R-3. C) R-6 to R- 7 D) R- 10 Answer: C Explanation: Closed-cell spray foam has a high R-value, typically ranging from R-6 to R-7 per inch, making it efficient in limited spaces. Question 10. In cost estimating for insulation projects, which of the following should always be included in the total bid? A) Only material costs B) Labor and equipment only
C) Material, labor, equipment, and overhead D) Material and consumables only Answer: C Explanation: Comprehensive bids must include all direct and indirect costs, including overhead and profit, for accuracy and profitability. Question 11. If a client requests improved sound control between interior walls, which insulation material is most effective? A) Polyisocyanurate board B) Fiberglass batts C) Mineral wool batts D) Reflective foil Answer: C
Question 13. To determine the amount of loose-fill cellulose needed for an attic, what information is essential? A) Wall thickness B) Attic square footage and desired R-value C) Number of windows D) Roof shingle type Answer: B Explanation: Attic area and required R-value dictate the needed depth and total volume of loose-fill cellulose for proper coverage. Question 14. Which insulation type is typically made from recycled newspaper? A) Fiberglass B) Mineral wool
C) Cellulose D) Spray foam Answer: C Explanation: Cellulose insulation is commonly produced from recycled newspaper treated for fire and pest resistance. Question 15. What is the primary function of attic baffles in an insulation system? A) Prevent heat loss through walls B) Support insulation weight C) Maintain airflow from soffit vents D) Serve as vapor barriers Answer: C
Question 17. Which insulation material typically has the highest recycled content? A) Fiberglass B) Polyisocyanurate C) Cellulose D) XPS foam board Answer: C Explanation: Cellulose insulation often contains 80% or more recycled paper, making it highly sustainable. Question 18. What is the main risk of compressing fiberglass batt insulation during installation? A) Increased fire risk B) Loss of R-value
C) Increased air sealing D) Improved moisture control Answer: B Explanation: Compressing fiberglass batts reduces the air pockets that provide insulation, lowering the R-value. Question 19. Which code or standard generally specifies minimum R- values for residential insulation? A) National Electrical Code B) International Residential Code (IRC) C) National Fire Protection Association D) OSHA standards Answer: B
Question 21. In a cold climate, where should the vapor barrier typically be installed in a wall assembly? A) On the exterior side B) In the middle of the wall C) On the warm-in-winter (interior) side D) Directly under the siding Answer: C Explanation: Vapor barriers in cold climates should be placed on the interior to prevent moist indoor air from reaching cold surfaces and condensing. Question 22. What is the main environmental impact consideration when selecting spray foam insulation? A) Color options
B) Embodied energy and blowing agents C) Sound absorption D) Water resistance Answer: B Explanation: Spray foam can use high-GWP (global warming potential) blowing agents and has high embodied energy, making these important environmental factors. Question 23. Which insulation material is naturally fire-resistant and often used for high-temperature applications? A) Fiberglass B) Mineral wool C) Polyiso board D) Cellulose
Question 25. What is the typical R-value per inch of expanded polystyrene (EPS) rigid foam board? A) R- 2 B) R-3.6 to R-4. C) R-5. D) R- 7 Answer: B Explanation: EPS foam board generally has an R-value in the range of R- 3.6 to R-4.2 per inch. Question 26. Which insulation is best suited for filling irregular cavities and hard-to-reach spaces? A) Fiberglass batts B) Rolled mineral wool
C) Spray foam D) Polyiso board Answer: C Explanation: Spray foam expands to fill gaps and irregular spaces, providing excellent coverage and air sealing. Question 27. Why is attic ventilation critical in insulated homes? A) Prevents insulation movement B) Promotes roof shingle longevity and moisture control C) Increases R-value D) Reduces sound transmission Answer: B
