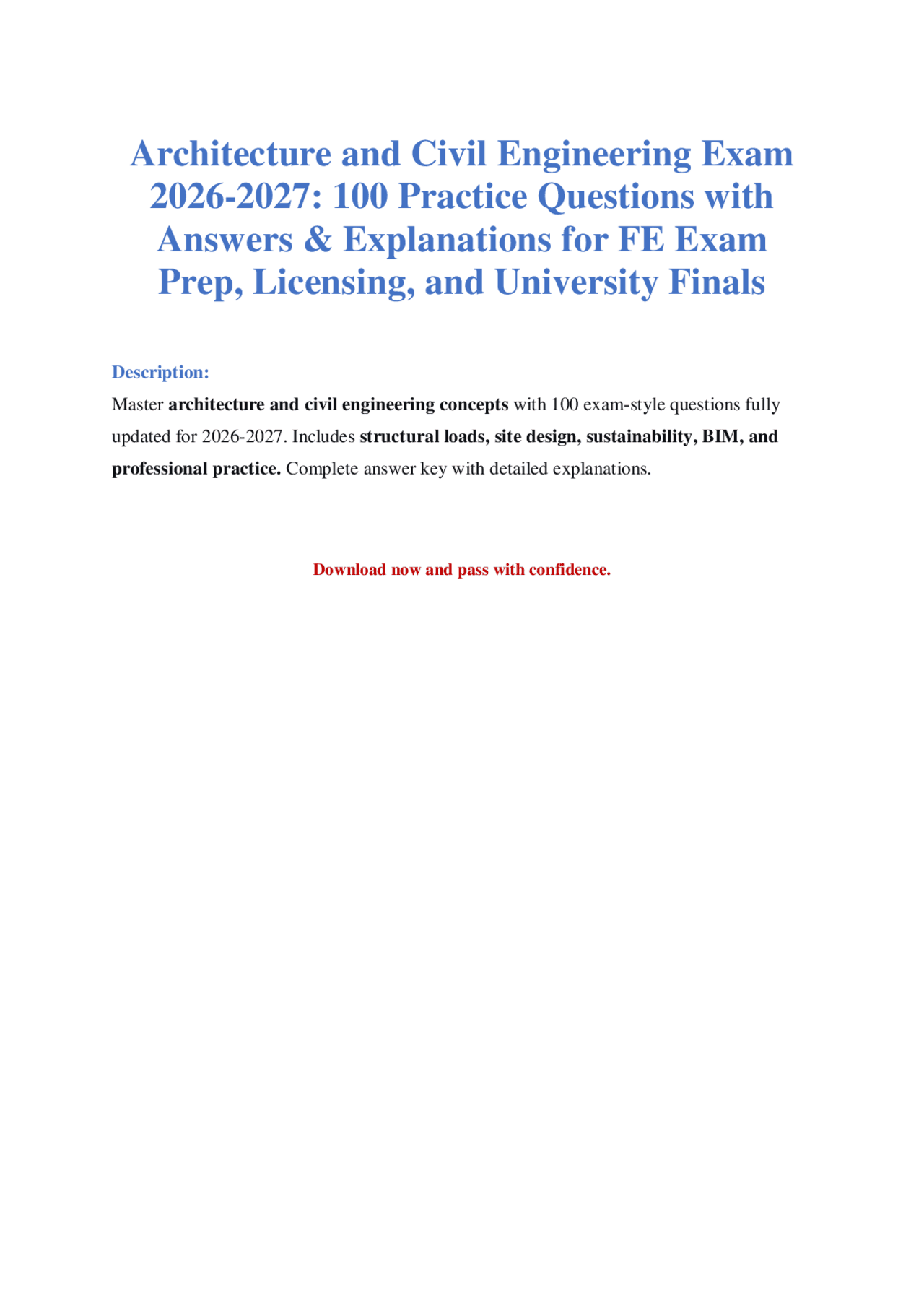

Master architecture and civil engineering concepts with 100 exam-style questions fully updated for 2026-2027. Includes structural loads, site design, sustainability, BIM, and professional practice. Complete answer key with detailed explanations. Architecture and civil engineering exam 2026, FE exam practice questions civil engineering, Building design and construction final exam, LEED and sustainable construction questions, BIM and structural engineering practice test
Typology: Exams
1 / 40
This page cannot be seen from the preview
Don't miss anything!
Description: Master architecture and civil engineering concepts with 100 exam-style questions fully updated for 2026-2027. Includes structural loads, site design, sustainability, BIM, and professional practice. Complete answer key with detailed explanations. Download now and pass with confidence.
Section A: Foundational Concepts in Architecture and Civil Engineering
1. The fields of architecture and civil engineering have fundamentally shaped modern living and working environments primarily because they have: A. Reduced construction costs through mass production B. Enabled taller buildings and larger cities C. Introduced new design and construction methods that enhance safety, efficiency, and convenience D. Standardized building materials across all regions Answer: C Explanation: Architectural and civil engineering innovations have consistently improved societal well-being by making structures safer against hazards, more efficient in resource use and spatial organization, and more convenient for occupants through thoughtful design and technology integration. 2. A civil engineer's primary responsibility regarding structural integrity is to ensure that a structure: A. Meets aesthetic preferences of the client B. Withstands dead loads and additional live loads, including those from anticipated natural events C. Uses the least expensive materials available D. Complies with zoning ordinances only Answer: B Explanation: Civil engineers must design structures to support their own weight (dead loads) plus variable loads from occupants, furniture, equipment, and environmental forces such as wind, snow, seismic activity, and other natural events expected at the site.
Answer: C Explanation: Zoning ordinances are local laws that divide a community into districts or zones, each with permitted land uses, building heights, density limits, and other development restrictions to promote orderly growth. Section B: Design Communication and Documentation
6. A floor plan that represents the most efficient and convenient overall design would typically feature: A. Bedrooms clustered near the main entrance B. Bathroom and kitchen located near each other for plumbing efficiency, open concept living spaces, and easily accessible rooms C. All windows facing north for consistent lighting D. Separate heating systems for each room Answer: B Explanation: Grouping wet areas (kitchen and bathrooms) reduces plumbing runs and costs. Open concept layouts improve sight lines, natural light distribution, and social interaction, while accessible room arrangements enhance daily convenience. 7. A rendering is best described as: A. A legal document describing property boundaries B. A structural calculation sheet C. A pictorial sketch illustrating the design in detail D. A material takeoff list Answer: C Explanation: Renderings are artistic or computer-generated pictorial representations that show realistic details of materials, lighting, shadows, and finishes to help clients visualize the completed project before construction begins.
8. The "site discovery" activity primarily involves: A. Selecting building materials B. Gathering information about the site C. Calculating structural loads D. Preparing working drawings Answer: B Explanation: Site discovery is the initial phase of site analysis that collects data on topography, soil conditions, vegetation, utilities, access, climate factors, and regulatory constraints that will influence design decisions. 9. The various components of a legal description typically provide information about: A. Building material specifications B. Benchmarks, property line lengths, and property line directions C. Interior room dimensions D. Construction scheduling Answer: B Explanation: Legal descriptions identify property boundaries using benchmarks (fixed reference points), line lengths (distances between corners), and directional bearings (angles relative to north) to create an unambiguous survey of the parcel. 10. A property owner is explicitly prohibited from raising farm animals on their land. This restriction is an example of a: A. Zoning ordinance B. Building code C. Covenant D. Easement Answer: C
13. Arrange the following soil particle sizes from largest to smallest: A. Silt, clay, gravel, medium sand B. Gravel, medium sand, silt, clay C. Clay, silt, medium sand, gravel D. Medium sand, gravel, clay, silt Answer: B Explanation: Soil particle size decreases in this order: gravel (over 2 mm), sand (0.05– 2 mm), silt (0.002–0.05 mm), and clay (under 0.002 mm). Understanding gradation is essential for drainage, compaction, and foundation design. 14. The term used to describe energy lost as water moves through pipes due to friction and turbulence is: A. Static pressure B. Head loss C. Flow rate D. Hydraulic gradient Answer: B Explanation: Head loss refers to the reduction in total mechanical energy (measured in height of water column) caused by friction against pipe walls, changes in direction, valves, fittings, and other flow obstructions. 15. Knowing a site's soil characteristics is essential primarily for: A. Aesthetic landscape design B. Septic system selection and design C. Determining property taxes D. Selecting paint colors Answer: B
Explanation: Soil permeability, texture, depth to bedrock, and water table elevation determine whether a conventional septic system, alternative system, or connection to municipal sewer is feasible for wastewater treatment.
16. Which soil type would be the most suitable for supporting a building foundation? A. Soft clay B. Loosely packed silt C. Sand and gravel D. Organic peat Answer: C Explanation: Sand and gravel mixtures provide excellent drainage, high bearing capacity, minimal frost heave potential, and predictable compaction behavior, making them ideal foundation soils. Section D: Drawings and Plans 17. A homebuyer wants to verify that their new home will have adequate Internet connections throughout. Which drawing should they consult? A. Floor plan B. Electrical plan C. Site plan D. Foundation plan Answer: B Explanation: The electrical plan shows the location of all low-voltage systems including data ports, Ethernet jacks, wireless access points, and cable television outlets in addition to standard power and lighting. 18. An exterior elevation drawing of a structure shows: A. Interior room layouts B. Overall building height
21. The 1990 federal act that prohibits discrimination against individuals with disabilities in employment, public transportation, and access to public and commercial buildings is the: A. Fair Housing Act B. Americans with Disabilities Act (ADA) C. Rehabilitation Act D. Equal Opportunity Act Answer: B Explanation: The Americans with Disabilities Act (ADA) establishes accessibility requirements for public accommodations, commercial facilities, transportation, telecommunications, and employment to ensure equal opportunity for people with disabilities. 22. On an electrical plan, the symbol that typically represents a duplex wall outlet is: A. A circle with a horizontal line through it B. A triangle C. A square with an X D. A circle with two vertical lines or a single vertical line Answer: D Explanation: Standard electrical symbols use a circle with one vertical line for a single outlet, two vertical lines for a duplex outlet, and various modifiers to indicate weatherproof, floor-mounted, or special-purpose receptacles. 23. The view that shows interior building detail from the foundation up to the roof peak is called a: A. Floor plan B. Elevation C. Section D. Detail drawing
Answer: C Explanation: A section view cuts vertically through the building to reveal construction assemblies, floor-to-floor heights, foundation details, wall framing, insulation placement, and roof structure in a single drawing.
24. A residential floor plan is typically drawn at what scale? A. 1" = 10' B. 1/4" = 1' C. 1/8" = 1' D. 1" = 1' Answer: B Explanation: The scale of 1/4 inch representing 1 foot (1:48) is the industry standard for residential floor plans, providing sufficient detail for dimensions, door swings, fixture placement, and room labeling without excessive drawing size. 25. On a section view of a residential exterior wall, the structural member located above a door or window opening is called a: A. Stud B. Sill plate C. Header D. Cripple Answer: C Explanation: The header is a horizontal structural beam that spans across window and door openings, transferring the weight of the wall above to the jack studs (trimmers) on either side of the opening.
D. Change order Answer: B Explanation: The design brief is a foundational document that defines project goals, constraints, client requirements, budget parameters, and success criteria, serving as a reference point for all subsequent design decisions. Section F: Legal and Ethical Considerations
29. A covenant differs from a zoning ordinance primarily because: A. Covenants apply only to commercial property B. Covenants are private agreements while zoning ordinances are public laws C. Zoning ordinances are easier to modify D. Covenants are enforced by police powers Answer: B Explanation: Covenants are private contractual restrictions recorded in property deeds and enforced by homeowners' associations or neighboring property owners, while zoning ordinances are governmental regulations enforced by municipal authorities. 30. When evaluating a site for development, the term "benchmark" in a legal description refers to: A. A performance standard for construction B. A fixed reference point with a known elevation C. A comparative analysis tool D. A type of soil test Answer: B Explanation: In surveying and legal descriptions, a benchmark is a permanent marker with precisely established elevation above a reference datum, used as a starting point for measuring vertical dimensions on a site.
Section G: Structural Loads and Material Properties (Questions 31–40)
31. A live load differs from a dead load in that a live load: A. Is permanent and unchanging B. Varies in magnitude and position over time C. Applies only to roof structures D. Is caused exclusively by wind pressure Answer: B Explanation: Live loads include movable or temporary forces such as occupants, furniture, vehicles, and stored materials. Their magnitude and location can change, unlike dead loads which remain constant once construction is complete. 32. The term "snow load" in structural design refers to: A. The weight of frozen plumbing within walls B. The vertical downward force exerted by accumulated snow on a roof C. The lateral force of snow drifting against walls D. The thermal effect of snow insulation Answer: B Explanation: Snow load is a variable environmental live load that engineers calculate based on local climatic data, roof slope, exposure, and thermal factors to ensure roof structures can safely support potential snow accumulation. 33. Which material property describes a beam's resistance to bending deformation? A. Tensile strength B. Compressive strength C. Flexural rigidity D. Shear modulus Answer: C
Explanation: Rebar (reinforcing bar) is embedded in concrete to carry tensile forces, as concrete is strong in compression but weak in tension. The steel reinforcement handles tensile stresses while concrete manages compression.
37. The factor of safety in structural engineering is best defined as: A. The ratio of ultimate strength to allowable working stress B. The number of safety inspections required C. The percentage of materials reserved for repairs D. The height of guardrails above floor level Answer: A Explanation: The factor of safety provides a design margin by dividing the material's ultimate strength by the maximum expected service load, accounting for uncertainties in loads, material properties, construction quality, and future use changes. 38. A cantilever beam is structurally characterized by: A. Supports at both ends B. A fixed support at one end and a free end at the other C. Supports at the midpoint only D. Hinged supports at both ends Answer: B Explanation: A cantilever beam projects horizontally from a single fixed support, with the opposite end free. This configuration creates maximum bending moment at the fixed support and zero moment at the free end. 39. The neutral axis in a beam under bending is the location where: A. Maximum compressive stress occurs B. Maximum tensile stress occurs C. Bending stress equals zero D. Shear stress is maximum
Answer: C Explanation: The neutral axis passes through the centroid of the cross-section, where longitudinal fibers experience neither tension nor compression. Bending stresses increase linearly from zero at the neutral axis to maximum at the extreme fibers.
40. Thermal expansion joints in long buildings are necessary primarily to: A. Reduce construction costs B. Allow for movement caused by temperature changes without structural damage C. Provide access for maintenance D. Improve acoustic isolation Answer: B Explanation: Thermal expansion joints accommodate dimensional changes in building materials as temperatures fluctuate, preventing cracking, buckling, or other damage that would occur if constrained expansion forces built up. Section H: Building Systems and Mechanical Integration (Questions 41–50) 41. A HVAC system's primary function in a building is to: A. Provide electrical power distribution B. Control heating, ventilation, and air conditioning for thermal comfort and indoor air quality C. Manage plumbing waste disposal D. Support structural loads Answer: B Explanation: HVAC systems maintain comfortable temperature, humidity, and air quality by heating or cooling air, filtering contaminants, introducing fresh outdoor air, and circulating conditioned air throughout occupied spaces.
Explanation: Vent stacks allow air to enter drain pipes, preventing siphonage that would empty trap seals, and permit sewer gases to safely exit above the roof while maintaining proper drainage flow.
45. A building's electrical service panel (breaker box) performs which primary function? A. Generates electricity for the building B. Distributes incoming electrical power to branch circuits and provides overcurrent protection C. Converts AC to DC power D. Stores backup electrical energy Answer: B Explanation: The service panel receives power from the utility, splits it into branch circuits, and contains circuit breakers or fuses that automatically interrupt power if current exceeds safe levels, preventing overheating and fires. 46. A three-way switch in residential electrical wiring allows: A. Control of a single light fixture from two different locations B. Operation of three separate fixtures from one switch C. Dimming of lights to three brightness levels D. Switching between three power sources Answer: A Explanation: Three-way switches are used in pairs (with travelers) to control a single light or set of lights from two locations, such as at both ends of a hallway or at the top and bottom of stairs. 47. The R-value of insulation measures: A. Its thickness in inches B. Its resistance to heat flow (thermal resistance) C. Its sound absorption coefficient
D. Its fire resistance rating Answer: B Explanation: R-value quantifies thermal resistance—higher values indicate better insulating performance. It is additive; total R-value equals the sum of individual material layers' resistances.
48. A building envelope refers to: A. The construction schedule and budget B. The physical separator between conditioned interior space and unconditioned outdoor environment C. The list of permitted land uses D. The electrical wiring diagram Answer: B Explanation: The building envelope includes exterior walls, roof, foundation, windows, and doors—all components that separate interior conditioned spaces from exterior conditions, controlling heat, air, moisture, and sound transfer. 49. The primary advantage of a green roof (vegetative roof) is: A. Lower initial construction cost B. Stormwater management, thermal insulation, and urban heat island reduction C. Increased structural load capacity D. Simplified maintenance access Answer: B Explanation: Green roofs absorb rainfall, reduce stormwater runoff, provide additional insulation, extend roof membrane life, filter air pollutants, and lower ambient temperatures in dense urban areas.
