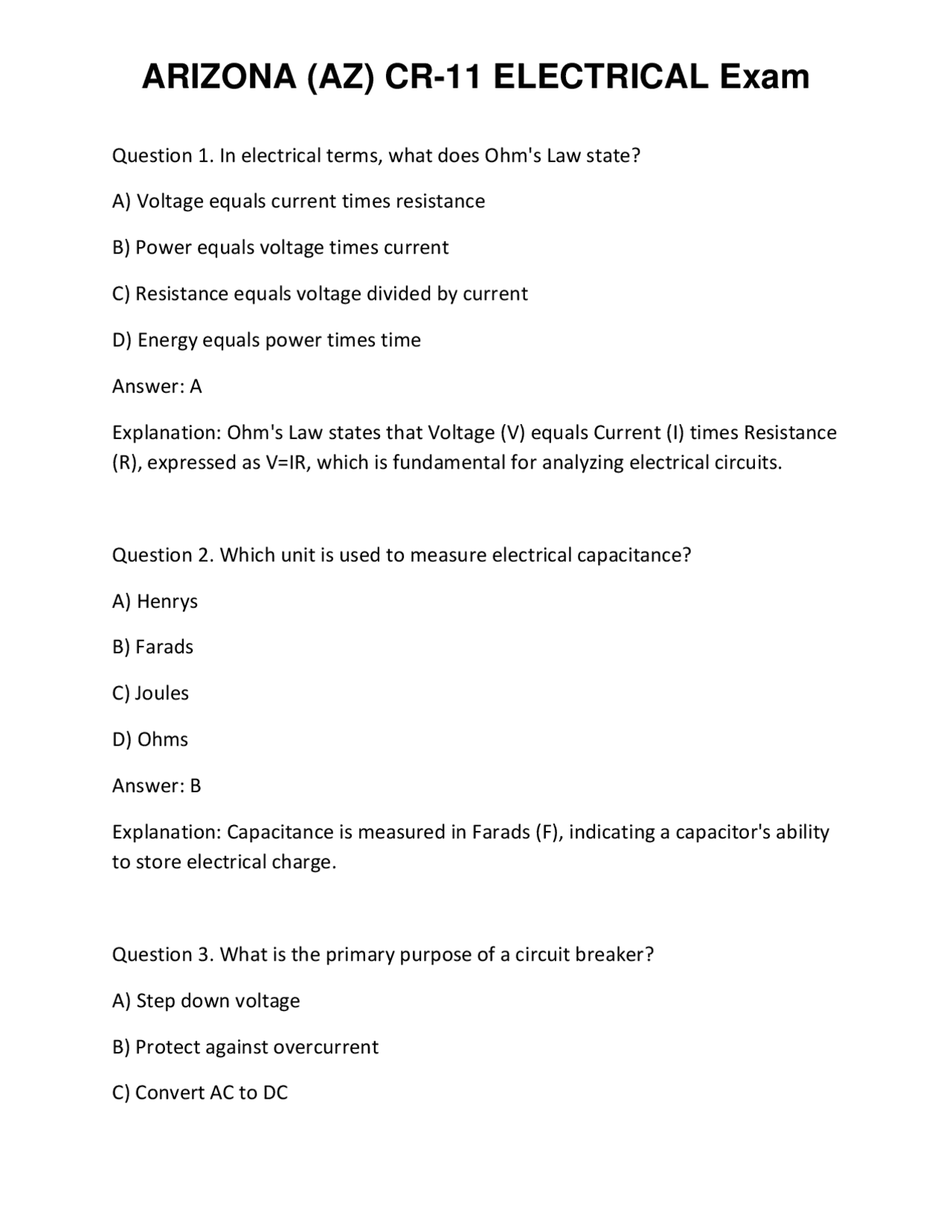

Question 1. In electrical terms, what does Ohm's Law state? A) Voltage equals current times resistance B) Power equals voltage times current C) Resistance equals voltage divided by current D) Energy equals power times time Answer: A Explanation: Ohm's Law states that Voltage (V) equals Current (I) times Resistance (R), expressed as V=IR, which is fundamental for analyzing electrical circuits. Question 2. Which unit is used to measure electrical capacitance? A) Henrys B) Farads C) Joules D) Ohms Answer: B Explanation: Capacitance is measured in Farads (F), indicating a capacitor's ability to store electrical charge. Question 3. What is the primary purpose of a circuit breaker? A) Step down voltage B) Protect against overcurrent C) Convert AC to DC
D) Measure electrical energy Answer: B Explanation: Circuit breakers interrupt overcurrent conditions to protect wiring and devices from damage or fire hazards. Question 4. Which of the following materials is considered a good electrical insulator? A) Copper B) Aluminum C) Rubber D) Silver Answer: C Explanation: Rubber is an insulator, preventing current flow, while copper, aluminum, and silver are conductors. Question 5. According to NEC, what is the maximum spacing recommended for outlet boxes in residential wiring? A) 4 feet B) 6 feet C) 12 inches D) 24 inches Answer: A
Question 8. Which law describes the relationship between the total current entering a junction and the currents leaving it? A) Ohm's Law B) Kirchhoff's Current Law C) Kirchhoff's Voltage Law D) Faraday's Law Answer: B Explanation: Kirchhoff's Current Law states that the total current entering a junction equals the total current leaving it, conserving electric charge. Question 9. In AC circuits, what property allows the current to periodically reverse direction? A) Resistance B) Capacitance C) Alternating voltage D) Inductance Answer: C Explanation: AC circuits involve an alternating voltage source, causing current to periodically change direction, unlike DC which flows in one direction. Question 10. Which NEC article covers grounding and bonding requirements? A) Article 250
B) Article 300 C) Article 410 D) Article 430 Answer: A Explanation: NEC Article 250 specifies requirements for grounding and bonding to ensure safety and proper electrical system operation. Question 11. What is the primary function of a GFCI device? A) Protect against overcurrent B) Detect ground faults and shut off power C) Isolate circuits from surges D) Measure voltage drop Answer: B Explanation: GFCIs detect ground faults by monitoring current imbalance and quickly disconnect power to prevent shock hazards. Question 12. Which of the following best defines "ampacity"? A) The maximum current a conductor can carry safely B) The resistance of a wire C) The voltage a wire can withstand D) The power dissipated in a circuit Answer: A
Question 15. What is the primary purpose of overcurrent protection devices? A) To regulate voltage B) To prevent excessive current that can cause damage or fire C) To reduce power loss D) To improve circuit efficiency Answer: B Explanation: Overcurrent protection devices, such as circuit breakers and fuses, are designed to disconnect power when current exceeds safe levels, preventing damage and fire. Question 16. Which property describes the opposition that a circuit presents to the flow of alternating current? A) Resistance B) Reactance C) Power factor D) Impedance Answer: D Explanation: Impedance combines resistance and reactance, representing total opposition to AC flow in a circuit. Question 17. In electrical theory, what is "power" measured in? A) Volts
B) Amperes C) Watts D) Joules Answer: C Explanation: Power in electrical systems is measured in Watts (W), representing the rate of energy transfer. Question 18. Which type of circuit configuration has current split among parallel branches? A) Series circuit B) Open circuit C) Parallel circuit D) Short circuit Answer: C Explanation: In a parallel circuit, current divides among branches, each experiencing the same voltage. Question 19. What does a megohmmeter primarily measure? A) Resistance B) Capacitance C) Insulation resistance D) Current
Question 22. What is the primary role of a transformer in electrical systems? A) Convert AC to DC B) Change voltage levels C) Store electrical energy D) Protect against overcurrent Answer: B Explanation: Transformers change voltage levels—stepping voltage up or down— without changing frequency. Question 23. Which of the following best describes the term "conductor"? A) Material that resists electrical flow B) Material that allows electrical flow with low resistance C) Material used exclusively for insulation D) A device that converts electrical energy Answer: B Explanation: Conductors are materials like copper and aluminum that allow current to flow with minimal resistance. Question 24. Which NEC chapter covers wiring methods and materials? A) Chapter 3 B) Chapter 5
C) Chapter 7 D) Chapter 9 Answer: A Explanation: Chapter 3 in the NEC addresses wiring methods and materials, including conduit types and installation practices. Question 25. What is the purpose of a conduit body? A) To connect conduits and facilitate wire pulling B) To serve as a circuit breaker C) To act as a junction box with integrated switches D) To provide grounding Answer: A Explanation: Conduit bodies connect sections of conduit and provide access points for pulling wires and maintenance. Question 26. In a typical residential circuit, what is the standard voltage supplied by the utility? A) 120 V B) 240 V C) 480 V D) 12 V Answer: B
Question 29. Under the NEC, what is required for a circuit serving a kitchen countertop? A) GFCI protection B) Arc-Fault Circuit-Interrupter protection C) Only dedicated circuits D) No special protection needed Answer: A Explanation: GFCI protection is required for outlets serving kitchen countertops to prevent electrical shock hazards. Question 30. Which device is used for troubleshooting by tracing the path of a circuit? A) Circuit tracer B) Multimeter C) Megohmmeter D) Clamp-on ammeter Answer: A Explanation: A circuit tracer helps locate wiring paths behind walls or underground for troubleshooting. Question 31. Which of the following is a key safety practice when working on energized circuits? A) Use insulated tools
B) Use rubber gloves only C) Work with bare hands D) Remove all PPE Answer: A Explanation: Insulated tools reduce the risk of electrical shock when working near energized parts. Question 32. What does the term "bonding" refer to in electrical safety? A) Connecting metal parts to ground B) Connecting conductors in series C) Connecting multiple circuits together D) Isolating parts from ground Answer: A Explanation: Bonding involves connecting metal parts to ground to ensure they are at the same potential, minimizing shock risk. Question 33. Which NEC article addresses services and how they are installed? A) Article 230 B) Article 250 C) Article 300 D) Article 410 Answer: A
Question 36. Which NEC article covers the installation requirements for photovoltaic (solar) systems? A) Article 690 B) Article 680 C) Article 600 D) Article 700 Answer: A Explanation: NEC Article 690 provides standards for installing solar photovoltaic systems. Question 37. Which type of circuit is characterized by a single path for current flow? A) Parallel circuit B) Series circuit C) Open circuit D) Short circuit Answer: B Explanation: In a series circuit, current flows through a single path, with voltage dividing among components. Question 38. Which component is used to regulate voltage in a circuit? A) Resistor
B) Inductor C) Voltage regulator D) Transformer Answer: C Explanation: A voltage regulator maintains a constant output voltage despite variations in input voltage or load. Question 39. What is the main purpose of an AFCI device? A) Detect arc faults and disconnect power B) Protect against overcurrent C) Prevent ground faults D) Step down voltage Answer: A Explanation: AFCI devices detect hazardous arc faults and trip to prevent fires caused by arcing. Question 40. Which of the following is an example of a safety PPE required for electrical work? A) Hard hat B) Insulated gloves C) Steel-toed boots D) All of the above
Question 43. What is the primary role of a ground-fault circuit interrupter (GFCI)? A) Protect against overloads B) Prevent electrocution by shutting off power when imbalance is detected C) Isolate circuits from surges D) Provide continuous power supply Answer: B Explanation: GFCIs detect imbalance in current flow to ground and trip quickly, reducing shock risk. Question 44. What is the purpose of the "box fill" calculation? A) To determine the number of conductors that can be safely installed in a box B) To calculate voltage drop C) To size the conductor for current capacity D) To select appropriate conduit size Answer: A Explanation: Box fill calculations ensure that the number of conductors and devices in a box do not exceed its volume capacity, preventing overcrowding. Question 45. Which element is most critical in ensuring a safe and compliant electrical installation according to the NEC? A) Proper conductor sizing
B) Adequate grounding and bonding C) Use of UL-listed equipment D) All of the above Answer: D Explanation: All these elements contribute to a safe, reliable, and code-compliant electrical system. Question 46. What does the term "voltage drop" refer to? A) Loss of voltage along a conductor due to resistance B) Voltage increase over a transformer C) Fluctuation in voltage during peak hours D) Voltage spike caused by surges Answer: A Explanation: Voltage drop is the reduction in voltage as current travels through conductors, which can affect equipment performance. Question 47. Which of the following is a common safety practice when installing conductors in a conduit? A) Use of appropriate support and fastening B) Overfilling conduit beyond capacity C) Bending conductors sharply D) Using non-listed fittings
