Electrician Ultimate Exam

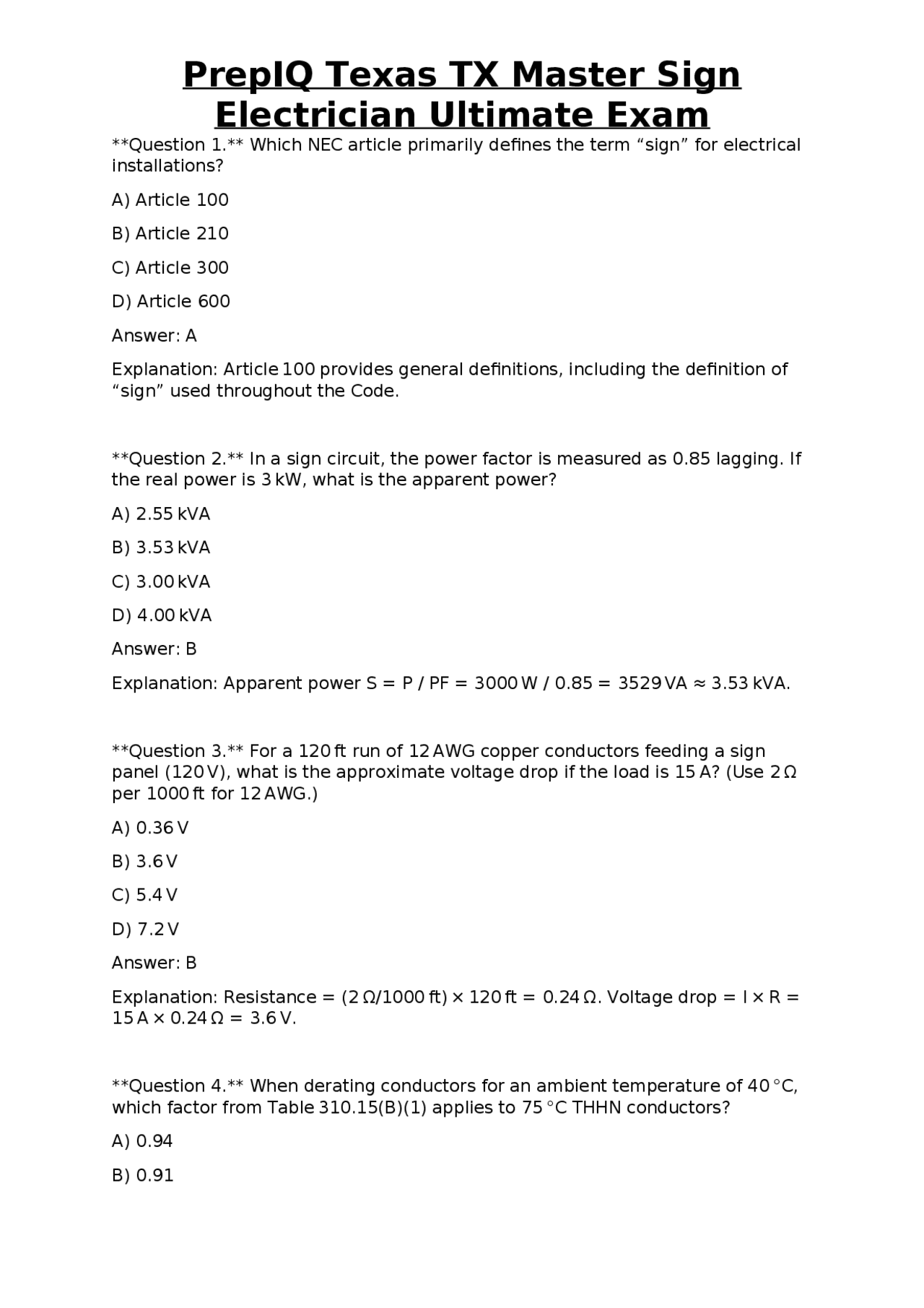

Question 1. Which NEC article primarily defines the term “sign” for electrical installations? A) Article 100 B) Article 210 C) Article 300 D) Article 600 Answer: A Explanation: Article 100 provides general definitions, including the definition of “sign” used throughout the Code. Question 2. In a sign circuit, the power factor is measured as 0.85 lagging. If the real power is 3 kW, what is the apparent power? A) 2.55 kVA B) 3.53 kVA C) 3.00 kVA D) 4.00 kVA Answer: B Explanation: Apparent power S = P / PF = 3000 W / 0.85 = 3529 VA ≈ 3.53 kVA. Question 3. For a 120 ft run of 12 AWG copper conductors feeding a sign panel (120 V), what is the approximate voltage drop if the load is 15 A? (Use 2 Ω per 1000 ft for 12 AWG.) A) 0.36 V B) 3.6 V C) 5.4 V D) 7.2 V Answer: B Explanation: Resistance = (2 Ω/1000 ft) × 120 ft = 0.24 Ω. Voltage drop = I × R = 15 A × 0.24 Ω = 3.6 V. Question 4. When derating conductors for an ambient temperature of 40 °C, which factor from Table 310.15(B)(1) applies to 75 °C THHN conductors? A) 0. B) 0.
Electrician Ultimate Exam
C) 0.
D) 0.
Answer: B Explanation: At 40 °C, the temperature correction factor for 75 °C conductors is 0.91. Question 5. How many 14 mm² (≈ 4 AWG) conductors may be placed in a 3/4-in. EMT conduit according to NEC Table 1, Chapter 9? A) 2 B) 3 C) 4 D) 5 Answer: C Explanation: The fill limit for EMT is 40 % of the conduit’s internal area. Four 4 AWG conductors fit within that limit. Question 6. On a sign blueprint, the symbol “⎔” indicates which of the following? A) A recessed luminaire B) A junction box C) A conduit stub D) A transformer Answer: B Explanation: The standard NEC symbol for a junction box is a square with a plus sign (⎔). Question 7. The minimum clearance between a service drop conductor and a sign support structure is: A) 2 ft B) 4 ft C) 6 ft D) 8 ft Answer: B
Electrician Ultimate Exam
Question 11. The minimum size of a feeder conductor supplying a 24 A sign load, using 75 °C THHN in a conduit with 30 % fill, is: A) 10 AWG B) 8 AWG C) 6 AWG D) 4 AWG Answer: B Explanation: 24 A requires 8 AWG copper (40 A ampacity) at 75 °C; the conduit fill does not affect ampacity. Question 12. For a sign circuit classified as continuous load, the branch-circuit breaker must be sized at least: A) 100 % of the load B) 125 % of the load C) 150 % of the load D) 200 % of the load Answer: B Explanation: NEC 210.20(A) requires a breaker sized at 125 % of the continuous load. Question 13. Which wiring method is permitted for a sign installed in a wet location on a building façade? A) NM-B cable B) UF cable C) AC cable D) MC cable with steel armor Answer: B Explanation: UF cable is rated for wet locations and can be used where the conduit is not required. Question 14. When installing a sign in a location subject to freeze-thaw cycles, the enclosure must include: A) A vent that is not weather-sealed B) A drainage opening with a screen
Electrician Ultimate Exam
C) Solid walls with no openings D) A heating element Answer: B Explanation: NEC requires drainage openings with screens to prevent water accumulation in wet-location enclosures. Question 15. A Class 2 power source for an LED sign must not exceed which of the following volt-ampere ratings? A) 30 VA B) 60 VA C) 100 VA D) 150 VA Answer: B Explanation: NEC 725.2 limits Class 2 power sources to 60 VA. Question 16. The appropriate overcurrent protection for a 120-V, 3 A LED sign module is: A) 5-A fuse B) 10-A breaker C) 15-A breaker D) 20-A fuse Answer: A Explanation: The OCPD must be sized at no more than 125 % of the load; 3 A × 1.25 = 3.75 A, so a 5-A fuse is suitable. Question 17. Which of the following devices is required on a sign that is installed outdoors and supplies power to a receptacle? A) AFCI B) GFCI C) Surge protector D) Thermal overload Answer: B Explanation: NEC 210.8(A)(3) requires GFCI protection for outdoor receptacles.
Electrician Ultimate Exam
B) #10 copper C) #8 copper D) #6 copper Answer: D Explanation: NEC Table 250.66 indicates #6 AWG copper for fault currents up to 800 A. Question 22. Which of the following is a permitted method for supporting a sign that is mounted on a metal canopy? A) Using only adhesive tape B) Using threaded rods anchored to the canopy framing C) Hanging the sign from a chain without a support bracket D) Securing the sign directly to the canopy skin with screws only Answer: B Explanation: Mechanical fasteners such as threaded rods provide a secure, code-compliant support. Question 23. The NEC requires that a sign’s disconnecting means be located: A) Within sight of the sign, not more than 50 ft away B) Inside the nearest electrical closet C) At the main service panel only D) At any convenient location Answer: A Explanation: NEC 600.6(A) mandates that the disconnect be “within sight” of the sign, generally not exceeding 50 ft. Question 24. For a sign that incorporates a motor-driven rotating billboard, the motor must be protected by an overload relay set at what percentage of the motor’s full-load current? A) 80 % B) 115 % C) 125 % D) 150 %
Electrician Ultimate Exam
Answer: C Explanation: NEC 430.32 requires overload protection set at 125 % of the motor’s full-load current. Question 25. Which type of switch is commonly used to automatically turn a sign on at sunset? A) Time switch B) Photo-control switch C) Manual toggle switch D) Temperature sensor switch Answer: B Explanation: Photo-control switches detect ambient light levels and activate the sign at dusk. Question 26. A sign’s power source is supplied through a conduit that runs through a concrete wall. Which conduit material is acceptable for this installation? A) EMT B) Rigid metal conduit (RMC) C) PVC conduit D) Flexible metal conduit (FMC) Answer: B Explanation: RMC is rated for direct burial and can pass through concrete walls without additional protection. Question 27. The maximum allowed voltage drop for a feeder supplying a sign that draws 30 A over a 200-ft run is: A) 2 % B) 3 % C) 5 % D) 10 % Answer: C Explanation: NEC recommends a maximum of 5 % voltage drop for feeders to non-continuous loads.
Electrician Ultimate Exam
A) They are only permitted in dry locations. B) They can be used in wet locations up to 90 °C. C) They must be installed in conduit at all times. D) They are not suitable for voltage ratings above 300 V. Answer: B Explanation: XHHW-2 is rated for 90 °C in wet locations, making it suitable for many sign applications. Question 32. The minimum rating for a GFCI receptacle that supplies power to a sign’s maintenance outlet is: A) 15 A B) 20 A C) 30 A D) 40 A Answer: B Explanation: NEC 210.8(A)(3) requires a 20-A GFCI receptacle for outdoor outlets. Question 33. A sign’s wiring diagram shows a “Y” connection between two power supplies. This configuration is used to: A) Provide redundancy in case one supply fails B) Increase the voltage to the sign C) Balance the load between phases D) Create a three-wire circuit for lighting control Answer: A Explanation: A “Y” or parallel connection of power supplies offers redundancy and load sharing. Question 34. In a sign that uses a magnetic ballasting system for fluorescent tubes, the ballast must be installed: A) In an accessible location B) Inside a sealed enclosure only C) Directly on the sign structure D) Within 12 in. of the ceiling
Electrician Ultimate Exam
Answer: A Explanation: NEC requires ballasts to be accessible for maintenance and inspection. Question 35. The NEC permits the use of a single-pole breaker for a sign that has a 120-V, single-phase load as long as: A) The breaker is a GFCI type B) The breaker is rated at least 125 % of the load C) The breaker is located in the main panel only D) The breaker is a two-pole type Answer: B Explanation: A single-pole breaker may be used if it is sized appropriately (125 % of the continuous load). Question 36. Which of the following is a required feature of a sign’s enclosure when installed in a location subject to corrosion from salt spray? A) Painted steel with a minimum of two coats B) Aluminum with a protective anodized finish C) Galvanized steel with a minimum of 30 μin zinc coating D) Any material is acceptable if the enclosure is sealed Answer: C Explanation: NEC 250.64 requires corrosion-resistant grounding electrodes; galvanized steel with 30 μin zinc provides adequate protection. Question 37. For a sign that incorporates a hydraulic lift, the hydraulic pump must be protected by a circuit breaker sized at: A) 80 % of the pump’s rated current B) 100 % of the pump’s rated current C) 125 % of the pump’s rated current D) 150 % of the pump’s rated current Answer: C Explanation: NEC 430.32 applies to motors, including hydraulic pumps, requiring overload protection at 125 % of full-load current.
Electrician Ultimate Exam
C) The circuit number, load, and disconnect rating D) The date of installation Answer: C Explanation: NEC 210.22 requires identification of each circuit, its load, and the rating of the disconnect. Question 42. Which of the following is the correct minimum size for a conduit that houses a 120/240-V service feeder to a large billboard? A) 1-in. EMT B) 1-1/2-in. EMT C) 2-in. EMT D) 3-in. EMT Answer: B Explanation: Large billboards often require multiple large conductors; 1-1/2-in. EMT provides sufficient space for the required conductors while staying within fill limits. Question 43. The NEC permits the use of “non-metallic” conduit for sign wiring in a wet location if the conduit is: A) Listed for wet locations B) Buried underground C) Supported every 3 ft D) Filled with grease Answer: A Explanation: Non-metallic conduit (e.g., PVC) must be listed for wet locations to be used outdoors. Question 44. A sign that uses a high-intensity discharge (HID) lamp must have a ballast that is rated for a minimum of: A) 150 W B) 250 W C) 350 W D) 500 W
Electrician Ultimate Exam
Answer: C Explanation: HID lamps typically require ballasts rated at 350 W or higher to ensure proper ignition and operation. Question 45. When a sign’s power is supplied through a grounded conduit, the conduit itself must be: A) Made of steel only B) Connected to the grounding electrode system at each end C) Insulated with a green jacket D) Installed without any fittings Answer: B Explanation: Grounded metal conduit must be bonded to the grounding system at each termination per NEC 250.118. Question 46. The NEC requires that a sign’s wiring be protected from physical damage by: A) Installing the conductors in a raceway B) Using only flexible cord C) Securing the conductors with zip ties only D) Leaving the conductors exposed in a dry location Answer: A Explanation: Raceways protect conductors from physical damage as required by NEC 300.4. Question 47. For a sign that incorporates a programmable controller, the controller must be listed for: A) Use in hazardous (Class I) locations B) Use with 480 V three-phase power only C) Use as a stand-alone controller without a disconnect D) Use in damp or wet locations if it is rated for such conditions Answer: D Explanation: Controllers must be listed for the environmental conditions in which they are installed.
Electrician Ultimate Exam
C) 175 % of the calculated load D) 200 % of the calculated load Answer: A Explanation: NEC 240.4(B) requires a breaker sized at 125 % of the calculated load for most applications. Question 52. Which of the following is NOT a permissible method for supporting a sign’s conduit in a masonry wall? A) Conduit straps embedded in mortar B) Surface-mounted conduit brackets C) Running the conduit through hollow brick without support D) Using metal conduit clips anchored to the wall Answer: C Explanation: Running conduit unsupported through hollow masonry violates NEC 300.11. Question 53. The NEC permits the use of a “metallic raceway” as the grounding electrode for a sign when the raceway is: A) Less than 4 ft long B) At least 10 ft long and in direct contact with the earth C) Connected to a metal water pipe D) Only used indoors Answer: B Explanation: A metallic raceway can serve as a grounding electrode if it meets the length and earth-contact requirements of NEC 250.52(A)(5). Question 54. When a sign uses a “multi-tap” transformer to feed several circuits, the transformer must be: A) Listed for “multiple secondary circuits” B) Rated for at least twice the total load current C) Installed in a separate room from the sign D) Mounted on the sign’s frame without a protective enclosure Answer: A
Electrician Ultimate Exam
Explanation: NEC 600.5 requires transformers with multiple secondaries to be listed for that purpose. Question 55. The NEC requires that any sign located within 10 ft of a door opening in a public building have which of the following? A) A fire-rated enclosure B) A tamper-resistant cover C) A listed emergency illumination circuit D) A dedicated emergency power source Answer: C Explanation: Sign illumination in egress paths must be tied to emergency illumination per NEC 700.12. Question 56. A sign that uses a “time-delay” relay to stagger illumination must have the relay rated for: A) The full load current of the sign B) Only 50 % of the load current C) The voltage only, not current D) A maximum of 5 A regardless of load Answer: A Explanation: The relay must be capable of handling the full load current it will switch. Question 57. Which of the following is the correct minimum conduit size for a 500 - A service feeder to a large sign using 4/0 AWG copper conductors? A) 2-in. EMT B) 3-in. EMT C) 4-in. EMT D) 5-in. EMT Answer: C Explanation: 4/0 AWG conductors require a large conduit; 4-in. EMT provides the necessary internal area for three conductors plus a ground.
Electrician Ultimate Exam
C) A grounding conductor of at least #12 AWG D) An integrated lightning-rod system Answer: A Explanation: NEC 300.23 requires securing methods for equipment on steep slopes, often verified by the manufacturer’s wind-uplift rating. Question 62. Which of the following is a required feature of a sign’s “maintenance hatch” according to NEC? A) Must be lockable with a key B) Must be at least 12 in. × 12 in. in size C) Must be weather-sealed when closed D) Must be painted the same color as the sign Answer: C Explanation: Maintenance openings must be weather-sealed to protect internal wiring from moisture. Question 63. When a sign’s power is supplied from a separate “sub-panel,” the sub-panel must be equipped with: A) A main breaker sized for the total sign load B) Only branch-circuit breakers C) A GFCI breaker for each circuit D) A surge protector in the main panel only Answer: A Explanation: NEC 408.36 requires a main disconnect at the sub-panel if the panel is not within sight of the service disconnect. Question 64. The NEC permits the use of “cord-and-plug” connections for a sign’s power supply only when: A) The sign is portable and not permanently mounted B) The cord is rated for at least 600 V C) The sign’s load does not exceed 20 A D) The cord is listed for the specific sign application Answer: D
Electrician Ultimate Exam
Explanation: Cord-and-plug assemblies must be listed for the intended use per NEC 400.7. Question 65. A sign that uses a “solid-state relay” to control multiple zones must have the relay rated for: A) The highest voltage of any zone B) The combined current of all zones C) Only the control circuit voltage D) The lowest voltage of any zone Answer: B Explanation: The solid-state relay must be capable of handling the total load current of all zones it controls. Question 66. For a sign located in a “Class III” hazardous (explosive) area, the wiring must be: A) Installed in conduit only B) Made of non-metallic raceway C) Listed for hazardous locations D) Protected by a GFCI device Answer: C Explanation: NEC 500 requires all equipment in hazardous locations to be listed for that classification. Question 67. The NEC defines “outline lighting” as: A) Lighting that outlines the perimeter of a building B) Lighting that illuminates a sign’s letters or logo C) Lighting used for emergency egress paths D) Lighting that is permanently attached to a structure Answer: B Explanation: Outline lighting refers to illumination that highlights the shape or lettering of a sign. Question 68. When a sign includes a “neon transformer” with a primary voltage of 240 V, the secondary voltage may be as high as:
