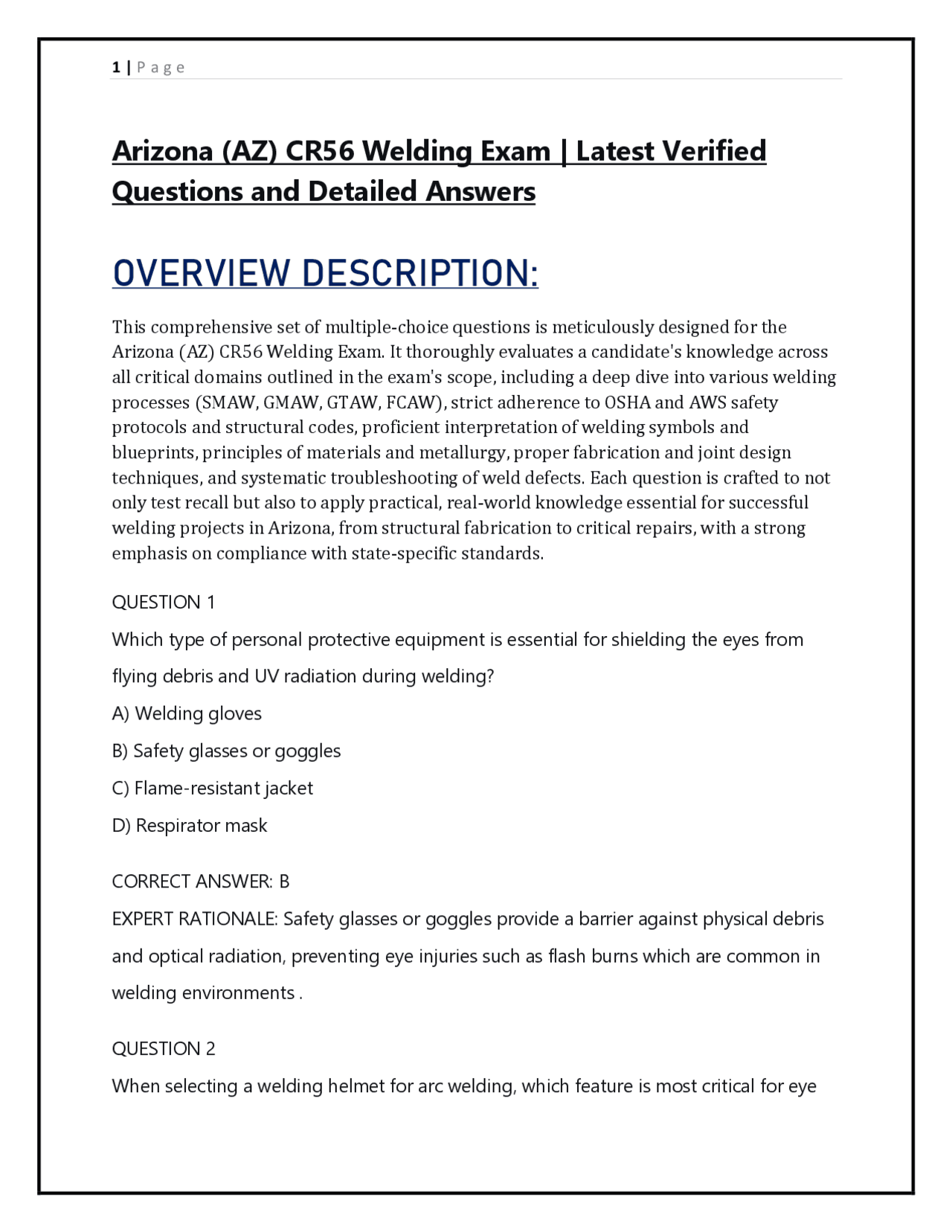

Arizona (AZ) CR56 Welding Exam | Latest Verified

Questions and Detailed Answers

OVERVIEW DESCRIPTION:

This comprehensive set of multiple-choice questions is meticulously designed for the Arizona (AZ) CR56 Welding Exam. It thoroughly evaluates a candidate's knowledge across all critical domains outlined in the exam's scope, including a deep dive into various welding processes (SMAW, GMAW, GTAW, FCAW), strict adherence to OSHA and AWS safety protocols and structural codes, proficient interpretation of welding symbols and blueprints, principles of materials and metallurgy, proper fabrication and joint design techniques, and systematic troubleshooting of weld defects. Each question is crafted to not only test recall but also to apply practical, real-world knowledge essential for successful welding projects in Arizona, from structural fabrication to critical repairs, with a strong emphasis on compliance with state-specific standards. QUESTION 1 Which type of personal protective equipment is essential for shielding the eyes from flying debris and UV radiation during welding? A) Welding gloves B) Safety glasses or goggles C) Flame-resistant jacket D) Respirator mask CORRECT ANSWER: B EXPERT RATIONALE: Safety glasses or goggles provide a barrier against physical debris and optical radiation, preventing eye injuries such as flash burns which are common in welding environments. QUESTION 2 When selecting a welding helmet for arc welding, which feature is most critical for eye

safety? A) Auto-darkening lens with appropriate shade number B) Lightweight design C) Integrated magnification lens D) Ventilation system CORRECT ANSWER: A EXPERT RATIONALE: An auto-darkening lens with the correct shade number automatically adjusts to protect the retina from the intense light and UV radiation of the arc, preventing arc eye and reducing strain. QUESTION 3 Which material is most suitable for welding gloves used in high-temperature metal arc welding? A) Cotton B) Leather C) Rubber D) Nylon CORRECT ANSWER: B EXPERT RATIONALE: Leather provides excellent heat resistance, durability, and dexterity, making it the industry standard for protecting hands from sparks, molten metal, and high heat. QUESTION 4 Which type of protective clothing is recommended to minimize the risk of burns and fire hazards during welding? A) Cotton shirt and jeans B) Flame-resistant jacket and pants

optical radiation, specifically UV and IR, which can cause permanent eye damage even with brief exposure. QUESTION 7 What is the minimum shade number recommended for most arc welding processes to protect the eyes? A) Shade 3- 5 B) Shade 5- 8 C) Shade 10- 13 D) Shade 14- 16 CORRECT ANSWER: C EXPERT RATIONALE: For general arc welding, shade numbers 10 through 13 are standard to filter the high-intensity light, with the specific number depending on the amperage and process used. QUESTION 8 Which of the following best describes the purpose of a hot work permit? A) To authorize any welding activity and ensure safety precautions are followed B) To record the duration of welding operations C) To assign work shifts to welders D) To certify the quality of welds after completion CORRECT ANSWER: A EXPERT RATIONALE: A hot work permit is a formal safety document that authorizes welding or cutting in a designated area, ensuring that fire prevention measures and hazard assessments are in place before work begins.

QUESTION 9

Which type of fire extinguisher is most suitable for electrical fires in a welding shop? A) Water-based extinguisher B) Foam extinguisher C) CO2 (carbon dioxide) extinguisher D) Dry powder extinguisher CORRECT ANSWER: C EXPERT RATIONALE: CO2 extinguishers are ideal for electrical fires because the gas is non-conductive and leaves no residue, preventing damage to sensitive equipment while safely smothering the fire. QUESTION 10 How should compressed gas cylinders be stored to ensure safety? A) Horizontally on the floor B) Vertically secured, with valve protection caps on C) Near heat sources for easy access D) In enclosed, unventilated areas CORRECT ANSWER: B EXPERT RATIONALE: Storing cylinders upright and secured prevents them from falling and damaging the valve. Valve protection caps guard against accidental rupture if the cylinder is knocked over. QUESTION 11 Which ventilation method is most effective for removing welding fumes at the source? A) General ventilation system B) Local exhaust ventilation

CORRECT ANSWER: B

EXPERT RATIONALE: Confined spaces lack natural airflow, allowing hazardous fumes and gases to accumulate rapidly, which can displace oxygen or create a toxic atmosphere leading to asphyxiation or poisoning. QUESTION 14 If a welder experiences eye pain and sensitivity to light after welding without proper eye protection, what is the most likely condition? A) Conjunctivitis B) Arc eye (flash burn) C) Retinal detachment D) Cataracts CORRECT ANSWER: B EXPERT RATIONALE: Arc eye, or photokeratitis, is essentially a sunburn of the cornea caused by UV radiation from the arc. Symptoms include pain, gritiness, and light sensitivity, typically appearing hours after exposure. QUESTION 15 Which welding process uses a non-consumable tungsten electrode and separate filler metal? A) SMAW B) GMAW C) GTAW (TIG) D) FCAW CORRECT ANSWER: C EXPERT RATIONALE: GTAW (Gas Tungsten Arc Welding) uses a tungsten electrode to

sustain the arc, which does not melt into the weld. Filler metal, if required, is added separately by the welder. QUESTION 16 In GMAW, what is the primary purpose of shielding gas? A) To cool the weld area B) To protect the molten weld pool from atmospheric contamination C) To increase arc stability D) To remove impurities from the base metal CORRECT ANSWER: B EXPERT RATIONALE: The shielding gas creates a protective atmosphere around the arc and molten pool, displacing oxygen and nitrogen which would otherwise cause porosity and embrittlement in the weld. QUESTION 17 Which transfer mode in GMAW involves the wire melting and transferring to the weld pool in small, short bursts, often producing spatter? A) Short-circuit transfer B) Globular transfer C) Spray transfer D) Pulsed spray transfer CORRECT ANSWER: A EXPERT RATIONALE: In short-circuit transfer, the wire physically touches the pool hundreds of times per second. This "dip" transfer causes momentary high current and small explosions that can create spatter.

B) DC reverse polarity (DC+) C) DC straight polarity (DC-) D) AC or DC CORRECT ANSWER: B EXPERT RATIONALE: The last digit "0" in the AWS classification indicates the coating type, and for E6010, it specifically requires direct current electrode positive (DCEP or DC+) for deep penetration and a digging arc. QUESTION 21 The "60" in an E6018 electrode classification represents what property? A) The tensile strength in 1000 psi (60,000 psi) B) The yield strength in ksi (60 ksi) C) The operating amperage (60 amps) D) The electrode diameter (1/16th of an inch) CORRECT ANSWER: A EXPERT RATIONALE: In the AWS classification system, the first two or three digits indicate the minimum tensile strength of the deposited weld metal in thousands of pounds per square inch (ksi). QUESTION 22 What is the primary difference between FCAW-G and FCAW-S? A) The type of flux core used (gas vs. slag) B) The requirement for an external shielding gas C) The polarity required for operation D) The position in which they can be used

CORRECT ANSWER: B

EXPERT RATIONALE: FCAW-G (Gas-Shielded) requires an external shielding gas like CO or a mix, while FCAW-S (Self-Shielded) generates its own protection from the flux core, making it suitable for outdoor windy conditions. QUESTION 23 In oxy-acetylene welding, what does a neutral flame indicate? A) Excess oxygen is present B) Excess acetylene is present C) A perfect balance of oxygen and acetylene D) The flame is too cold to weld CORRECT ANSWER: C EXPERT RATIONALE: A neutral flame has a 1:1 ratio of oxygen to acetylene, resulting in a clearly defined inner cone and no chemical effect on the molten metal, making it ideal for most welding applications. QUESTION 24 During oxy-fuel cutting, what is the function of the preheat flames? A) To melt the metal, which is then blown away B) To heat the steel to its ignition temperature C) To pre-cool the metal for a cleaner cut D) To provide filler metal to the cut edge CORRECT ANSWER: B EXPERT RATIONALE: The preheat flames raise the temperature of the steel to approximately 1600-1800°F (bright red), at which point it will readily oxidize or burn when the high-pressure oxygen jet is applied.

C) Aluminum D) Stainless steel CORRECT ANSWER: C EXPERT RATIONALE: Non-ferrous metals contain no significant amount of iron as a base element. Aluminum, copper, brass, and titanium are primary examples. QUESTION 28 What is the definition of "toughness" in a metal? A) The ability to resist scratching B) The ability to absorb energy and deform plastically before fracturing C) The hardness of the material D) The melting point of the material CORRECT ANSWER: B EXPERT RATIONALE: Toughness represents the material's resistance to fracture when stressed, specifically the total area under the stress-strain curve, indicating how much energy it can absorb before breaking. QUESTION 29 Which type of heat treatment involves heating and then slowly cooling a metal to increase ductility and relieve internal stresses? A) Quenching B) Annealing C) Normalizing D) Tempering CORRECT ANSWER: B EXPERT RATIONALE: Annealing consists of heating the metal to a specific temperature

and cooling it very slowly, usually in the furnace. This process softens the metal, making it more ductile and workable. QUESTION 30 What is the main purpose of a welding electrode coating? A) To provide electrical conductivity B) To stabilize the arc and protect the molten weld pool from contamination C) To increase the melting point of the electrode D) To cool the weld quickly CORRECT ANSWER: B EXPERT RATIONALE: The flux coating decomposes during welding to produce shielding gases and a slag blanket, which protect the molten metal from atmospheric oxygen and nitrogen, while also stabilizing the arc. QUESTION 31 Which type of joint is most suitable for welding thin materials with minimal heat distortion? A) Butt joint B) Corner joint C) T-joint D) Lap joint CORRECT ANSWER: A EXPERT RATIONALE: Butt joints involve welding two pieces in the same plane, which typically allows for efficient heat transfer and requires less filler metal than other joints, reducing overall heat input and distortion.

C) It increases the cooling rate of the weld D) It eliminates the need for a welding symbol CORRECT ANSWER: B EXPERT RATIONALE: A backing strip provides a surface to contain the molten weld metal, ensuring complete fusion at the root of the joint even if fit-up is less than perfect, though it may create a stress concentration point. QUESTION 35 Which NDT method uses a magnet and iron powder to detect surface and near-surface discontinuities in ferromagnetic materials? A) Dye Penetrant Testing (PT) B) Magnetic Particle Testing (MT) C) Ultrasonic Testing (UT) D) Radiographic Testing (RT) CORRECT ANSWER: B EXPERT RATIONALE: MT works by inducing a magnetic field in the part; discontinuities perpendicular to the field cause flux leakage, which attracts the applied iron particles, forming a visible indication. QUESTION 36 In blueprint reading, what does the arrow on a welding symbol typically connect? A) The tail of the symbol to the reference line B) The reference line to the joint location C) The weld symbol to the bill of materials D) The finish symbol to the root opening

CORRECT ANSWER: B

EXPERT RATIONALE: The arrow is the key component that points directly to the joint where the weld is to be made, connecting the symbolic instructions on the reference line to the physical location on the drawing. QUESTION 37 What does the letter "G" in a welding symbol's finish notation typically indicate? A) Grinding B) Gas welding C) Groove weld D) Gauge CORRECT ANSWER: A EXPERT RATIONALE: The finish symbol indicates the method used to contour the weld face, and "G" is the standard designation for finishing by grinding. QUESTION 38 In ultrasonic testing (UT), what does a "gate" monitor? A) The temperature of the probe B) A specific segment of the signal for reflectors C) The voltage output of the pulser D) The couplant thickness CORRECT ANSWER: B EXPERT RATIONALE: The gate is an electronic window set by the technician. It monitors the returning echoes within a specific depth range and triggers an alarm or measurement when a discontinuity (reflection) enters that zone.

C) Excessive penetration through the back of the joint D) The appearance of the weld ripples CORRECT ANSWER: B EXPERT RATIONALE: Lack of fusion occurs when the molten filler metal does not properly coalesce with the solid base metal or a previous bead, often due to low heat, contamination, or improper technique. QUESTION 42 What is the most common cause of "slag inclusion" in multipass SMAW or FCAW welds? A) Using too high amperage B) Failure to completely remove slag from previous passes C) Travel speed too fast D) Incorrect storage of electrodes CORRECT ANSWER: B EXPERT RATIONALE: In multipass welding, if the slag from the previous pass is not thoroughly chipped and brushed away, it becomes trapped when the next pass is deposited, creating an inclusion. QUESTION 43 Which welding defect is considered the most dangerous because it can propagate under stress and cause sudden failure? A) Porosity B) Slag inclusion C) A crack D) Undercut

CORRECT ANSWER: C

EXPERT RATIONALE: Cracks have a sharp tip that acts as a severe stress concentrator. Under load, this tip can propagate rapidly through the material, leading to catastrophic, often instantaneous, failure. QUESTION 44 A "crater crack" typically forms due to: A) Excessive preheat B) Abrupt termination of the weld arc C) Contaminated base metal D) Incorrect shielding gas flow CORRECT ANSWER: B EXPERT RATIONALE: Crater cracks are star-shaped cracks that form in the weld crater when the arc is snapped out too quickly. The rapid solidification and shrinkage, combined with no filler metal to fill the depression, creates stress that tears the metal. QUESTION 45 What is the primary cause of hydrogen-induced cracking (cold cracking)? A) Excessive sulfur in the base metal B) A combination of hydrogen, stress, and a susceptible microstructure C) Voltage set too high D) Contaminated shielding gas CORRECT ANSWER: B EXPERT RATIONALE: Cold cracking requires three factors: diffusible hydrogen (from moisture), tensile stress (from restraint and cooling), and a hard, brittle microstructure (martensite) in the HAZ. Remove any one, and cracking is prevented.
