EE,
Bahria University, Islamabad
Electronic Circuit Design (EEN-225) Assignment-1(CLO-1)
Instructor: Engr. Shahab Shahid Khawaja Class: BEE-4A
Name: _________________________ Enrolment: ___________________________

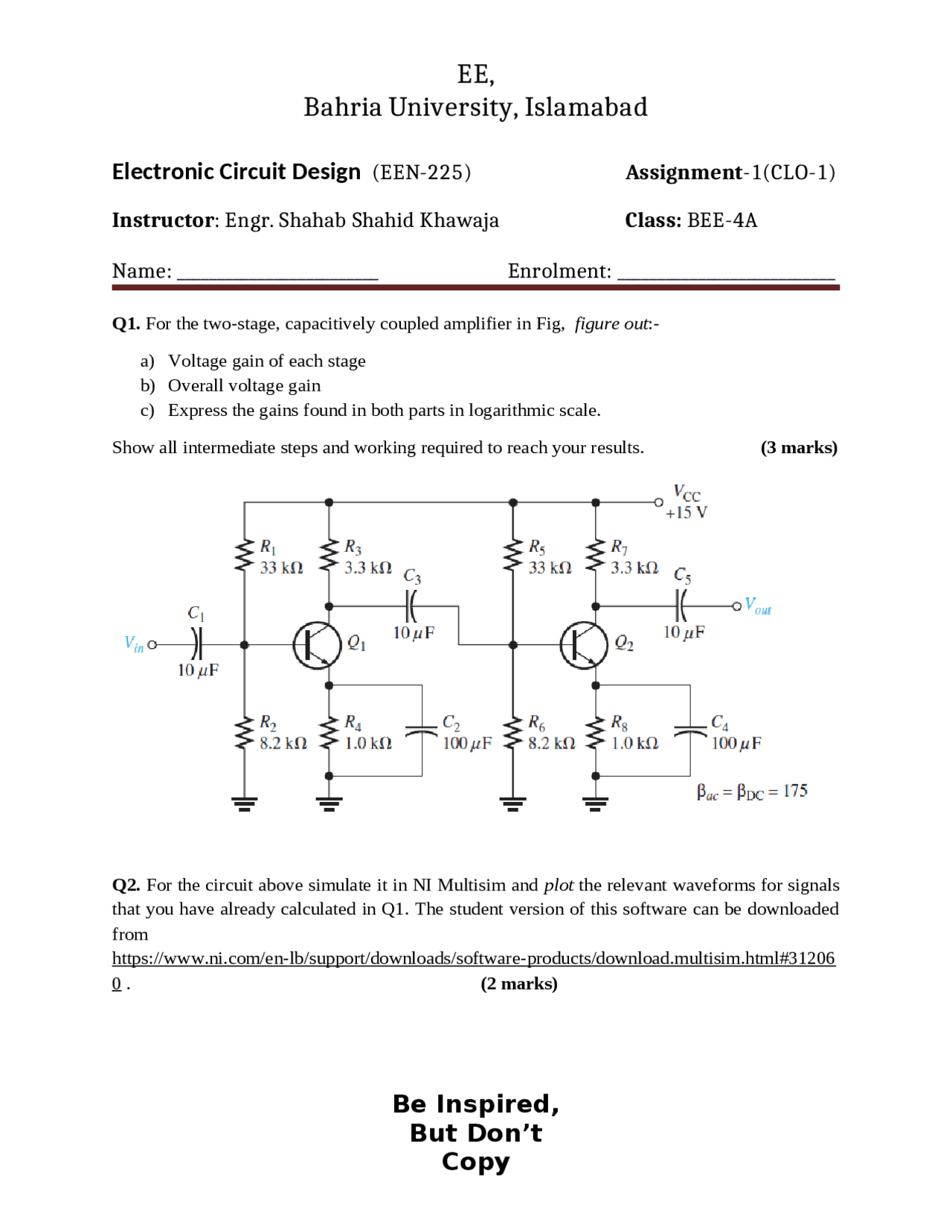

Q1. For the two-stage, capacitively coupled amplifier in Fig, figure out:-
a) Voltage gain of each stage
b) Overall voltage gain
c) Express the gains found in both parts in logarithmic scale.
Show all intermediate steps and working required to reach your results. (3 marks)
Q2. For the circuit above simulate it in NI Multisim and plot the relevant waveforms for signals
that you have already calculated in Q1. The student version of this software can be downloaded
from
https://www.ni.com/en-lb/support/downloads/software-products/download.multisim.html#31206
0 . (2 marks)
Be Inspired,
But Don’t
Copy
