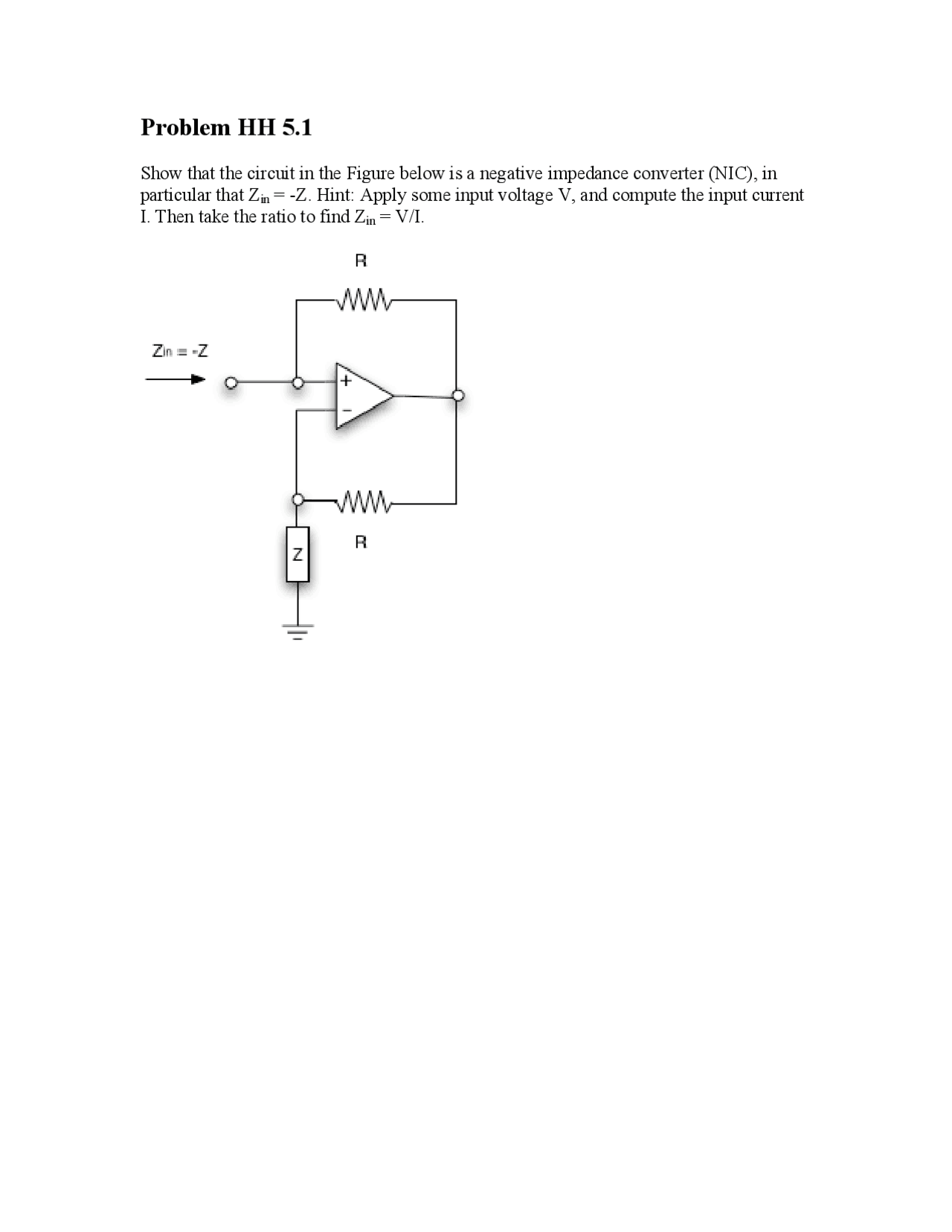

Problem HH 5.1
Show that the circuit in the Figure below is a negative impedance converter (NIC), in
particular that Zin = -Z. Hint: Apply some input voltage V, and compute the input current
