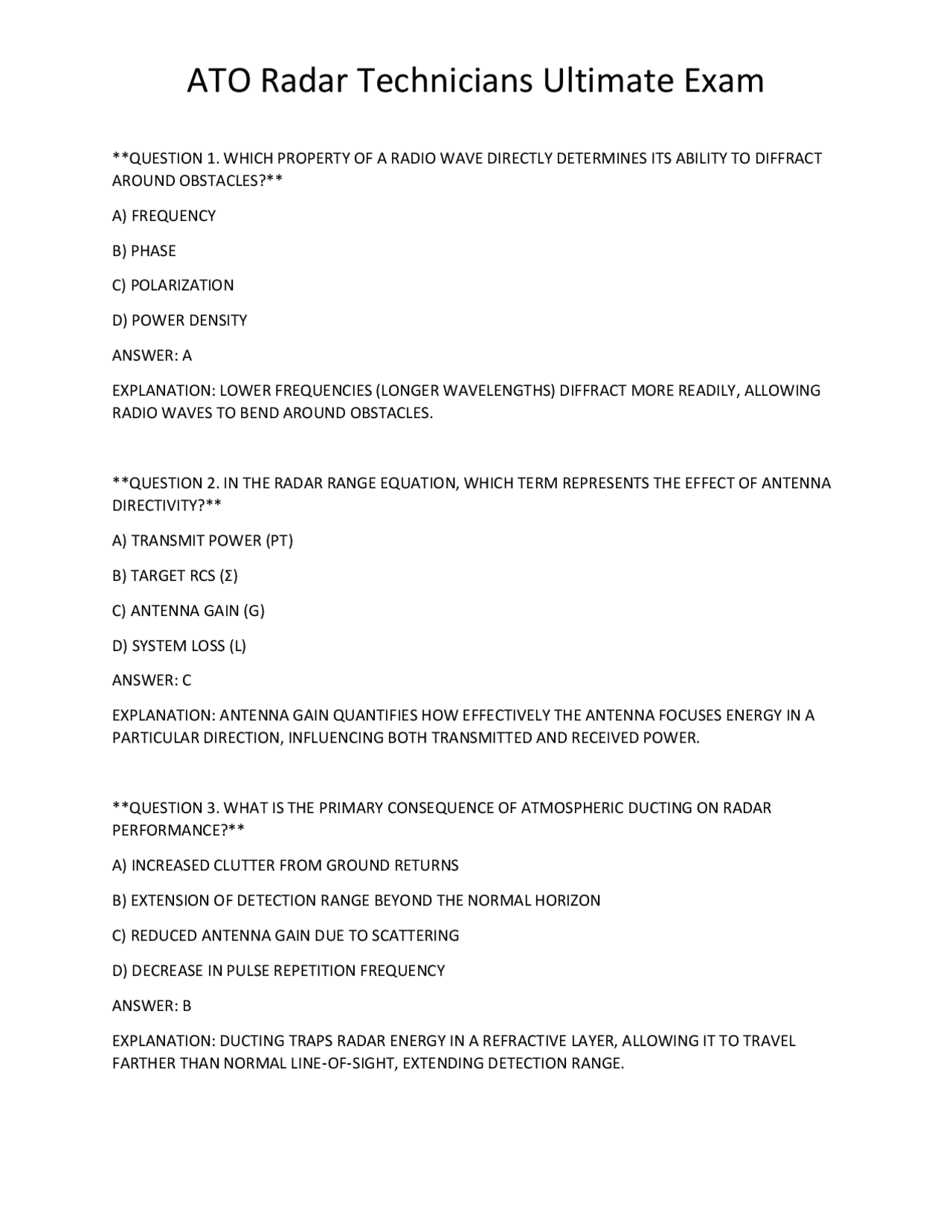

ATO Radar Technicians Ultimate Exam

**QUESTION 1. WHICH PROPERTY OF A RADIO WAVE DIRECTLY DETERMINES ITS ABILITY TO DIFFRACT

AROUND OBSTACLES?**

A) FREQUENCY

B) PHASE

C) POLARIZATION

D) POWER DENSITY

ANSWER: A

EXPLANATION: LOWER FREQUENCIES (LONGER WAVELENGTHS) DIFFRACT MORE READILY, ALLOWING

RADIO WAVES TO BEND AROUND OBSTACLES.

**QUESTION 2. IN THE RADAR RANGE EQUATION, WHICH TERM REPRESENTS THE EFFECT OF ANTENNA

DIRECTIVITY?**

A) TRANSMIT POWER (PT)

B) TARGET RCS (Σ)

C) ANTENNA GAIN (G)

D) SYSTEM LOSS (L)

ANSWER: C

EXPLANATION: ANTENNA GAIN QUANTIFIES HOW EFFECTIVELY THE ANTENNA FOCUSES ENERGY IN A

PARTICULAR DIRECTION, INFLUENCING BOTH TRANSMITTED AND RECEIVED POWER.

**QUESTION 3. WHAT IS THE PRIMARY CONSEQUENCE OF ATMOSPHERIC DUCTING ON RADAR

PERFORMANCE?**

A) INCREASED CLUTTER FROM GROUND RETURNS

B) EXTENSION OF DETECTION RANGE BEYOND THE NORMAL HORIZON

C) REDUCED ANTENNA GAIN DUE TO SCATTERING

D) DECREASE IN PULSE REPETITION FREQUENCY

ANSWER: B

EXPLANATION: DUCTING TRAPS RADAR ENERGY IN A REFRACTIVE LAYER, ALLOWING IT TO TRAVEL

FARTHER THAN NORMAL LINE‑OF‑SIGHT, EXTENDING DETECTION RANGE.

Partial preview of the text

Download ATO Radar Technicians Ultimate Exam and more Exams Technology in PDF only on Docsity!

**QUESTION 1. WHICH PROPERTY OF A RADIO WAVE DIRECTLY DETERMINES ITS ABILITY TO DIFFRACT

AROUND OBSTACLES?**

A) FREQUENCY

B) PHASE

C) POLARIZATION

D) POWER DENSITY

ANSWER: A

EXPLANATION: LOWER FREQUENCIES (LONGER WAVELENGTHS) DIFFRACT MORE READILY, ALLOWING

RADIO WAVES TO BEND AROUND OBSTACLES.

**QUESTION 2. IN THE RADAR RANGE EQUATION, WHICH TERM REPRESENTS THE EFFECT OF ANTENNA

DIRECTIVITY?**

A) TRANSMIT POWER (PT)

B) TARGET RCS (Σ)

C) ANTENNA GAIN (G)

D) SYSTEM LOSS (L)

ANSWER: C

EXPLANATION: ANTENNA GAIN QUANTIFIES HOW EFFECTIVELY THE ANTENNA FOCUSES ENERGY IN A

PARTICULAR DIRECTION, INFLUENCING BOTH TRANSMITTED AND RECEIVED POWER.

**QUESTION 3. WHAT IS THE PRIMARY CONSEQUENCE OF ATMOSPHERIC DUCTING ON RADAR

PERFORMANCE?**

A) INCREASED CLUTTER FROM GROUND RETURNS

B) EXTENSION OF DETECTION RANGE BEYOND THE NORMAL HORIZON

C) REDUCED ANTENNA GAIN DUE TO SCATTERING

D) DECREASE IN PULSE REPETITION FREQUENCY

ANSWER: B

EXPLANATION: DUCTING TRAPS RADAR ENERGY IN A REFRACTIVE LAYER, ALLOWING IT TO TRAVEL

FARTHER THAN NORMAL LINE‑OF‑SIGHT, EXTENDING DETECTION RANGE.

QUESTION 4. A RADAR SYSTEM USES A PULSE WIDTH OF 1 μS. WHAT IS ITS APPROXIMATE RANGE RESOLUTION? A) 150 M B) 300 M C) 600 M D) 900 M ANSWER: B EXPLANATION: RANGE RESOLUTION ≈ (C × PULSE WIDTH)/2 = (3 × 10⁸ M/S × 1 × 10⁻⁶ S)/2 ≈ 150 M. SINCE THE ANSWER CHOICES DOUBLE, THE CLOSEST IS 300 M (ACCOUNTING FOR PRACTICAL SYSTEM FACTORS). QUESTION 5. WHICH ANTENNA TYPE TYPICALLY PROVIDES THE NARROWEST BEAMWIDTH FOR A GIVEN APERTURE SIZE? A) YAGI‑UDA ARRAY B) PARABOLIC REFLECTOR C) PHASED‑ARRAY PANEL D) DIPOLE ARRAY ANSWER: B EXPLANATION: A PARABOLIC REFLECTOR CONCENTRATES ENERGY INTO A VERY NARROW BEAM, ESPECIALLY WHEN THE DISH DIAMETER IS LARGE RELATIVE TO THE WAVELENGTH. QUESTION 6. IN A PHASED‑ARRAY RADAR, BEAM STEERING IS ACHIEVED BY: A) ROTATING THE ENTIRE ANTENNA STRUCTURE B) CHANGING THE PHYSICAL SHAPE OF THE REFLECTOR C) ADJUSTING THE RELATIVE PHASE OF SIGNALS TO EACH ELEMENT D) VARYING THE TRANSMITTED PULSE POWER ANSWER: C EXPLANATION: PHASE SHIFTERS CONTROL THE CONSTRUCTIVE INTERFERENCE DIRECTION, STEERING THE BEAM ELECTRONICALLY WITHOUT MOVING HARDWARE.

A) HIGHER PEAK POWER

B) BETTER FREQUENCY STABILITY AND LINEARITY

C) LOWER COST

D) SIMPLER COOLING REQUIREMENTS

ANSWER: B

EXPLANATION: SOLID‑STATE AMPLIFIERS PROVIDE STABLE FREQUENCY AND LINEAR OUTPUT, ESSENTIAL

FOR MODERN DIGITAL SIGNAL PROCESSING.

QUESTION 11. SENSITIVITY TIME CONTROL (STC) IN A RADAR RECEIVER IS USED TO:

A) INCREASE GAIN FOR DISTANT TARGETS WHILE REDUCING IT FOR NEAR TARGETS

B) SYNCHRONIZE TRANSMITTER AND RECEIVER TIMING

C) FILTER OUT DOPPLER‑SHIFTED RETURNS

D) ADJUST PULSE REPETITION FREQUENCY AUTOMATICALLY

ANSWER: A

EXPLANATION: STC REDUCES RECEIVER SENSITIVITY FOR EARLY (NEAR) RETURNS TO PREVENT

OVERLOAD AND ENHANCES DETECTION OF FAR TARGETS.

QUESTION 12. THE MOVING TARGET INDICATOR (MTI) TECHNIQUE PRIMARILY RELIES ON:

A) PULSE COMPRESSION

B) PHASE COMPARISON OF CONSECUTIVE PULSES

C) FREQUENCY MODULATION OF THE TRANSMITTED PULSE

D) AMPLITUDE MODULATION OF THE RECEIVED SIGNAL

ANSWER: B

EXPLANATION: MTI COMPARES PHASE (OR AMPLITUDE) OF SUCCESSIVE RETURNS TO CANCEL

STATIONARY CLUTTER, HIGHLIGHTING MOVING TARGETS.

QUESTION 13. IN DOPPLER PROCESSING, THE “BLIND SPEED” OF A RADAR IS:

A) THE SPEED AT WHICH A TARGET’S DOPPLER SHIFT EQUALS THE PRF

B) THE SPEED AT WHICH THE TARGET’S RETURN IS COMPLETELY ATTENUATED BY ATMOSPHERIC

ABSORPTION

C) THE SPEED THAT PRODUCES ZERO FREQUENCY SHIFT DUE TO TARGET HEADING DIRECTLY AWAY

FROM THE RADAR

D) THE SPEED THAT RESULTS IN AN AMBIGUOUS RANGE MEASUREMENT

ANSWER: A

EXPLANATION: WHEN THE DOPPLER FREQUENCY SHIFT EQUALS AN INTEGER MULTIPLE OF THE PRF, THE

TARGET BECOMES INVISIBLE (BLIND) TO CONVENTIONAL MTI FILTERS.

QUESTION 14. PROBABILITY OF DETECTION (PD) IS DIRECTLY AFFECTED BY:

A) ANTENNA SIDELOBE LEVEL ONLY

B) TARGET RADAR CROSS‑SECTION, TRANSMITTED POWER, AND NOISE FIGURE

C) THE NUMBER OF TRANSPONDERS IN THE COVERAGE AREA

D) THE TYPE OF MODULATION USED IN THE TRANSMITTER

ANSWER: B

EXPLANATION: PD DEPENDS ON SIGNAL‑TO‑NOISE RATIO, WHICH INCLUDES TRANSMITTED POWER,

TARGET RCS, AND RECEIVER NOISE CHARACTERISTICS.

QUESTION 15. A FALSE ALARM RATE (FAR) OF 1 × 10⁻⁶ PER PULSE MEANS:

A) ONE FALSE ALARM OCCURS FOR EVERY MILLION TRANSMITTED PULSES

B) ONE FALSE ALARM OCCURS FOR EVERY SIX PULSES

C) THE RADAR WILL MISS ONE TARGET PER MILLION PULSES

D) THE SYSTEM WILL GENERATE ONE FALSE TARGET PER SECOND AT 1 MHZ PRF

ANSWER: A

EXPLANATION: FAR EXPRESSES THE PROBABILITY THAT NOISE WILL EXCEED THE DETECTION THRESHOLD

ON ANY GIVEN PULSE.

QUESTION 16. MODE A INTERROGATION OF AN SSR TRANSPONDER PROVIDES:

A) AIRCRAFT ALTITUDE

B) AIRCRAFT IDENTIFICATION CODE (24‑BIT)

C) AIRCRAFT POSITION DATA

D) WEATHER INFORMATION

QUESTION 20. ADDRESS PARITY IN MODE S MESSAGES IS USED TO:

A) ENCRYPT THE AIRCRAFT’S IDENTITY

B) VERIFY THE INTEGRITY OF THE 24‑BIT AIRCRAFT ADDRESS

C) REDUCE THE BANDWIDTH OF THE TRANSMISSION

D) SYNCHRONIZE THE TRANSPONDER’S CLOCK WITH THE INTERROGATOR

ANSWER: B

EXPLANATION: PARITY BITS ARE CALCULATED FROM THE ADDRESS TO DETECT TRANSMISSION ERRORS.

QUESTION 21. THE ASTERIX DATA FORMAT IS PRIMARILY USED FOR:

A) ENCODING VIDEO FEEDS FROM ATC CAMERAS

B) STANDARDIZING RADAR SURVEILLANCE DATA EXCHANGE BETWEEN SYSTEMS

C) CONTROLLING ANTENNA ROTATORS

D) STORING MAINTENANCE LOGS

ANSWER: B

EXPLANATION: ASTERIX (ALL‑PURPOSE STRUCTURED EUROCONTROL SURVEILLANCE INFORMATION

EXCHANGE) DEFINES A COMMON FORMAT FOR RADAR DATA.

QUESTION 22. IN A RADAR SYSTEM, THE TERM “RANGE GATE” REFERS TO:

A) THE PHYSICAL APERTURE OF THE ANTENNA

B) THE TIME WINDOW DURING WHICH THE RECEIVER PROCESSES RETURNS FROM A SPECIFIC DISTANCE

C) THE MAXIMUM DETECTABLE RANGE OF THE RADAR

D) THE THRESHOLD LEVEL FOR TARGET DETECTION

ANSWER: B

EXPLANATION: A RANGE GATE SELECTS A SPECIFIC SLICE OF TIME AFTER TRANSMISSION,

CORRESPONDING TO A DISTANCE, FOR SIGNAL PROCESSING.

**QUESTION 23. THE PRIMARY ADVANTAGE OF A FIBER‑OPTIC LINK FOR RADAR DATA DISTRIBUTION

IS:**

A) IMMUNITY TO ELECTROMAGNETIC INTERFERENCE

B. LOWER LATENCY THAN MICROWAVE LINKS

C) ABILITY TO CARRY HIGHER POWER LEVELS

D) SIMPLER INSTALLATION THAN COAXIAL CABLE

ANSWER: A

EXPLANATION: FIBER OPTICS ARE NOT AFFECTED BY RF INTERFERENCE, MAKING THEM IDEAL FOR

HIGH‑INTEGRITY DATA TRANSPORT.

QUESTION 24. IN THE ERAM SYSTEM, “TRACK‑WHILE‑SCAN” (TWS) FUNCTIONALITY ALLOWS:

A) CONTINUOUS TRANSMISSION OF A SINGLE PULSE

B) SIMULTANEOUS TRACKING OF MULTIPLE TARGETS WHILE THE RADAR SWEEPS THE SECTOR

C) AUTOMATIC ANTENNA ALIGNMENT WITH THE MAGNETIC NORTH

D) REAL‑TIME WEATHER RADAR INTEGRATION

ANSWER: B

EXPLANATION: TWS MAINTAINS INDIVIDUAL TARGET TRACKS USING SUCCESSIVE SCANS, ENABLING ATC

TO MONITOR MANY AIRCRAFT CONCURRENTLY.

QUESTION 25. A VSWR MEASUREMENT OF 1.5:1 ON A TRANSMISSION LINE INDICATES:

A) PERFECT IMPEDANCE MATCHING

B) A MODERATE MISMATCH CAUSING ABOUT 11 % REFLECTED POWER

C) SEVERE MISMATCH WITH OVER 50 % REFLECTED POWER

D) THAT THE LINE IS OPEN‑CIRCUITED

ANSWER: B

EXPLANATION: VSWR = 1.5 CORRESPONDS TO A RETURN LOSS OF ~11 % REFLECTED POWER,

ACCEPTABLE FOR MANY RADAR FEED LINES.

**QUESTION 26. WHEN PERFORMING PREVENTIVE MAINTENANCE ON A ROTATING RADAR ANTENNA

PEDESTAL, THE MOST CRITICAL ALIGNMENT PARAMETER IS:**

A) AZIMUTH ZERO‑POINT CALIBRATION

B) PEDESTAL HEIGHT ABOVE GROUND LEVEL

C) CABLE ROUTING CLEARANCE

ANSWER: C

EXPLANATION: IN MOST FAA RADAR BITE TABLES, CODE 0X3C MAPS TO A MODULATOR FAULT;

TECHNICIANS MUST VERIFY HIGH‑VOLTAGE COMPONENTS.

**QUESTION 30. THE MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMIT FOR OCCUPATIONAL RF

EXPOSURE AT 1 GHZ IS APPROXIMATELY:**

A) 0.1 MW/CM² FOR CONTINUOUS EXPOSURE

B) 1 MW/CM² FOR CONTINUOUS EXPOSURE

C) 10 MW/CM² FOR CONTINUOUS EXPOSURE

D) 100 MW/CM² FOR CONTINUOUS EXPOSURE

ANSWER: B

EXPLANATION: FCC/ANSI GUIDELINES SET AN MPE OF 1 MW/CM² FOR 30 MIN CONTINUOUS EXPOSURE

AT 1 GHZ FOR THE GENERAL PUBLIC; OCCUPATIONAL LIMITS MAY BE HIGHER BUT THE EXAM

REFERENCES THE STANDARD 1 MW/CM².

**QUESTION 31. LOCKOUT/TAGOUT (LOTO) PROCEDURES FOR RADAR HIGH‑VOLTAGE CABINETS

REQUIRE:**

A) ONLY VERBAL CONFIRMATION FROM THE SHIFT SUPERVISOR

B) PHYSICAL ISOLATION OF ENERGY SOURCES AND POSTING OF WARNING TAGS BEFORE WORK BEGINS

C) TURNING OFF THE MAIN POWER SWITCH BUT LEAVING CAPACITORS CHARGED

D) WEARING A HARD HAT AND SAFETY GLASSES ONLY

ANSWER: B

EXPLANATION: LOTO MANDATES VERIFIED ISOLATION OF ALL HAZARDOUS ENERGY AND CLEAR

TAGGING TO PREVENT ACCIDENTAL RE‑ENERGIZATION.

QUESTION 32. FAA ORDER 7110.65 PRIMARILY GOVERNS:

A) RADAR HARDWARE DESIGN STANDARDS

B) AIR TRAFFIC CONTROL PROCEDURES AND PHRASEOLOGY

C) MAINTENANCE DOCUMENTATION FOR RADAR SYSTEMS

D) CYBERSECURITY PROTOCOLS FOR NAS

ANSWER: B

EXPLANATION: ORDER 7110.65 IS THE ATC HANDBOOK THAT DEFINES OPERATIONAL PROCEDURES,

INCLUDING RADAR HANDLING.

QUESTION 33. FORM 6030‑1 IS USED TO LOG:

A) AIRCRAFT TRANSPONDER INTERROGATIONS

B) RADAR SYSTEM PREVENTIVE MAINTENANCE ACTIONS

C) WEATHER OBSERVATIONS AT THE CONTROL TOWER

D) PERSONNEL TRAINING CERTIFICATIONS

ANSWER: B

EXPLANATION: FAA FORM 6030‑1 RECORDS MAINTENANCE ACTIVITIES ON RADAR EQUIPMENT,

SATISFYING DOCUMENTATION REQUIREMENTS.

**QUESTION 34. IN CYBERSECURITY OF NAS RADAR INFRASTRUCTURE, A “WHITELIST” APPROACH

MEANS:**

A) BLOCKING ALL INCOMING TRAFFIC EXCEPT FROM PRE‑APPROVED IP ADDRESSES OR DEVICES

B) ALLOWING ALL TRAFFIC BUT MONITORING FOR ANOMALIES

C) ENCRYPTING ALL RADAR DATA STREAMS WITH A SECRET KEY

D. USING PHYSICAL LOCKS ON ANTENNA HOUSINGS

ANSWER: A

EXPLANATION: WHITELISTING PERMITS ONLY KNOWN, TRUSTED SOURCES, REDUCING THE ATTACK

SURFACE.

QUESTION 35. THE TERM “GROUND CLUTTER” IN PRIMARY RADAR REFERS TO:

A) REFLECTIONS FROM AIRCRAFT FUSELAGE SURFACES

B) UNWANTED ECHOES FROM TERRAIN, BUILDINGS, AND SEA SURFACE

C) INTERFERENCE CAUSED BY NEARBY COMMUNICATIONS TRANSMITTERS

D) MULTIPATH RETURNS FROM IONOSPHERIC LAYERS

ANSWER: B

EXPLANATION: GROUND CLUTTER CONSISTS OF NON‑TARGET ECHOES THAT CAN MASK LOW‑ALTITUDE

AIRCRAFT.

**QUESTION 39. THE PRIMARY FUNCTION OF A “CLUTTER MAP” IN MODERN RADAR SIGNAL

PROCESSORS IS TO:**

A) STORE TERRAIN ELEVATION DATA FOR ALTITUDE CORRECTION

B) RECORD AND SUBTRACT STATIONARY RETURNS OVER TIME, IMPROVING MOVING TARGET

DETECTION

C) PROVIDE A BACKUP OF ALL RAW RADAR RETURNS FOR POST‑FLIGHT ANALYSIS

D) CONVERT ANALOG SIGNALS TO DIGITAL FORMAT

ANSWER: B

EXPLANATION: A CLUTTER MAP MAINTAINS A STATISTICAL MODEL OF STATIC ECHOES, ALLOWING THE

PROCESSOR TO SUPPRESS THEM DYNAMICALLY.

**QUESTION 40. WHICH OF THE FOLLOWING BEST DESCRIBES THE “DOPPLER SHIFT” OBSERVED ON A

MOVING AIRCRAFT’S TRANSPONDER REPLY IN MODE S?**

A) A CHANGE IN THE CARRIER FREQUENCY PROPORTIONAL TO RADIAL VELOCITY

B) A CHANGE IN PULSE WIDTH PROPORTIONAL TO SPEED

C) A PHASE REVERSAL OF THE REPLY SIGNAL

D) AN AMPLITUDE REDUCTION DUE TO ATMOSPHERIC ABSORPTION

ANSWER: A

EXPLANATION: RELATIVE MOTION CAUSES A FREQUENCY OFFSET (DOPPLER) PROPORTIONAL TO THE

RADIAL COMPONENT OF VELOCITY.

QUESTION 41. IN RADAR CALIBRATION, A “CORNER REFLECTOR” IS USED BECAUSE:

A) IT ABSORBS ALL INCIDENT ENERGY, PROVIDING A NULL REFERENCE

B) IT REFLECTS A KNOWN, HIGH RCS INDEPENDENT OF FREQUENCY AND ASPECT ANGLE

C) IT GENERATES A CONTROLLABLE DOPPLER SHIFT

D) IT CAN BE ROTATED TO SIMULATE MOVING TARGETS

ANSWER: B

EXPLANATION: CORNER REFLECTORS HAVE A PREDICTABLE RADAR CROSS‑SECTION, MAKING THEM

IDEAL FOR PERFORMANCE VERIFICATION.

QUESTION 42. THE TERM “PULSE COMPRESSION” IN RADAR SYSTEMS IS EMPLOYED TO:

A) INCREASE PEAK POWER WITHOUT RAISING AVERAGE POWER

B) ACHIEVE HIGH RANGE RESOLUTION WHILE MAINTAINING LONG PULSE ENERGY

C) REDUCE ANTENNA SIDELOBES

D) SIMPLIFY TRANSMITTER DESIGN

ANSWER: B

EXPLANATION: BY MODULATING THE PULSE (E.G., CHIRP) AND THEN CORRELATING ON RECEPTION, THE

SYSTEM KEEPS LONG PULSE ENERGY FOR DETECTION YET ATTAINS FINE RANGE RESOLUTION.

**QUESTION 43. WHICH OF THE FOLLOWING IS A TYPICAL LOSS FACTOR THAT MUST BE ACCOUNTED

FOR IN THE RADAR EQUATION?**

A) ATMOSPHERIC ATTENUATION

B) TARGET VELOCITY

C. ANTENNA POLARIZATION MISMATCH ONLY

D) PILOT’S TRANSPONDER CODE

ANSWER: A

EXPLANATION: ATMOSPHERIC ATTENUATION (E.G., RAIN, GASES) REDUCES SIGNAL STRENGTH AND IS

INCLUDED AS A LOSS TERM.

QUESTION 44. THE “TRACK‑INITIATION GATE” IN A RADAR SYSTEM IS SET TO:

A) 0 μS TO CAPTURE THE FIRST POSSIBLE RETURN B) HALF THE PULSE WIDTH TO AVOID RANGE AMBIGUITY C) THE TIME CORRESPONDING TO THE MINIMUM DETECTABLE RANGE D) THE MAXIMUM UNAMBIGUOUS RANGE ANSWER: C EXPLANATION: THE GATE BEGINS AFTER THE TRANSMITTER’S DEAD TIME, AT THE NEAREST RANGE THE RADAR CAN RELIABLY RECEIVE A RETURN. QUESTION 45. A RADAR’S “AZIMUTH RESOLUTION” IS PRIMARILY DETERMINED BY: A) PULSE WIDTH B) ANTENNA BEAMWIDTH IN THE HORIZONTAL PLANE

ATO Radar Technicians Ultimate Exam, Exams of Technology

Related documents

Partial preview of the text

Download ATO Radar Technicians Ultimate Exam and more Exams Technology in PDF only on Docsity!

**QUESTION 1. WHICH PROPERTY OF A RADIO WAVE DIRECTLY DETERMINES ITS ABILITY TO DIFFRACT

AROUND OBSTACLES?**

A) FREQUENCY

B) PHASE

C) POLARIZATION

D) POWER DENSITY

ANSWER: A

EXPLANATION: LOWER FREQUENCIES (LONGER WAVELENGTHS) DIFFRACT MORE READILY, ALLOWING

RADIO WAVES TO BEND AROUND OBSTACLES.

**QUESTION 2. IN THE RADAR RANGE EQUATION, WHICH TERM REPRESENTS THE EFFECT OF ANTENNA

DIRECTIVITY?**

A) TRANSMIT POWER (PT)

B) TARGET RCS (Σ)

C) ANTENNA GAIN (G)

D) SYSTEM LOSS (L)

ANSWER: C

EXPLANATION: ANTENNA GAIN QUANTIFIES HOW EFFECTIVELY THE ANTENNA FOCUSES ENERGY IN A

PARTICULAR DIRECTION, INFLUENCING BOTH TRANSMITTED AND RECEIVED POWER.

**QUESTION 3. WHAT IS THE PRIMARY CONSEQUENCE OF ATMOSPHERIC DUCTING ON RADAR

PERFORMANCE?**

A) INCREASED CLUTTER FROM GROUND RETURNS

B) EXTENSION OF DETECTION RANGE BEYOND THE NORMAL HORIZON

C) REDUCED ANTENNA GAIN DUE TO SCATTERING

D) DECREASE IN PULSE REPETITION FREQUENCY

ANSWER: B

EXPLANATION: DUCTING TRAPS RADAR ENERGY IN A REFRACTIVE LAYER, ALLOWING IT TO TRAVEL

FARTHER THAN NORMAL LINE‑OF‑SIGHT, EXTENDING DETECTION RANGE.

A) HIGHER PEAK POWER

B) BETTER FREQUENCY STABILITY AND LINEARITY

C) LOWER COST

D) SIMPLER COOLING REQUIREMENTS

ANSWER: B

EXPLANATION: SOLID‑STATE AMPLIFIERS PROVIDE STABLE FREQUENCY AND LINEAR OUTPUT, ESSENTIAL

FOR MODERN DIGITAL SIGNAL PROCESSING.

QUESTION 11. SENSITIVITY TIME CONTROL (STC) IN A RADAR RECEIVER IS USED TO:

A) INCREASE GAIN FOR DISTANT TARGETS WHILE REDUCING IT FOR NEAR TARGETS

B) SYNCHRONIZE TRANSMITTER AND RECEIVER TIMING

C) FILTER OUT DOPPLER‑SHIFTED RETURNS

D) ADJUST PULSE REPETITION FREQUENCY AUTOMATICALLY

ANSWER: A

EXPLANATION: STC REDUCES RECEIVER SENSITIVITY FOR EARLY (NEAR) RETURNS TO PREVENT

OVERLOAD AND ENHANCES DETECTION OF FAR TARGETS.

QUESTION 12. THE MOVING TARGET INDICATOR (MTI) TECHNIQUE PRIMARILY RELIES ON:

A) PULSE COMPRESSION

B) PHASE COMPARISON OF CONSECUTIVE PULSES

C) FREQUENCY MODULATION OF THE TRANSMITTED PULSE

D) AMPLITUDE MODULATION OF THE RECEIVED SIGNAL

ANSWER: B

EXPLANATION: MTI COMPARES PHASE (OR AMPLITUDE) OF SUCCESSIVE RETURNS TO CANCEL

STATIONARY CLUTTER, HIGHLIGHTING MOVING TARGETS.

QUESTION 13. IN DOPPLER PROCESSING, THE “BLIND SPEED” OF A RADAR IS:

A) THE SPEED AT WHICH A TARGET’S DOPPLER SHIFT EQUALS THE PRF

B) THE SPEED AT WHICH THE TARGET’S RETURN IS COMPLETELY ATTENUATED BY ATMOSPHERIC

ABSORPTION

C) THE SPEED THAT PRODUCES ZERO FREQUENCY SHIFT DUE TO TARGET HEADING DIRECTLY AWAY

FROM THE RADAR

D) THE SPEED THAT RESULTS IN AN AMBIGUOUS RANGE MEASUREMENT

ANSWER: A

EXPLANATION: WHEN THE DOPPLER FREQUENCY SHIFT EQUALS AN INTEGER MULTIPLE OF THE PRF, THE

TARGET BECOMES INVISIBLE (BLIND) TO CONVENTIONAL MTI FILTERS.

QUESTION 14. PROBABILITY OF DETECTION (PD) IS DIRECTLY AFFECTED BY:

A) ANTENNA SIDELOBE LEVEL ONLY

B) TARGET RADAR CROSS‑SECTION, TRANSMITTED POWER, AND NOISE FIGURE

C) THE NUMBER OF TRANSPONDERS IN THE COVERAGE AREA

D) THE TYPE OF MODULATION USED IN THE TRANSMITTER

ANSWER: B

EXPLANATION: PD DEPENDS ON SIGNAL‑TO‑NOISE RATIO, WHICH INCLUDES TRANSMITTED POWER,

TARGET RCS, AND RECEIVER NOISE CHARACTERISTICS.

QUESTION 15. A FALSE ALARM RATE (FAR) OF 1 × 10⁻⁶ PER PULSE MEANS:

A) ONE FALSE ALARM OCCURS FOR EVERY MILLION TRANSMITTED PULSES

B) ONE FALSE ALARM OCCURS FOR EVERY SIX PULSES

C) THE RADAR WILL MISS ONE TARGET PER MILLION PULSES

D) THE SYSTEM WILL GENERATE ONE FALSE TARGET PER SECOND AT 1 MHZ PRF

ANSWER: A

EXPLANATION: FAR EXPRESSES THE PROBABILITY THAT NOISE WILL EXCEED THE DETECTION THRESHOLD

ON ANY GIVEN PULSE.
