technicians Ultimate Exam

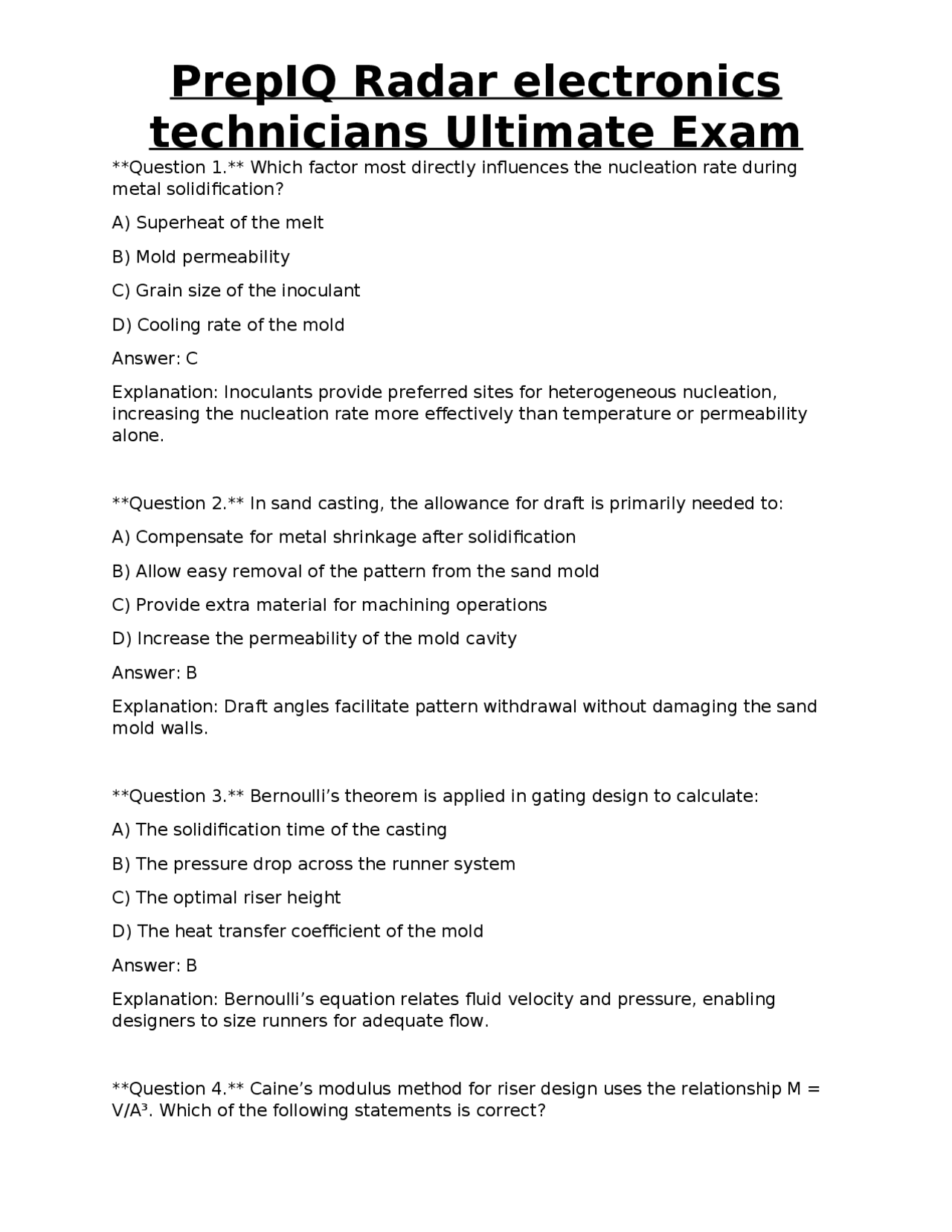

Question 1. Which factor most directly influences the nucleation rate during metal solidification? A) Superheat of the melt B) Mold permeability C) Grain size of the inoculant D) Cooling rate of the mold Answer: C Explanation: Inoculants provide preferred sites for heterogeneous nucleation, increasing the nucleation rate more effectively than temperature or permeability alone. Question 2. In sand casting, the allowance for draft is primarily needed to: A) Compensate for metal shrinkage after solidification B) Allow easy removal of the pattern from the sand mold C) Provide extra material for machining operations D) Increase the permeability of the mold cavity Answer: B Explanation: Draft angles facilitate pattern withdrawal without damaging the sand mold walls. Question 3. Bernoulli’s theorem is applied in gating design to calculate: A) The solidification time of the casting B) The pressure drop across the runner system C) The optimal riser height D) The heat transfer coefficient of the mold Answer: B Explanation: Bernoulli’s equation relates fluid velocity and pressure, enabling designers to size runners for adequate flow. Question 4. Caine’s modulus method for riser design uses the relationship M = V/A³. Which of the following statements is correct?
technicians Ultimate Exam
A) A larger modulus indicates a slower cooling riser B) The modulus is independent of the metal’s solidification range C) The riser volume must be less than the casting volume D) Higher modulus values are preferred for thin-wall castings Answer: A Explanation: A larger modulus (greater volume relative to surface area) reduces cooling rate, keeping the riser molten longer. Question 5. Which defect is most likely to occur if the melt temperature is significantly above the liquidus temperature in sand casting? A) Cold shut B) Misrun C) Blowhole D) Hot tear Answer: C Explanation: Excess superheat can trap gases in the mold, forming blowholes as the metal solidifies. Question 6. In die casting, the main advantage of a hot-chamber machine over a cold-chamber machine is: A) Ability to cast high-melting-point alloys B) Faster cycle times for low-melting-point alloys C) Lower equipment cost D) Reduced wear on the injection plunger Answer: B Explanation: Hot-chamber machines keep the injection mechanism immersed in the molten metal, allowing rapid injection for low-melting alloys. Question 7. The von Mises yield criterion assumes that yielding begins when: A) The maximum principal stress reaches the yield stress
technicians Ultimate Exam
C) Rotational motion of the die D) Thermal expansion of the billet Answer: B Explanation: Direct extrusion uses a ram to push the billet through a stationary die. Question 11. The limiting drawing ratio (LDR) for deep drawing is defined as: LDR = √(π·D/t) where D is blank diameter and t is thickness. What does a higher LDR indicate? A) Greater susceptibility to tearing B) Better formability of the sheet metal C) Higher required blank holder force D) Increased springback after drawing Answer: B Explanation: A higher LDR means a larger blank can be drawn without failure, indicating better formability. Question 12. In orthogonal cutting, the Merchant’s circle shows that the optimum rake angle is: A) Zero degrees B) Positive and equal to the shear angle C) Negative and equal to the clearance angle D) Dependent on the work-piece material hardness Answer: B Explanation: The optimum rake angle aligns with the shear plane, minimizing cutting forces. Question 13. According to Taylor’s tool life equation VTⁿ = C, if the cutting speed is doubled, the tool life will: A) Remain unchanged B) Increase by a factor of 2ⁿ
technicians Ultimate Exam
C) Decrease by a factor of 2ⁿ D) Decrease by a factor of 2 Answer: C Explanation: Rearranging VTⁿ = C shows that tool life (T) is inversely proportional to V^(1/n); doubling V reduces T by 2ⁿ. Question 14. Which cutting fluid classification primarily provides lubrication rather than cooling? A) Emulsion B) Straight oil C) Synthetic soluble oil D) Water-soluble coolant Answer: B Explanation: Straight oils have high viscosity and lubricity, offering limited cooling compared to emulsions. Question 15. A centerless grinding wheel with a coarse grain size (e.g., #24) is most suitable for: A) High-precision finish grinding B) Removing large amounts of material quickly C) Grinding hardened steel D) Producing mirror-like surfaces Answer: B Explanation: Coarse grains remove material rapidly but do not produce fine finishes. Question 16. In cylindrical grinding, the workpiece speed is generally: A) Higher than the wheel speed B) Equal to the wheel speed C) Lower than the wheel speed D) Variable depending on the material
technicians Ultimate Exam
Explanation: The flux vaporizes to create a protective gas shield and slag that protects the weld pool. Question 20. The heat generated in resistance spot welding is given by H = I² R t. Which variable most directly influences the weld nugget size? A) Current (I) B) Resistance (R) of the joint C) Weld time (t) D) All of the above equally Answer: D Explanation: Nugget size is proportional to the total heat input, which depends on current, resistance, and time. Question 21. In friction welding, the primary mechanism that joins the parts is: A) Diffusion of alloying elements across the interface B) Mechanical interlocking of surface asperities C) Plastic deformation and forging under heat generated by friction D) Formation of a molten pool that solidifies Answer: C Explanation: Friction generates heat, causing plastic flow and forging of the materials together without melting. Question 22. The heat-affected zone (HAZ) in welding is characterized by: A) Complete melting and solidification of the metal B) Grain growth without reaching the melting point C) No microstructural change compared to base metal D) Formation of a crystalline oxide layer Answer: B Explanation: The HAZ experiences temperatures high enough for grain growth and phase changes but below the melting point.
technicians Ultimate Exam
Question 23. In brazing, capillary action is essential because: A) It raises the melting point of the filler metal B) It forces the filler into the joint despite surface tension C) It allows the filler metal to flow into narrow gaps without external pressure D) It eliminates the need for flux Answer: C Explanation: Capillary action draws the molten filler metal into tight clearances, forming a strong joint. Question 24. Ultrasonic machining removes material primarily by: A) Chemical dissolution of the workpiece B) High-frequency vibration of an abrasive slurry C) Electrical discharge erosion D) Thermal melting of the surface Answer: B Explanation: Ultrasonic vibrations cause abrasive particles to impact the workpiece, removing material mechanically. Question 25. Faraday’s first law of electrolysis states that the mass of metal removed in ECM is proportional to: A) The square of the current density B) The total charge passed (current × time) C) The voltage applied across the electrodes D) The resistance of the electrolyte Answer: B Explanation: Mass removal equals (current × time) × (molar mass / (n · F)), showing direct proportionality to charge. Question 26. In EDM, the “spark gap” is maintained by:
technicians Ultimate Exam
C) It uses high-pressure jets of abrasive slurry D) The process is temperature-controlled to prevent over-etching Answer: B Explanation: Masking defines the exact areas to be removed; the chemical reaction proceeds only where exposed. Question 30. In a hole-basis tolerance system, the basic size is assigned to: A) The shaft B) The hole C) Both parts equally D) Neither; it’s a nominal size only Answer: B Explanation: Hole-basis systems define the nominal dimension for the hole; the shaft size is derived by adding allowances. Question 31. A micrometer provides higher resolution than a vernier caliper because: A) It uses a digital readout B) Its screw thread pitch is finer, giving smaller least-count increments C) It measures only internal dimensions D) It incorporates a laser interferometer Answer: B Explanation: The micrometer’s finely threaded spindle translates small rotations into precise linear movements. Question 32. The parameter Rz represents: A) The average roughness height over the sampling length B) The maximum peak-to-valley height of five consecutive peaks C) The root-mean-square roughness
technicians Ultimate Exam
D) The spacing between adjacent peaks Answer: B Explanation: Rz is defined as the average of the absolute values of the five highest peaks and five deepest valleys over the evaluation length. Question 33. In CNC programming, the G-code G01 is used for: A) Rapid positioning B) Linear interpolation at a programmed feed rate C) Circular interpolation clockwise D) Tool change Answer: B Explanation: G01 commands the machine to move in a straight line while observing the set feed rate. Question 34. The M-code M03 in CNC machining typically commands: A) Spindle stop B) Coolant on C Question 34. The M-code M03 in CNC machining typically commands: A) Spindle stop B) Coolant on C) Clockwise spindle rotation D) Tool change Answer: C Explanation: M03 activates the spindle turning clockwise at the programmed speed. Question 35. During sand casting, the permeability of the mold influences: A) The dimensional accuracy of the casting
technicians Ultimate Exam
D) Depends solely on strain rate, not temperature Answer: B Explanation: Elevated temperatures reduce yield strength, making the material easier to deform. Question 39. The term “springback” in sheet metal bending refers to: A) The elastic recovery of the material after the bending load is removed B) The permanent deformation due to over-bending C) The increase in material thickness at the bend radius D) The formation of cracks at the bend line Answer: A Explanation: Elastic recovery causes the part to open slightly after the bending force is released. Question 40. In the Merchant’s circle, the shear angle (φ) is related to the rake angle (γ) and friction angle (β) by: A) φ = γ + β B) φ = γ – β C) φ = (γ + β)/ D) φ = γ · β Answer: A Explanation: The relationship φ = γ + β arises from equilibrium of forces on the shear plane. Question 41. The “lead angle” of a cutting tool influences: A) The direction of chip flow relative to the workpiece surface B) The clearance between the tool flank and the workpiece C) The rake angle on the cutting edge D) The tool’s resistance to wear Answer: A
technicians Ultimate Exam
Explanation: Lead angle determines the angle between the cutting edge and the feed direction, affecting chip direction. Question 42. Flank wear on a cutting tool is primarily caused by: A) High cutting temperatures at the rake face B) Abrasive interaction between the tool flank and the workpiece surface C) Chemical reactions between tool material and coolant D) Excessive vibration of the tool holder Answer: B Explanation: The flank face slides against the newly machined surface, leading to abrasive wear. Question 43. Crater wear occurs on the: A) Rake face of the tool B) Flank face of the tool C) Cutting edge tip D) Tool holder Answer: A Explanation: High temperatures and chemical interaction at the rake face cause material removal, forming a crater. Question 44. In surface grinding, the “wheel dressing” operation is performed to: A) Increase the wheel’s hardness B) Restore the wheel’s original shape and expose fresh abrasive grains C) Cool the wheel during operation D) Reduce the wheel’s rotational speed Answer: B Explanation: Dressing removes clogged grains and corrects wheel geometry, ensuring consistent grinding performance.
technicians Ultimate Exam
A) Increase the surface area for heat generation B) Serve as a coolant channel C) Reduce the required welding current D) Align the parts automatically Answer: A Explanation: Projections concentrate current density, producing localized heating and weld formation. Question 49. The primary metallurgical effect of rapid cooling in EDM is: A) Grain refinement in the heat-affected zone B) Formation of a large HAZ with coarse grains C) Development of a recast layer with possible tensile residual stresses D) Complete melting of the workpiece surface Answer: C Explanation: Rapid quenching creates a thin molten layer that solidifies quickly, forming a recast layer that may contain tensile stresses. Question 50. In abrasive jet machining, the driving medium is typically: A) Compressed air mixed with abrasive particles B) High-pressure water jet C) Laser-generated plasma D) Electrical discharge in a dielectric fluid Answer: A Explanation: AJM uses a high-velocity stream of air (or gas) carrying abrasive particles to erode the workpiece. Question 51. Which of the following is NOT a common application of ultrasonic machining? A) Machining brittle ceramics B) Cutting hardened steels
technicians Ultimate Exam
C) Drilling micro-holes in glass D) Removing material from soft polymers without thermal damage Answer: B Explanation: Ultrasonic machining is ineffective on ductile, hardened steels; it excels with brittle or non-metallic materials. Question 52. In ECM, the material removal rate is directly proportional to: A) The square of the voltage applied B) The current density and the interelectrode gap C) The temperature of the electrolyte D) The hardness of the workpiece material Answer: B Explanation: Material removal follows Faraday’s law; higher current density and appropriate gap increase the rate. Question 53. The “die index” (DI) in a die-casting process is used to: A) Predict the likelihood of porosity in the casting B) Quantify the thermal conductivity of the die material C) Measure the dimensional deviation of the final part D) Determine the optimal injection speed Answer: A Explanation: DI assesses casting quality based on parameters like metal flow, temperature, and cavity design, indicating porosity risk. Question 54. In hot-chamber die casting, the “plunger” performs which function? A) Holds the molten metal in the furnace B) Injects the molten metal into the die cavity C) Ejects the solidified casting from the die D) Controls the cooling rate of the casting
technicians Ultimate Exam
Explanation: At the neutral axis, longitudinal stress is zero; fibers above are in compression, below in tension. Question 58. In a CNC milling operation, a “climb cut” (also called “down-milling”) results in: A) Higher tool wear due to increased rubbing B) Better surface finish because the chip thickness starts at zero C) Greater cutting forces compared to conventional milling D) Reduced chip evacuation efficiency Answer: B Explanation: In climb milling, the cutter engages the workpiece at zero chip thickness, reducing cutting forces and improving finish. Question 59. The “cutting speed” in turning is defined as: A) The linear speed of the workpiece surface relative to the tool B) The rotational speed of the spindle in RPM C) The feed per revolution multiplied by spindle speed D) The velocity of the coolant flow over the tool Answer: A Explanation: Cutting speed (V) = π · D · N, where D is workpiece diameter and N spindle speed; it is the surface speed of the material. Question 60. In a CNC lathe, the G-code G02 is used for: A) Linear interpolation B) Clockwise circular interpolation C) Counter-clockwise circular interpolation D) Thread cutting Answer: B Explanation: G02 commands a clockwise arc movement.
technicians Ultimate Exam
Question 61. Which of the following machining operations typically employs a “chip breaker” on the insert? A) Turning with a high-speed steel tool B) Milling of aluminum using a solid carbide cutter C) Drilling of hardened steel D) Grinding of hardened surfaces Answer: B Explanation: Chip breakers on carbide milling inserts control chip shape, especially in ductile materials like aluminum. Question 62. In a hydraulic press used for forging, the required forging load can be estimated by: F = σ_f · A_f · k_f where σ_f is flow stress, A_f is projected area, and k_f is a friction factor. Which parameter most directly reduces the required load? A) Increasing the billet temperature B) Decreasing the die opening width C) Using a higher friction factor D) Reducing the billet diameter Answer: A Explanation: Higher temperature lowers flow stress, thus decreasing the forging load. Question 63. The term “center burst” in extrusion refers to: A) A defect where the center of the extruded profile collapses due to insufficient material flow B) A surface crack caused by excessive die temperature C) A void formed at the die exit due to trapped gas D) A dimensional deviation caused by uneven cooling Answer: A Explanation: Center burst occurs when the core material fails to fill, leading to a hollow or collapsed center.
