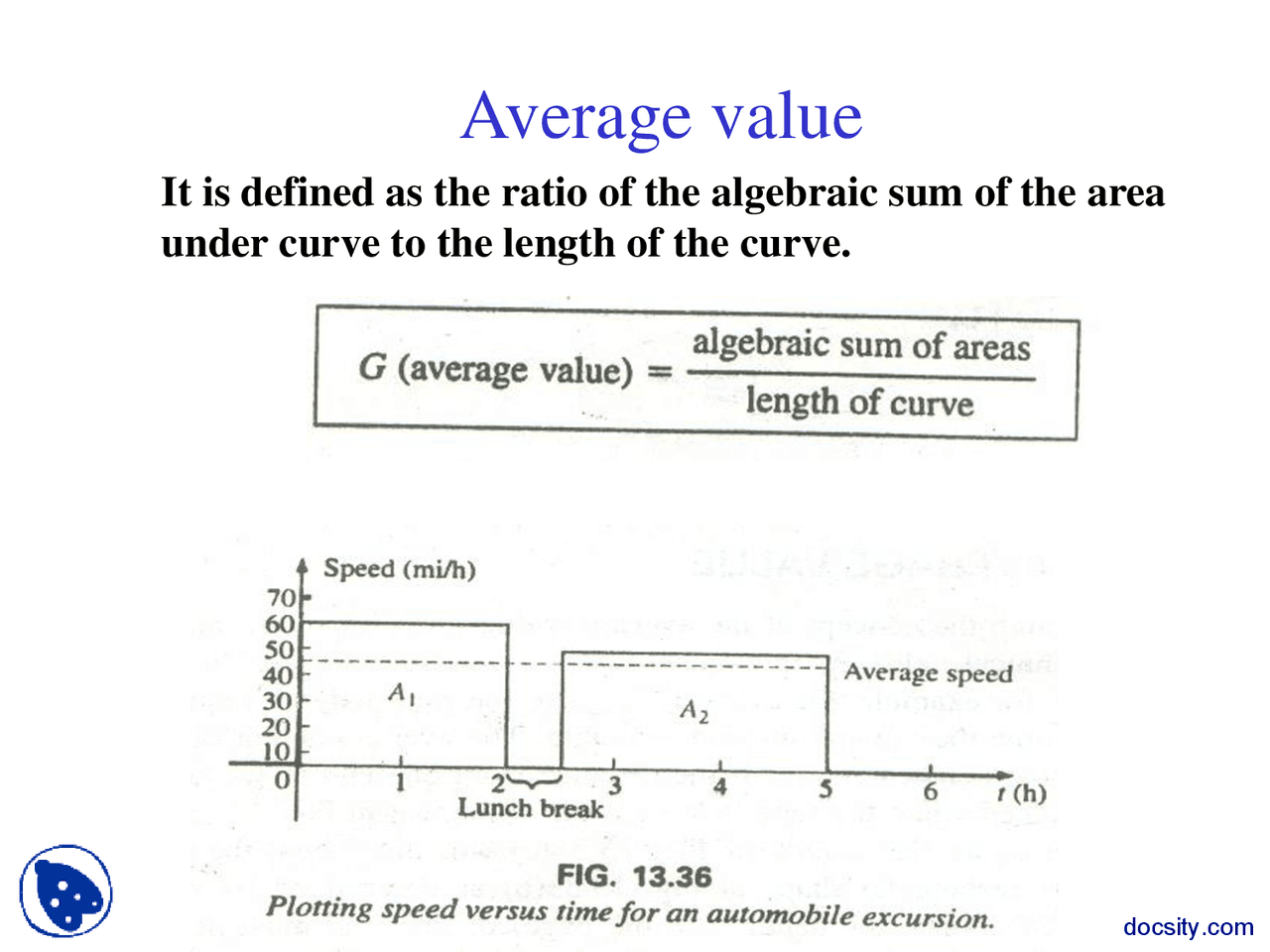

Average value
It is defined as the ratio of the algebraic sum of the area under curve to the length of the curve.
Can be written as
For the curve below
Average value of sine wave
Effective rms value
A relation between dc and ac quantities
- Consider the set up shown in the figure.
- A resistor is placed in the water bath and is connected to the ac and dc switch.
- When switch 1 is closed current I will pass through the resistor.the temperature of the water determines the dc power dissipated by the resistor.
- When switch 2 is closed and 1 is opened. Again current flows. Again the power delivered to the resistor heats up the resistor.
- Average power delivered to the resistor is same. docsity.com
as
Summarizing the formulas
