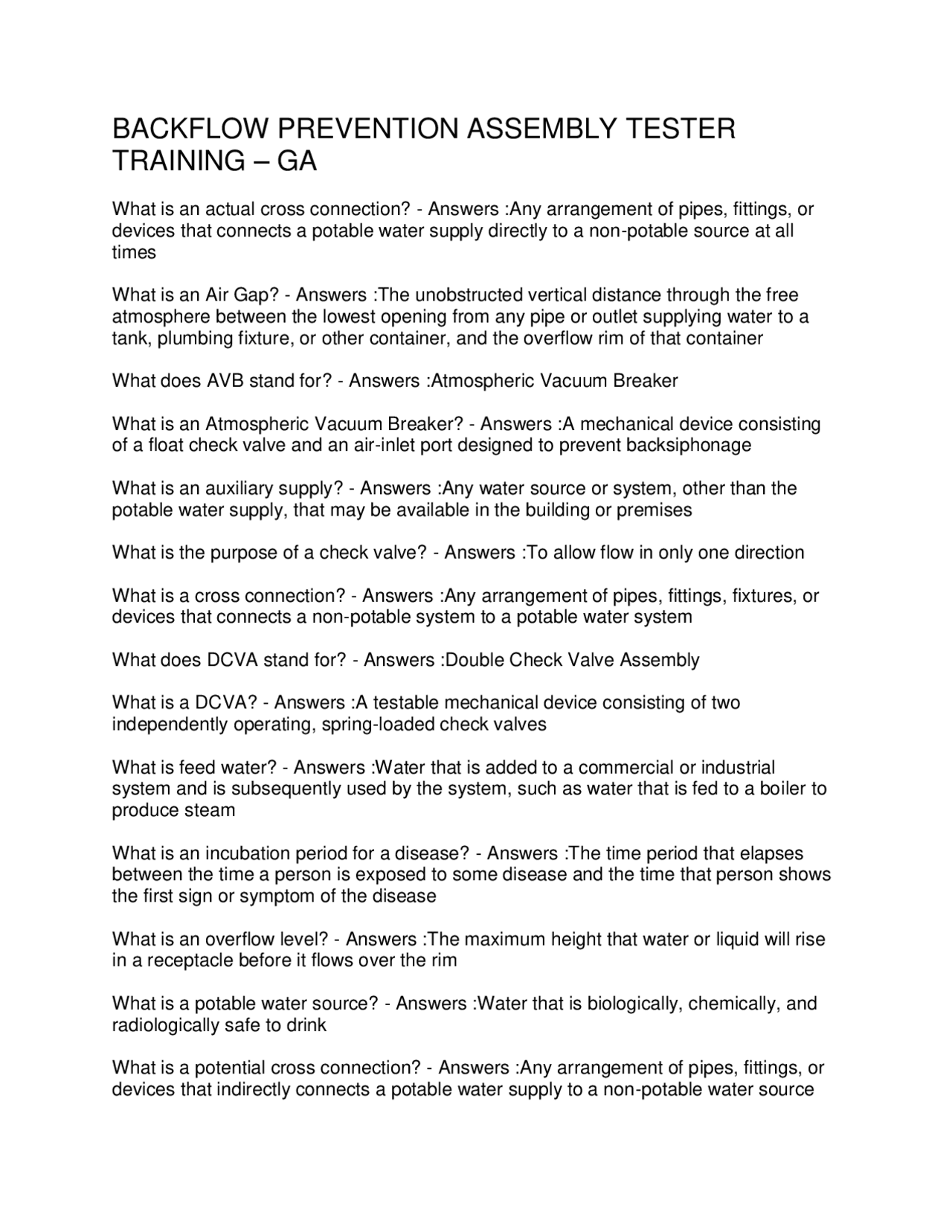

BACKFLOW PREVENTION ASSEMBLY TESTER
TRAINING – GA
What is an actual cross connection? - Answers :Any arrangement of pipes, fittings, or
devices that connects a potable water supply directly to a non-potable source at all
times
What is an Air Gap? - Answers :The unobstructed vertical distance through the free
atmosphere between the lowest opening from any pipe or outlet supplying water to a
tank, plumbing fixture, or other container, and the overflow rim of that container
What does AVB stand for? - Answers :Atmospheric Vacuum Breaker
What is an Atmospheric Vacuum Breaker? - Answers :A mechanical device consisting
of a float check valve and an air-inlet port designed to prevent backsiphonage
What is an auxiliary supply? - Answers :Any water source or system, other than the
potable water supply, that may be available in the building or premises
What is the purpose of a check valve? - Answers :To allow flow in only one direction
What is a cross connection? - Answers :Any arrangement of pipes, fittings, fixtures, or
devices that connects a non-potable system to a potable water system
What does DCVA stand for? - Answers :Double Check Valve Assembly
What is a DCVA? - Answers :A testable mechanical device consisting of two
independently operating, spring-loaded check valves
What is feed water? - Answers :Water that is added to a commercial or industrial
system and is subsequently used by the system, such as water that is fed to a boiler to
produce steam
What is an incubation period for a disease? - Answers :The time period that elapses
between the time a person is exposed to some disease and the time that person shows
the first sign or symptom of the disease
What is an overflow level? - Answers :The maximum height that water or liquid will rise
in a receptacle before it flows over the rim
What is a potable water source? - Answers :Water that is biologically, chemically, and
radiologically safe to drink
What is a potential cross connection? - Answers :Any arrangement of pipes, fittings, or
devices that indirectly connects a potable water supply to a non-potable water source
pf3
pf4
pf5
pf8

Partial preview of the text

Download Backflow Prevention Assembly Tester Training: Questions and Answers and more Exams Social Sciences in PDF only on Docsity!

BACKFLOW PREVENTION ASSEMBLY TESTER

TRAINING – GA

What is an actual cross connection? - Answers :Any arrangement of pipes, fittings, or devices that connects a potable water supply directly to a non-potable source at all times What is an Air Gap? - Answers :The unobstructed vertical distance through the free atmosphere between the lowest opening from any pipe or outlet supplying water to a tank, plumbing fixture, or other container, and the overflow rim of that container What does AVB stand for? - Answers :Atmospheric Vacuum Breaker What is an Atmospheric Vacuum Breaker? - Answers :A mechanical device consisting of a float check valve and an air-inlet port designed to prevent backsiphonage What is an auxiliary supply? - Answers :Any water source or system, other than the potable water supply, that may be available in the building or premises What is the purpose of a check valve? - Answers :To allow flow in only one direction What is a cross connection? - Answers :Any arrangement of pipes, fittings, fixtures, or devices that connects a non-potable system to a potable water system What does DCVA stand for? - Answers :Double Check Valve Assembly What is a DCVA? - Answers :A testable mechanical device consisting of two independently operating, spring-loaded check valves What is feed water? - Answers :Water that is added to a commercial or industrial system and is subsequently used by the system, such as water that is fed to a boiler to produce steam What is an incubation period for a disease? - Answers :The time period that elapses between the time a person is exposed to some disease and the time that person shows the first sign or symptom of the disease What is an overflow level? - Answers :The maximum height that water or liquid will rise in a receptacle before it flows over the rim What is a potable water source? - Answers :Water that is biologically, chemically, and radiologically safe to drink What is a potential cross connection? - Answers :Any arrangement of pipes, fittings, or devices that indirectly connects a potable water supply to a non-potable water source

What does PVB stand for? - Answers :Pressure Vacuum Breaker What is a PVB? - Answers :A device designed to prevent backsiphonage, consisting of once independently operating spring-loaded check valve and an independently operating spring-loaded air-inlet valve What does RPBP stand for? - Answers :Reduced Pressure Backflow Preventer What does RPZBP stand for? - Answers :Reduced Pressure Zone Backflow Preventer What is backflow? - Answers :A hydraulic condition, caused by difference in pressures, in which non-potable water or other fluids flow into a potable water system What is backpressure? - Answers :A backflow condition in which a pump, elevated tank, boiler, 0r other means results in a downstream pressure greater than the supply pressure What is backsiphange? - Answers :A backflow condition in which the pressure in the distribution system is less than atmospheric pressure (sub-atmospheric) What is a bypass? - Answers :In cross-connection control, any pipe arrangement that passes water around a protective device, casing it to be ineffective What is a carrier? - Answers :A human or animal that carries disease germs and can pass them to another person or animal without getting the disease itself What is an RP? - Answers :A mechanical device consisting of two independently operating, spring-loaded check valves with a reduced pressure zone between the check valves Containment - Answers :Protection on the service line - protects the potable water supply and not the customer Isolation - Answers :Protection on individual sources of hazard - provides internal protection Does GA law require containment or isolation? - Answers :Containment Organism that causes salmonellosis - Answers :Salmonella Symptom(s) of salmonellosis - Answers :Acute diarrhea and vomiting Organism that causes bacillary dysentery - Answers :Shigella Symptom(s) of bacillary dysentery - Answers :Diarrhea

Where are dual checks commonly installed? - Answers :Residential What is the aspirator effect? - Answers :Fluids are pulled (siphoned) into a pipe due to the difference in pressure and velocity of the fluid at the union of the two pipes As velocity increases, pressure _______ - Answers :Decreases Venturi - Answers :Device that is specifically designed to create a low pressure region in order to measure velocity or create a suction Direct cross connections are subject to ______ and _______ - Answers :Backpressure and backsiphonage Indirect cross connections are subject to ______ only - Answers :Backsiphonage The purest and truest form of backflow prevention - Answers :Air gap Distance of a proper air gap - Answers :2 times the diameter of the pipe, no less than 1 inch Air gaps are approved to protect against: - Answers :Backsiphonage, backpressure, contaminants and pollutants RP's are approved to protect against: - Answers :Backsiphonage, backpressure, contaminants and pollutants One limitation of a DC assembly - Answers :Does not give any indication of failure unless tested DC's are approved to protect against: - Answers :Backsiphonage, backpressure, pollutants Where should a strainer be installed relative to a backflow prevention device? - Answers :Upstream of shut off valve # What kind of protection does a bypass line require? - Answers :Same level of protection as the main line (does not have to be the same manufacturer) USC recommendation for installing RP's and DC's - Answers :Minimum of 12 inches above grade, maximum of 36 inches above grade PVB's are approved to protect against: - Answers :Backsiphonage, pollutants and contaminants PVB's must be installed _____ inches above the highest downstream point - Answers :12 inches

AVB's are approved to protect against: - Answers :Backsiphonage, contaminants, and pollutants AVB's must be installed ____ inches above the highest downstream point - Answers : inches Are AVB'S approved for continuous use? - Answers :No - no more than 12 hours in a 24 hour period What does SVB stand for? - Answers :Spill Proof Vacuum Breaker What does HVB stand for? - Answers :Hose Type Vacuum Breaker (non-testable) Can thermal expansion cause backpressure? - Answers :Yes Test kit gage faces read what PSID range? - Answers :0- 15 PSID What color is the high pressure hose? - Answers :Red What color is the low pressure hose? - Answers :Traditionally green but new kits are blue What color is the bypass/vent hose? - Answers :Traditionally black but new kits are yellow How often do test kits have to be calibrated? - Answers :Minimum annually The relief valve on a RP must open at a minimum PSID of _____ - Answers :2.0 PSID Check valve #1 on a RP should hold a minimum PSID of _____ - Answers :Relief valve

  • 3.0 PSID Check valve #2 on a RP should hold against backpressure and a minimum PSID of _____ - Answers :1.0 PSID RPDA and DCDA detect what? - Answers :Low flows on lines that should not have flow indicating illegal taps or leaks Why do we flush test cocks in the order "4, 3, 2, 1" on a RP? - Answers :To prevent it from dumping The RV on a RP drips steadily while the customer is not using water. You close the shutoff valve #2 and the dripping stops. What does that indicate? - Answers :You have a leaking check valve #2 under a backpressure condition

True or False: Fluctuating line pressure can cause a RP to "spit" or discharge intermittently - Answers :True The check valve on a SVB must close at a minimum of _____ PSID - Answers :1. PSID The air inlet valve on a SVB must open at a minimum of _____ PSID - Answers :1. PSID Is an AVB a testable device? - Answers :No True or False: A bypass line around a backflow assembly is permitted as long as it is protected with the same level of protection - Answers :True How many check valves are in a RP? - Answers : How many test cocks are on a RP? - Answers : How many check valves are in a DC? - Answers : How many test cocks are on a DC? - Answers : How many check valves are in a PVB? - Answers : How many air inlet valves are in a PVB? - Answers : How many test cocks are on a PVB? - Answers : How many check valves are in a SVB? - Answers : How many air inlet valves are in a SVB? - Answers : How many test cocks are on a SVB? - Answers : If the air inlet valve on a SVB is open when loosening the vent valve, what is leaking? - Answers :The check valve Why might the high side bleed needle valve need to be opened more than 1/4 of a turn while testing the air inlet valve on a SVB? - Answers :Leaking shut off # Why might the low side control valve need to be opened more than 1/4 of a turn when testing the RV opening point on a RP? - Answers :Leaking shut off #2 with water use downstream

When testing for the PSID across check valve #2 on a DC assembly, water continues to flow from the sight tube on test cock #4. What does that indicate (assuming nothing unusual was found while testing check valve #1)? - Answers :Shut off #2 is leaking with backpressure from the system The shut off valves and test cocks on approved backflow prevention assemblies are required to be - Answers :Resilient seated While testing the air inlet opening point on a PVB, the air inlet does not open and the gage drops to 0. What does this indicate? - Answers :Shutoff valve #2 is leaking While testing the air inlet opening point on a PVB, the air inlet does not open and the gage does not drop to the air inlet opening point. What does this indicate? - Answers :Shutoff valve #1 is leaking While testing the check valve closing point on a PVB water continues to flow out of test cock #2. What does this indicate? - Answers :Shutoff valve #1 is leaking
