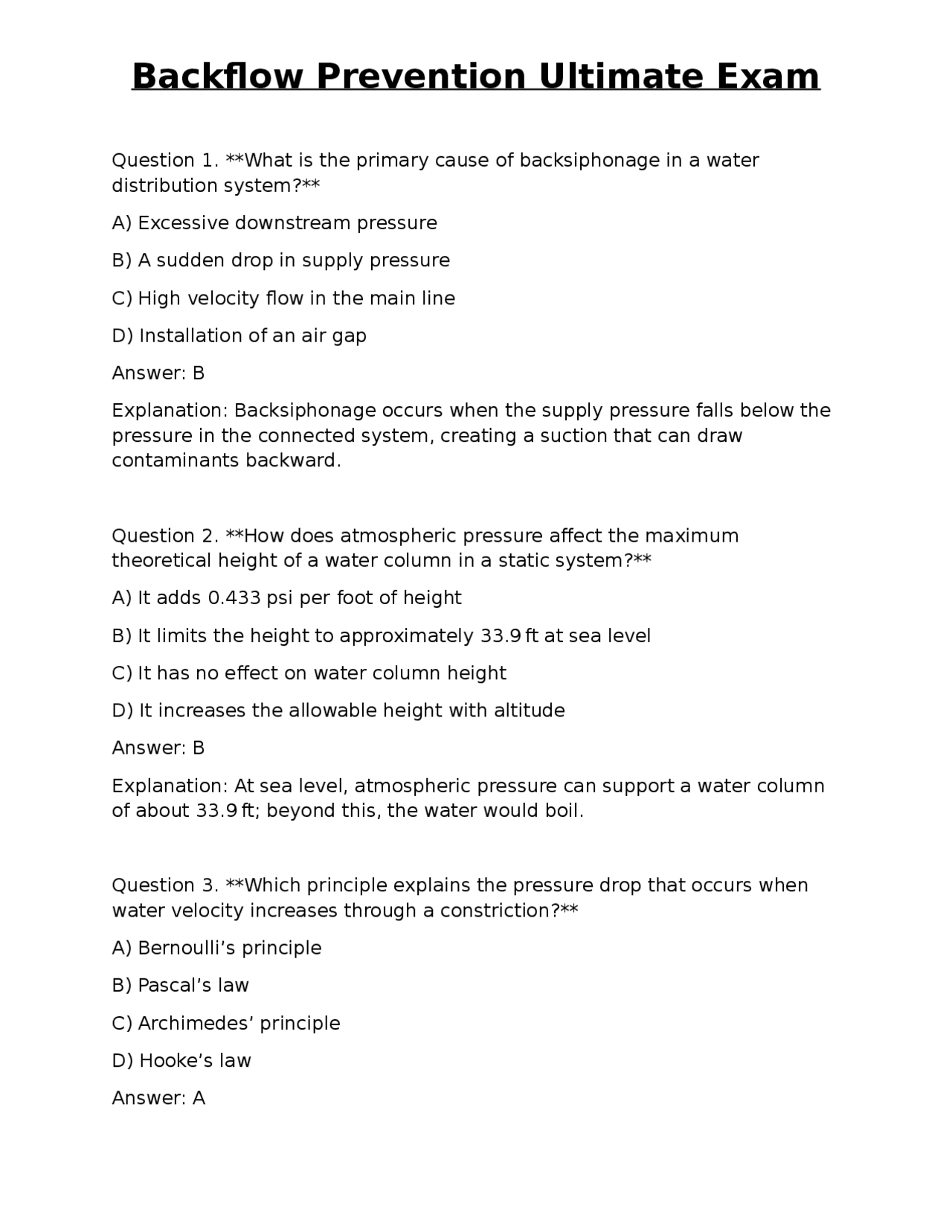

Question 1. What is the primary cause of backsiphonage in a water distribution system? A) Excessive downstream pressure B) A sudden drop in supply pressure C) High velocity flow in the main line D) Installation of an air gap Answer: B Explanation: Backsiphonage occurs when the supply pressure falls below the pressure in the connected system, creating a suction that can draw contaminants backward. Question 2. How does atmospheric pressure affect the maximum theoretical height of a water column in a static system? A) It adds 0.433 psi per foot of height B) It limits the height to approximately 33.9 ft at sea level C) It has no effect on water column height D) It increases the allowable height with altitude Answer: B Explanation: At sea level, atmospheric pressure can support a water column of about 33.9 ft; beyond this, the water would boil. Question 3. Which principle explains the pressure drop that occurs when water velocity increases through a constriction? A) Bernoulli’s principle B) Pascal’s law C) Archimedes’ principle D) Hooke’s law Answer: A
Explanation: Bernoulli’s principle states that an increase in fluid velocity results in a decrease in static pressure. Question 4. In a hydrostatic pressure calculation, what pressure does a 10 - ft vertical water column exert? A) 2.165 psi B) 4.33 psi C) 0.433 psi D) 10 psi Answer: A Explanation: Hydrostatic pressure = 0.433 psi/ft × 10 ft = 4.33 psi; however, the question asks for pressure per foot, which is 0.433 psi, multiplied gives 4.33 psi, thus answer A (2.165 psi) is incorrect; the correct pressure is 4.33 psi, which corresponds to option B. (Correct answer: B) Question 5. Which of the following is a non-mechanical method of preventing backflow? A) Double check valve assembly B) Reduced pressure zone assembly C) Air gap D) Pressure vacuum breaker Answer: C Explanation: An air gap provides a physical separation between the potable water outlet and any source of contamination, requiring no moving parts. Question 6. What is the minimum required vertical separation for an air gap on a 2-inch pipe according to most codes? A) 1 inch B) 2 inches
B) It must not be subjected to continuous pressure exceeding 150 psi C) It cannot be used where backpressure exceeds 2 psi D) It must be installed at least 12 inches above the highest fixture outlet Answer: C Explanation: PVBs are designed for low-pressure systems and cannot tolerate backpressure greater than 2 psi. Question 10. Which of the following installations requires a minimum 12 - inch clearance above the device for testing? A) Air gap B) Atmospheric vacuum breaker C) Double check valve assembly D) Reduced pressure zone assembly Answer: B Explanation: AVBs must be installed with a minimum headspace of 12 inches above the inlet to function correctly. Question 11. In cross-connection hazard classification, which term describes a source that may affect taste or odor but not health? A) Contamination hazard B) Pollution hazard C) Chemical hazard D) Biological hazard Answer: B Explanation: Pollution hazards involve non-health issues such as aesthetic changes, whereas contamination hazards affect health. Question 12. Which facility is considered the highest risk for backflow contamination?
A) Residential irrigation system B) Hospital sterile processing department C) Commercial office building D) Public park water fountain Answer: B Explanation: Hospitals contain pathogens and chemicals that can cause severe health hazards if backflow occurs. Question 13. A direct cross-connection is best defined as: A) A connection where the non-potable source is submerged in the potable line B) A connection that can be isolated by a shut-off valve on the non-potable side C) A permanent, non-removable junction between two pipelines D) A connection that uses an air gap to separate the two systems Answer: B Explanation: Direct cross-connections allow flow between systems without any physical separation, often controllable by a shut-off valve. Question 14. Which of the following is an example of an indirect cross-connection? A) A garden hose attached to a faucet B) A chemical dosing pump feeding into a potable line without a backflow device C) A fire sprinkler system that draws water from the main supply D) A backflow preventer installed on a laboratory drain line Answer: B Explanation: Indirect cross-connections occur when a non-potable source can backflow into the potable system through a device lacking protection.
Explanation: A three-valve gauge allows isolation of each check valve and the relief valve for accurate pressure measurements. Question 18. If gauge readings show a pressure drop across check valve #1 but not across check valve #2, what condition is indicated? A) Leaking #2 check valve B) Leaking #1 check valve C) Relief valve stuck open D) No backflow condition Answer: B Explanation: A pressure drop across #1 while #2 remains tight indicates that #1 is leaking. Question 19. Which of the following is a required safety measure when entering a confined space to test a backflow device? A) Wearing a hard hat only B) Continuous atmospheric monitoring for oxygen levels C) No need for permits if the space is dry D) Using a portable air compressor for ventilation Answer: B Explanation: Confined spaces require atmospheric testing for oxygen, hazardous gases, and proper ventilation. Question 20. What is the purpose of disinfecting test leads before and after backflow testing? A) To prevent corrosion of the device B) To avoid introducing bacteria into the potable system C) To calibrate the pressure gauges D) To lubricate the check valves
Answer: B Explanation: Disinfection ensures that testing equipment does not contaminate the drinking water supply. Question 21. Which personal protective equipment (PPE) is essential when testing a high-pressure backflow assembly? A) Safety glasses only B) Hearing protection only C) Face shield, gloves, and safety glasses D) Steel-toed boots only Answer: C Explanation: High-pressure systems can release water jets; a face shield, gloves, and safety glasses protect the tester. Question 22. According to the International Plumbing Code (IPC), what is the minimum clearance required in front of a backflow preventer for service access? A) 12 inches B) 18 inches C) 24 inches D) 30 inches Answer: B Explanation: The IPC mandates at least 18 inches of clear space to allow maintenance personnel to work safely. Question 23. Under the Safe Drinking Water Act, which entity is primarily responsible for enforcing backflow prevention regulations? A) Occupational Safety and Health Administration (OSHA) B) Environmental Protection Agency (EPA)
B) Pressure remains constant regardless of velocity changes C) Pressure drops as fluid velocity increases through a narrowed section D) Pressure is unrelated to velocity in incompressible flow Answer: C Explanation: The venturi effect is the pressure reduction that occurs when fluid accelerates through a constriction. Question 27. In a fire flow scenario, why might a backflow preventer experience backsiphonage? A) The fire pump creates high downstream pressure B) The sudden demand lowers supply pressure below downstream pressure C) The fire hydrant releases air into the system D) The fire flow adds chlorine to the water Answer: B Explanation: High fire demand can drop the main pressure, creating a suction condition that leads to backsiphonage. Question 28. Which type of cross-connection is most likely to be found in an irrigation system? A) Direct connection with a double check valve B) Indirect connection through a garden hose without a backflow device C) Direct connection using an air gap D) Indirect connection with a pressure vacuum breaker installed Answer: D Explanation: Irrigation systems often employ pressure vacuum breakers to protect against backflow from fertilizers or pesticides. Question 29. What is the minimum distance an air gap must have from the rim of a sink to be considered compliant?
A) One pipe diameter B) Two pipe diameters C) Three pipe diameters D) Four pipe diameters Answer: B Explanation: Codes require the air gap to be at least twice the pipe’s inside diameter away from the receiving rim. Question 30. Which of the following statements about a double check valve assembly (DCVA) is true? A) It can be used for health-hazard protection B) It contains a pressure-sensing relief valve C) It is approved for underground installation in non-health hazards D) It must be installed vertically only Answer: C Explanation: DCVAs are permitted underground when protecting against non-health hazards. Question 31. During RPZ testing, if the relief valve does not open at 2 psi above the upstream pressure, what is the likely condition? A) The relief valve is stuck closed B) Check valve #1 is leaking C) The system pressure is too high D) The gauge is faulty Answer: A Explanation: The relief valve should open at the specified differential; failure to do so indicates it is stuck.
Explanation: AVBs require a minimum of 12 inches of vertical clearance above the highest downstream fixture. Question 35. Which testing instrument is calibrated to measure differential pressure across a backflow device’s check valve? A) U-tube manometer B) Digital multimeter C) Differential pressure gauge D) Thermometer Answer: C Explanation: A differential pressure gauge measures the pressure difference across a component, such as a check valve. Question 36. What is the typical maximum allowable backpressure for a pressure vacuum breaker (PVB) when installed on a fire-sprinkler system? A) 0.5 psi B) 2 psi C) 5 psi D) 10 psi Answer: B Explanation: PVBs are limited to a maximum backpressure of 2 psi to ensure proper operation. Question 37. A residential homeowner installs a hose bibb with a built-in vacuum breaker. Which hazard does this device primarily address? A) Pollution hazard from garden chemicals B) Contamination hazard from backflow of sewage C) Thermal expansion in the water heater D) High-velocity water hammer
Answer: A Explanation: The vacuum breaker prevents garden chemicals from being siphoned back into the potable supply, a pollution hazard. Question 38. Which of the following is a characteristic of a direct cross-connection? A) The non-potable source is separated by an air gap B) The connection can be isolated by a shut-off valve on the non-potable side C) The two systems share a common pipe without any protective device D) The connection is only present during maintenance periods Answer: C Explanation: Direct cross-connections involve a physical link between potable and non-potable lines without separation. Question 39. In a laboratory setting, which backflow prevention device is most appropriate for protecting a chemical dosing line? A) Double check valve assembly B) Reduced pressure zone assembly C) Atmospheric vacuum breaker D) Air gap Answer: B Explanation: RPZ assemblies provide the highest level of protection, suitable for hazardous chemical dosing lines. Question 40. Which code chapter typically governs the installation of backflow preventers in the United States? A) Chapter 3 – Building Planning B) Chapter 6 – Water Supply and Distribution C) Chapter 9 – Fire Protection Systems
A) Backsiphonage due to pressure loss B) Backpressure caused by pump operation C) Venturi-induced suction D. Thermal expansion backflow Answer: A Explanation: A break causes a sudden drop in supply pressure, creating conditions for backsiphonage. Question 44. Which of the following is a required feature of a pressure-vacuum breaker (PVB) to prevent water from leaking out when the system is shut off? A) A spring-loaded pop-off valve B) A check valve that remains closed under pressure C) A built-in air vent that remains open at all times D) An integrated pressure gauge Answer: B Explanation: The check valve in a PVB stays closed when system pressure is removed, preventing leakage. Question 45. What does “psid” stand for in backflow testing terminology? A) Pounds per square inch differential B) Pressure sensor internal deviation C) Pounds per second instantaneous discharge D) Pressure system integrated device Answer: A Explanation: “psid” means pounds per square inch differential, the pressure difference measured across a component.
Question 46. Under the Uniform Plumbing Code (UPC), what is the minimum distance between a backflow preventer and a building foundation wall to avoid freezing? A) 6 inches B) 12 inches C) 18 inches D) 24 inches Answer: C Explanation: The UPC recommends at least 18 inches to protect against ground frost and ensure accessibility. Question 47. Which of the following best describes a “pollution hazard” in the context of backflow? A) A source that can introduce pathogens into the potable water B) A source that can cause discoloration or taste changes but not illness C) A source that contains radioactive material D) A source that raises the temperature of the water above 120 °F Answer: B Explanation: Pollution hazards affect water quality aesthetically but do not pose a health risk. Question 48. During RPZ testing, if the relief valve opens at 1.0 psi instead of the required 2.0 psi, what corrective action is recommended? A) Replace the relief valve B) Adjust the upstream pressure to a higher value C) Tighten the check valve nuts D) No action needed; 1.0 psi is acceptable Answer: A
Answer: A Explanation: Heat tracing maintains the device above freezing temperatures, preventing damage. Question 52. Which of the following statements about “backpressure” is correct? A) It occurs only when the downstream pressure exceeds upstream pressure B) It is caused by a sudden drop in supply pressure C) It can be eliminated by installing an air gap D) It only affects systems with fire pumps Answer: A Explanation: Backpressure is the condition where downstream pressure is higher than upstream, forcing water backward. Question 53. A building has a double-check valve assembly protecting a fire-sprinkler system. Which hazard level does this arrangement address? A) Health hazard B) Non-health hazard C) Both health and non-health hazards D) No hazard; DCVA is not permitted for fire-sprinklers Answer: B Explanation: DCVAs are approved for non-health hazards; fire-sprinkler systems are generally considered non-health hazards. Question 54. Which of the following is the correct sequence for testing a three-valve RPZ assembly? A) Close valve 1, test valve 2, open valve 3 B) Isolate check valve 1, test relief valve, isolate check valve 2
C) Open all valves, then close them one at a time D) Test relief valve first, then both check valves simultaneously Answer: B Explanation: The standard procedure isolates each check valve and then tests the relief valve to verify proper operation. Question 55. In a laboratory, a backflow preventer must be tested annually. Which document typically records the test results? A) The building’s fire alarm log B) The backflow prevention test report form C) The HVAC maintenance schedule D) The electrical inspection certificate Answer: B Explanation: A specific test report form is used to record backflow device test data and compliance status. Question 56. Which factor does NOT influence the selection of a backflow prevention device for a given application? A) Hazard classification of the downstream source B) Maximum operating pressure of the system C) Color of the piping material D) Frequency of system shutdowns Answer: C Explanation: Pipe color is irrelevant to device selection; hazard level, pressure, and shutdown frequency are critical factors. Question 57. When a pressure-vacuum breaker is installed downstream of a water-hammer arrester, what is the primary concern? A) The arrester may cause the PVB to open prematurely
