by P.N. Hilfinger (U.C. Berkeley) modified by M. Clancy (UCB) and C. Bono

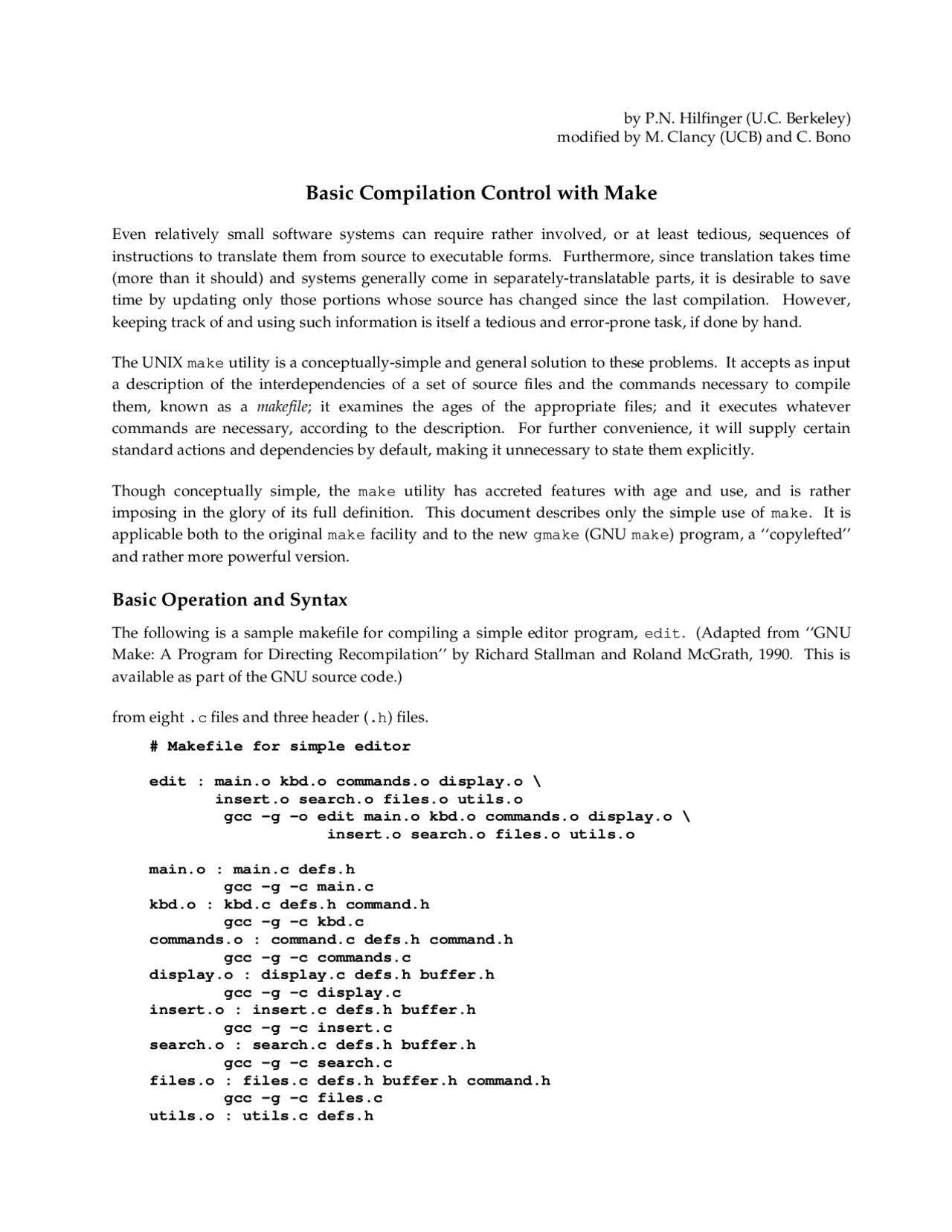

Basic Compilation Control with Make
Even relatively small software systems can require rather involved, or at least tedious, sequences of instructions to translate them from source to executable forms. Furthermore, since translation takes time (more than it should) and systems generally come in separately-translatable parts, it is desirable to save time by updating only those portions whose source has changed since the last compilation. However, keeping track of and using such information is itself a tedious and error-prone task, if done by hand.
The UNIX make utility is a conceptually-simple and general solution to these problems. It accepts as input a description of the interdependencies of a set of source files and the commands necessary to compile them, known as a makefile ; it examines the ages of the appropriate files; and it executes whatever commands are necessary, according to the description. For further convenience, it will supply certain standard actions and dependencies by default, making it unnecessary to state them explicitly.
Though conceptually simple, the make utility has accreted features with age and use, and is rather imposing in the glory of its full definition. This document describes only the simple use of make. It is applicable both to the original make facility and to the new gmake (GNU make) program, a ‘‘copylefted’’ and rather more powerful version.
Basic Operation and Syntax
The following is a sample makefile for compiling a simple editor program, edit. (Adapted from ‘‘GNU Make: A Program for Directing Recompilation’’ by Richard Stallman and Roland McGrath, 1990. This is available as part of the GNU source code.)
from eight .c files and three header (.h) files.
# Makefile for simple editor
edit : main.o kbd.o commands.o display.o
insert.o search.o files.o utils.o gcc -g -o edit main.o kbd.o commands.o display.o
insert.o search.o files.o utils.o
main.o : main.c defs.h gcc -g -c main.c kbd.o : kbd.c defs.h command.h gcc -g -c kbd.c commands.o : command.c defs.h command.h gcc -g -c commands.c display.o : display.c defs.h buffer.h gcc -g -c display.c insert.o : insert.c defs.h buffer.h gcc -g -c insert.c search.o : search.c defs.h buffer.h gcc -g -c search.c files.o : files.c defs.h buffer.h command.h gcc -g -c files.c utils.o : utils.c defs.h
gcc -g -c utils.c
This file consists of a sequence of nine rules. Each rule consists of a line containing two lists of names separated by a colon, followed by one or more lines beginning with tab characters. Any line may be continued, as illustrated, by ending it with a backslash-newline combination, which essentially acts like a space, combining the line with its successor. The ‘#’ character indicates the start of a comment that goes to the end of the line.
The names preceding the colons are known as targets ; they are most often the names of files that are to be produced. The names following the colons are known as dependencies of the targets. They usually denote other files (generally, other targets) that must be present and up-to-date before the target can be processed. The lines starting with tabs that follow the first line of a rule we will call actions. They are shell commands that get executed in order to create or update the target of the rule (we’ll use the generic term update for both).
Each rule says, in effect, that to update the targets, each of the dependencies must first be updated (recursively). Next, if a target does not exist (that is, if no file by that name exists) or if it does exist but is older than one of its dependencies, the actions of the rule are executed to create or update that target. The program will complain if any of the dependencies does not exist and there is no rule for creating it. To start the process off, the user who executes the make utility specifies one or more targets to be updated. The first target of the first rule in the file is the default.
In the example above, edit is the default target. The first step in updating it is to update all the object (.o) files listed as dependencies. To update main.o, in turn, requires first that main.c and defs.h be updated. Presumably, main.c is the source file that produces main.o and defs.h is a header file that main.c includes. There are no rules targeting these files; therefore, they merely need to exist to be up-to-date. Now main.o is up-to-date if it is younger than either main.c or defs.h (if it were older, it would mean that one of those files had been changed since the last compilation that produced main.o). If main.o is older than its dependencies, make executes the action ‘‘gcc -g -c main.c’’, producing a new main.o. Once main.o and all the other .o files are updated, they are combined by the action ‘‘gcc -g -o edit.. .’’ to produce the program edit, if either edit does not already exist or if any of the .o files are younger than the existing edit file.
To invoke the make for this example, one issues the command
make -f makefile-name target-names
where the target-names are the targets that you wish to update and the makefile-name given in the -f switch is the name of the makefile. By default, the target is that of the first rule in the file and the makefile name is either makefile or Makefile, whichever exists. It is typical to arrange that each directory contains the source code for a single principal program. By adopting the convention that the rule with that program as its target goes first, and that the makefile for the directory is named makefile, you can arrange that, by convention, issuing the command make with no arguments in any directory will update the principal program of that directory.
It is possible to have more than one rule with the same target, as long as no more than one rule for each target has an action. Thus, we can also write the latter part of the example above as follows.
main.o : main.c gcc -g -c main.c
Finally, variables not set by either of these methods may be set as UNIX environment variables. Thus, the sequence of commands
setenv DEBUG -g make ...
for this last example will also use the -g switch during compilations.
Implicit rules
In the example from the first section, all of the compilations that produced .o files have the same form. It is tedious to have to duplicate them; it merely gives you the opportunity to type something wrong. Therefore, make can be told about---and for some standard cases, already knows about---the default files and actions needed to produce files having various extensions. For our purposes, the most important is that it knows how to produce a file F .o given a file of the form F .c, and knows that the F .o file depends on the file F .c. Specifically, make automatically introduces (in effect) the rule
F .o : F .c $(CC) -c $(CFLAGS) F .c
when called upon to produce F .o when there is a file F .c present, but no explicitly specified actions for producing F .o.
As a result, the example may be abbreviated as follows.
# Makefile for simple editor
OBJS = main.o kbd.o commands.o display.o
insert.o search.o files.o utils.o
CC = gcc
CFLAGS = -g
edit : $(OBJS) gcc -g -o $@ $(OBJS)
main.o : defs.h kbd.o : defs.h command.h commands.o : defs.h command.h display.o : defs.h buffer.h insert.o : defs.h buffer.h search.o : defs.h buffer.h files.o : defs.h buffer.h command.h utils.o : defs.h
There are quite a few other such implicit rules built into make. The -p switch will cause make to list them somewhat cryptically, if you are at all curious. We are most likely to be using the rules for creating .o files from .c files or from .s (assembler) files. It is also possible to supply your own default rules and to suppress the standard rules; for details, see the full documentation.
Special actions
It is often useful to have targets for which there are never any corresponding files. If the actions for a target do not create a file by that name, it follows from the definition of how make works that the actions for that target will be executed each time make is applied to that target. A common use is to put a standard ‘‘clean-up’’ operation into each of your makefiles, specifying how to get rid of files that can be reconstructed, if necessary. For example, you will often see a rule like this in a makefile.
*clean: rm -f .o
Every time you issue the shell command make clean, this action will execute, removing all .o files.
Details of actions
By default, each action line specified in a rule is executed by the Bourne shell (as opposed to the C-shell, which is more commonly used here). For the simple makefiles we are likely to use, this will make little difference, but be prepared for surprises if you get ambitious.
The make program usually prints each action as it is executed, but there are times when this is not desirable. Therefore, a ‘@’ character at the beginning of an action suppresses the default printing. Here is an example of a common use.
edit : $(OBJS) @echo Linking $@... @gcc -g -o $@ $(OBJS) @echo Done
The result of these actions is that when make executes this final editing step for the edit program, the only thing you’ll see printed is a line reading ‘‘Linking edit...’’ and, at the end of the step, a line reading ‘‘Done’’.
When make encounters an action that returns a non-zero exit code, the UNIX convention for indicating an error, its standard response is to end processing and exit. The error codes of action lines that begin with a ‘-’ sign (possibly preceded by a ‘@’) are ignored. Also, the -k switch to make will cause it to abandon processing only of the current rule (and any that depend on its target) upon encountering an error, allowing processing of ‘‘sibling’’ rules to proceed.
Using makefiles with C++
One of the differences between make and gmake relates to the variables used in the implicit rules for compiling C++ programs. What I will describe here only works with gmake.
If you use the suffix .cc, it will create a .o file with the same prefix using the compiler given by the variable CXX, and the flags given by the variable CXXFLAGS. The default value for CXX is g++. Since that is the compiler we want to use, we don’t have to set this variable in our makefile. Thus .cc, CXX and CXXFLAGS for compiling C++ programs are analogous to .c, CC, and CFLAGS for compiling C programs (see earlier section on implicit rules).
Here is a simple makefile that creates the executable fracts from the source files Fraction.cc, testfracts.cc, and the header file Fraction.h (which is included in both of the source files). Remember, this will only work with gmake.
