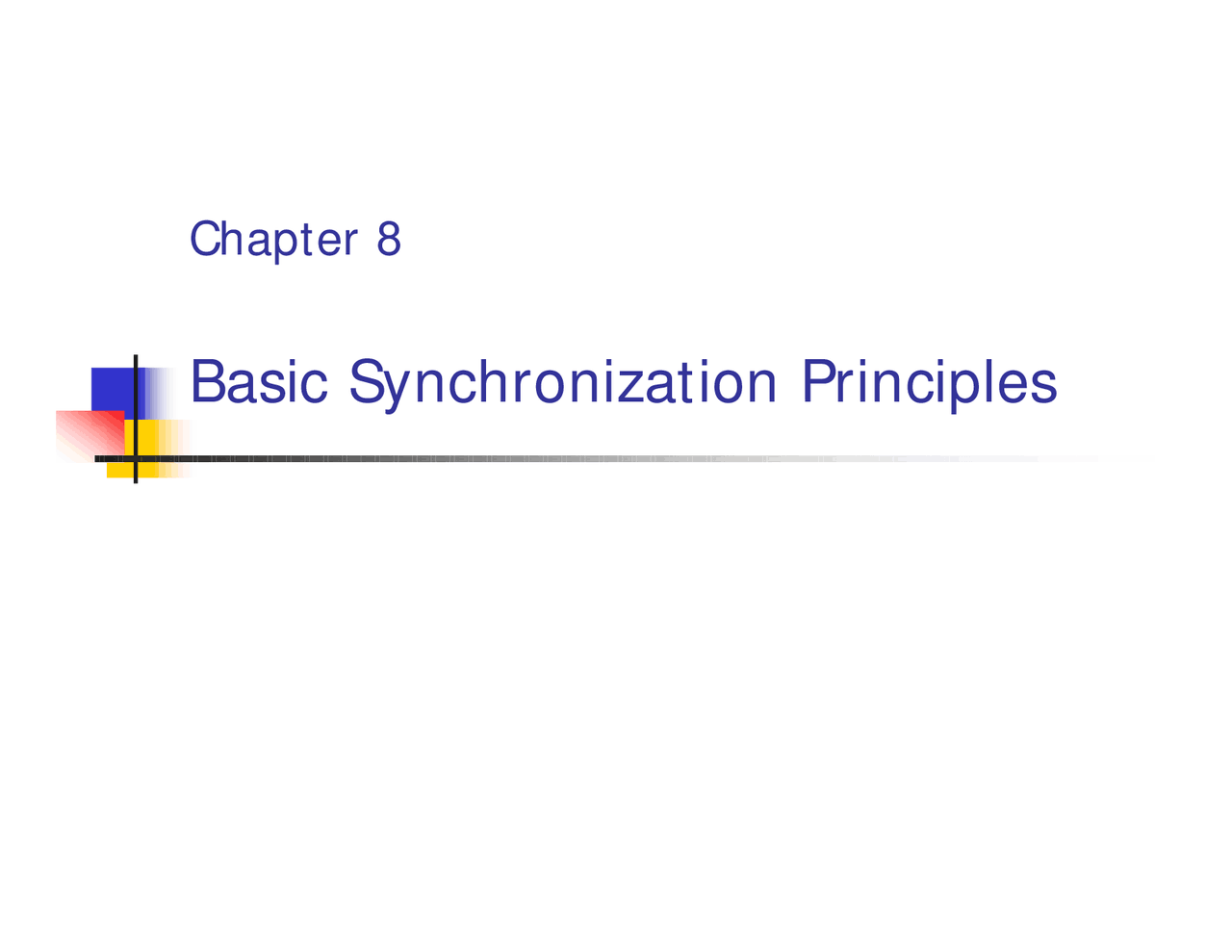

Chapter 8

Basic Synchronization Principles

? Multiprogramming

? Multiple concurrent, independent processes

? Those processes might want to coordinate activities

? Clearly, synchronization is needed if

? A wants B to read x after it writes it & before it re-writes

Proc A {

while (true) {

write(x)

read(y)

Proc B {

while (true) {

read(x)

write(y)

Need for Synchronization

shared x, y

Critical Section Problem

/* Code schema for p1 */

..

balance = balance + amount;

..

/* Code schema for p2 */ .. balance = balance - amount; ..

/* Schema for p1 / / X == balance */ load R1, X load R2, Y add R1, R store R1, X

/* Schema for p2 / / X == balance */ load R1, X load R2, Y sub R1, R store R1, X

shared float balance;

Critical Section Problem…

? Suppose:

? Execution sequence : 1, 2, 3

? Lost update : 2

? Execution sequence : 1, 4, 3 ,

? Lost update : 3

? Together => non-determinacy

? Race condition exists

/* Schema for p1 */ load R1, X load R2, Y add R1, R store R1, X

/* Schema for p2 */ load R1, X load R2, Y sub R1, R store R1, X

Using Shared Global Variables – Ver 2

procedure processone; begin while true do begin while p2inside do ; p1inside := true; criticalsectionone; p1inside := false; otherstuffone; end end

procedure processtwo; begin while true do begin while p1inside do ; p2inside := true; criticalsectiontwo; p2inside := false; otherstufftwo; end end

• Process 1 & 2 can both be in the critical sections at the same time

Because Test & Set operations are not atomic

==> Move setting of p1inside/p2inside before test

Shared boolean: p1inside <= false, p2inside <= false;

Using Shared Global Variables – Ver 3

procedure processone; begin while true do begin p1wantsin := true; while p2wantsin do ; criticalsectionone; p1wantsin := false; otherstuffone; end end

procedure processtwo; begin while true do begin p2wantsin := true; while p1wantsin do ; criticalsectiontwo; p2wantsin := false; otherstufftwo; end end

• Deadlock can occur if both sets flag at the same time

==> Need a way to break out of loops…..

Shared boolean: p1wantsin <= false, p2wantsin <= false;

Using Interrupts…

? This works BUT …

? Allows process to disable interrupts for arbitrarily long time

? What if I/O interrupt needed?

? What if one of the processes is in infinite loop inside the

Critical Section

? Let’s examine the use of Shared Variables again….

Using Shared Variable to Synchronize

/ Program for P1 / .. /* Acquire lock / while(lock) {NULL;}; lock = TRUE; / Execute critical section / balance = balance + amount; / Release lock */ lock = FALSE; ..

/ Program for P2 / .. /* Acquire lock / while(lock) {NULL;}; lock = TRUE; / Execute critical section / balance = balance - amount; / Release lock */ lock = FALSE; ..

shared boolean lock <= FALSE; shared float balance;

lock == FALSE

=> No process in CS

=> Any process can enter CS

lock == TRUE

=> One process in CS

=> No other process admitted to CS

Un-interruptable Test & Set

enter( lock ) {

disableInterrupts(); /* Loop until lock TRUE / while (lock) { / Let interrupts occur */ enableInterrupts(); disableInterrupts(); } lock = TRUE; enableInterrupts();

}

exit( lock ) { disableInterrupts(); lock = FALSE; enableInterrupts(); }

Enable interrupts so that the OS, I/O can use them

Re-disable interrupts when ready to test again

Un-interruptable Test & Set…

? Note

? CS is totally bounded by enter/exit

? P2 can still wait (waisted CPU cycles) if P1 is interupted after

setting lock (i.e., entering critical section), but

? Mutual exclusion is achieved!!!!!

? Does not generalize to multi-processing

P

enter(lock); balance = balance + amount; exit(lock);

P

enter(lock); balance = balance - amount; exit(lock);

CS^ CS

? Solution

/ Program for P1 / enter(listLK); < delete element >; exit(listLK); ; enter(lngthLK); < update length >; exit(lngthLK);

Suppose: P1... ; P2 runs & finishes; P1 …….

Any access to lngth vble during “intermediate comp.”will be incorrect !!!

=> Programming Error: List and variable need to be updated together

Protecting Multiple Components: 1st^ try

Shared: list L,

boolean ListLK <= False;

boolean LngthLK <= False;

/ Program for P2 / enter(lngthLK); < update length >; exit(lngthLK); ; enter(listLK); < delete element >; exit(listLK);

? Suppose: P1... ;

P2 runs to? and blocks ;

P1 starts & blocks on “enter”

=> DEADLOCK

/ Program for P1 / enter(listLK); < delete element >; ; enter(lngthLK); < update length >; exit(listLK); exit(lngthLK);

Protecting Multiple Components: 2nd^ try

Shared: list L,

boolean ListLK <= False;

boolean LngthLK <= False;

/ Program for P2 / enter(lngthLK); < update length >; ; enter(listLK) < delete element >; exit(lngthLK); exit(listLK);

CS 1

CS 2

CS 2

CS 1

Solution to Synchronization

? The previous examples have illustrated 2 methods for

synchronizing / coordinating processes

? Interrupt

? Shared variable

? Each has its own set of problems

? Interrupt

? May be disabled for too long

? Shared variable

? Test, then set – interruptable

? Non-interruptable – gets complex

? Dijkstra introduces a 3rd^ and much more preferable

method

? Semaphore

Semaphore

? Dijkstra, 1965

? Synchronization primitive with no busy waiting

? It is an integer variable changed or tested by one of

the two indivisible operations

? Actually implemented as a protected variable type

var x : semaphore
