Department of Mechanical Engineering, The University of Hong Kong
MECH3423 Building Services Engineering II
Experiment 1: Basic Water Cooling Tower
Objectives
· To study the basic principles and characteristics of evaporative water cooling tower system. · To investigate cooling tower performance and key design factors.
Introduction
This experiment will give students an appreciation of the construction, design and operational characteristics of a modern evaporative cooling system. The test unit is also an excellent example of an ‘open system’ through which two streams of fluid flow (water and air) and in which there is a mass transfer from one stream to the other. Figure 1 shows a schematic diagram of the test unit.

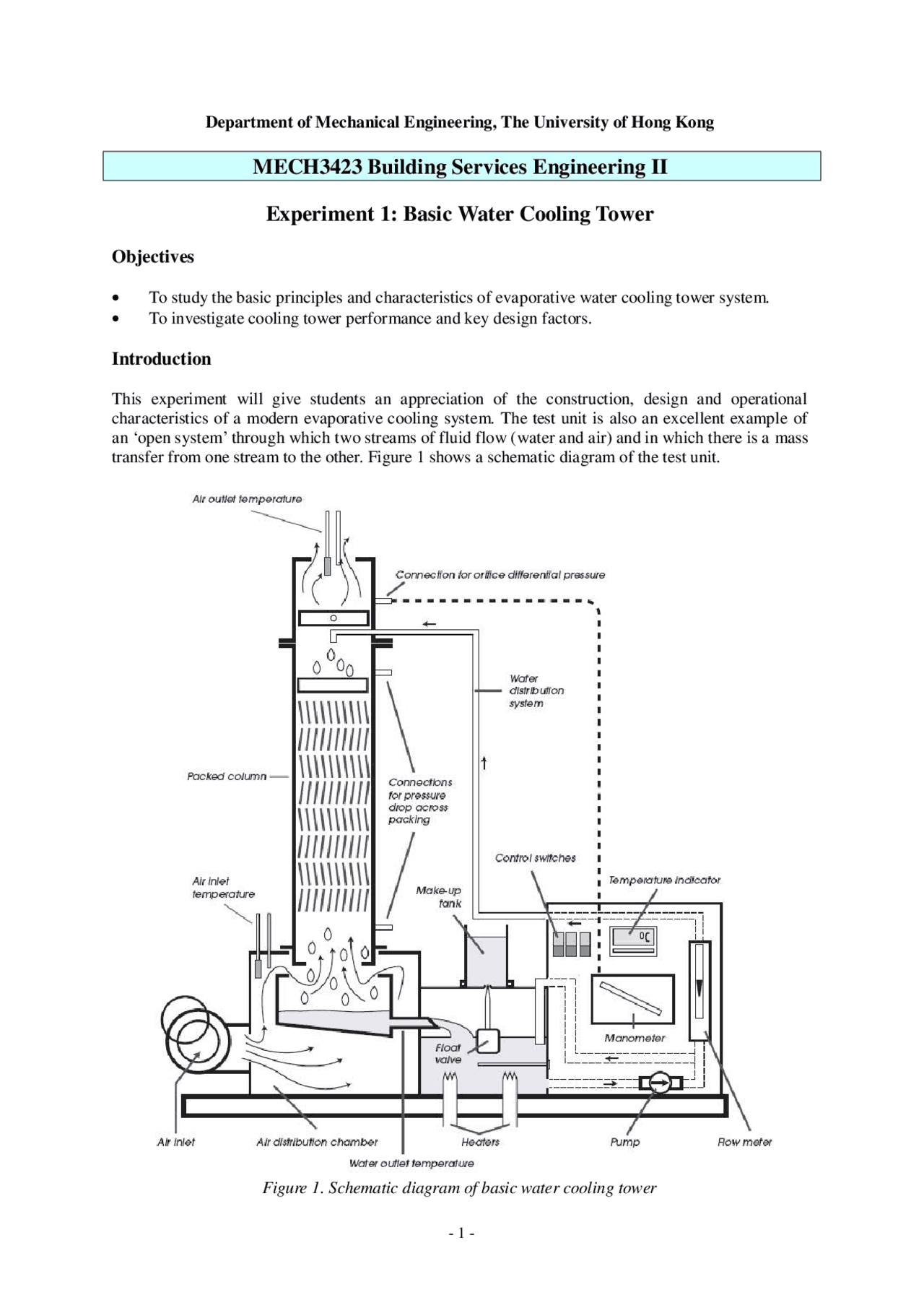

Figure 1. Schematic diagram of basic water cooling tower
Theory and Principles
The Basic Water Cooling Tower behaves in a similar manner and has similar components to a full size cooling tower.
(a) Cooling tower terms
Cooling range The difference between the water temperature at entry to and exit from the tower.
Cooling load The rate at which heat is removed from the water. This may be expressed in kW, Btu/h or kCal/h.
Make-up The quantity of fresh water which must be supplied to the water circuit to make good the losses due to evaporation and other causes.
Drift or carry out Droplets of water which are entrained by the air stream l eaving the tower.
Packing or fill The material over which the water flows as it falls through the tower, so that a large surface area is presented to the air stream.
Approach to wet bulb The difference between the temperature of the water leaving the tow er and the wet bulb temperature of the air entering.
Drain down Water deliberately removed from the water system to prevent the excessive concentration of dissolved solids (due to evaporation) and sludge (due to impurities from the atmosphere).
(b) Basic principles
Consider the surface of a warm water droplet or film in contact with an air stream (see Figure 2).
Figure 2. Basic principles of heat and mass transfer of water cooling tower
Assuming that the water is hotter than the air, it will be cooled:
i) By radiation – This effect is likely to be very small under normal condition, and may be neglected. ii) By conduction and convection – This will depend on the temperature difference, the surface area, air velocity, etc. iii) By evaporation – This is by far the most important effect. Cooling takes place as molecules of H 2 O diffuse from the surface into the surrounding air. These molecules are then replaced by others from the liquid (evaporation) and the energy required for this is taken from the remaining liquid.
(c) Evaporation from a wet surface
The rate of evaporation from a wet surface into the surrounding air is determined by the difference
The ratio of steam to air (ω) is known for the initial and final state points on the psychrometric chart.
Thus, ( m s)B = m a ωB and ( m s ) (^) A = m a ωA
m E = m a (ωB – ωA) (4)
The system may be re-defined thus. In this case, the process heat and pump work does not cross the boundary of the system, but we now have warm water entering the system at C and cool water leaving at D. Applying the steady flow energy equation,
Q – P = H Exit – H Inlet
Assume P = 0; Q may have a small value due to heat transfer between the unit and its surroundings.
Q = m a h B + m w h D – ( m a h A + m w h C + m E h E )
= m a ( h B – h A) + m w ( h D – h C) – m E h E
= m a ( h B – h A) + m w c p ( t D – t C) – m E h E (5)
As stated earlier, the term m E h E is usually small compared with the other terms. c p is the specific heat capacity of water (4.18 kg -1^ K -1) and t is the water temperature.
Equipment and Instruments
· Basic Water Cooling Tower unit · Packing installed: B · Packing density: 110 m 2 per m^3 · Measuring instruments for dry bulb and wet bulb temperatures
Procedure
The cooling tower unit should be prepared, started and allowed to stabilise under the following suggested conditions:
·Water flow rate = 40 g s - ·Orifice differential = 16 mm H 2 O ·Cooling load = 0 kW
Note: Stability is reached when there is no further appreciable change in temperature or flow rate.
After the conditions have stabilised, observe and examine the processes of the water system and air system of the cooling tower.
At regular intervals over a measured period of time, say 10 minutes, all temperatures and flow rates should be noted and the mean values entered on the observation chart.
At the commencement of this period, fill the make-up tank to the gauge mark with distilled water. At the end of this period, refill the tank from a known quantity of distilled water in a measuring cylinder. By difference, determine the quantity of make-up which has been supplied in the time interval.
While keeping the water and air flows constant, the cooling load should be increased to 0.5 kW. When the conditions have stabilised the observations should be repeated.
Similar tests should be made with cooling loads of 1.0 and 1.5 kW.
From the results, investigate the effect of cooling load on approach to wet bulb.
Results
A form is provided in the Appendix for recording the measurement data. After the experiment, the following information should be established to report the findings.
· Clear presentation of the measurement data · Determination of the state properties of air and H 2 O from tables or charts · Calculations to draw up energy and mass balances · Analysis of the relationship between cooling load and approach to wet bulb temperature
Discussions
The following issues shall be evaluated and discussed.
· Factors affecting the accuracy of the measurements · Major design factors and issues affecting cooling tower performance
Laboratory Report
Each student should prepare their own report based on the data and information obtained during the experiment. While the results from the observations and measurements can be shared among the members in the same student group, each student shall generate information to show his/her own understanding and ideas. Students making direct copy of the information in other’s report (plagiarism), if found, will be disqualified.
The laboratory report in PDF format shall be submitted to the Moodle within TWO weeks after completion of the experiment. Late submission will receive reduction in marks.
References
AIRAH, 1997. Cooling Towers , Australian Institute of Refrigeration, Air-Conditioning and Heating (AIRAH) in association with The Institute of Refrigeration Heating and Air Conditioning Engineers of New Zealand, West Melbourne, Victoria. [P 697.9322 C77] ASHRAE, 2012. ASHRAE Systems and Equipment Handbook 2012 , SI edition, Chp. 40: Cooling Towers, American Society of Heating, Refrigerating, and Air-Conditioning Engineers, Atlanta, GA. Burger, R., 1995. Cooling Tower Technology: Maintenance, Upgrading, and Rebuilding , 3rd ed., Fairmont Press, Lilburn, GA. [621.197 B9] Stanford, H. W., 2003. HVAC Water Chillers and Cooling Towers: Fundamentals, Application, and Operation , Marcel Dekker, Inc., New York. [697.9322 S7] [www.crcnetbase.com/isbn/9780203912492]
Web Links
Cooling tower – Wikipedia, http://en.wikipedia.org/wiki/Cooling_tower What is Cooling Tower (Cooling Technology Institute), http://www.cti.org/whatis/coolingtower.shtml Video: How Cooling Towers Work (3:16) http://www.youtube.com/watch?v=QfLCjj73MZA
