Ultimate Exam

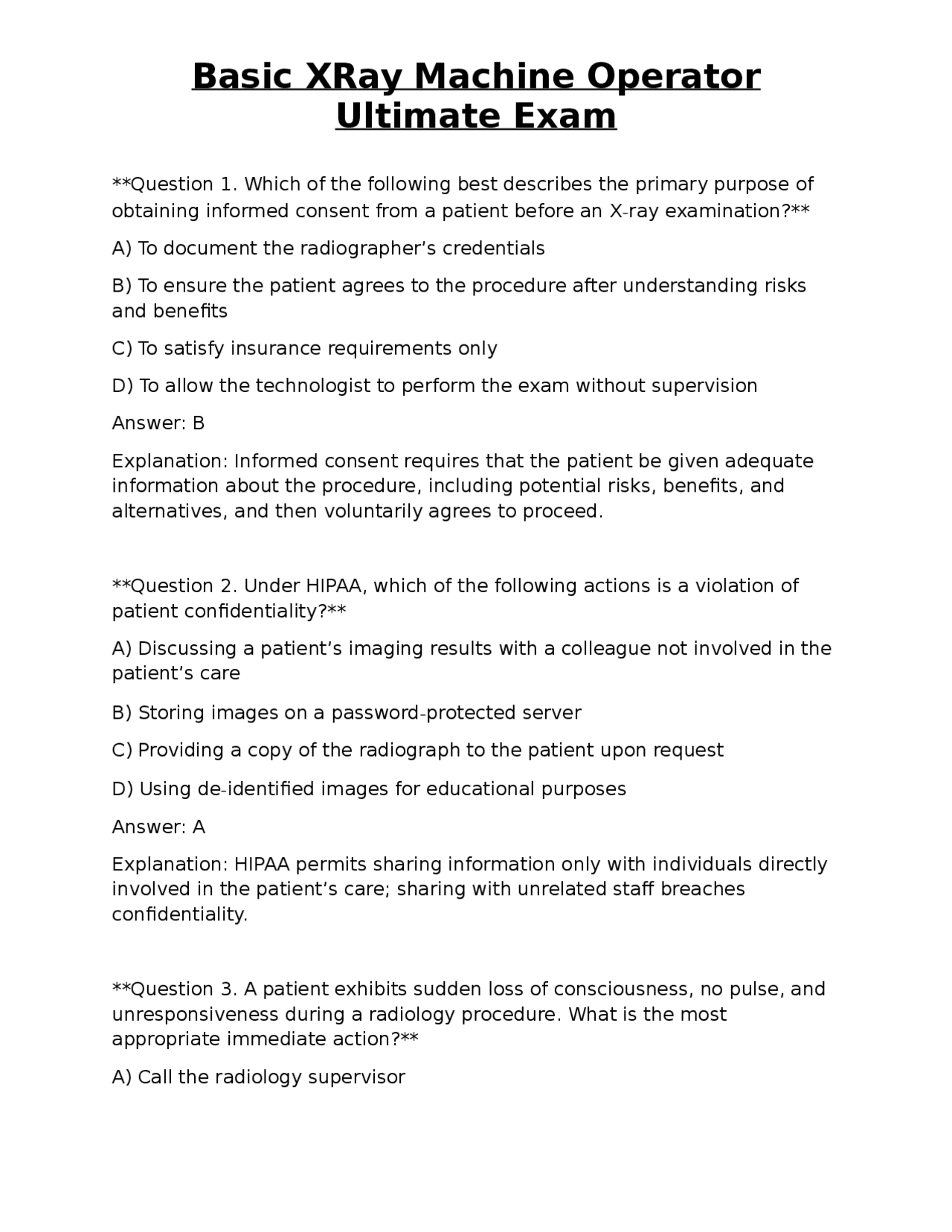

Question 1. Which of the following best describes the primary purpose of obtaining informed consent from a patient before an X-ray examination? A) To document the radiographer’s credentials B) To ensure the patient agrees to the procedure after understanding risks and benefits C) To satisfy insurance requirements only D) To allow the technologist to perform the exam without supervision Answer: B Explanation: Informed consent requires that the patient be given adequate information about the procedure, including potential risks, benefits, and alternatives, and then voluntarily agrees to proceed. Question 2. Under HIPAA, which of the following actions is a violation of patient confidentiality? A) Discussing a patient’s imaging results with a colleague not involved in the patient’s care B) Storing images on a password-protected server C) Providing a copy of the radiograph to the patient upon request D) Using de-identified images for educational purposes Answer: A Explanation: HIPAA permits sharing information only with individuals directly involved in the patient’s care; sharing with unrelated staff breaches confidentiality. Question 3. A patient exhibits sudden loss of consciousness, no pulse, and unresponsiveness during a radiology procedure. What is the most appropriate immediate action? A) Call the radiology supervisor
Ultimate Exam
B) Begin CPR and activate the emergency response system C) Continue the examination to finish the study quickly D) Administer a sedative Answer: B Explanation: Cardiac arrest requires immediate cardiopulmonary resuscitation (CPR) and activation of emergency response to restore circulation. Question 4. Which of the following standard precautions is essential when positioning a patient with an open wound for a chest radiograph? A) Wearing a lead apron only B) Using sterile gloves and a sterile gown C) Applying a clean, non-sterile dressing over the wound D) No additional precautions are needed Answer: C Explanation: Standard precautions require covering open wounds with a clean dressing to prevent contamination while maintaining infection control. Question 5. The most appropriate method for moving a 90 kg patient from a stretcher to the X-ray table while minimizing provider injury is: A) Bending at the waist and lifting with the arms B) Using a slide sheet and a team lift with proper body mechanics C) Dragging the patient across the floor D) Having the patient walk unaided to the table Answer: B Explanation: Slide sheets reduce friction and a team lift distributes load, preserving proper body mechanics and reducing risk of musculoskeletal injury.
Ultimate Exam
D) The cathode emits characteristic photons Answer: A Explanation: Bremsstrahlung (braking radiation) occurs when high-energy electrons are decelerated by the electric field of the anode nuclei, emitting a continuous spectrum of photons. Question 9. Which interaction is most likely to dominate when a 70 keV photon passes through soft tissue? A) Photoelectric effect B) Compton scattering C) Coherent (Rayleigh) scattering D) Pair production Answer: B Explanation: At 70 keV, Compton scattering predominates in soft tissue because photon energy is moderate and tissue’s effective atomic number is low. Question 10. Deterministic effects of radiation are characterized by: A) A linear increase in risk with dose, no threshold B) A dose threshold below which the effect does not occur C) Random occurrence regardless of dose magnitude D) Genetic mutations transmitted to offspring Answer: B Explanation: Deterministic effects (e.g., skin erythema) have a threshold dose; severity increases with dose above that threshold. Question 11. The Law of Bergonie and Tribondeau states that cells are more radiosensitive when they are:
Ultimate Exam
A) Fully differentiated and have long cell cycles B) Highly proliferative, undifferentiated, and have long mitotic times C) Large and have low metabolic activity D) Located in bone tissue only Answer: B Explanation: Cells that are rapidly dividing, undifferentiated, and have long mitotic cycles are more susceptible to radiation damage. Question 12. In a linear no-threshold (LNT) model, the relationship between dose and cancer risk is: A) No risk until a threshold is reached B) Linear, with any dose carrying some risk C) Exponential, with risk rising sharply at high doses only D) Sigmoidal, with a plateau at low doses Answer: B Explanation: The LNT model assumes that any amount of ionizing radiation, no matter how small, carries a proportional increase in stochastic cancer risk. Question 13. The ALARA principle is best implemented by which of the following actions? A) Maximizing exposure time to improve image quality B) Using the highest possible kVp for all examinations C) Optimizing technique factors, shielding, and limiting repeat exposures D) Ignoring patient size when selecting exposure parameters Answer: C Explanation: ALARA (As Low As Reasonably Achievable) requires minimizing dose while maintaining diagnostic image quality through technique optimization and shielding.
Ultimate Exam
D) Pocket ion chamber Answer: C Explanation: OSL dosimeters have high sensitivity, a wide dose range, and provide accurate cumulative dose readings, making them preferred for occupational monitoring. Question 17. In digital radiography, the exposure indicator (EI) is used to: A) Adjust the patient’s positioning automatically B) Signal whether the image is under-, over-, or appropriately exposed C) Control the speed of the X-ray tube rotation D) Measure the patient’s radiation dose directly Answer: B Explanation: The EI provides a quantitative assessment of exposure quality, indicating if the image is within the acceptable exposure range. Question 18. Increasing the mAs in an X-ray exposure will primarily affect: A) Image contrast B) Patient dose and image density (blackening) C) Beam quality (penetration) D**) Spatial resolution Answer: B Explanation: mAs (tube current-time product) directly influences the number of photons produced, thereby affecting patient dose and image density. Question 19. Raising the kVp while keeping mAs constant will most likely: A) Increase image contrast and decrease patient dose
Ultimate Exam
B) Decrease image contrast, increase beam penetration, and reduce patient dose C) Increase spatial resolution D) Have no effect on image quality or dose Answer: B Explanation: Higher kVp produces higher energy photons, which penetrate more, reducing contrast but also reducing patient dose due to fewer interactions. Question 20. The primary benefit of using a grid in radiography is to: A) Increase patient dose without improving image quality B) Reduce scatter radiation reaching the detector, enhancing contrast C) Shorten exposure time D) Eliminate the need for collimation Answer: B Explanation: Grids absorb scattered photons, improving image contrast at the expense of increased patient dose due to the need for higher exposure. Question 21. Which artifact is most commonly caused by patient motion during a digital radiograph? A) Ring artifact B) Motion blur C) Edge enhancement artifact D) Grid cutoff Answer: B Explanation: Patient movement during exposure produces a blurred image, known as motion blur, degrading spatial resolution.
Ultimate Exam
Explanation: The physical dimensions of the focal spot housing on the anode define the size of the focal spot, influencing spatial resolution and heat load. Question 25. A daily quality control (QC) test for X-ray equipment includes checking: A) Patient dose records from the previous month B) Collimator light alignment and timer accuracy C) The radiographer’s certification status D) The hospital’s fire alarm system Answer: B Explanation: Daily QC ensures that the collimator light is correctly aligned with the X-ray field and that the timer provides accurate exposure times. Question 26. For a standard PA chest radiograph, the patient should be positioned with the central ray (CR) at which anatomical landmark? A) T4 vertebral body B) Mid-clavicular line at the level of the 7th intercostal space C) At the level of the diaphragm D) At the sternal notch Answer: B Explanation: The PA chest CR is directed perpendicular to the film at the mid-clavicular line, typically aligning with the 7th intercostal space to include the entire lung fields. Question 27. In a decubitus chest radiograph, the patient is positioned: A) Supine with the X-ray beam entering posteriorly B) Lying on the side opposite the area of interest to detect free air C) Standing upright with the beam vertical
Ultimate Exam
D) Sitting with arms raised above the head Answer: B Explanation: The decubitus view has the patient lying on the side opposite the suspected pneumothorax, allowing free air to rise and be visualized. Question 28. When acquiring a KUB (Kidneys, Ureters, Bladder) series, the optimal patient position for the AP view is: A) Supine with knees flexed to reduce bowel motion B) Prone with arms above the head C) Standing with feet together D) Sitting with back against the detector Answer: A Explanation: Supine with knees flexed reduces abdominal wall thickness and bowel motion, improving visualization of the urinary tract. Question 29. Which positioning error is most likely to cause foreshortening of the femur on a lateral lower-extremity radiograph? A) The central ray is aimed too high on the thigh B) The patient’s knee is flexed instead of fully extended C) The X-ray tube is angled upward relative to the detector D) The patient is rotated 30° toward the image receptor Answer: C Explanation: An upward tube angle shortens the projected length of the femur, resulting in foreshortening on the image. Question 30. In a standard AP view of the pelvis, the central ray should be directed at: A) The symphysis pubis
Ultimate Exam
Question 33. The Caldwell view of the skull is performed with the central ray angled: A) 0° (perpendicular) to the image receptor B) 15° caudal tilt C) 15° cranial tilt D) 30° caudal tilt Answer: B Explanation: The Caldwell (PA) view uses a 15° caudal tilt to project the orbital roofs superimposed on the orbits, providing optimal visualization of the frontal sinuses. Question 34. In the Waters view, the central ray is directed at a 37° angle relative to the image receptor to best demonstrate which area? A) Maxillary sinuses B) Nasal cavity C) Sphenoid sinus and petrous ridges D) Temporal bone Answer: C Explanation: The Waters (occipitomental) view uses a 37° caudal angle to separate the sphenoid sinus and petrous ridges, allowing clear assessment of the maxillary sinuses and orbital floors. Question 35. Which of the following statements about weight-bearing foot radiographs in podiatry is true? A) They are performed with the patient lying supine to reduce motion B) They require a special cassette that is not compatible with standard DR panels C) They assess the alignment of the calcaneus, talus, and forefoot under load D) They are not useful for evaluating plantar fasciitis
Ultimate Exam
Answer: C Explanation: Weight-bearing foot images show the bony architecture under physiological load, essential for diagnosing alignment abnormalities and conditions like flatfoot. Question 36. The most appropriate technique for reducing motion artifact in a pediatric chest X-ray is: A) Increase mAs dramatically B) Use a high kVp and short exposure time (e.g., 0.02-0.04 s) C) Ask the child to hold their breath for 10 seconds D) Perform the exam with the patient seated Answer: B Explanation: Higher kVp shortens exposure time, minimizing the chance of motion while still providing adequate penetration for a pediatric chest. Question 37. In the context of radiation biology, a stochastic effect is characterized by: A) A threshold dose below which the effect does not occur B) Severity that increases with dose, but probability does not C) Probability of occurrence that increases with dose, without a threshold D) Immediate tissue necrosis at high doses only Answer: C Explanation: Stochastic effects (e.g., cancer, genetic mutations) have no threshold; the likelihood rises with dose, but severity is independent of dose. Question 38. Which of the following best explains why lead aprons are less effective for protecting the thyroid compared to dedicated thyroid shields? A) Lead aprons are made of thinner lead equivalents
Ultimate Exam
Question 41. In a CR system, a “ghosting” artifact is most likely caused by: A) Overexposure of the phosphor plate B) Residual luminescence from a previous exposure not fully erased C) Incorrect gain settings in the digital processor D) Faulty X-ray tube filament Answer: B Explanation: Ghosting results when a prior image’s latent signal is not completely cleared before the next exposure, leaving a faint duplicate. Question 42. Which of the following statements about the primary beam filtration in an X-ray tube is correct? A) Filtration increases patient dose by adding low-energy photons B) Aluminum filters remove low-energy photons, reducing skin dose and improving beam quality C) Filtration is only required for CT scanners, not conventional radiography D) The amount of filtration does not affect image contrast Answer: B Explanation: Filtration (commonly 2.5 mm Al) absorbs low-energy photons that would increase patient skin dose without contributing to image formation, thereby improving beam quality. Question 43. The most appropriate method for verifying that the X-ray tube’s high-voltage output is within acceptable limits is: A) Visual inspection of the tube housing B) Using a high-voltage probe and a calibrated voltmeter during a test exposure C) Checking the tube’s serial number against the manufacturer’s chart D) Measuring the mA setting on the console
Ultimate Exam
Answer: B Explanation: Direct measurement of the high-voltage output with a calibrated probe ensures the tube operates at the correct kVp. Question 44. When performing a lateral skull (lateral sinus) view, the central ray is directed at: A) The nasion, 2 cm above the orbitomeatal line B) The external auditory meatus, 2 cm posterior to the orbitomeatal line C) The occipital protuberance, perpendicular to the image receptor D) The glabella, 5 cm inferior to the orbitomeatal line Answer: B Explanation: The lateral sinus view aims the CR at the external auditory meatus, 2 cm posterior to the orbitomeatal line, to visualize the petrous ridge and mastoid air cells. Question 45. In the context of X-ray image quality, the term “contrast” refers to: A) The ability to distinguish small objects that are close together B) The difference in optical density between adjacent structures of different attenuation C) The overall brightness of the image D) The amount of scatter radiation present Answer: B Explanation: Contrast is the degree of difference in gray levels (optical density) between structures of varying attenuation, affecting visibility of details. Question 46. Which of the following best describes “spatial resolution” in a radiographic image?
Ultimate Exam
Explanation: The frog-leg lateral positions the femur away from the acetabulum, allowing clear visualization of the joint space and femoral head. Question 49. Which of the following is the most appropriate method for reducing patient dose when imaging a pediatric abdomen? A) Increase the mAs to obtain a brighter image B) Use a higher kVp to improve penetration and lower mAs accordingly C) Eliminate the use of any shielding to avoid obscuring anatomy D) Perform the exam without collimation to speed up the process Answer: B Explanation: Raising kVp reduces the required mAs, lowering dose while maintaining adequate penetration; pediatric protocols favor higher kVp with reduced mAs. Question 50. The term “occupancy factor” in radiation protection refers to: A) The percentage of time a radiographer spends in the control room during exposures B) The amount of lead shielding required for a specific exam C) The ratio of patient dose to occupational dose D) The fraction of the workday a technician spends operating the X-ray unit Answer: A Explanation: Occupancy factor quantifies the proportion of time personnel occupy a particular area (e.g., control room) relative to exposure periods, influencing shielding design. Question 51. Which of the following best explains why a thin patient requires a lower mAs setting than a large patient for the same anatomical study?
Ultimate Exam
A) Thin patients have a higher probability of scatter radiation B) Less tissue thickness means fewer photons are needed to achieve adequate image density C) Thin patients have a higher kVp requirement D) The focal spot size must be reduced for thin patients Answer: B Explanation: Less attenuation in a thin patient allows sufficient detector exposure with fewer photons, so a lower mAs is sufficient. Question 52. In a digital radiography system, the “window level” adjustment primarily affects: A) The physical size of the image on the monitor B) The displayed range of gray levels, altering perceived contrast and brightness C) The exposure parameters of the X-ray tube D) The speed of image acquisition Answer: B Explanation: Window level (window width and level) modifies the mapping of pixel values to display gray levels, affecting image contrast and brightness. Question 53. Which of the following statements about the use of a “low-dose protocol” for a chest X-ray in a pregnant patient is correct? A) The protocol eliminates the need for shielding because dose is negligible B) The technique uses a higher kVp and lower mAs to reduce fetal dose while preserving diagnostic quality C) The central ray should be angled 30° caudal to avoid the uterus D) The image should be taken with the patient in a supine position only Answer: B
