Practice Quiz 6
Note: A one page (one sided) crib sheet is allowed during the quiz,
along with a silent, non-programmable calculator.
Clearly show your work and answer.

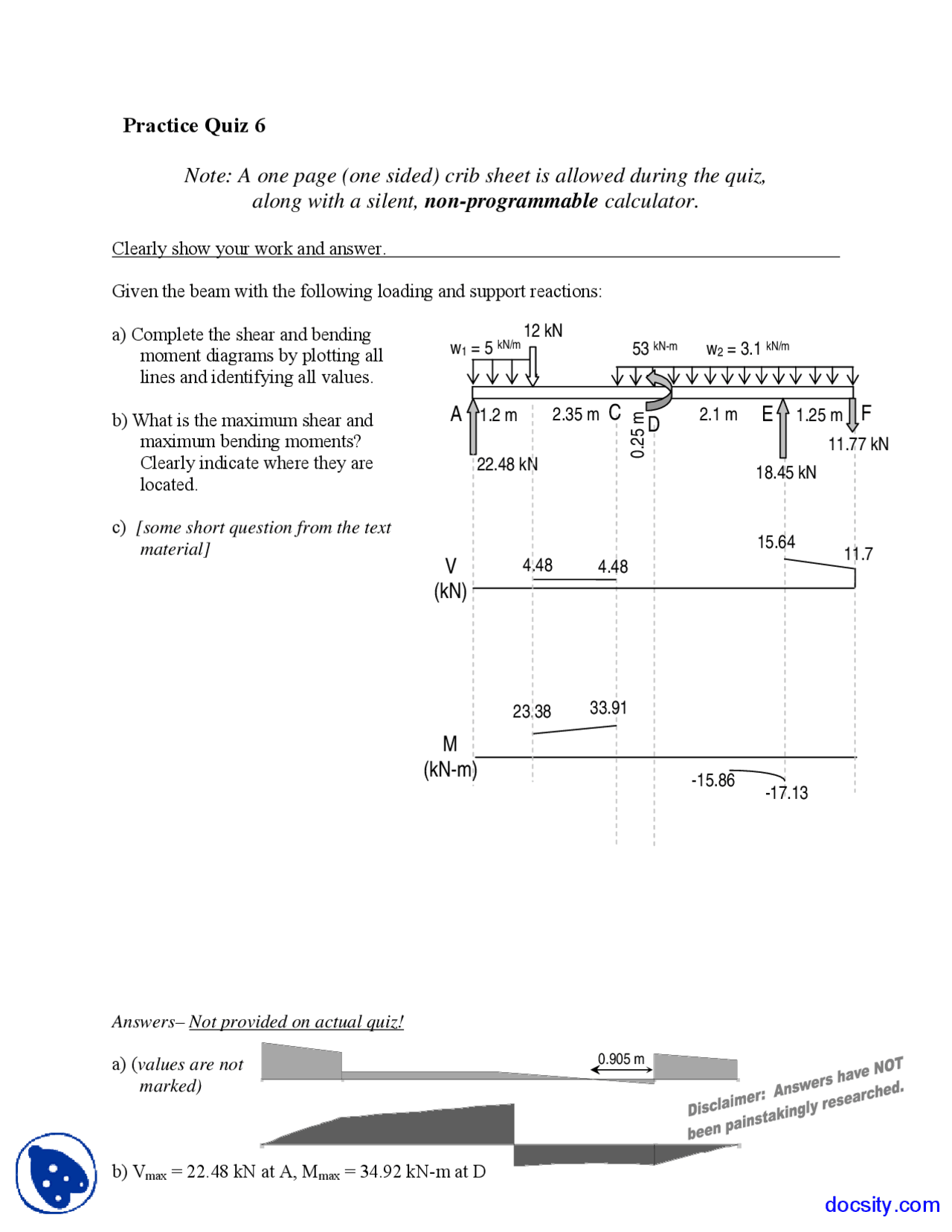

Given the beam with the following loading and support reactions:
a) Complete the shear and bending
moment diagrams by plotting all
lines and identifying all values.
b) What is the maximum shear and
maximum bending moments?
Clearly indicate where they are
located.
c) [some short question from the text
material]
Answers– Not provided on actual quiz!
a) (values are not
marked)
b) Vmax = 22.48 kN at A, Mmax = 34.92 kN-m at D
22.48 kN
w2 = 3.1 kN/m
18.45 kN
2.35 m
0.25 m
2.1 m
V
(kN)
M
(kN-m)
A CD F
E 1.25 m
4.48 11.7
23.38
-17.13
53 kN-m
4.48
15.64
-15.86
1.2 m
w1 = 5 kN/m 12 kN
11.77 kN
33.91
0.905 m
