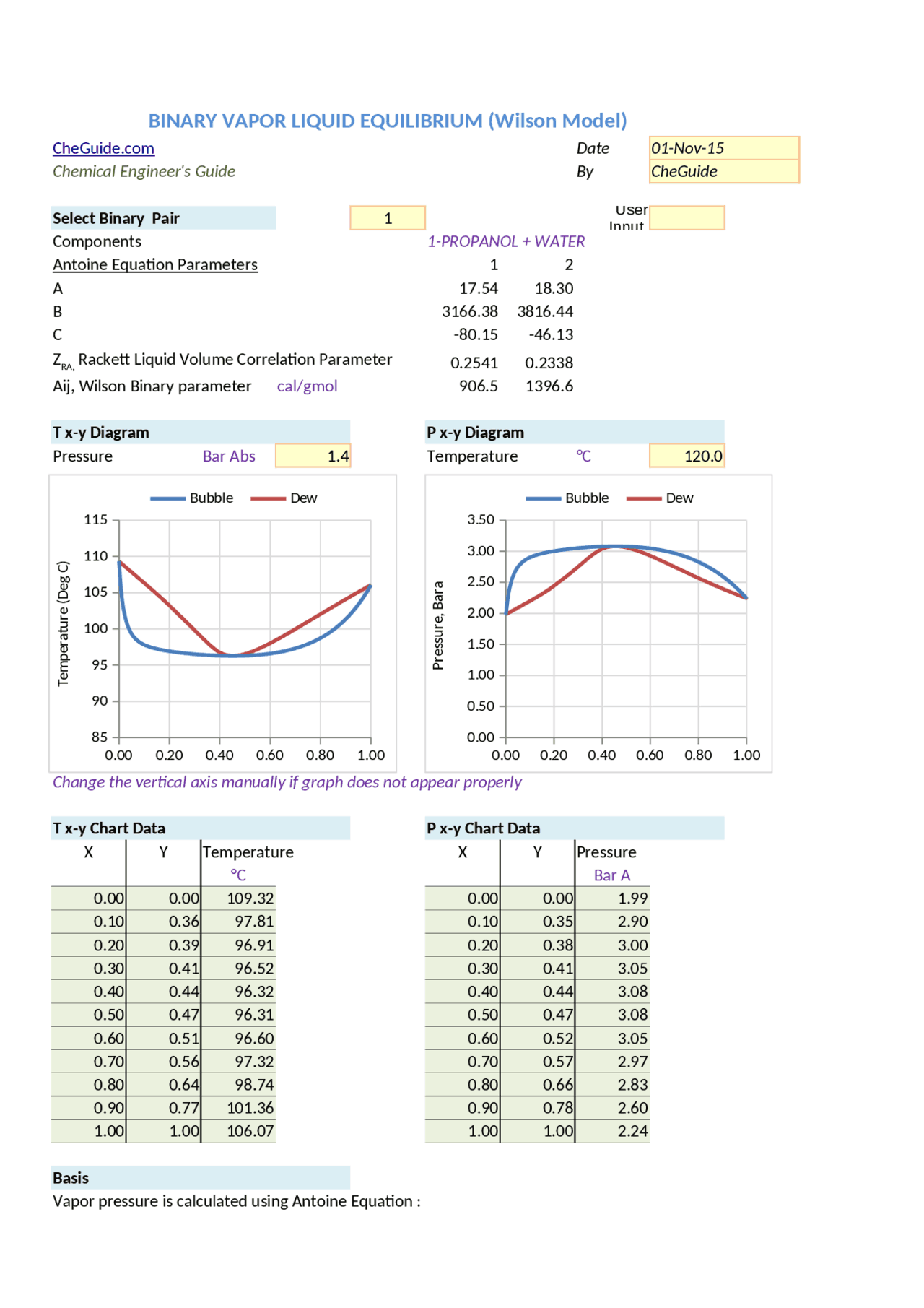

BINARY VAPOR LIQUID EQUILIBRIUM (Wilson Model)

Date 01-Nov-15

Chemical Engineer's Guide By CheGuide

Select Binary Pair 1

Components 1-PROPANOL + WATER

Antoine Equation Parameters 1 2

A 17.54 18.30

B 3166.38 3816.44

C -80.15 -46.13

0.2541 0.2338

Aij, Wilson Binary parameter cal/gmol 906.5 1396.6

T x-y Diagram P x-y Diagram

Pressure Bar Abs 1.4 Temperature °C 120.0

Change the vertical axis manually if graph does not appear properly

T x-y Chart Data P x-y Chart Data

X Y Temperature X Y Pressure

°C Bar A

0.00 0.00 109.32 0.00 0.00 1.99

0.10 0.36 97.81 0.10 0.35 2.90

0.20 0.39 96.91 0.20 0.38 3.00

0.30 0.41 96.52 0.30 0.41 3.05

0.40 0.44 96.32 0.40 0.44 3.08

0.50 0.47 96.31 0.50 0.47 3.08

0.60 0.51 96.60 0.60 0.52 3.05

0.70 0.56 97.32 0.70 0.57 2.97

0.80 0.64 98.74 0.80 0.66 2.83

0.90 0.77 101.36 0.90 0.78 2.60

1.00 1.00 106.07 1.00 1.00 2.24

Basis

Vapor pressure is calculated using Antoine Equation :

CheGuide.com

User

Input

ZRA, Rackett Liquid Volume Correlation Parameter

0.00 0.20 0.40 0.60 0.80 1.00

100

105

110

115

Bubble Dew

Temperature (Deg C)

0.00 0.20 0.40 0.60 0.80 1.00

0.00

0.50

1.00

1.50

2.00

2.50

3.00

3.50

Bubble Dew

Pressure, Bara

Partial preview of the text

Download Understanding the Impact of Climate Change on Agriculture and more High school final essays Computer science in PDF only on Docsity!

BINARY VAPOR LIQUID EQUILIBRIUM (Wilson Model)

Date 01-Nov-

Chemical Engineer's Guide By CheGuide

Select Binary Pair 1

Components 1-PROPANOL + WATER

Antoine Equation Parameters 1 2

A 17.54 18.

B 3166.38 3816.

C -80.15 -46.

Aij, Wilson Binary parameter cal/gmol 906.5 1396.

T x-y Diagram P x-y Diagram

Pressure Bar Abs 1.4 Temperature °C 120.

Change the vertical axis manually if graph does not appear properly

T x-y Chart Data P x-y Chart Data

X Y Temperature X Y Pressure

°C Bar A

Basis

Vapor pressure is calculated using Antoine Equation :

CheGuide.com

User Input

ZRA, Rackett Liquid Volume Correlation Parameter

Bubble Dew Temperature (Deg C) 0.00 0.20 0.40 0.60 0.80 1.

Bubble Dew Pressure, Bara

Ln ( Pressure ( mmHg ) ) = A - B / ( Temperature ( °K ) + C )

BINARY VAPOR LIQUID EQUILIBRIUM (UNIQUAC Model)

Date 01-Nov-

Chemical Engineer's Guide By CheGuide

Select Binary Pair 2

Components ACETONE + CHLOROFORM

Antoine Equation Parameters 1 2

A 16.65 15.

B 2940.46 2696.

C -35.93 -46.

uij-ujj cal/gmol -315.50 149.

T x-y Diagram P x-y Diagram

Pressure Bar Abs 1.4 Temperature °C 120.

Change the vertical axis manually if graph does not appear properly

T x-y Chart Data P x-y Chart Data

X Y Temperature X Y Pressure

°C Bar A

Basis

Vapor pressure is calculated using Antoine Equation :

CheGuide.com

User Input 0.00 0.20 0.40 0.60 0.80 1.

Bubble Dew Temperature (Deg C) 0.00 0.20 0.40 0.60 0.80 1.

Bubble Dew Pressure, Bara

NUMBER COMPONENT MOLE WT

1 1,1,1-TRIFLOUROETHANE 84. ******** ****************************************** ************
2 1,1,2,2-TETRACHLORO-1,2-DIFLUOROETHANE 203.
3 1,1,2-TRICHLOROETHANE 133.
4 1,1,2-TRIMETHYLCLOPENTANE 112.
5 1,1,3-TRIMETHYLCLOPENTANE 112.
6 1,1-DICHLORO-1,2,2,2-TETRAFLUOROETHANE 170.
7 1,1-DICHLOROETHANE 98.
8 1,1-DIFLOUROETHANE 66.
9 1,1-DIFLUOROETHYLENE 64.
10 1,1-DIMETHYLCYCLOHEXANE 112.
11 1,1-DIMETHYLCYCLOPENTANE 98.
12 1,2,2-TRICHLORO-1,1,2TRIFLUOROETHANE 187.
13 1,2,3,4-TETRAHYDRONAPHTHALENE 132.
14 1,2,3-TRICHLOROPROPANE 147.
15 1,2,3-TRIMETHYLBENZENE 120.
16 1,2,4,5-TETRAMETHYLBEENZENE 134.
17 1,2,4-TRIMETHYLBENZENE 120.
18 1,2-BUTADIENE 54.
19 1,2-DICHLORO-1,1,2,2-TETRAFLUOROETHANE 170.
20 1,2-DICHLOROETHANE 98.
21 1,2-DICHLOROPROPANE 112.
22 1,2-DIMETHOXYETHANE 90.
23 1,2-PENTADIENE 68.
24 1,2-PROPANEDIOL 76.
25 1,3,5-TRIMETHYLBENZENE 120.
26 1,3-BUTADIENE 54.
27 1,3-PROPANEDIOL 76.
28 1,4 DIOXANE 88.
29 1,4-DIETHYLBENZENE 134.
30 1,4-PENTADIENE 68.
31 1,5 HEXADIENE 82.
32 1-BUTENE 56.
33 1-BUTYNE 54.
34 1-CHLORO-1,1-DIFLUOROETHANE 100.
35 1-CHLOROBUTANE 92.
36 1-DECANOL 158.
37 1-DECENE 140.
38 1-DODECENE 168.
39 1-EICOSANOL 298.
40 1-HEPTANOL 116.
41 1-HEPTENE 98.
42 1-HEXADECENE 224.
43 1-HEXANOL 102.
44 1-HEXENE 84.
45 1-METHYL-1-ETHYLCYCLOPENTANE 112.
46 1-METHYL-2-ETHYLBENZENE 120.
47 1-METHYL-2-ISOPROPYLBENZENE 134.
48 1-METHYL-2-ISOPROPYLBENZENE 134.
49 1-METHYL-3-ETHYLBENZENE 120.
50 1-METHYL-4-ETHYLBENZENE 120.
51 1-METHYL-4-ISOPROPYLBENZENE 134.
52 1-METHYLNAPHTHALENE 142.
53 1-NONENE 126.
54 1-OCTADECANOL 270.
55 1-OCTADECENE 252.
56 1-OCTANOL 130.
57 1-OCTENE 112.
58 1-PENTADECENE 210.
59 1-PENTANOL 88.
60 1-PENTENE 70.
61 1-PENTYNE 68.
62 1-PROPANOL 60.
63 1-TERADECENE 196.
64 1-TRANS-3-PENTADIENE 68.
65 1-TRIDECENE 182.
66 1-UNDECENE 154.
67 2,2 DIMETHYL BUTANE 86.
68 2,2,3 TRIMETHYLPETANE 114.
69 2,2,3,3-TETRAMETHYLHEPTANE 142.
70 2,2,3,3-TETRAMETHYLPENTANE 128.
71 2,2,3,4-TETRAMETHYLPENTANE 128.
72 2,2,3-TRIMETHYLBUTANE 100.
73 2,2,3-TRIMETHYLHEXANE 128.
74 2,2,4 TRIMETHYLPENTANE 114.
75 2,2,4,4-TETRAMETHYLPENTANE 128.
76 2,2,4-TRIMETHYLHEXANE 128.
77 2,2,5,5-TETRAMETHYLHEPTANE 142.
78 2,2,5-TRIMETHYLHEXANE 128.
79 2,2-DIMETHYL PROPANE 72.
- 80 2,2-DIMETHYL-1-PROPANOL 88.
- 81 2,2-DIMETHYLHEXANE 114.
- 82 2,2-DIMETHYLPENTANE 100.
- 83 2,3 DIMETHYL BUTANE 86.
- 84 2,3,3 TRIMETHYLPENTANE 114.
- 85 2,3,3,4-TETRAMETHYLPENTANE 128.
- 86 2,3,3-TRIMETHYL-1-BUTENE 98.
- 87 2,3,4 TRIMETHYLPENTANE 114.
- 88 2,3-DIMETHYL-1-BUTENE 84.
- 89 2,3-DIMETHYL-2-BUTENE 84.
- 90 2,3-DIMETHYLHEXANE 114.
- 91 2,3-DIMETHYLPENTANE 100.
- 92 2,3-DIMETHYLPYRIDINE 107.
- 93 2,3-XYLENOL 122.
- 94 2,4-DIMETHYLHEXANE 114.
- 95 2,4-DIMETHYLPENTANE 100.
- 96 2,4-XYLENOL 122.
- 97 2,5-DIMETHYLHEXANE 114.
- 98 2,5-DIMETHYLPYRIDINE 107.
- 99 2,5-XYLENOL 122.
100 2,6-XYLENOL 122.
101 2-BUTANOL 74.
102 2-BUTYNE 54.
103 2-CHLOROBUTANE 92.
104 2-ETHYLHEXANOL 130.
105 2-METHYL BUTANE 72.
106 2-METHYL PENTANE 86.
107 2-METHYL-1,3-BUTADIENE 68.
108 2-METHYL-1-BUTANOL 88.
109 2-METHYL-1-BUTENE 70.
110 2-METHYL-2-BUTENE 70.
111 2-METHYL-2-PENTENE 84.
112 2-METHYL-3-ETHYLPENTANE 114.
113 2-METHYLHEPTANE 114.
114 2-METHYLHEXANE 100.
115 2-METHYLNAPHTHALENE 142.
116 2-OCTANOL 130.
117 3,3,5-TRIMETHYLHEPTANE 142.
118 3,3-DIETHYLPENTANE 128.
119 3,3-DIMETHYL-1-BUTENE 84.
120 3,3-DIMETHYLHEXANE 114.
121 3,3-DIMETHYLPENTANE 100.
122 3,4 DIMETHYLHEXANE 114.
123 3,4-DIMETHYLPYRIDINE 107.
124 3,4-XYLENOL 122.
125 3,5-DIMETHYLPYRIDINE 107.
126 3,5-XYLENOL 122.
127 3-ETHYLHEXANE 114.
128 3-ETHYLPENTANE 100.
129 3-METHYL PENTANE 86.
130 3-METHYL-1,2-BUTADIENE 68.
131 3-METHYL-1-BUTANOL 88.
132 3-METHYL-1-BUTENE 70.
133 3-METHYL-2-BUTANOL 88.
134 3-METHYL-3-ETHYLPENTANE 114.
135 3-METHYL-CIS-2-PENTENE 84.
136 3-METHYLHEPTANE 114.
137 3-METHYLHEXANE 100.
138 3-METHYL-TRANS-2-PENTENE 84.
139 4- METHYL PYRIDINE 93.
140 4-METHYL-CIS-2-PENTENE 84.
141 4-METHYLHEPTANE 114.
142 4-METHYL-TRANS-2-PENTENE 84.
143 ACETALDEHYDE 44.
144 ACETIC ACID 60.
145 ACETIC ANHYDRIDE 102.
146 ACETONE 58.
147 ACETONITRILE 41.
148 ACETYL CHLORIDE 78.
149 ACETYLENE 26.
150 ACROLEIN 56.
151 ACRYLIC ACID 72.
152 ACRYLONITRILE 53.
153 ALLYL ALCOHOL 58.
154 ALLYL CHLORIDE 76.
155 ALLYL CYANIDE 67.
156 ALPHA-METHYL STYRENE 118.
157 AMMONIA 17.
158 ANILINE 93.
159 ANTHRACENE 178.
160 ARGON 39.
161 BENZALDEHYDE 106.
162 BENZENE 78.
163 BENZOIC ACID 122.
164 BENZONITRILE 103.
165 BENZYL ALCOHOL 108.
166 BORON TRICHLORIDE 117.
167 BORON TRIFLUORIDE 67.
168 BROMINE 159.
169 BROMOBENZENE 157.
170 BUTYL BENZOATE 178.
171 BUTYL ETHER 130.
172 BUTYRONITRILE 69.
173 C,C,T-1,2,4-TRIMETHYLCYCLOPENTANE 112.
174 C,T,C-1,2,4-TRIMETHYLCYCLOPENTANE 112.
175 CAPRYLONITRILE 153.
176 CARBON DIOXIDE 44.
177 CARBON DISULFIDE 76.
178 CARBON MONOXIDE 28.
179 CARBON TETRACHLORIDE 153.
180 CARBON TETRAFLUORIDE 88.
181 CARBONYL SULFIDE 60.
182 CHLORINE 70.
183 CHLOROBENZENE 112.
184 CHLORODIFLUOROMETHANE 86.
185 CHLOROFORM 119.
186 CHLOROPENTAFLUOROETHANE 154.
187 CHLOROTRIFLUOROMETHANE 104.
188 CIS-1,2-DIMETHYLCYCLOHEXANE 112.
189 CIS-1,2-DIMETHYLCYCLOPENTANE 98.
190 CIS-1,3-DIMETHYLCYCLOHEXANE 112.
191 CIS-1,4-DIMETHYLCYCLOHEXANE 112.
192 CIS-2-BUTENE 56.
193 CIS-2-HEXENE 84.
194 CIS-2-PENTENE 70.
195 CIS-3-HEXENE 84.
196 CIS-DECALIN 138.
197 CYANOGEN 52.
198 CYCLOBUTANE 56.
199 CYCLOHEPTANE 98.
200 CYCLOHEXANE 84.
201 CYCLOHEXANOL 100.
202 CYCLOHEXANONE 95.
203 CYCLOHEXENE 82.
204 CYCLOPENTANE 70.
205 CYCLOPENTANONE 84.
206 CYCLOPENTENE 68.
207 CYCLOPROPANE 42.
208 DEUTERIUM 4.
209 DEUTERIUM OXIDE 20.
210 DIBROMOMETHANE 173.
211 DIBUTYLAMINE 129.
212 DIBUTYL-O-PHTHALATE 278.
213 DICHLORODIFLUOROMETHANE 120.
214 DICHLOROMETHANE 84.
215 DICHLOROMONOFLUOROMETHANE 102.
216 DIETHYL AMINE 45.
217 DIETHYL AMINE 73.
218 DIETHYL DISULFIDE 122.
219 DIETHYL KETONE 86.
220 DIETHYL SULFIDE 90.
221 DIETHYLENE GLYCOL 106.
222 DIHEXYL ETHER 186.
223 DIISOPROPYL ETHER 102.
224 DIMETHYL ETHER 46.
225 DIMETHYL OXALATE 118.
226 DIMETHYL SULFIDE 62.
227 DIPHENYL 154.
228 DIPHENYL ETHER 170.
229 DIPHENYLMETHANE 168.
230 DIPROPYLAMINE 101.
231 DODECANOL 186.
232 ETHANE 30.
233 ETHANOL 46.
234 ETHYL ACETATE 88.
235 ETHYL ACRYLATE 100.
236 ETHYL AMINE 45.
237 ETHYL BENZOATE 150.
238 ETHYL BROMIDE 108.
239 ETHYL BUTYL ETHER 102.
240 ETHYL BUTYRATE 116.
241 ETHYL CHLORIDE 64.
242 ETHYL ETHER 74.
243 ETHYL FLUORIDE 48.
244 ETHYL FORMATE 74.
245 ETHYL ISOBUTYRATE 116.
246 ETHYL MERCAPTAN 62.
247 ETHYL PROPIONATE 102.
248 ETHYL PROPYL ETHER 88.
249 ETHYLBENZENE 106.
250 ETHYLCYCLOHEXANE 112.
251 ETHYLCYCLOPENTANE 98.
252 ETHYLENE 28.
253 ETHYLENE GLYCOL 62.
254 ETHYLENE IMINE 43.
255 ETHYLENE OXIDE 44.
256 ETHYLENEDIAMINE 60.
257 FLUORINE 37.
258 FLUOROBENZENE 96.
259 FORMALDEHYDE 30.
260 FORMIC ACID 46.
261 FURAN 68.
262 GLYCEROL 92.
263 HELIUM-4 4.
264 HEPTADECANOL 256.
265 HYDRAZINE 32.
266 HYDROGEN 2.
267 HYDROGEN BROMIDE 80.
268 HYDROGEN CHLORIDE 36.
269 HYDROGEN CYANIDE 27.
270 HYDROGEN FLUORIDE 20.
271 HYDROGEN IODIDE 127.
272 HYDROGEN SULFIDE 34.
273 IODINE 253.
274 IODOBENZENE 204.
275 ISOBUTANE 58.
276 ISOBUTANOL 74.
277 ISOBUTYL ACETATE 116.
278 ISOBUTYL AMINE 73.
279 ISOBUTYL FORMATE 102.
280 ISOBUTYLBENZENE 134.
281 ISOBUTYLCYCLOHEXANE 140.
282 ISOBUTYLENE 56.
283 ISOBUTYRALDEHYDE 72.
284 ISOBUTYRIC ACID 88.
285 ISOPROPYL ALCOHOL 60.
286 ISOPROPYL AMINE 59.
287 ISOPROPYL CHLORIDE 78.
288 ISOPROPYLBENZENE 120.
289 ISOPROPYLCYCLOHEXANE 126.
290 ISOPROPYLCYCLOPENTANE 112.
291 KETENE 42.
292 KRYPTON 83.
293 MALEIC ANHYDRIDE 98.
294 M-CRESOL 108.
295 M-DICHLOROBENZENE 147.
296 METHANE 16.
297 METHANOL 32.
298 METHYCYCLOPENTANE 84.
299 METHYL ACETATE 74.
300 METHYL ACETYLENE 40.
301 METHYL ACRYLATE 86.
302 METHYL AMINE 31.
303 METHYL BENZOATE 136.
304 METHYL BROMIDE 94.
305 METHYL BUTYRATE 102.
306 METHYL CHLORIDE 50.
307 METHYL ETHYL ETHER 60.
308 METHYL ETHYL KETONE 72.
309 METHYL ETHYL SULFIDE 76.
310 METHYL FLUORIDE 34.
311 METHYL FORMATE 60.
312 METHYL HYDRAZINE 46.
313 METHYL IODIDE 141.
314 METHYL ISOBUTYL KETONE 100.
315 METHYL ISOBUTYRATE 102.
316 METHYL ISOCYANATE 57.
317 METHYL ISOPROPYL KETONE 86.
318 METHYL MERCAPTAN 48.
319 METHYL N-PROPYL KETONE 86.
320 METHYL PHENYL ETHER 108.
321 METHYL PHENYL KETONE 120.
322 METHYL PROPIONATE 88.
323 METHYLAL 76.
324 METHYLCYCLOHEXANE 98.
325 M-ETHYLPHENOL 122.
326 METHYLPHENYLAMINE 107.
327 MONOETHANOLAMINE 61.
328 MORPHOLINE 87.
329 M-TERPHENYL 230.
330 M-TOLUIDINE 107.
331 M-XYLENE 106.
332 N,N-DIMETHYLANILINE 121.
333 NAPHTHALENE 128.
334 N-BUTANE 58.
335 N-BUTANOL 74.
336 N-BUTYL AMINE 73.
337 N-BUTYL-ACETATE 116.
338 N-BUTYLANILINE 149.
339 N-BUTYLBENZENE 134.
340 N-BUTYLCYCLOHEXANE 140.
341 N-BUTYRALDEHYDE 72.
342 N-BUTYRIC ACID 88.
343 N-DECANE 142.
344 N-DECYCLCYCLOPENTANE 210.
345 N-DECYCYCLOHEXANE 224.
346 N-DODECENE 170.
347 N-DODECYCLOPENTANE 238.
348 N-EICOSANE 282.
349 NEON 20.
350 N-HEPTADECANE 240.
351 N-HEPTANE 100.
352 N-HEPTYLCYCLOPENTANE 168.
353 N-HEXADECANE 226.
354 N-HEXADECYLCYCLOPENTANE 294.
355 N-HEXANE 86.
356 N-HEXYLCYCLOPENTANE 154.
357 NITRIC OXIDE 30.
358 NITROGEN 28.
359 NITROGEN DIOXIDE 46.
360 NITROGEN TRIFLUORIDE 71.
361 NITROMETHANE 61.
362 NITROSYL CHLORIDE 65.
363 NITROUS OXIDE 44.
364 N-NONADECANE 268.
365 N-NONANE 128.
366 N-NONYCLYCLOPENTANE 196.
367 N-OCTADECANE 254.
368 N-OCTANE 114.
369 N-OCTYLCYCLOPENTANE 182.
370 N-PENTADECANE 212.
371 N-PENTADECYLCYCLOPENTANE 280.
372 N-PENTANE 72.
373 N-PROPYL ACETATE 102.
374 N-PROPYL AMINE 59.
375 N-PROPYL FORMATE 88.
376 N-PROPYL PROPIONATE 116.
377 N-PROPYLBENZENE 120.
378 N-PROPYLCYCLOHEXANE 126.
379 N-PROPYLCYCLOPENTANE 112.
380 N-TETRADECANE 198.
381 N-TETRADECYCLOPENT 266.
382 N-TRIDECANE 184.
383 N-TRIDECYLCYCLOPENTANE 252.
384 N-UNDECENE 156.
385 N-VALERIC ACID 102.
386 O-CRESOL 108.
387 O-DICHLOROBENZENE 147.
388 O-ETHYLPHENOL 122.
389 O-TERPHENYL 230.
390 O-TOLUIDINE 107.
391 OXYGEN 31.
392 O-XYLENE 106.
393 OZONE 47.
394 P-CRESOL 108.
395 P-DICLOROBENZENE 147.
396 PERFLUOROBENZENE 186.
397 PERFLUOROCYCLOHEXANE 300.
398 PERFLUOROETHANE 100.
399 PERFLUOROETHANE 138.
400 PERFLUOROMETHYLCYCLOHEXANE 350.
401 PERFLUORO-N-HEPTANE 388.
402 PERFLUORO-N-HEXANE 338.
403 P-ETHYLPHENOL 122.
404 PHENANTHRENE 178.
405 PHENETOLE 122.
406 PHENOL 94.
407 PHOSGENE 98.
408 PHOSPHORUS TRICHLORIDE 137.
409 PHTHALIC ANHYDRIDE 148.
410 PIPERIDINE 85.
411 PROPADIENE 40.
412 PROPANE 44.
413 PROPIONALDEHYDE 58.
414 PROPIONIC ACID 74.
415 PROPIONITRILE 55.
416 PROPYL CHLORIDE 78.
417 PROPYLENE 42.
418 PROPYLENE OXIDE 58.
419 P-TERPHENYL 230.
420 P-TOLUIDINE 107.
421 P-XYLENE 106.
422 PYRIDINE 79.
423 PYRROLE 67.
424 PYRROLIDINE 71.
425 SEC-BUTYLBENZENE 134.
426 SEC-BUTYLCYCLOHEXANE 140.
427 SILICON TETRACHLORIDE 169.
428 SILICON TETRAFLUORIDE 104.
429 STYRENE 104.
430 SUCCINIC ACID 118.
431 SULFUR DIOXIDE 64.
432 SULFUR HEXAFLUORIDE 146.
433 SULFUR TRIOXIDE 80.
434 TERT-BUTANOL 74.
435 TERT-BUTYL CHLORIDE 92.
436 TERT-BUTYLBENZENE 134.
437 TERT-BUTYLCYCLOHEXANE 140.
438 TETRACHLOROETHYLENE 165.
439 TETRAHYDROFURAN 72.
440 THIOPHENE 84.
441 TOLUENE 92.
442 TRANS-1,2-DIMETHYLCYCLOHEXANE 112.
443 TRANS-1,2-DIMETHYLCYCLOPENTANE 98.
444 TRANS-1,3-DIMETHYLCYCLOHEXANE 112.
445 TRANS-1,4-DIMETHYLCYCLOHEXANE 112.
446 TRANS-2-BUTENE 56.
447 TRANS-2-HEXENE 84.
448 TRANS-2-OCTENE 112.
449 TRANS-2-PENTENE 70.
450 TRANS-3-HEXENE 84.
451 TRANS-DECALIN 138.
452 TRIBUTYLAMINE 185.
453 TRICHLOROETHYLENE 131.
454 TRICHLOROFLUOROMETHANE 37.
455 TRIETHYLAMINE 101.
456 TRIFLUOROACETIC ACID 114.
457 TRIFLUOROBROMOMETHANE 148.
458 TRIMETHYL AMINE 59.
459 VALERALDEHYDE 86.
460 VINYL ACETATE 86.
461 VINYL CHLORIDE 62.
462 VINYL ETHYL ETHER 72.
463 VINYL FLUORIDE 46.
464 VINYL FORMATE 72.
465 VINYL METHYL ETHER 58.
466 VINYLACETYLENE 52.
467 WATER 18.
468 XENON 131.
161.9 225.5 346.2 37.1 221. ************ ************ ************ ************ ************
298.0 364.7 551.0 0.0 0.
236.5 386.9 602.0 41.0 294. - 0.0 386.9 579.5 29.0 0. - 0.0 378.0 569.5 27.9 0.
179.0 277.0 418.6 32.6 294.
176.2 330.4 523.0 50.0 240.
156.2 248.4 386.6 44.4 181. - 0.0 0.0 302.8 44.0 154.
239.7 392.7 591.0 29.3 416.
203.4 361.0 547.0 34.0 360.
238.2 320.7 487.2 33.7 304.
242.0 480.7 719.0 34.7 0.
258.5 429.0 651.0 39.0 348.
247.7 449.2 664.5 34.1 430.
352.0 470.0 675.0 29.0 480.
227.0 442.5 649.1 31.9 430.
137.0 284.0 443.7 44.4 219.
179.3 276.9 418.9 32.2 293.
237.5 356.6 561.0 53.0 220.
172.7 369.5 577.0 44.0 226.
202.0 358.6 536.0 38.2 271.
135.9 318.0 503.0 40.2 276.
213.0 460.5 625.0 60.0 237.
228.4 437.9 637.3 30.9 433.
164.3 268.7 425.0 42.7 221.
246.4 487.6 658.0 59.0 241.
285.0 374.5 587.0 51.4 238.
231.0 456.9 657.9 27.7 480.
124.9 299.1 478.0 37.4 276.
132.0 332.6 507.0 34.0 328.
- 87.8 266.9 419.6 39.7 240.
147.4 281.2 463.7 46.5 220.
142.0 263.4 410.2 40.7 231.
150.1 351.6 542.0 36.4 312.
280.1 503.4 700.0 22.0 600.
206.9 443.7 615.0 21.8 650.
238.0 486.5 657.0 18.3 0.
339.0 629.0 770.0 12.0 0.
239.2 449.5 633.0 30.0 435.
154.3 366.8 537.2 28.0 440.
277.3 558.0 717.0 13.2 0.
229.2 430.2 610.0 40.0 381.
133.3 336.6 504.0 31.3 350.
- 0.0 394.7 592.0 29.5 0.
192.3 438.3 651.0 30.0 460.
- 0.0 451.5 670.0 28.6 0.
- 0.0 448.3 666.0 29.0 0.
177.6 434.5 637.0 28.0 490.
210.8 435.2 640.0 29.0 470.
200.0 450.3 653.0 27.9 0.
242.7 517.8 772.0 35.2 445.
191.8 420.0 592.0 23.1 580.
331.0 608.0 747.0 14.0 0.
290.8 588.0 739.0 11.2 0.
257.7 468.4 58.0 34.0 490.
171.4 394.4 566.6 25.9 464.
269.4 541.5 704.0 14.4 0.
195.0 411.0 586.0 38.0 326.
107.9 303.1 464.7 40.0 300.
167.5 313.3 493.4 40.0 278.
146.9 370.4 536.7 51.0 218.
260.3 524.3 689.0 15.4 0.
185.7 315.2 496.0 39.4 275.
250.1 505.9 674.0 16.8 0.
224.0 465.8 637.0 19.7 0.
173.3 322.9 488.7 30.4 359.
160.9 383.0 563.4 26.9 436.
- 0.0 433.5 623.1 24.8 0.
- 0.0 413.4 607.6 27.0 0.
- 0.0 406.2 592.7 25.7 0.
248.3 354.0 531.1 29.2 398.
- 0.0 406.8 588.0 24.6 0.
165.8 372.4 543.9 25.3 468.
206.0 395.4 574.7 24.5 0.
153.0 399.7 573.7 23.4 0.
- 0.0 410.6 581.5 21.6 0.
167.4 397.3 568.0 23.0 519.
256.6 282.6 433.8 31.6 303.
327.0 386.3 549.0 39.0 319.
152.0 382.0 549.8 25.0 478.
149.4 352.4 520.4 27.4 416.
144.6 331.2 499.9 30.9 358.
172.5 387.9 573.5 27.8 455.
- 0.0 414.7 607.6 26.8 0.
163.3 351.0 533.0 28.6 400.
163.9 386.6 56.3 26.9 461.
115.9 328.8 501.0 32.0 343.
198.9 346.4 524.0 33.2 351.
- 0.0 388.8 563.4 25.9 468.
- 0.0 362.9 537.3 28.7 393.
- 0.0 434.0 655.4 0.0 0.
348.0 490.1 722.8 0.0 0.
- 0.0 382.6 553.5 25.2 472.
154.0 353.7 519.7 27.0 418.
298.0 484.0 707.6 0.0 0.
181.9 382.3 550.0 24.5 42.
- 0.0 430.2 644.2 0.0 0.
348.0 484.3 723.0 0.0 0.
322.0 474.1 701.0 0.0 0.
158.5 372.7 536.0 41.4 268.
240.9 300.2 488.6 50.2 221.
141.8 341.4 520.6 39.0 305.
203.2 457.8 613.0 27.2 494.
113.3 301.0 460.4 33.4 306.
119.5 333.4 497.5 29.7 367.
127.2 307.2 484.0 38.0 276.
203.0 409.1 571.0 38.0 322.
135.6 304.3 465.0 34.0 294.
139.4 311.7 470.0 34.0 318.
138.1 340.5 518.0 32.4 351.
158.2 388.8 567.0 26.7 443.
164.0 390.8 559.6 24.5 488.
154.9 363.2 530.3 27.0 421.
307.7 514.2 761.0 34.6 462.
241.2 452.9 637.0 27.0 494.
- 0.0 428.8 609.6 22.9 0.
- 0.0 419.3 610.0 26.4 0.
158.0 314.4 490.0 32.1 340.
147.0 385.1 562.0 26.2 443.
138.7 359.2 536.3 29.1 414.
- 0.0 390.9 568.8 26.6 466.
- 0.0 452.3 683.8 0.0 0.
328.0 500.0 729.8 0.0 0.
- 0.0 445.1 667.2 0.0 0.

Understanding the Impact of Climate Change on Agriculture, High school final essays of Computer science

Related documents

Partial preview of the text

Download Understanding the Impact of Climate Change on Agriculture and more High school final essays Computer science in PDF only on Docsity!

BINARY VAPOR LIQUID EQUILIBRIUM (Wilson Model)

Date 01-Nov-

Chemical Engineer's Guide By CheGuide

Select Binary Pair 1

Components 1-PROPANOL + WATER

Antoine Equation Parameters 1 2

A 17.54 18.

B 3166.38 3816.

C -80.15 -46.

Aij, Wilson Binary parameter cal/gmol 906.5 1396.

T x-y Diagram P x-y Diagram

Pressure Bar Abs 1.4 Temperature °C 120.

Change the vertical axis manually if graph does not appear properly

T x-y Chart Data P x-y Chart Data

X Y Temperature X Y Pressure

°C Bar A

Basis

Vapor pressure is calculated using Antoine Equation :

CheGuide.com

ZRA, Rackett Liquid Volume Correlation Parameter

Ln ( Pressure ( mmHg ) ) = A - B / ( Temperature ( °K ) + C )

Ln ( Pressure ( mmHg ) ) = A - B / ( Temperature ( °K ) + C )

BINARY VAPOR LIQUID EQUILIBRIUM (UNIQUAC Model)

Date 01-Nov-

Chemical Engineer's Guide By CheGuide

Select Binary Pair 2

Components ACETONE + CHLOROFORM

Antoine Equation Parameters 1 2

A 16.65 15.

B 2940.46 2696.

C -35.93 -46.

uij-ujj cal/gmol -315.50 149.

T x-y Diagram P x-y Diagram

Pressure Bar Abs 1.4 Temperature °C 120.

Change the vertical axis manually if graph does not appear properly

T x-y Chart Data P x-y Chart Data

X Y Temperature X Y Pressure

°C Bar A

Basis

Vapor pressure is calculated using Antoine Equation :

CheGuide.com

NUMBER COMPONENT MOLE WT
