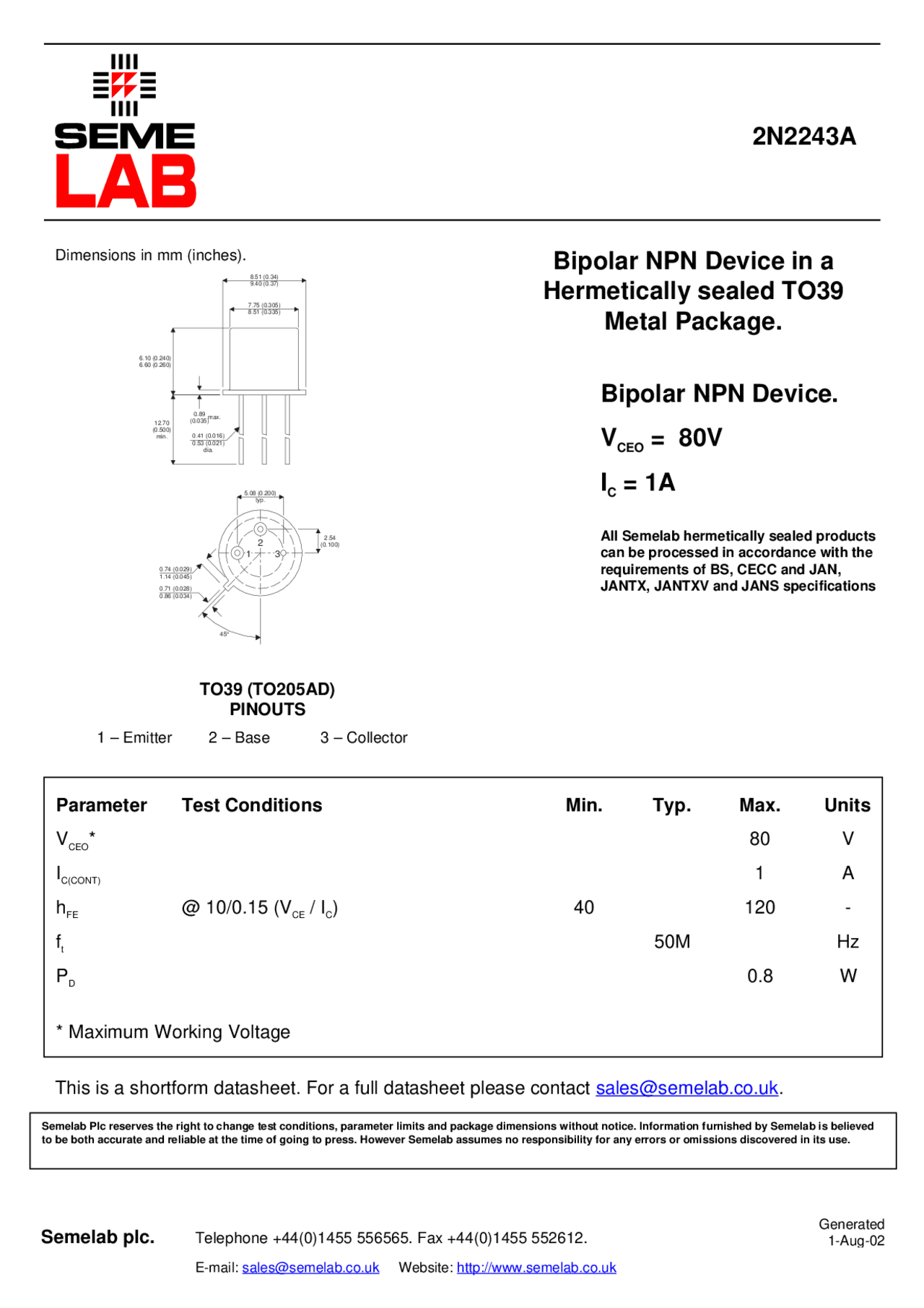

2N2243A
Bipolar NPN Device.
VCEO = 80V
IC = 1A
All Semelab hermetically sealed products
can be processed in accordance with the
requirements of BS, CECC and JAN,
JANTX, JANTXV and JANS specifications
Parameter Test Conditions Min. Typ. Max. Units
VCEO* 80 V
IC(CONT) 1 A
hFE @ 10/0.15 (VCE / IC) 40 120 -
ft 50M Hz
PD 0.8 W
* Maximum Working Voltage
This is a shortform datasheet. For a full datasheet please contact sal[email protected]
k
.
Semelab Plc reserves the right to change test conditions, parameter limits and package dimensions without notice. Information furnished by Semelab is believed
to be both accurate an d reliable at the time of going to pre ss. However Semelab assumes no respo nsibility for any errors or omissions discover ed in its use.
Generated
1-Au
g
-02
Bipolar NPN Device in a
Hermetically sealed TO39
Metal Package.
Semelab plc. Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail: [email protected] Website: http://www.semelab.co.uk
Dimensions in mm (inches).
0.89
(0.035)max.
12.70
(0.500)
min. 0.41 (0.016)
0.53 (0.021)
dia.
5.08 (0.200)
typ.
0.71 (0.028)
0.86 (0.034)
2.54
(0.100)
45°
6.10 (0.240)
6.60 (0.260)
8.51 (0.34)
9.40 (0.37)
7.75 (0.305)
8.51 (0.335)
123
0.74 (0.029)
1.14 (0.045)
TO39 (TO205AD)
PINOUTS
1 – Emitter 2 – Base 3 – Collector

Partial preview of the text

Download Bipolar NPN Transistor Datasheet from Semelab Plc and more Summaries Electrical Engineering in PDF only on Docsity!

2N2243A

Bipolar NPN Device.

V CEO = 80V

I C = 1A

All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN,JANTX, JANTXV and JANS specifications

Parameter Test Conditions Min. Typ. Max. Units V (^) CEO * 80 V I (^) C(CONT) 1 A h (^) FE @ 10/0.15 (V (^) CE / I (^) C) 40 120 - f (^) t 50M Hz P (^) D 0.8 W

  • Maximum Working Voltage

This is a shortform datasheet. For a full datasheet please contact [email protected]. Semelab Plc reserves the right to change test conditions, parameter limits and package dimensions without notice. Information furnished by Semelab is believedto be both accurate and reliable at the time of going to press. However Semelab assumes no responsibility for any errors or omissions discovered in its use.

Generated 1-Aug-

Bipolar NPN Device in a

Hermetically sealed TO

Metal Package.

Semelab plc. Telephone +44(0)1455 556565. Fax +44(0)1455 552612. E-mail: [email protected] Website: http://www.semelab.co.uk

Dimensions in mm (inches).

(0.500)12.70 (0.035)0.89max. min. 0.41 (0.016)0.53 (0.021)dia.

5.08 (0.200)typ.

0.71 (0.028)0.86 (0.034)

(0.100)2.

45°

6.10 (0.240)6.60 (0.260)

8.51 (0.34)9.40 (0.37) 7.75 (0.305)8.51 (0.335)

0.74 (0.029)^123 1.14 (0.045)

TO39 (TO205AD) PINOUTS 1 – Emitter 2 – Base 3 – Collector
