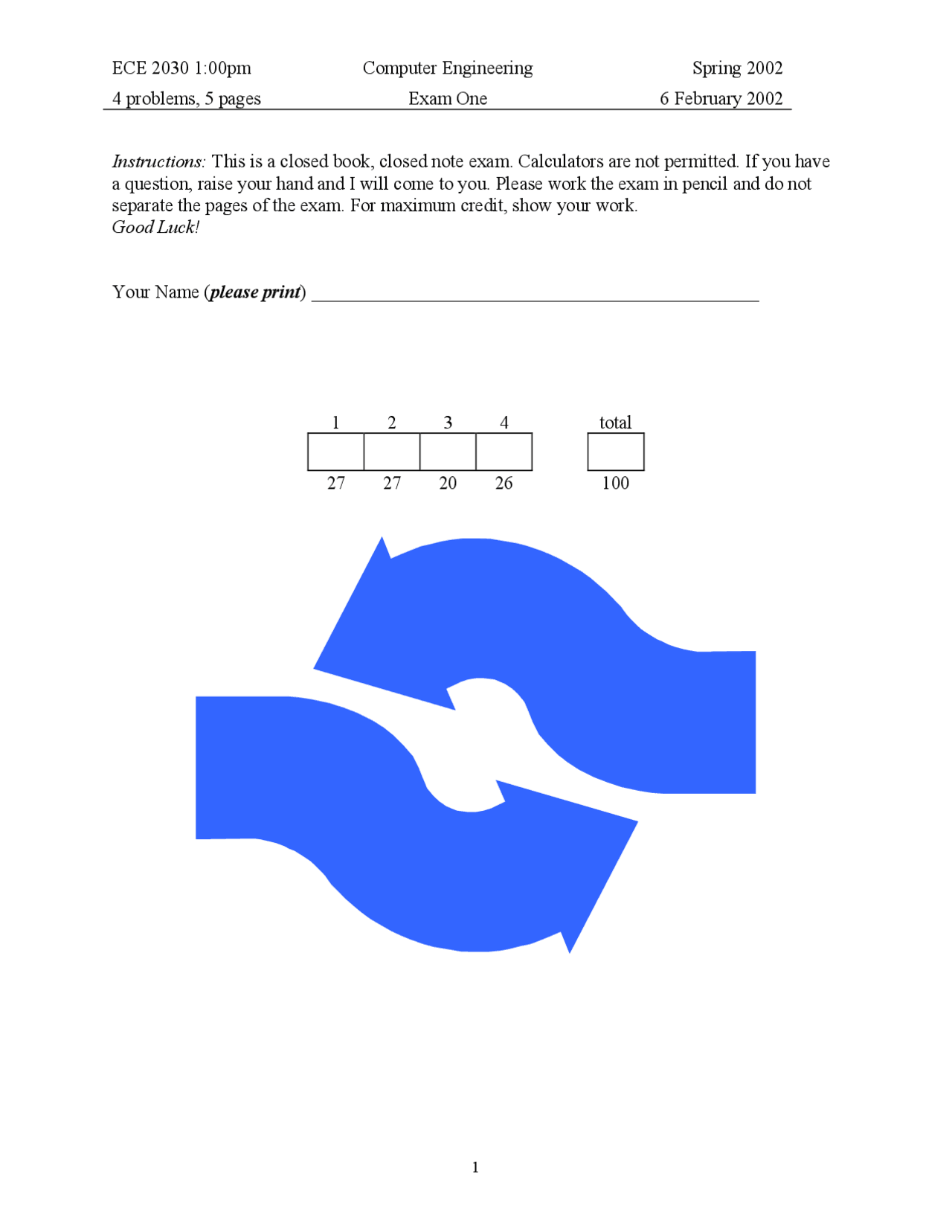

4 problems, 5 pages Exam One 6 February 2002
Instructions: This is a closed book, closed note exam. Calculators are not permitted. If you have a question, raise your hand and I will come to you. Please work the exam in pencil and do not separate the pages of the exam. For maximum credit, show your work. Good Luck!
Your Name ( please print ) ________________________________________________
1 2 3 4 total
4 problems, 5 pages Exam One 6 February 2002
Problem 1 (3 parts, 27 points) Switch Design
For each expression below, create a switch level implementation using N and P type switches. Assume both inputs and their complements are available. Your design should contain no shorts or floats. Use as few transistors as possible.
OUTx = A + B โ C + D OUTy = A โ B + C โ D OUTz = A โ B + C
4 problems, 5 pages Exam One 6 February 2002
Problem 3 (2 parts, 20 points) Playing with Blocks
Part A (10 points) Consider a priority encoder with the following behavior:
In3 In 2 In1 In0 O 1 O 0 Valid 0 0 0 0 X X 0 X X X 1 0 0 1 0 X 1 0 0 1 1 0 1 0 0 1 0 1 1 X X 0 1 1 1
List the inputs (In 0 , In1 , In2 , and In 3 ) in increasing priority.
lowest priority 3 rd^ highest priority 2 nd^ highest priority highest priority
Part B (10 points) Consider the following circuit. For each combination of inputs listed below, describe the corresponding outputs.
In 0
In 1
In^2
In (^3) In 3 > In 2 > In 1 > In 0
Out 0
Out 1
V
In 0
In 1
En
Out 0
Out 1
Out 2
Out 3
oops!
4 problems, 5 pages Exam One 6 February 2002
Problem 4 (2 parts, 26 points) Karnaugh Maps
Part A (13 points) For the follow expression, derive a simplified sum of products expression using a Karnaugh Map. Circle and list the prime implicants, indicating which are essential.
Out = A โ B โ D + A โ B โ C + B โ C โ D + A โ C โ D + A โ B โ D
prime implicants
essential? yes no
simplified SOP expression Part B (13 points) For the follow expression, derive a simplified product of sums expression using a Karnaugh Map. Circle and list the prime implicants, indicating which are essential.
Out =( A + C + D )โ ( A + B + C )โ ( A + C + D )โ ( A + B + C + D )
prime implicants
essential? yes no
simplified POS expression
