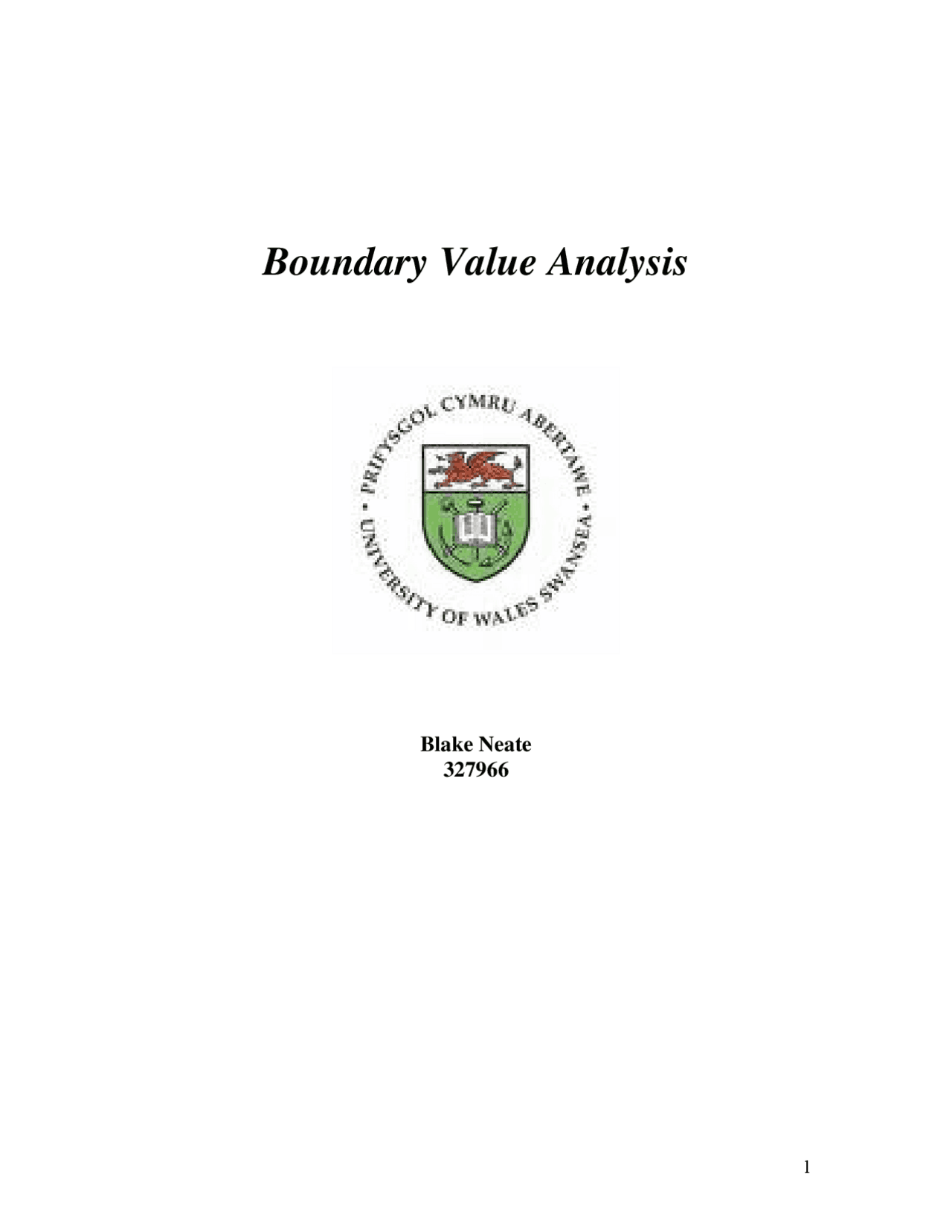

Boundary Value Analysis

Blake Neate

Contents

• 1.0 Introduction
• 2.0 The Testing Problem
• 3.0 The Typing of Languages
• 4.0 Focus of BVA
• 5.0 Applying Boundary Value Analysis
  • 5.1 Some Important examples
  • 5.2 Critical Fault Assumption
  • 5.3 Generalising BVA
  • 5.4 Limitations of BVA
• 6.0 Robustness Testing
• 7.0 Worst Case Testing
  • 7.1Robust Worst Case Testing
• 8.0 Examples: Test Cases
  • 8.1 Next Date problem
  • 8.2 Tri-angle problem
• 9.0 Conclusion
• 10.0 References

ineffective when used in conjunction with languages of this nature, BVA can be seen as unsuitable for systems created using them.

Boundary Value Analysis is therefore more suitable to more “free-form” languages such as COBOL and FORTRAN which are not so strongly typed. These are also known as weak typing languages and can be seen as languages which allow one type (i.e. a String) to be seen as another (i.e. an Int). This can be useful but it can also cause bugs. These bugs or errors are normally found in the ranges that BVA operates in and therefore can find.

4.0 The Focus of BVA

Boundary Value Analysis focuses on the input variables of the function. For the purposes of this report I will define two variables ( I will only define two so that further examples can be kept concise) X 1 and X 2. Where X 1 lies between A and B and X 2 lies between C and D.

A ≤ X 1 ≤ B C ≤ X 2 ≤ D

The values of A, B, C and D are the extremities of the input domain. These are best demonstrated by figure 4.1.

a

c

b

d

x (^1)

x 2 Input Space (domain)

The Yellow shaded area of the graph shows the acceptable/legitimate input domain of the given function. As the name suggests Boundary Value Analysis focuses on the boundary of the input space to recognize test cases. The idea and motivation behind BVA is that errors tend to occur near the extremities of the input variables. The defects found on the boundaries of these input variables can obviously be the result of countless possibilities.

Figure 4.

But there are many common faults that result in errors more collated towards the boundaries of input variables. For example if the programmer forgot to count from zero or they just miscalculated. Errors in the code concerning loop counters being off by one or the use of a < operator instead of ≤. These are all very common mistakes and accompanied with other common errors we find an increasing need to perform Boundary Value Analysis.

5.0 Applying Boundary Value Analysis

In the general application of Boundary Value Analysis can be done in a uniform manner. The basic form of implementation is to maintain all but one of the variables at their nominal (normal or average) values and allowing the remaining variable to take on its extreme values. The values used to test the extremities are:

• Min ------------------------------------- Minimal
• Min+ ------------------------------------- Just above Minimal
• Nom ------------------------------------- Average
• Max- ------------------------------------- Just below Maximum
• Max ------------------------------------- Maximum

In continuing our example this results in the following test cases shown in figures 5.1 and 5.2:

Figure 5.

a

c

b

d

x (^1)

x 2 Test Cases (function of two variables)

Figure 5.

C4. a < b + c. C5. b < a + c. C6. c < a + b.

Otherwise this is declared not to be a triangle. The type of the triangle, provided the conditions are met, is determined as follows:

1. If all three sides are equal, the output is Equilateral.
2. If exactly one pair of sides is equal, the output is Isosceles.
3. If no pair of sides is equal, the output is Scalene.

5.2 Critical Fault Assumption

The Critical Fault Assumption also known as the single fault assumption in reliability theory. The assumption relies on the statistic that failures are only rarely the product of two or more simultaneous faults. Upon using this assumption we can reduce the required calculations dramatically.

The amount of test cases for our example as you can recall was 9. Upon inspection we find that the function f that computes the number of test cases for a given number of variables n can be shown as:

f = 4 n + 1

As there are four extreme values this accounts for the 4 n. The addition of the constant one constitutes for the instance where all variables assume their nominal value.

5.3 Generalising BVA

There are two approaches to generalising Boundary Value Analysis. We can do this by the number of variables or by the ranges these variables use. To generalise by the number of variables is relatively simple. This is the approach taken as shown by the general Boundary Value Analysis technique using the critical fault assumption.

Generalizing by ranges depends on the type of the variables. For example in the NextDate example proposed by P.C. Jorgensen [1], we have variable for the year, month and day. Languages similar to the likes of FORTRAN would normally encode the month’s variable so that January corresponded to 1 and February corresponded to 2 etc. Also it would be possible in some languages to declare an enumerated type {Jan, Feb, Mar,……, Dec}. Either way this type of declaration is relatively simple because the ranges have set values.

When we do not have explicit bounds on these variable ranges then we have to create our own. These are know as artificial bounds and can be illustrated via the use of the Tri-

angle problem. The point raised by P.C. Jorgensen was that we can easily impose a lower bound on the length of an edge for the tri-angle as an edge with a negative length would be “silly”. The problem occurs when trying to decide upon an upper bound for the length of each length. We could use a certain set integer, we could allow the program to use the highest possible integer (normally denoted as something to the effect of MaxInt). The arbitrary nature of this problem can lead to messy results or non concise test cases.

5.4 Limitations of BVA

Boundary Value Analysis works well when the Program Under Test (PUT) is a “function of several independent variables that represent bounded physical quantities” [1]. When these conditions are met BVA works well but when they are not we can find deficiencies in the results.

For example the NextDate problem, where Boundary Value Analysis would place an even testing regime equally over the range, tester’s intuition and common sense shows that we require more emphasis towards the end of February or on leap years.

The reason for this poor performance is that BVA cannot compensate or take into consideration the nature of a function or the dependencies between its variables. This lack of intuition or understanding for the variable nature means that BVA can be seen as quite rudimentary.

6.0 Robustness Testing

Robustness testing can be seen as and extension of Boundary Value Analysis. The idea behind Robustness testing is to test for clean and dirty test cases. By clean I mean input variables that lie in the legitimate input range. By dirty I mean using input variables that fall just outside this input domain.

In addition to the aforementioned 5 testing values (min, min+, nom, max-, max) we use two more values for each variable (min-, max+), which are designed to fall just outside of the input range.

If we adapt our function f to apply to Robustness testing we find the following equation:

f = 6 n + 1

I have equated this solution by the same reasoning that lead to the standard BVA equation. Each variable now has to assume 6 different values each whilst the other values are assuming their nominal value (hence the 6 n ), and there is again one instance whereby all variables assume their nominal value (hence the addition of the constant 1). These result can be seen in figures 6.1 and 6.2.

We can see from the results in figures 7.1 and 7.2 that worst case testing is a more comprehensive testing technique. This can be shown by the fact that standard Boundary Value Analysis test cases are a proper subset of Worst-Case test cases.

a

c

b

d

x 1

x 2 Worst Case Test Cases (function of two variables)

Figure 7.1 Figure 7.

These test cases although more comprehensive in their coverage, constitute much more endeavour. To compare we can see that Boundary Value Analysis results in 4 n + 1 test case where Worst-Case testing results in 5n^ test cases. As each variable has to assume each of its variables for each permutation (the Cartesian product) we have 5 to the n test cases.

For this reason Worst-Case testing is generally used for situations that require a higher degree of testing (where failure of the program would be very costly)with less regard for the time and effort required as for many situations this can be too expensive to justify.

7.1 Robust Worst-Case Testing

If the function under test were to be of the greatest importance we could use a method named Robust Worst-Case testing which as the name suggests draws it attributes from Robust and Worst-Case testing.

Test cases are constructed by taking the Cartesian product of the 7-tuple set defined in the Robustness testing chapter. Obviously this results in the largest set of test results we have seen so far and requires the most effort to produce.

We can see that the function f (to calculate the number of test cases required) can be adapted to calculate the amount of Robust Worst-Case test cases. As there are now 7 values each variable can assume we find the function f to be:

f = 7 n

This function has also been reached in the paper A Testing and analysis tool for Certain 3-Variable functions [2].

The results for the continuing example can be seen in figures 7.3 and 7.4.

Figure 7.

Figure 7.

Examples: Test

Cases

Worst Case Test Cases (60 of 125)

Case month day year Expected Output 1 1 1 1812 January 2, 1812 2 1 1 1813 January 2, 1813 3 1 1 1912 January 2, 1912 4 1 1 2011 January 2, 2011 5 1 1 2012 January 2, 2012 6 1 2 1812 January 3, 1812 7 1 2 1813 January 3, 1813 8 1 2 1912 January 3, 1912 9 1 2 2011 January 3, 2011 10 1 2 2012 January 3, 2012 11 1 15 1812 January 16, 1812 12 1 15 1813 January 16, 1813 13 1 15 1912 January 16, 1912 14 1 15 2011 January 16, 2011 15 1 15 2012 January 16, 2012 16 1 30 1812 January 31, 1812 17 1 30 1813 January 31, 1813 18 1 30 1912 January 31, 1912 19 1 30 2011 January 31, 2011 20 1 30 2012 January 31, 2012 21 1 31 1812 February 1, 1812 22 1 31 1813 February 1, 1813 23 1 31 1912 February 1, 1912 24 1 31 2011 February 1, 2011 25 1 31 2012 February 1, 2012 26 2 1 1812 February 2, 1812 27 2 1 1813 February 2, 1813 28 2 1 1912 February 2, 1912 29 2 1 2011 February 2, 2011 30 2 1 2012 February 2, 2012

Case month day year Expected Output 31 2 2 1812 February 3, 1812 32 2 2 1813 February 3, 1813 33 2 2 1912 February 3, 1912 34 2 2 2011 February 3, 2011 35 2 2 2012 February 3, 2012 36 2 15 1812 February 16, 1812 37 2 15 1813 February 16, 1813 38 2 15 1912 February 16, 1912 39 2 15 2011 February 16, 2011 40 2 15 2012 February 16, 2012 41 2 30 1812 error 42 2 30 1813 error 43 2 30 1912 error 44 2 30 2011 error 45 2 30 2012 error 46 2 31 1812 error 47 2 31 1813 error 48 2 31 1912 error 49 2 31 2011 error 50 2 31 2012 error 51 6 1 1812 June 2, 1812 52 6 1 1813 June 2, 1813 53 6 1 1912 June 2, 1912 54 6 1 2011 June 2, 2011 55 6 1 2012 June 2, 2012 56 6 2 1812 June 3, 1812 57 6 2 1813 June 3, 1813 58 6 2 1912 June 3, 1912 59 6 2 2011 June 3, 2011 60 6 2 2012 June 3, 2012

As we can see there are only 60 of 125 test cases in this example, this shows the vast amount of test cases produced.

8.2 Tri-angle problem

Standard Boundary Value Analysis test cases:

Case a b c Expected Output 1 100 100 1 Isosceles 2 100 100 2 Isosceles 3 100 100 100 Equilateral 4 100 100 199 Isosceles 5 100 100 200 Not a Triangle 6 100 1 100 Isosceles 7 100 2 100 Isosceles 8 100 199 100 Isosceles 9 100 200 100 Not a Triangle 10 1 100 100 Isosceles 11 2 100 100 Isosceles 12 199 100 100 Isosceles 13 200 100 100 Not a Triangle

Boundary Value Analysis Test Cases

min = 1 min+ = 2 nom = 100 max- = 199 max = 200

Worst-Case Analysis test cases:

Case a b c Expected Output 1 1 1 1 Equilateral 2 1 1 2 Not a Triangle 3 1 1 100 Not a Triangle 4 1 1 199 Not a Triangle 5 1 1 200 Not a Triangle 6 1 2 1 Not a Triangle 7 1 2 2 Isosceles 8 1 2 100 Not a Triangle 9 1 2 199 Not a Triangle 10 1 2 200 Not a Triangle 11 1 100 1 Not a Triangle 12 1 100 2 Not a Triangle 13 1 100 100 Isosceles 14 1 100 199 Not a Triangle 15 1 100 200 Not a Triangle 16 1 199 1 Not a Triangle 17 1 199 2 Not a Triangle 18 1 199 100 Not a Triangle 19 1 199 199 Isosceles 20 1 199 200 Not a Triangle 21 1 200 1 Not a Triangle 22 1 200 2 Not a Triangle 23 1 200 100 Not a Triangle 24 1 200 199 Not a Triangle 25 1 200 200 Isosceles 26 2 1 1 Not a Triangle 27 2 1 2 Isosceles 28 2 1 100 Not a Triangle 29 2 1 199 Not a Triangle 30 2 1 200 Not a Triangle

Case a b c Expected Output 31 2 2 1 Isosceles 32 2 2 2 Equilateral 33 2 2 100 Not a Triangle 34 2 2 199 Not a Triangle 35 2 2 200 Not a Triangle 36 2 100 1 Not a Triangle 37 2 100 2 Not a Triangle 38 2 100 100 Isosceles 39 2 100 199 Not a Triangle 40 2 100 200 Not a Triangle 41 2 199 1 Not a Triangle 42 2 199 2 Not a Triangle 43 2 199 100 Not a Triangle 44 2 199 199 Isosceles 45 2 199 200 Scalene 46 2 200 1 Not a Triangle 47 2 200 2 Not a Triangle 48 2 200 100 Not a Triangle 49 2 200 199 Scalene 50 2 200 200 Isosceles 51 100 1 1 Not a Triangle 52 100 1 2 Not a Triangle 53 100 1 100 Isosceles 54 100 1 199 Not a Triangle 55 100 1 200 Not a Triangle 56 100 2 1 Not a Triangle 57 100 2 2 Not a Triangle 58 100 2 100 Isosceles 59 100 2 199 Not a Triangle 60 100 2 200 Not a Triangle

Worst Case Test Cases (60 of 125)

Again this is only up to 60 of 125 test cases.

9.0 Conclusion

As Glenford J. Myers [3] summarises, we can find that Boundary Value Analysis “if practised correctly, is one of the most useful test-case-design methods”. But he goes on to say that it is often used ineffectively as the testers often see it as so simple they misuse it, or don’t use it to its full potential. This is a very true interpretation of the use of Boundary Value Analysis.

BVA can provide a relatively simple and formal testing technique that can be very powerful when used correctly. When issues arise such as dependencies between variables or a need for foresight into the system’s functionality, we can find Boundary Value Analysis restrictive (as shown by the NextDate problem).
